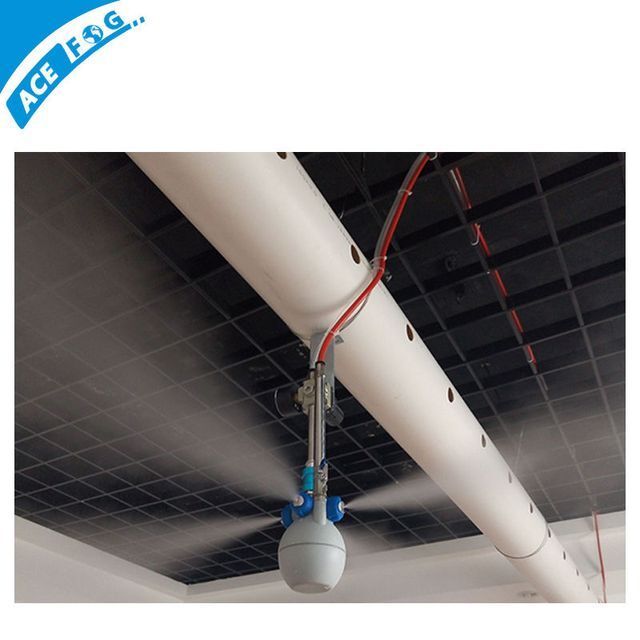

Acefog cool mist fogger mushroom humidifier fogger dry mist system
- $160.00 / >=2 units
- 2 units
- Henan Lunyee Industrial Automation Equipment Co., Limited.
- Henan, China
- Ms Michelle Wang
| Product name: | dry mist system; | Place of Origin: | Henan, China; |
| Local Service Location: | None; | After-sales Service Provided: | Engineers available to service machinery overseas,Online support; |
| Air Pipe dia: | 10mm; | Type: | Dry fog air water atomizer; |
| Air water consumption: | 12L/H; | Nozzle quantity: | 4; |
| Condition: | New; | Port: | Qingdao/ Shanghai/ Guangzhou; |
| Warranty of core components: | 6 Months; | Video outgoing-inspection: | Not Available; |
| Core Components: | Motor; | Warranty: | 36 Months; |

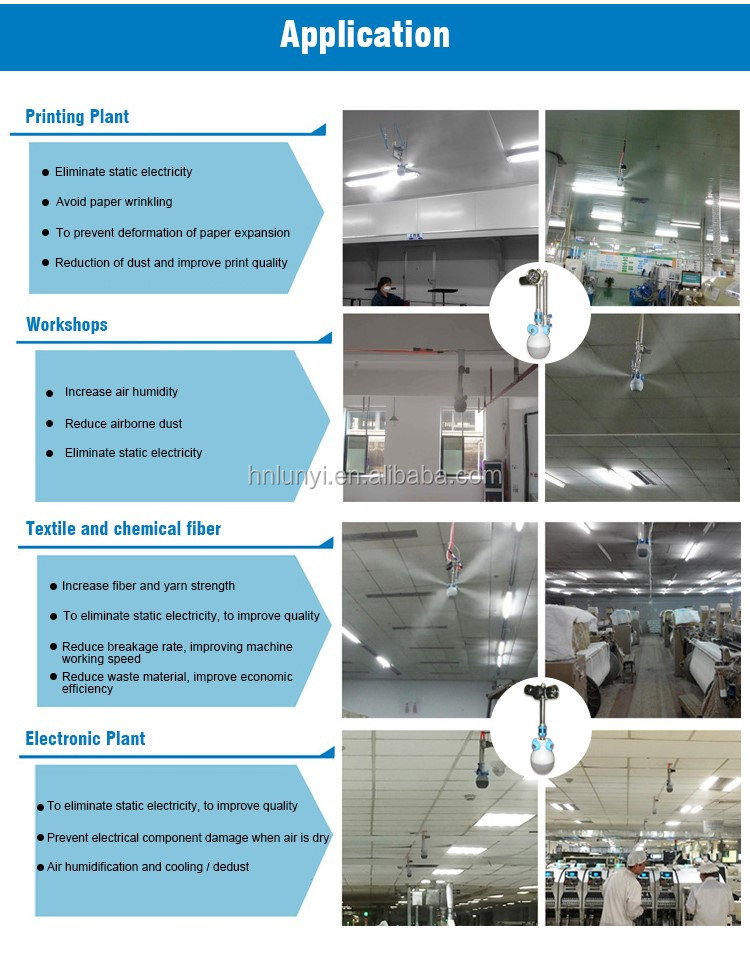

| Applicable Industries: | Home Use,Retail,Energy & Mining; | Working pressure: | 3 bar; |
| Payment Terms: | Western Union,T/T,paypal, alibaba trade assurance; | Dimension(L*W*H): | 40*18*16CM; |
| Brand Name: | AceFog; | Packaging Detail: | 1. standard carton lined with foam for quantity under 49 pieces 2.standard ply woodcase for quantity above 50 pieces; |
| Weight: | 1.3kg; | Nozzle material: | Stainless steel; |
| After Warranty Service: | Online support; | Certification: | CE; |
| Supply Ability: | 500 Units per Week dry mist system; | Voltage: | 220V 50Hz, 110v 60Hz; |
| Showroom Location: | None; | Water pipe dia: | 8mm; |
| Marketing Type: | New Product 2020; | Spray distance: | 5-6M; |
| Machinery Test Report: | Not Available; |

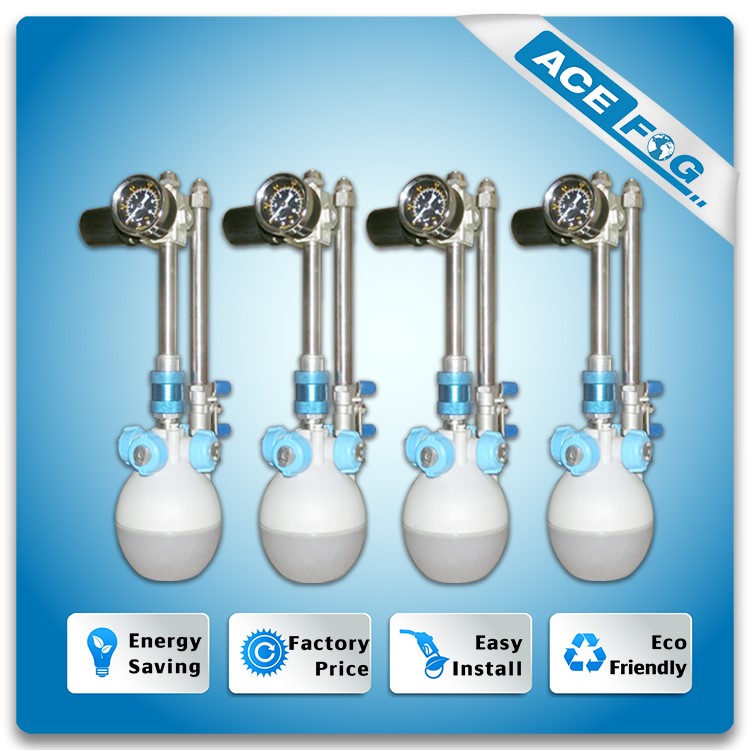

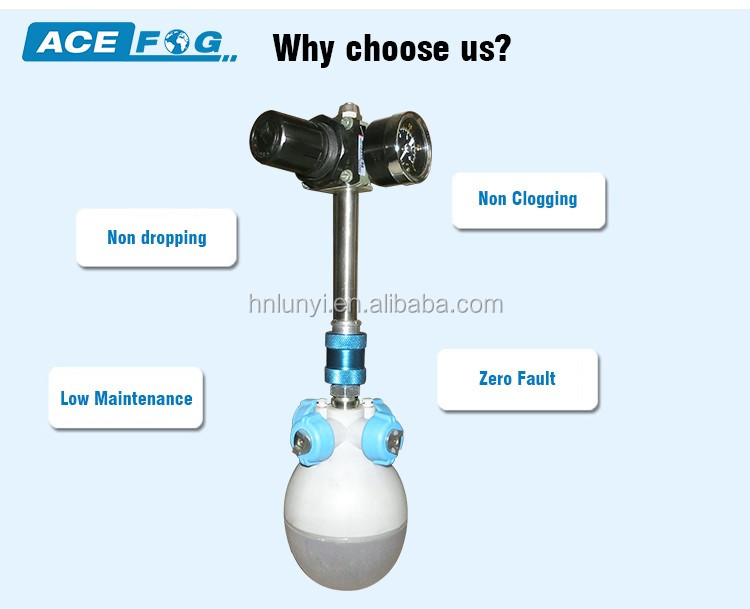

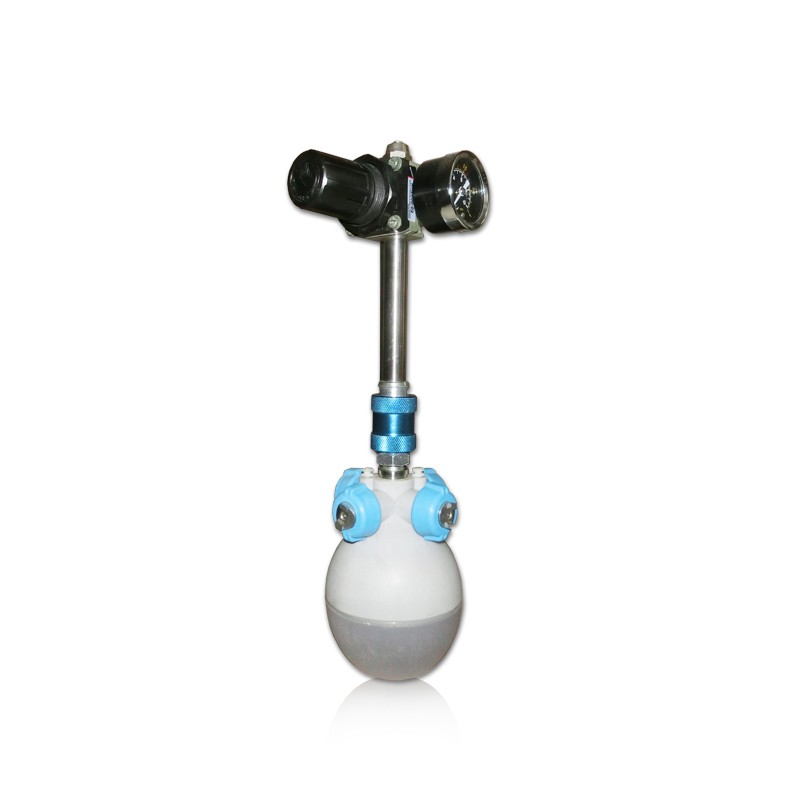

Acefog cool mist fogger mushroom humidifier fogger dry mist system

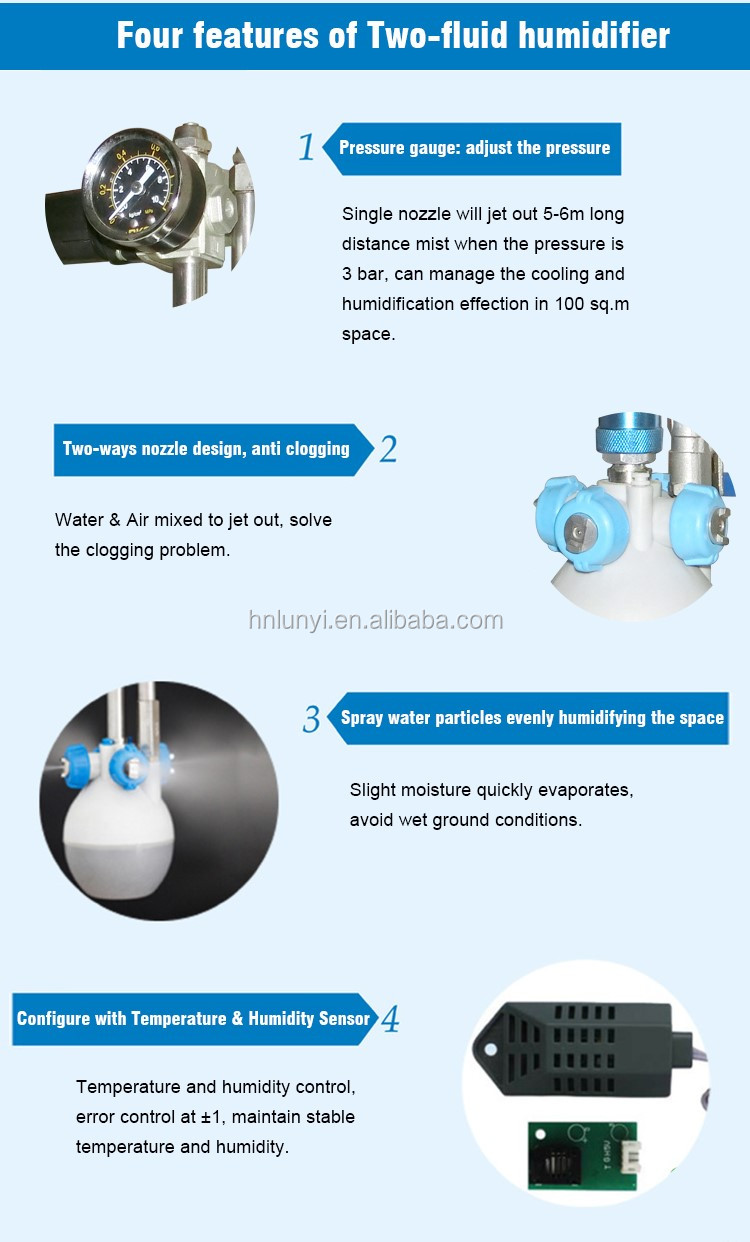

1. Water pipe 8mm Rc 1/4 Connect with 8mm PU pipe
2. Air pipe connect with 10mm Pu Pipe
3. Spray nozzle Material 316 stainless steel
The longest durable years could be 5 years, 2 years warranty. It base on the water quality, so the water must be soft and pure water
It should be Avoid Sun Exposure, thus get a long using time. Veterinary medicine, disinfection and low corrosive liquid is available
Technical data of dry fog sprayer
|
Nozzle model (Bar) |
Mist spray capacity (L/H) |
Air consumption capacity (m³/min) |
Mist distance (M) |
Mist size (μm) |
Mist achieve area (square meter) |
|
1 |
11 |
≥0.150 |
12-15 |
5-10 |
50-150 |
|
2 |
13 |
≥0.150 |
12-15 |
20-30 |
50-150 |
|
3 |
18 |
≥0.150 |
12-15 |
40-60 |
50-150 |
Air compressor confugiration matched data
|
Pressure 3bar |
|||||
|
Atomizer sprayer (unit) |
Mist spray capacity (L/H) |
Air consumption capacity (m³/min) |
Air compressor volume (m³/min) |
Working pressure (bar) |
Air compressor power (kw) |
|
1 |
11 |
0.150 |
0.20 |
8 |
1.8 |
|
2 |
22 |
0.300 |
0.32 |
8 |
3.0 |
|
3 |
33 |
0.450 |
0.48 |
8 |
3.0 |
|
4 |
44 |
0.600 |
0.60 |
8 |
4.0 |
|
5 |
55 |
0.760 |
0.75 |
8 |
4.0 |
|
6 |
66 |
0.900 |
1.00 |
8 |
7.5 |
|
8 |
88 |
1.200 |
1.30 |
8 |
11 |
|
10 |
110 |
1.500 |
1.60 |
8 |
11 |
|
12 |
132 |
1.800 |
2.00 |
8 |
15 |
|
18 |
198 |
2.700 |
3.00 |
8 |
22 |

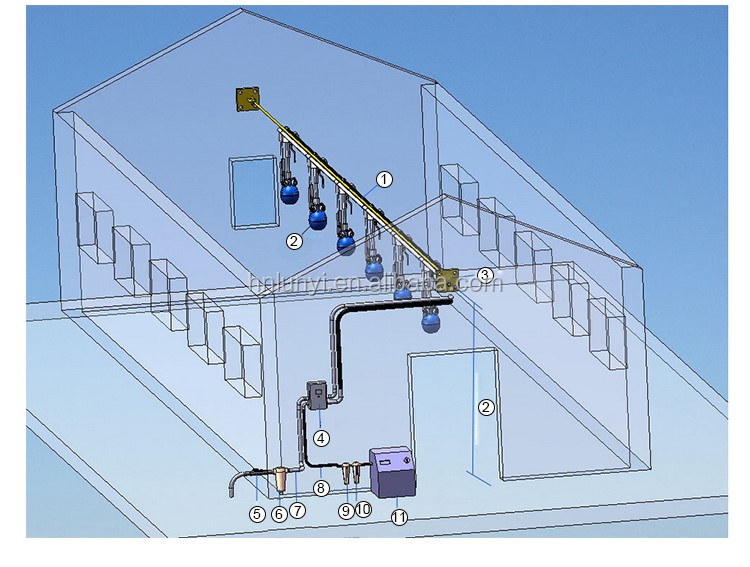

Easliy Installation
1.steel wire
2. humidifier fogger
2.height 2.3m
3.fixed frame
4.humidity control panel
5.bale value
6.water treatment
7.water pipe
8.air pipe
9.water filter
10.air filter
11.air compressor
AceFog is the recognized top manufacturer of industrial humidification system in China.
We focus on research, design, development, manufacture, and sale of humidifying, air cooling, dedusting, dehumidifying and energy saving equipment.
Our factory has three large workshops, covering 3,0000 squre meter area. We have more than 100 employees, equip with professional R&D team, reliable workers and efficient sales service team.
Our company is evolving as the change of customers’ needs, we are committed to developing and engineering new technology to best suit our customers’ demands. So far, we have got many patents on highly advanced and efficient humidifier designs.
