Agricultural Irrigation Pe Hose Farm Irrigation System Spray Irrigation System Pipe Micro Flat Spray Pipe Plastic Irrigation Pipe
- $0.10 / 100 - 999 meters
$0.05 / 1000 - 4999 meters
$0.03 / >=5000 meters - 100 meters
- Changzhou Hantechn Imp.& Exp. Co., Ltd.
- Jiangsu, China
- Mr Simon Jin
PRODUCT DETAIL
| Function: | drip irrigation project | type: | Other Watering and Irrigation |
| Accessories: | Plastic Hose Fittings | Material: | plastic |
| feature: | pack | use: | watering plants |
| Key words: | Irrigation system | port: | Shanghai/Ningbo/Shenzhen/Qingdao/Xiamen |
| Origin: | Jiangsu | MOQ: | 2 meters |
| usage: | Water saving irrigation system | color: | Black |
| payment terms: | L/C, Western Union, D/P, D/A, T/T | Supply capacity: | 1,000,000 pieces per month |
| product name: | farm irrigation system | application: | outdoor irrigation |
Product Description

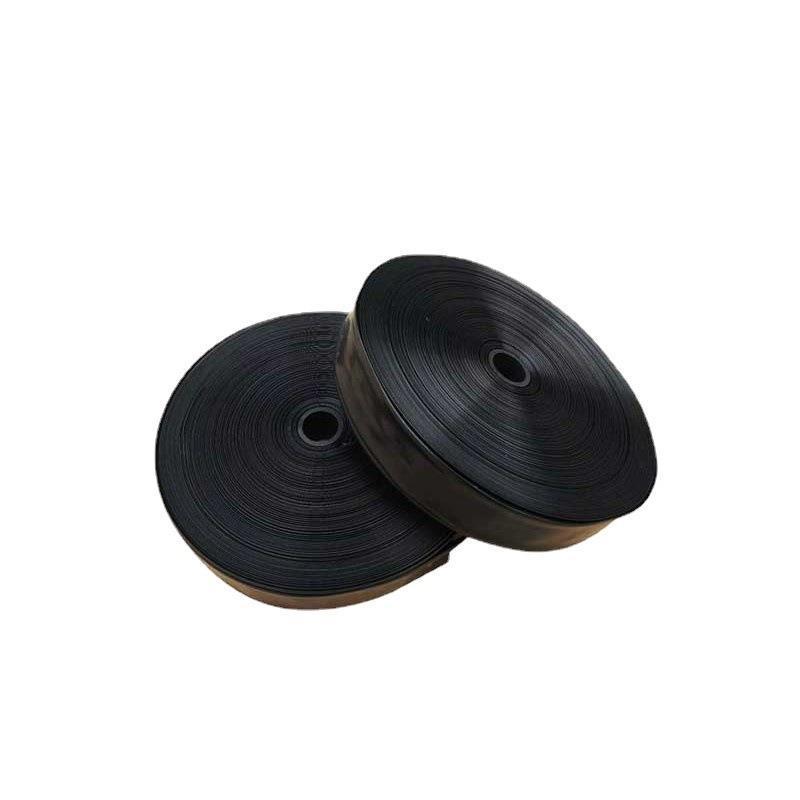

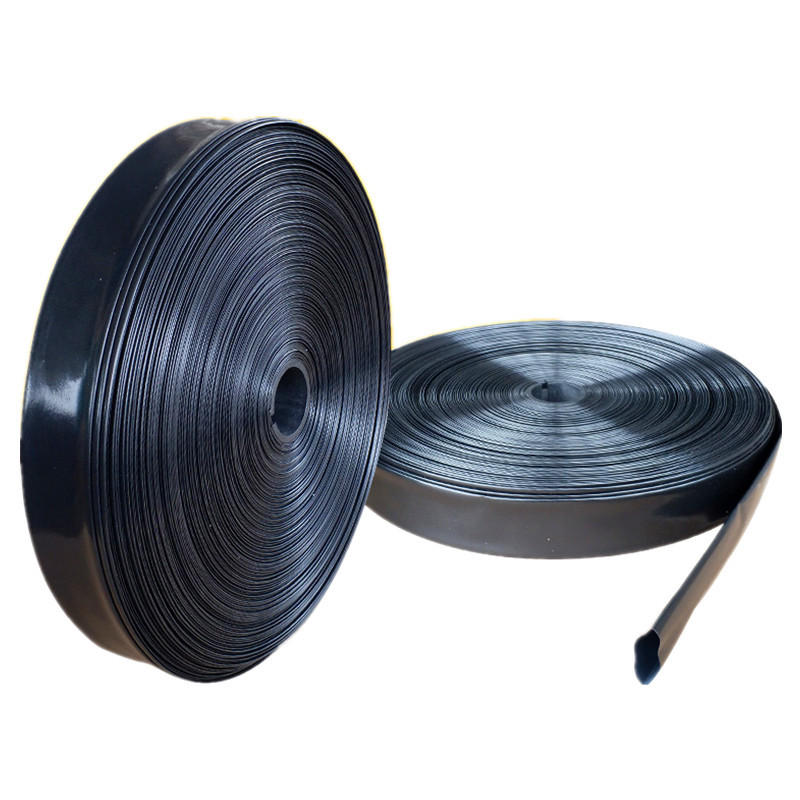

Flat lay PE hose
Lay-lay hose offers unrivaled flexibility compared to HDPE and PVC pipe. Most importantly, this pipeline is compact,
Flat roll packaging, greatly saving transportation costs. As a premium and affordable irrigation solutions provider, offering
Wide range of sizes from 2", 3" to 12" in diameter.
16mm 20mm PE water supply pipes are widely used in urban and rural indoor and outdoor water supply, rural areas and other large and small projects
Water conservancy improvement, farmland irrigation, brine pipeline for salt industry, water delivery for aquaculture, mine ventilation,
Water supply and drainage, sprinkler irrigation in landscaping.
Flat roll packaging, greatly saving transportation costs. As a premium and affordable irrigation solutions provider, offering
Wide range of sizes from 2", 3" to 12" in diameter.
16mm 20mm PE water supply pipes are widely used in urban and rural indoor and outdoor water supply, rural areas and other large and small projects
Water conservancy improvement, farmland irrigation, brine pipeline for salt industry, water delivery for aquaculture, mine ventilation,
Water supply and drainage, sprinkler irrigation in landscaping.
Features
Excellent emission uniformity and anti-clogging properties.
100% PE raw material, anti-ultraviolet, anti-corrosion, durable.
The inner dripper is extruded, light in weight, and packed in rolls for easy transportation.
Suitable for large farm applications.
Accuracy performance Cv≤5%. Drip tape can be easily installed above or below ground. it is designed for use in vegetables
Gardens, narrow rows of vegetation and row crops. Mostly vegetable gardens or vegetable crops are grown in parallel
OK. This makes the layout of the drip tape very easy.
To successfully use drip tape for seed germination, soil type, tape outlet spacing, and depth and spacing between drip tapes
The lateral direction of the drip irrigation tape should be determined first. The drip tape must be close enough to the surface and the drip outlet must
The spacing is small enough for the seeds to germinate. For example, drip tape 4 to 5 inches deep has been used successfully to germinate onions
Seeds in silt loam soil while drip tapes spaced 12 inches apart failed to germinate the same crop evenly.
When using a drip tape system, it is important to use the right amount of water. If you water more than the plants need, most
The benefits offered by the drip tape system would be negated. Soil can become overly wet, promoting disease, weed growth,
and nitrate leaching.
Option One for Large Coils: Mount the drip tape spool to the bracket at the end of the row, tie the bracket to the ground and pull
Drip tape close to the ground.
Step 1: Install drip zone or control valve, including remote control valve or battery powered controller, filter, pressure
Regulators and pipe adapters to PVC or polyethylene pipe. We strongly recommend using a 10 to 15 PSI pressure regulator.
Step 2: Lay out the main transverse or supply lines, PVC pipes or polyethylene pipes perpendicular to the rows.
Step 3: Place the drip tape at the selected layout or spacing (see two options suggested above).
Spacing suggestion: Arrange the drip irrigation tape in the center of the vegetable row, one per row, or one between two rows.
If the bed is less than 2 feet wide, OK.
Excellent emission uniformity and anti-clogging properties.
100% PE raw material, anti-ultraviolet, anti-corrosion, durable.
The inner dripper is extruded, light in weight, and packed in rolls for easy transportation.
Suitable for large farm applications.
Accuracy performance Cv≤5%. Drip tape can be easily installed above or below ground. it is designed for use in vegetables
Gardens, narrow rows of vegetation and row crops. Mostly vegetable gardens or vegetable crops are grown in parallel
OK. This makes the layout of the drip tape very easy.
To successfully use drip tape for seed germination, soil type, tape outlet spacing, and depth and spacing between drip tapes
The lateral direction of the drip irrigation tape should be determined first. The drip tape must be close enough to the surface and the drip outlet must
The spacing is small enough for the seeds to germinate. For example, drip tape 4 to 5 inches deep has been used successfully to germinate onions
Seeds in silt loam soil while drip tapes spaced 12 inches apart failed to germinate the same crop evenly.
When using a drip tape system, it is important to use the right amount of water. If you water more than the plants need, most
The benefits offered by the drip tape system would be negated. Soil can become overly wet, promoting disease, weed growth,
and nitrate leaching.
Option One for Large Coils: Mount the drip tape spool to the bracket at the end of the row, tie the bracket to the ground and pull
Drip tape close to the ground.
Step 1: Install drip zone or control valve, including remote control valve or battery powered controller, filter, pressure
Regulators and pipe adapters to PVC or polyethylene pipe. We strongly recommend using a 10 to 15 PSI pressure regulator.
Step 2: Lay out the main transverse or supply lines, PVC pipes or polyethylene pipes perpendicular to the rows.
Step 3: Place the drip tape at the selected layout or spacing (see two options suggested above).
Spacing suggestion: Arrange the drip irrigation tape in the center of the vegetable row, one per row, or one between two rows.
If the bed is less than 2 feet wide, OK.

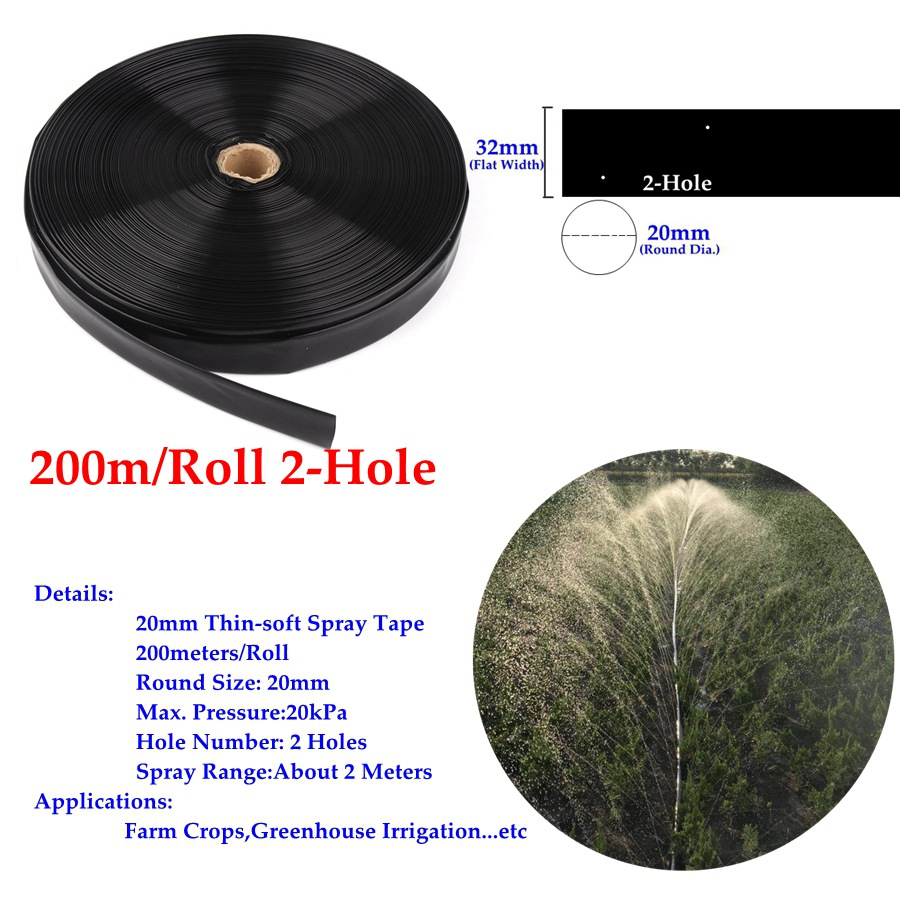

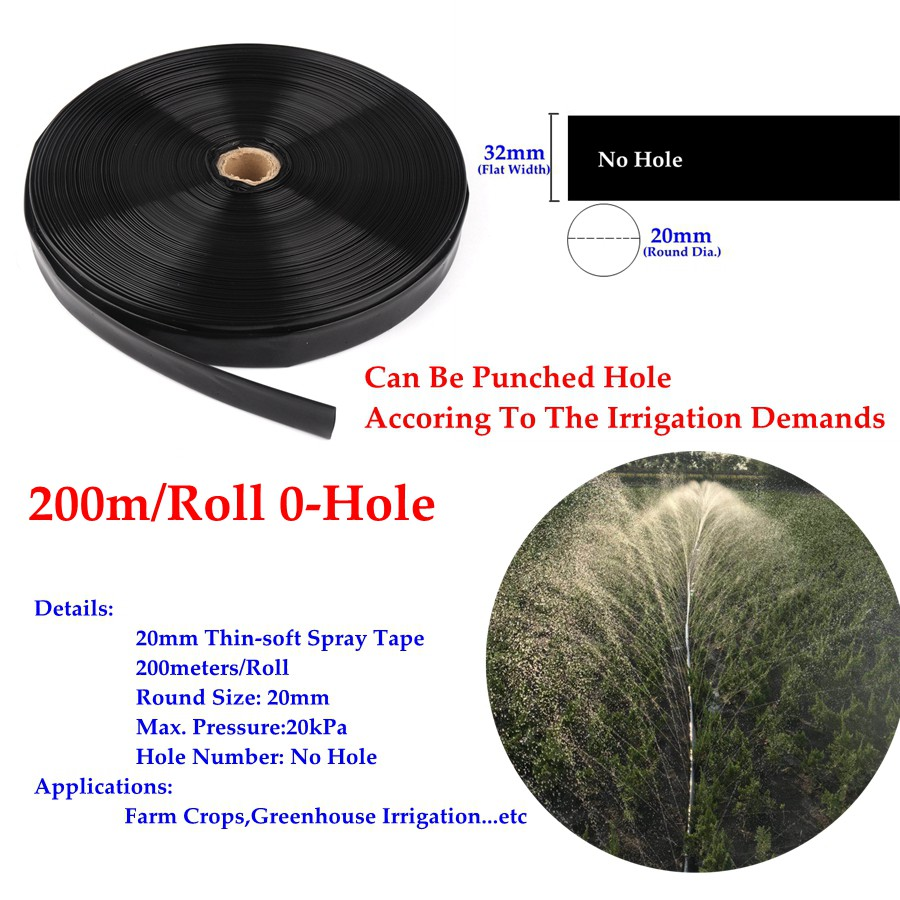

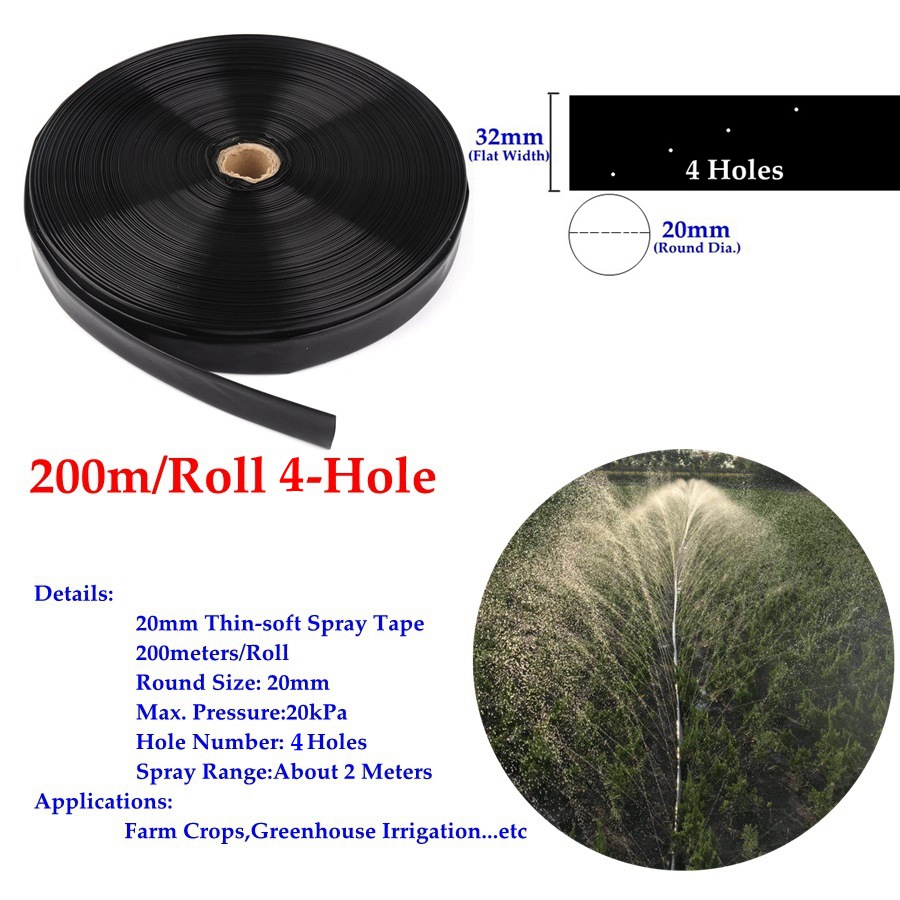

Specification
width (mm) | diameter (mm) | wall thickness (mm) | Roll weight (Kilogram) | roll length (rice) |
35 | twenty two | 0.18 | 10.5 | 1000 |
45 | 28 | 0.18 | 13.5 | 1000 |
50 | 32 | 0.2 | 20 | 1000 |
65 | 40 | 0.23 | 5 | 200*5 |
80 | 50 | 0.3 | 5 | 100*4 |
100 | 63 | 0.3 | 6 | 100*3 |
