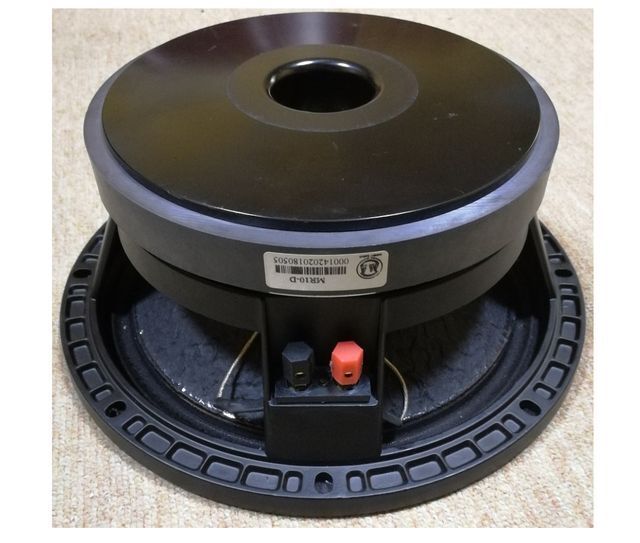

Aluminum iron frame active subwoofer speaker professional 10 inch midrange speakers
- $39.60 / 1 - 19 pieces
$33.60 / 20 - 199 pieces
$29.60 / 200 - 1999 pieces
$23.30 / >=2000 pieces - 1 piece
- Guangzhou Merry Audio Equipment Co., Ltd.
- Guangdong, China
- Mr Dennis Yang
PRODUCT DETAIL
| Frequency Range (Hz): | 65-3.8KHZ; | Payment Terms: | L/C,T/T,Western Union,MoneyGram; |
| Model Number: | MR10-D; | Packaging Detail: | Common carton that protect speaker from damage, or as your OEM requirements.; |
| Voice Coil Winding Depth : | 14mm; | Sensitivity (1W/1M) : | 94.3dB; |
| RMS Power Input : | 200w; | Magnet : | Ferrite Ring; |
| Product Name: | 10 inch midrange speakers; | Supply Ability: | 8000 Pieces per Month; |
| Frequency Range : | 65-3.8KHz; | Nominal Impedance : | 8 Ohm; |
| Port: | Guangzhou; | Power: | 200W; |
| MAX Power Input : | 400w; | Place of Origin: | Guangdong, China; |
| Voice Coil Diameter : | 75(3'')mm; | Brand Name: | Mlon; |
| Nominal Diameter : | 254(10'')mm; |
Products Description
Thiele & Small Parameters | ||||||
Resonance Frequency : | Fs | Hz | 62 | |||
DC Resistance : | Re | Ohm | 4.8 | |||
Mechanical Q Factor : | Qms | 5.79 | ||||
Electrical Q Factor : | Qes | 0.40 | ||||
Total Quality Factor : | Qts | 0.38 | ||||
Equivalent Volume : | Vas | L | 30 | |||
Effective Moving Mass : | Mms | g | 37.8 | |||
Mechanical Compliance : | Cms | μm/N | 176.4 | |||
BL Factor : | BL | T.m | 13.2 | |||
Effective Piston Area : | Sd | cm² | 346.4 | |||
η(Eta Zero) : | η0 | 1.70% | ||||
Max.Linear Excursion : | Xmax | mm | ±3 | |||
Mounting Information | ||||||
Overall Diameter : | mm | 262 | ||||
Mounting Holes Diameter : | mm | 248 | ||||
Bolt Circle Diameter : | mm | 8xΦ7 | ||||
Baffle Cut-Out Diameter : | mm | 232 | ||||
Overall Depth : | mm | 113 | ||||
Net Weight : | kg | 5.8 | ||||
Shipping Weight : | kg | 6.1 | ||||
Shipping Box(Single) : | cm | 26.5*26.5*14 | ||||
Shipping Weight (4 Unit) : | kg | 25.4 | ||||
Shipping Box (4 Unit) : | cm | 55*28*33 | ||||
Hot Products
Company Profile
Guangzhou Merry Audio Equipment Co., Ltd. was founded in 2005 with a concept of "Customer first, reputation premier" to specialize in developing, manufacturing and OEM speakers. With over 10 years development, Merry Audio has become a leading professional speaker manufacturer. We have a 5,000 square meter workshop, introduced world level Class A technical equipment for producing,established 3 modern production lines and a R&D team consisted of 10 professional engineers who focusing on technical developmentand quality control.
Why Choose Us
*Any questions from you are welcome and will be replied in 24 working hours.
*Experienced staff answer all your questions in fluent English.
*Special discount and protection of sales area provided to our distributor.
*Specialized in speakers over 11 years.
*A team of designers and engineers are capable to create new items according to personal request.
*Customized design is available.
*Welcome OEM and ODM.
Certifications
Packing & Shipping
Packaging :
Common carton that protect speaker from damage, or as your OEM requirements.
Shipping:
Express/ Airlift / FCL(Full Container Load) or LCL, FOB / EXW / CIF or CNF. Our sales team are capable enough to arrange the shipment if you want.
