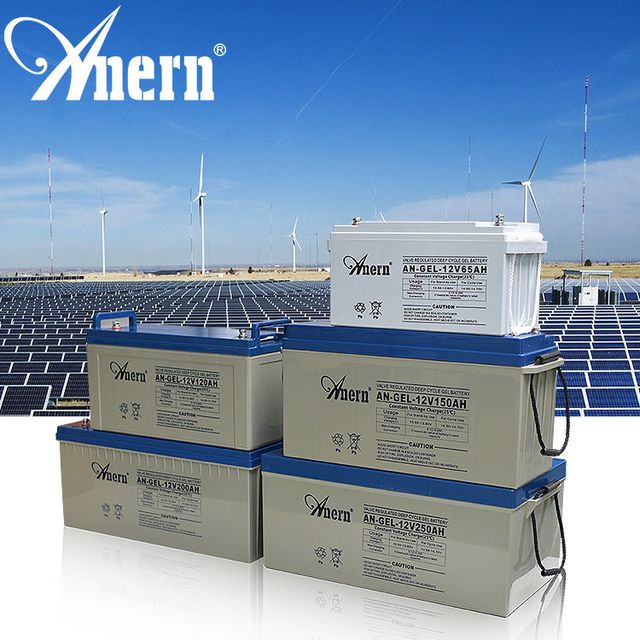

Anern solar battery 12v 400ah

PRODUCT DETAIL
Battery size:100~250AHPackaging Details:Standard export carton with foam inside for long distance shipping and tough handling.
port:Guangzhou, Shenzhenterminal type:F5/T9
Voltage (V):12VTerminal Material:copper
weight:59 kgtype of battery:Deep Cycle Gel Battery
Dimensions (mm):330*171*214/484*171*240/522*238*221/521*269*220place of origin; place of origin:Guangdong, China
Design floating life (20℃):12 yearsmodel:AN-GEL-100AH
Maximum discharge current:1000A (5 seconds)application:Home appliances, power systems, solar energy storage systems
Certification:CE, ROHSSupply capacity:1000pcs free shipping per month battery solar 12v 400ah
payment terms:L/C,D/P,D/A,T/T,Alipay,PaypalWeight (kg):26.20kg/38.04kg/57.30kg/65.60kg
Capacity (AH):100AH~250AHbrand:Anann, Anann
Warranty:3 years
Related Products
Product Description
standard:
Absorbent glass mat technology, approved for UL and CE ABS containers.
General Features:
1. Mesh refinement techniques and coarsening
2.plates for extended battery standby
3. Longevity and reduced grid corrosion rate
4. Using oxygen composite technology: maintenance-free
5. Unique exhaust valve design: control water loss, prevent air and sparks from entering

Specification
Numbering.
AN-GEL-100AH
AN-GEL-150AH
AN-GEL-200AH
AN-GEL-250AH
Capacity (AH)
100
150
200
250
Voltage (V)
12
12
12
12

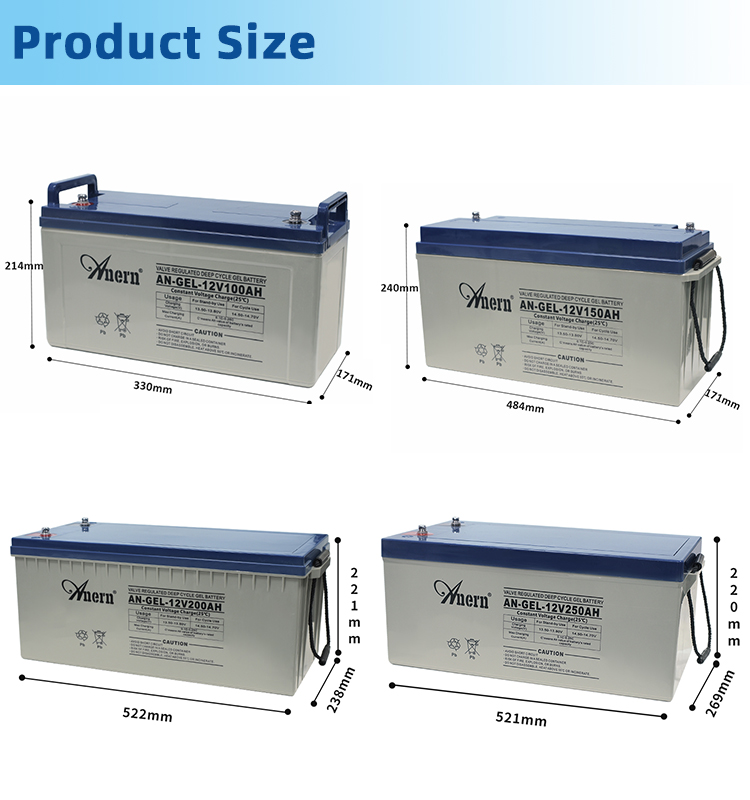

Dimensions (mm)
330*171*214
484*171*240
522*238*221
521*269*220
Weight(KG)
±4%
26.20kg
38.04 kg
57.30 kg
65.60kg
100AH ​​Deep Cycle Gel Battery Specifications:
standard
12 volts
12 volts

Capacity (25℃)
10 hours (10.8V)
100 ah

5 hours (10.5V)
87.5Ah

1 hour (9.60V)
62 Ah


aspect
length
330±2mm (13.0 inches)

width
171±2 mm (6.73 in)

high
214±2 mm (8.19 in)

total height
F5: 220±2mm (8.66 inches)


T9: 224±2mm (8.81 inches)
About. weight
26.2kg±4%
26.2kg±4%
terminal type
F5/T9
F5/T9
Internal resistance (full charge, 25℃)
About. 5.8mΩ

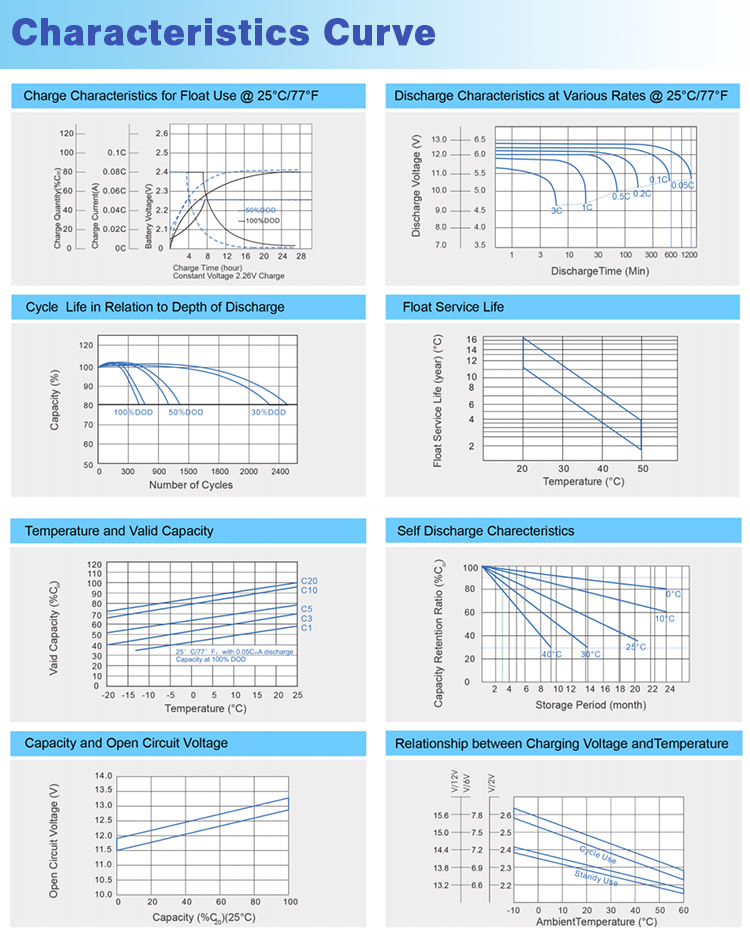

Capacity affected by temperature (10HR)
40℃
102%

25℃
100%

0℃
85%

-15℃
65%

Self-discharge (25℃)
3 months
Remaining capacity: 91%

6 months
Remaining capacity: 82%

12 months
Remaining capacity: 65%
Nominal operating temperature

25℃±3℃(77℉±5℉)


range of working temperature
freed
-15℃~50℃(5℉~122℉)

TOLL
-10℃~50℃(14℉~122℉)

storage
-20℃~50℃(-4℉~122℉)

Float voltage (25℃)
13.50 to 13.80V temperature compensation: -18mV/℃


Cycle charging voltage (25℃)
14.40 to 14.70V temperature compensation: -30mV/℃

Maximum charging current
30A

Terminal material
copper

Maximum discharge current
1000A (5 seconds)

Design floating life (20℃)
12 years
