Anti-interference 12 Volt RGBW Mini DMX Decoder LED Light Driver
- $8.00 / >=500 pieces
- 500 pieces
- Shenzhen G&G Technology Co., Ltd.
- Guangdong, China
- Ms Alice Guo
| payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram, Alipay | Signal output: | Constant current PWM*4 channels |
| Output current: | 350mA/channel (full positive) | current: | 10A, 5A |
| Supply capacity: | 5000 pieces per day | Packaging Details: | carton |
| port: | Shenzhen | Number of driven LEDs: | 1-6pcs / channel 1watt |
| Input voltage: | DC9-24V | Lighting Solutions Services: | Lighting and Circuit Design |
| PCB Dimensions: | 80 mm x 25 mm | Product weight (kg): | 0.03 |
| Origin: | Guangdong, China | Warranty (year): | 1 year |
| brand: | GG&OEM | consumption: | <1W |
| gray scale: | 256 degrees | application: | RGBW LED lights |
| signal input: | DMX512/1990 | product name: | Strong Anti-interference 12V Mini DMX Decoder LED Light Driver |
Strong Anti-interference 12V RGBW Mini DMX Decoder LED Light Driver,
Mini LED Driver, LED Lamp Driver, 12 Volt LED Driver
introduce:

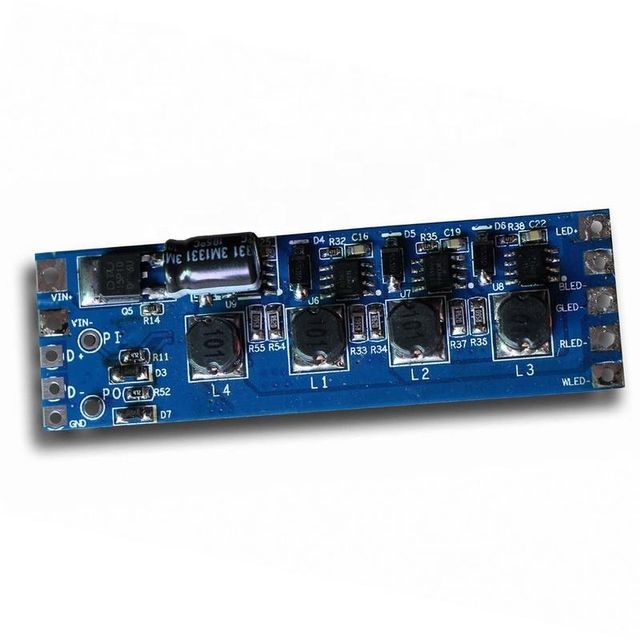

YM-HDC4P is a constant current address DMX512 decoder for RGBW high-power LED lights. This machine adopts advanced coding technology, compatible with international DMX512/1990 standard, and decodes internationally popular digital control signals into PWM signals to drive RGBW LED lights. Each channel can control 256 gray levels.
Specifications:
|
Item Number |
YM-HDC4P-24W |
YM-HDC4P-72W |
|
grayscale |
256 levels |
|
|
Input voltage |
DC9V-24V |
|
|
Output current |
350mA/channel (full positive) |
700mA/channel (full positive) |
|
Output Power |
24W |
72W |
|
signal input |
DMX512/1990 |
|
|
signal output |
Constant current PWM*4 channels |
|
|
Number of driving LEDs |
1-6pcs / channel 1watt |
1-6pcs / channel 3watt |
|
consume |
<1W |
|
|
PCB Dimensions |
80 mm x 25 mm |
|
feature:
1. Perfectly compatible with the international DMX512/1990 standard.
2. Differential signal transmission, supporting 3 data transmission methods:
3. Display effect
If connected to DMX512 LED controller or DMX512 console, the effect will follow DMX512 LED controller or DMX512 console, and change color according to their commands.
If not connected to a DMX512 LED controller or DMX512 console, the effect will be preloaded on the decoder side.
4. Parallel connection
Each decoder is connected in parallel on the DMX512 signal bus. It is recommended to use a signal amplifier every 32 decoders to prevent signal drop (attenuation).
5. Strong anti-interference ability, anti-static, anti-lightning design.
application:
LED projection lights, LED wall washers, LED floor lights, LED ceiling lights, channel lights, full-color RGBW lights and LED point light sources.
input Output:
G&G Technology Co., Ltd. is a leading LED lighting solution provider in China with GG and YM brands, designing and manufacturing various lighting products, LED lights, LED displays, LED strips, LED control systems, LED modules, LED point light source pixels, LED drivers, power supplies, and can design and develop lighting solutions according to customer requirements. Our spacious factory premises are equipped with the latest manufacturing equipment and state-of-the-art R&D technology, enabling us to provide high quality products
Samples are available. After you purchase this product, we will provide you with thoughtful after-sales service. Our engineers will carefully guide you to install and use. This will include the connection of the controller and lights, as well as the control software.
1.Generllay we ship after we receive the payment
2. If your amount is more than USD 5000, you can pay 30% in advance, when we ship before, you pay the balance
3. EXW, FOB, CIF, CFR, etc.
