At the lowest price Power cables PP Filler polypropylene

PRODUCT DETAIL
Linear density (denier (D)):20,000-800,000/3,800-300,000/2,000-20,000/2,000-50,000use:other
Yarn type:otherstrength:High
style:otherBreaking strength (g/D):0.2-0.6,0.6-1.4,2-3.5,2.3-3.8
Yarn count:singleProcess:other
elongation(%):≥20,Shipping Details:3 months or according to customers' special requirements.
place of origin; place of origin:China Shanghaicolor:White, transparent, blue black, etc.
twist:twistbrand:shining world
pattern:otherSupply capacity:10000 pieces per month
feature:otherEvenness:Grade AA
port:ChinaHeat shrinkage rate (1000C, 1min) (%):6,4.5,3
Diameter (mm):1-30,0.5-10,0.5-8,0.5-5Cable production materials:Polypropylene filled yarn
model:denier=15000Packaging Details:1. Export standard packaging. 2. All packages should be clearly marked with the package number, gross weight, net weight, product name, size, lifting position and remark marks on the carton.
payment terms:L/C, T/T



Specification



Specification

unit

Ordinary

high score

premium

Extra Stranded

Linear density

Daniel (D)

20,000-800,000

3,800-300,000

2,000-20,000

2,000-50,000

diameter

mm

1-30

0.5-10

0.5-8

0.5-5

Breaking strength

g/day

0.2-0.6

0.6-1.4

2-3.5

2.3-3.8

elongation

%

≥20

≥20

≥20

≥20

Heat shrinkage rate (1000C, 1 minute)

%

6

4.5

3

3

color

white

white

white

Transparent, blue-black, etc.

Transparent, blue-black, etc.

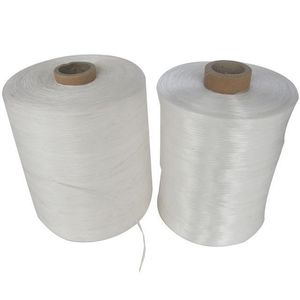

product display







Tube and Spool Dimensions:



size

One

Second

C

Ding

Inner diameter (mm)

38,50,76

38,50,76

76

38

Tube height (mm)

255

310

450

220

Outer diameter (mm)

180-250

200-350

300-500

180-250

Weight (kg)

2.5-8

5-15

15-40

2.5-5



application:
Polypropylene fillers described in this standard are non-hygroscopic and are primarily used to fill the gaps between insulated cores during assembly of insulated cores in order to round the assembled cores when required.

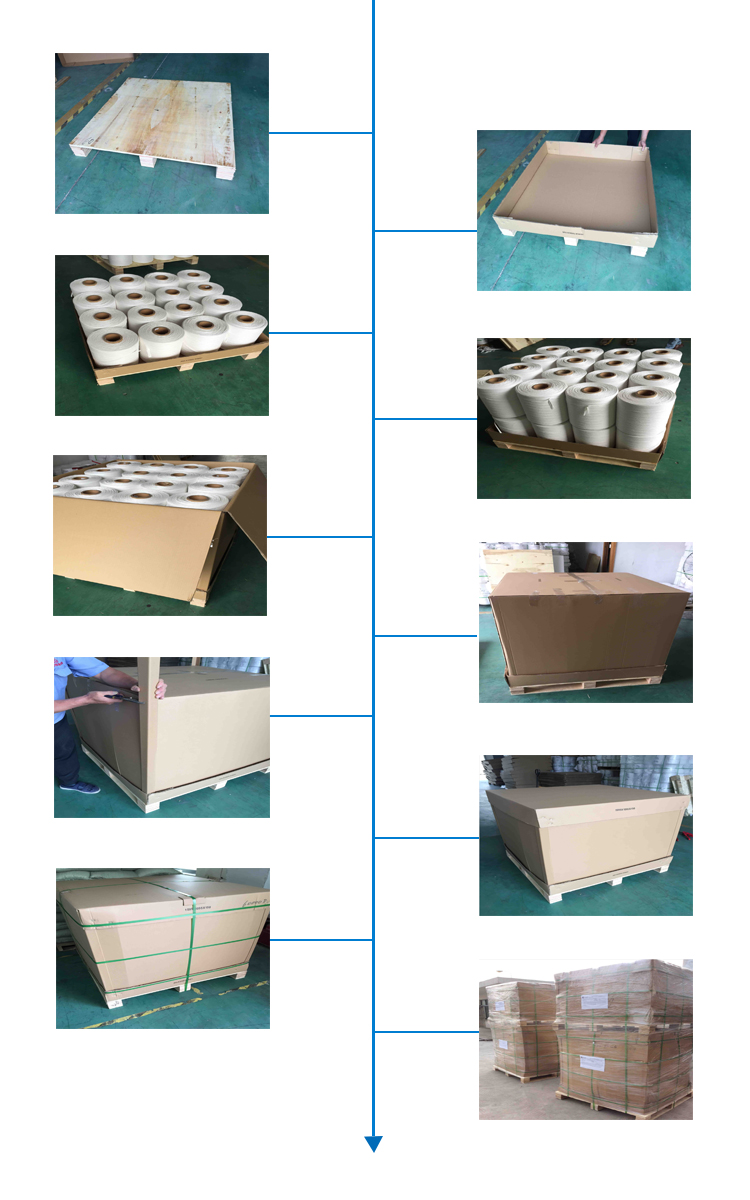

Bale

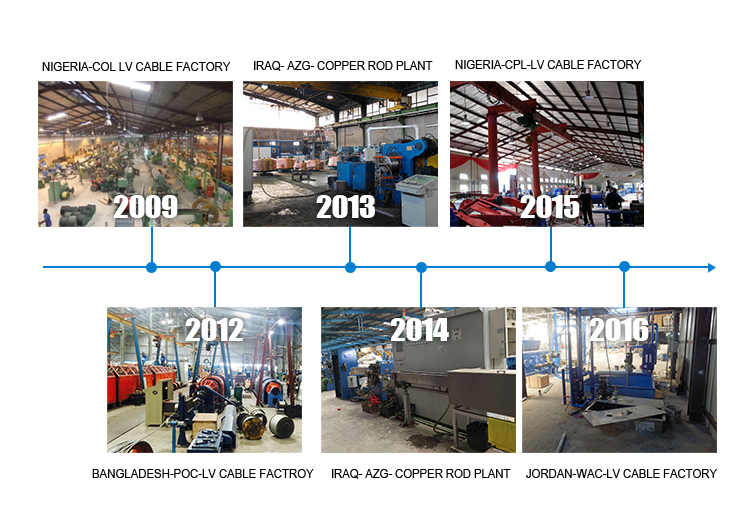

success case
