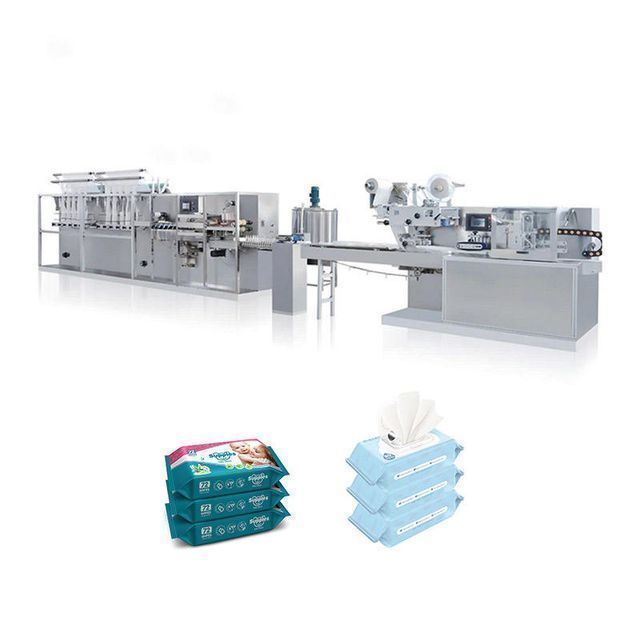

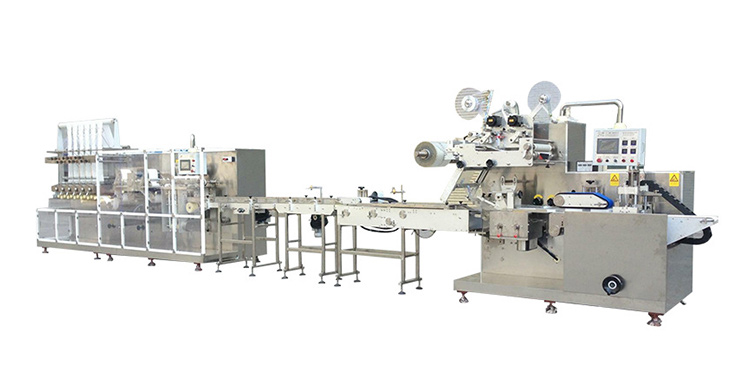

Automatic Production Line Wet Wipes Making Machine 5-30Pcs/bag Wet Wipes Machine High Quality Baby Towel Wipes Machine
- $9800.00 / 1 - 2 sets
$9660.00 / >=3 sets - 1 set
- Henan Fuyuan Machinery Manufacturing Co., Ltd.
- Henan, China
- Mr TOM XIA
PRODUCT DETAIL
| payment terms: | Western Union, T/T, MoneyGram, Kleenex Machine | brand: | Fuyuan |
| strength: | 12kW | Marketing Type: | normal product |
| Video external inspection: | if | Warranty: | 1 year |
| Dimensions (L*W*H): | 6200*2100*1500mm | Applicable industries: | Hotel, Food and Beverage Factory, Farm, Restaurant, Home Use, Retail, Grocery Store, Food and Beverage Store, Other |
| Supply capacity: | 30 sets of automatic production line wipes making machine 5-30Pcs/Bag W per month | Showroom location: | Russia, Thailand, Morocco, Kenya, Argentina, Chile, Colombia, Algeria, Sri Lanka, Romania, South Africa, Nigeria |
| Counting system: | automatic | Fold Type: | Z/N Form Folding |
| Health status: | new | After-sale service: | 24 hours * 7 days online |
| weight: | 2500 | Control System: | PLC+servo+touch screen |
| Core components: | PLC, engine, bearing, gearbox, motor, pressure vessel, gear, pump | Packaging Preview: | |
| product name: | Automatic Wet Wipes Making Machine | Core Components Warranty: | 1 year |
| Raw materials: | Non-woven dust-free paper | Finished folded size: | (110-220)*(90-110)mm |
| Certificate: | CE, ISO | Finished product unfolded size: | (110-220)*(150-220)mm |
| Mechanical test report: | if | Voltage: | 12kw, 220V/380V 50HZ |
| place of origin; place of origin: | Henan, China | port: | Shanghai/Dalian/Shenzhen/Qingdao/etc. Chinese ports according to customer requirements |
| Packaging Details: | 1. Outer full container and wooden box 2. Inner stretch film 3. Automatic production line wet wipes making machine 5-30pcs/bag wet wipes machine high quality baby towel wipes machine |
Product Description
This machine is a special equipment for producing multiple pieces of wet wipes (multiple pieces/removable). After folding, humidifying, cutting, stacking, and counting, the products are automatically output and then automatically enter the packaging machine for coding, unsealing and lamination. After the label and bag are gusseted, it is packaged as a finished product. The whole process does not require manual labor, it is fully automatic, and the production process is fast and safe.
Product Details
product name | wet wipes machine |
capacity | 300~400 packs/min (3600~4800 pcs/min) |
raw material | Spunlace or hot-rolled non-woven fabric, dust-free paper, etc. |
single expanded size | (110-220)×(150~220)mm |
Single fold size | (110-220)×(90~110)mm |
Production Process | Automatic folding, humidification, cutting, packing, printing date |
Folding method | Z/N/W fold (with or without pull out) |
counting method | Automatic counting, variable number of sheets stacking system |
Reel size | ¢1000×240 (mm) |
Slitting length | 80~220mm |
power supply | 380V 50HZ |
Mixing bucket size | 800×800 (mm) (D*H) |
Mixing tank capacity | 400L |

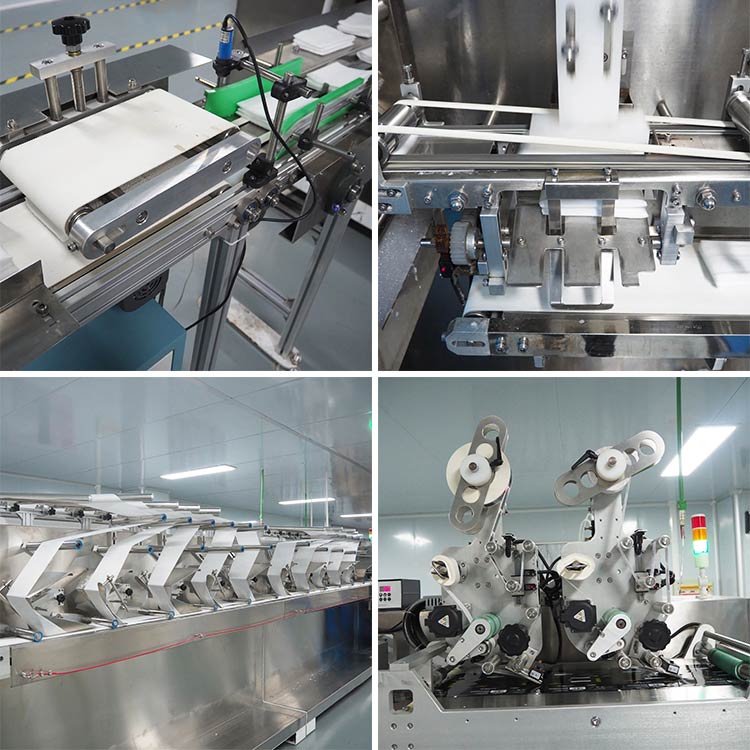

main feature
This machine is specially designed for wet wipes packaging, vertical folding, easy to operate, compact and durable.
1. Production process:Automatic folding, humidification, cutting, packing, printing date
2. Cutting part:Non-woven automatic slitting and folding device
3. Folding part:According to the size of the non-woven fabric, it can be folded according to customer requirements
4. Water tank part:The non-woven fabric is automatically added liquid through the water tank
5. Packaging part:Wet wipes are automatically packaged, packaging requirements can be customized, hanging holes, trimming patterns, etc.
1. Production process:Automatic folding, humidification, cutting, packing, printing date
2. Cutting part:Non-woven automatic slitting and folding device
3. Folding part:According to the size of the non-woven fabric, it can be folded according to customer requirements
4. Water tank part:The non-woven fabric is automatically added liquid through the water tank
5. Packaging part:Wet wipes are automatically packaged, packaging requirements can be customized, hanging holes, trimming patterns, etc.

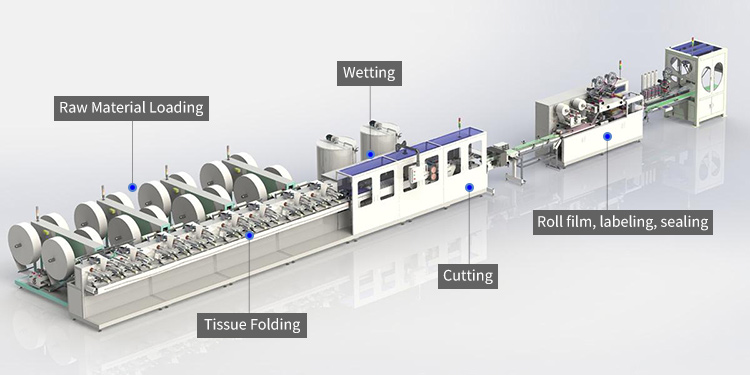

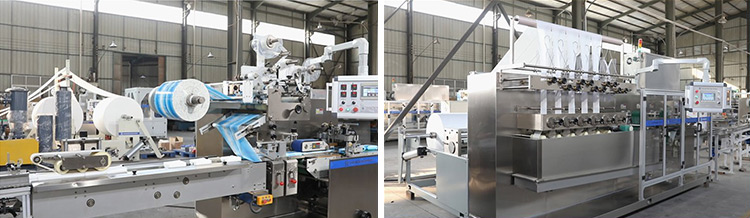

Production Process
Final product display
our service
Pre-sale
1. Online all day, to ensure that all your questions are answered within two hours;
2. Give you professional advice and recommend the machine suitable for you;
3. Schedule a time and invite you to visit our factory.
special offer
1. One-stop service
We provide one-stop service.
One. Because we are a factory with more than 30 years of experience in producing rewinders, we have more competitive prices and quality can be guaranteed;
b. We have a very reliable freight forwarding company, and the delivery period is controllable;
C. We have a professional team of engineers for your installation and worker training.
2. Customized service
All machines can be customized, such as color, embossing, large core diameter.
After the promotion
One year warranty, we provide machine parts for free within one year.
If you have any problems operating the machine, you can let us know.
1. Online all day, to ensure that all your questions are answered within two hours;
2. Give you professional advice and recommend the machine suitable for you;
3. Schedule a time and invite you to visit our factory.
special offer
1. One-stop service
We provide one-stop service.
One. Because we are a factory with more than 30 years of experience in producing rewinders, we have more competitive prices and quality can be guaranteed;
b. We have a very reliable freight forwarding company, and the delivery period is controllable;
C. We have a professional team of engineers for your installation and worker training.
2. Customized service
All machines can be customized, such as color, embossing, large core diameter.
After the promotion
One year warranty, we provide machine parts for free within one year.
If you have any problems operating the machine, you can let us know.
