Automatic combination door cabinet wood disc brush polish sanding sander machine

PRODUCT DETAIL
Feeding speed:5-18m/min;Video outgoing-inspection:Provided;
Key Selling Points:Famous brand PLC;Condition:New;
Disc turn power:1.5kw;Machinery Test Report:Provided;
After-sales Service Provided:Field maintenance and repair service;Packaging Detail:SK6S-1300 wood brush polishing sanding machine, packing with plastic films and wooden box, or as you requirement.;
Marketing Type:New Product 2020;Working height:5-160mm;
Applicable Industries:Building Material Shops,Machinery Repair Shops,Manufacturing Plant,Construction works ,Furniture factory;Machine Type:Wood Sanding Machine;
After Warranty Service:Field maintenance and repair service;Name:Brush Roller Wood Polishing Machine;
Vertical roller turn power:1.5kw x 2;Weight (KG):4500;
Working width:1300mm;Port:Qingdao port, or as your port name in China.;
Place of Origin:China;Core Components:PLC,Engine,Bearing,Motor,Gear,Pump;
Local Service Location:Canada,United Kingdom,Italy,Australia;Adjust height:50mm;
Horizontal roller turn power:3kw x 2;Payment Terms:L/C,Western Union,D/P,D/A,T/T,MoneyGram;
Voltage:220V/3800V/Customize;Brand Name:WFSEN;
Showroom Location:Canada,United Kingdom,United States,Italy,Australia;Warranty:2 years;
Warranty of core components:2 years;Feeding power:2.2kw;

Automatic combination door cabinet wood disc brush polish sanding sander machine

Product Description

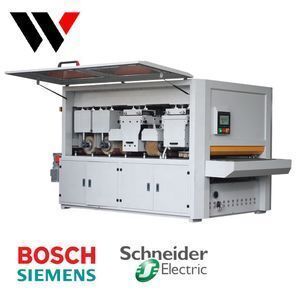

    SK1300-6S wood brush polishing machine

Width1300/1000mm, 6 units, feeding frequency control, each unite can be up or down alone.

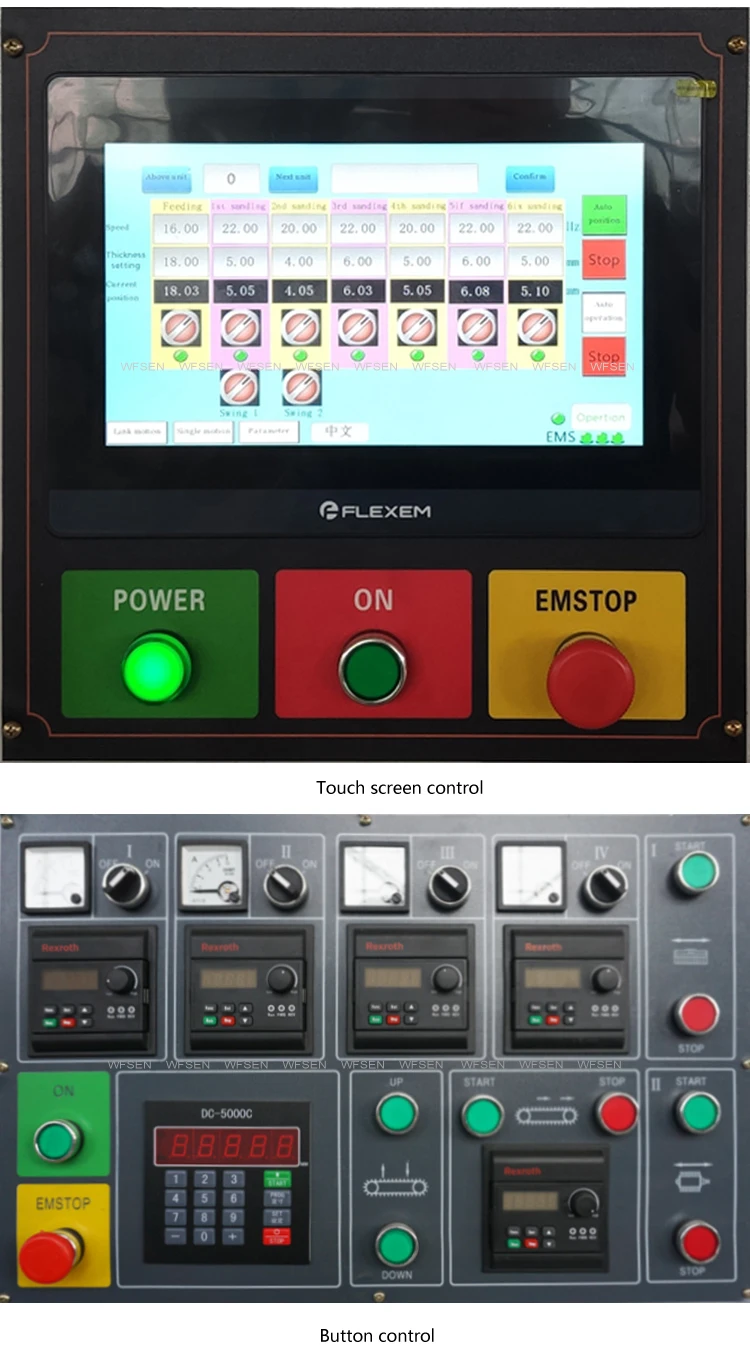

 Germany Rexroth PLC,  CHINT electric appliance, Germany sanding paper, bearing TR China, Marble table.



            4R  polishing machine                                   SF brush polishing machine                              Wire polishing machine

         MF630A auto edge bander                                    MF360B auto edge bander                                MF60S manual edge bander

           Wide belt sanding mahcine                                   Planer+ polishing machine                                                 CNC Router

            Horizontal panel saw                                              Horizontal band saw                                                 Vertical panel saw

                     Hot Press                                                              Cold press                                                          Dust collector

   Vacuum membrance press machine                                  Hinge drill machine                                                  Drill machine

                 Dovetail machine                                           Spindle moulder machine                                         4 side planer moulder

 00MDF solid wood wire panel brush sander machine

K1300-6S MDF solid wood wire panel brush sander

 ———  Technical Parameter



 Model   SK1300-6S        Disc swing power  0.37kw
 Max. working width  1300mm  Disc lifting power  0.37kw
 Max. working height   5-160mm   Vertical roller turn power,  9pcs  1.5kw*2
 Separateness adjust height  50mm   Vertical roller swing power  0.37kw
 Feeding speed  5-18m/min  Vertical roller lifting power  0.37kw
 Total motor power  14.47kw  Horizontal roller turn power  3kw*2
 Feeding power   2.2kw  Horizontal roller lifting power  0.37kw*2
 Feeding plat lifting power  0.55kw  Over dimension  3400*2100*2100mm
 Disc turn power, 11pcs  1.5kw  Weight  4500kg

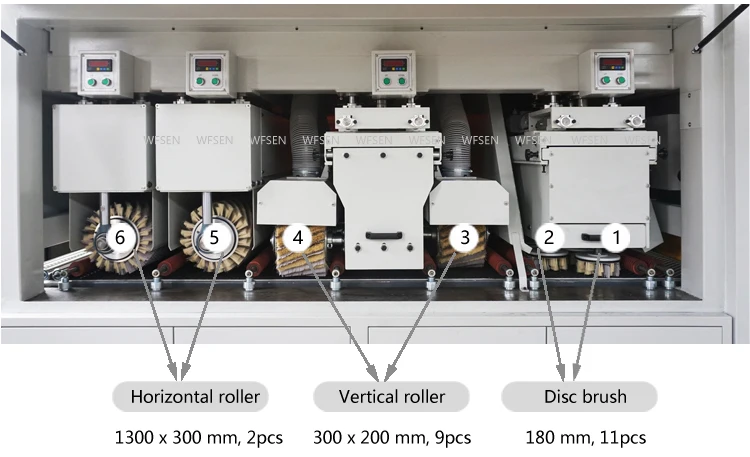

———  Internal Structure





———  Parts Show







———  Suit for working
