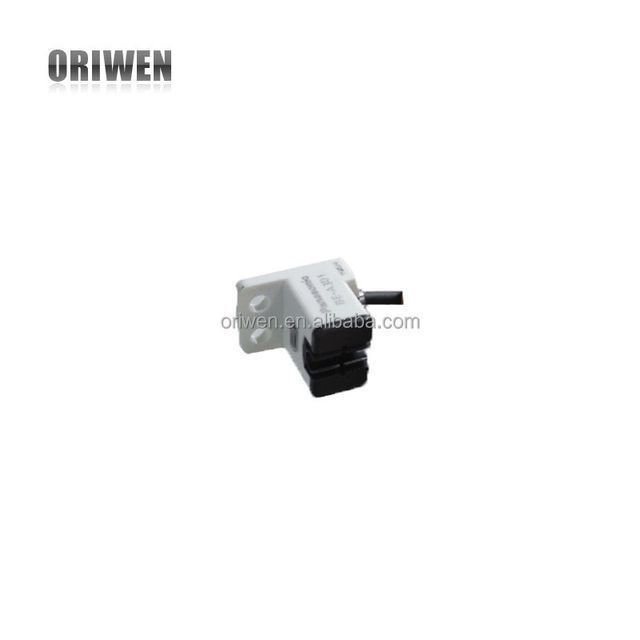

BE-A301 optical bubble sensor in small diameter pipes

PRODUCT DETAIL
weight:Net weight: about 15g, gross weight: about 25gappropriate types:Transparent resin tube
Types of:Photoelectric Sensorstheory:Photoelectric Sensors
Supply capacity:1000 pieces per monthdescribe:BE-A301 Optical Bubble Sensor
Material:Housing: PBT, Tube holder: Polyamide, Indicator: PolycarbonateRunning indicators:Orange LED (lights up when there is no liquid)
brand:imported originalCurrent consumption:15mA or less
usage:Detect air bubbles in the tubecable:0.09 mm2 4-conductor rubber cable 1 m 3.280 ft
Packaging Details:export standardplace of origin; place of origin:Japan
payment terms:L/C, Western Union, D/P, D/A, T/T, MoneyGram, PayPalPackage preview:
model:BE-A301output:NPN
Protect:IP40 (International Electrotechnical Commission)product available:yes
Response time:30, 20μs or less during detectionport:Shanghai
voltage:5 to 24 V DC ±10 % Ripple PP 10 % or less

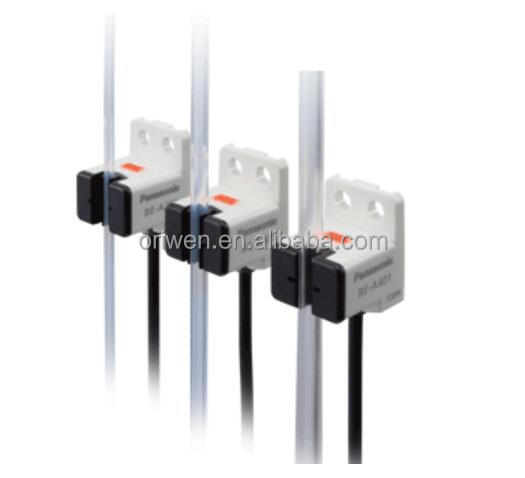

BE-A301 Optical Bubble Sensor in Small Diameter Tube



The sensor is perfectly matched to the applicable pipe size! Unmistakable detection of liquids and air bubbles!

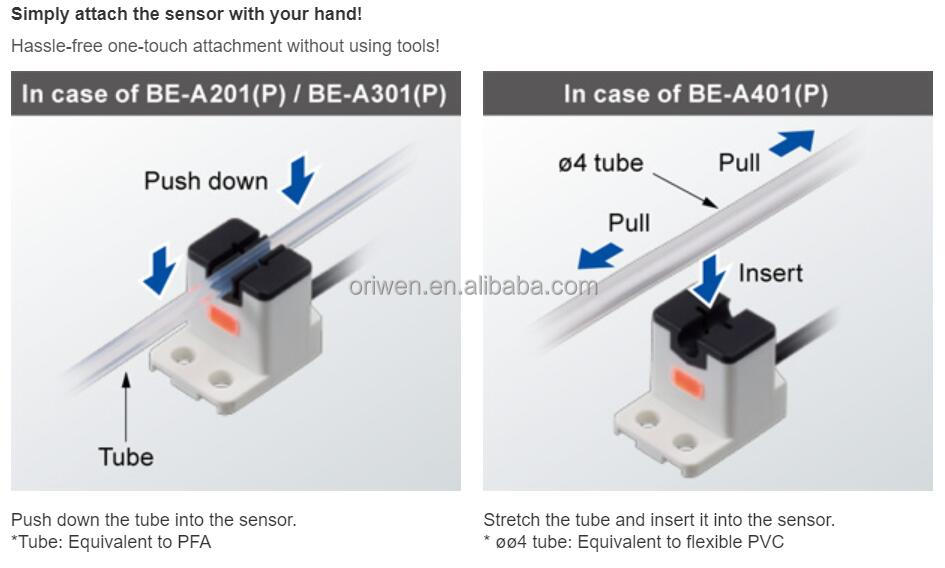

One-click attachment





for small diameter tubes

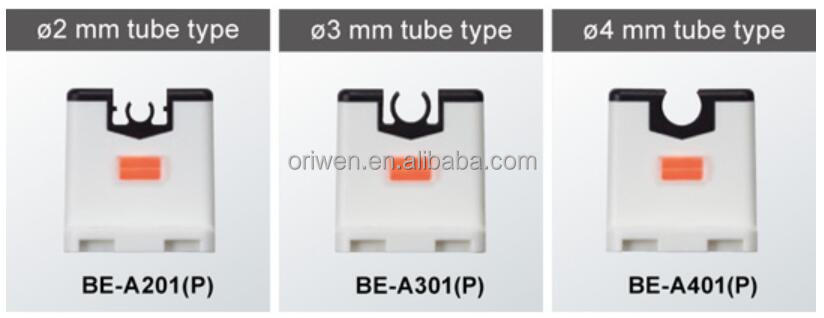

For ø2 mm, ø3 mm, ø4 mm tubes

Fits perfectly on applicable tubing without impeding flow.
Compatible with imperial tubing

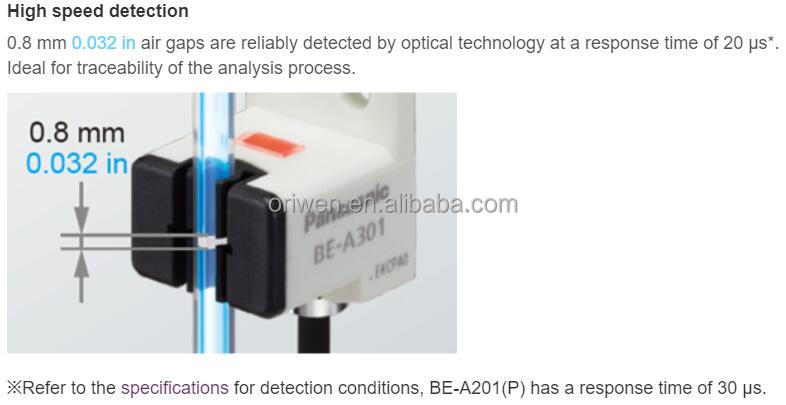

High response time



application

Liquid dispensing instrument and clinical testing equipment, etc.
