Baistra Button Dental High/Low Speed Handpiece Set Dental Handpiece Set
- $40.00 /piece
- 1 piece
- Henan Baistra Industries Corp.
- Henan, China
- Mr Bruce Jin
payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram, PayPal | Shelf life: | / |
Autoclavable: | 135°C | model: | Dental Handpiece Kit |
Quality Certification: | CE | Warranty: | 1 year |
weight: | 780 grams | noise: | ≤70dB |
transportation: | ASAP | Cargo Tracking: | supply |
Material: | steel | Packaging Details: | Dental Handset Kit Carton |
Instrument classification: | Class I | Certificate: | CE |
Origin: | Henan, China | Supply capacity: | 10,000 dental handpiece kits per month |
Item No.: | 1107100213 | After-sales service: | online technical support |
High-speed mobile phone speed: | 370,000-420,000 rpm | safety standard: | GB/T18830-2009 |
brand: | AZDENT | Chuck type: | button |
port: | any port in China | Name: | Dental Handpiece Kit |
Energy source: | electrical |

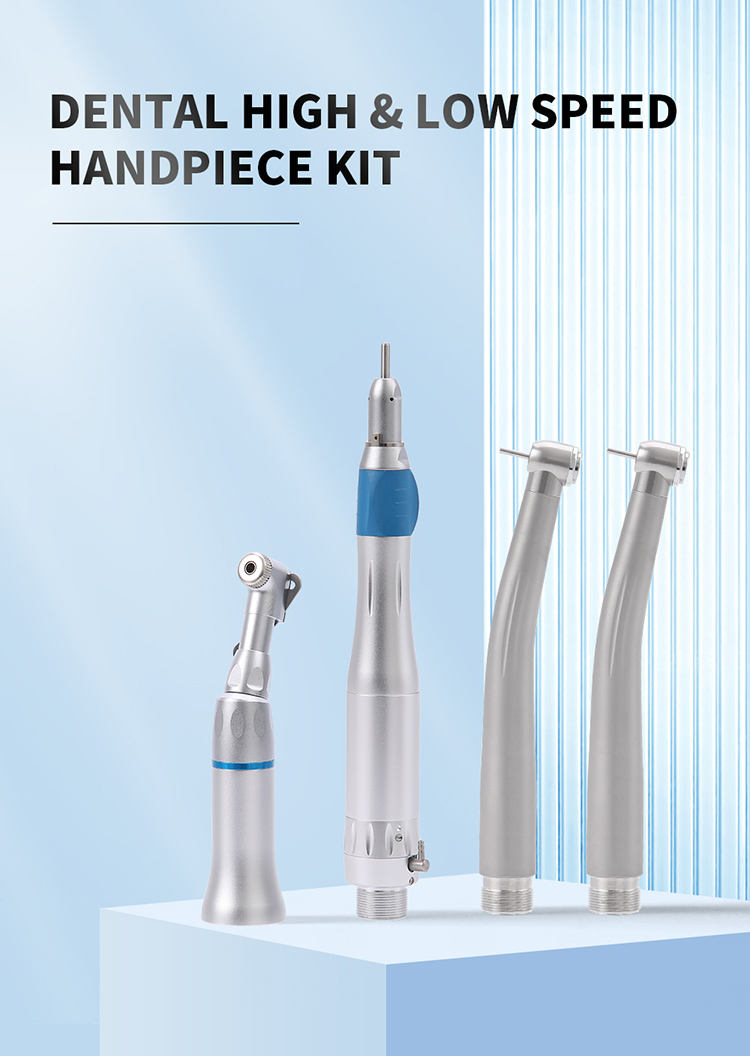

Baistra Button Dental High/Low Speed Handpiece Set Dental Handpiece Set
Seller recommended
-For more products, click here to enter our store-

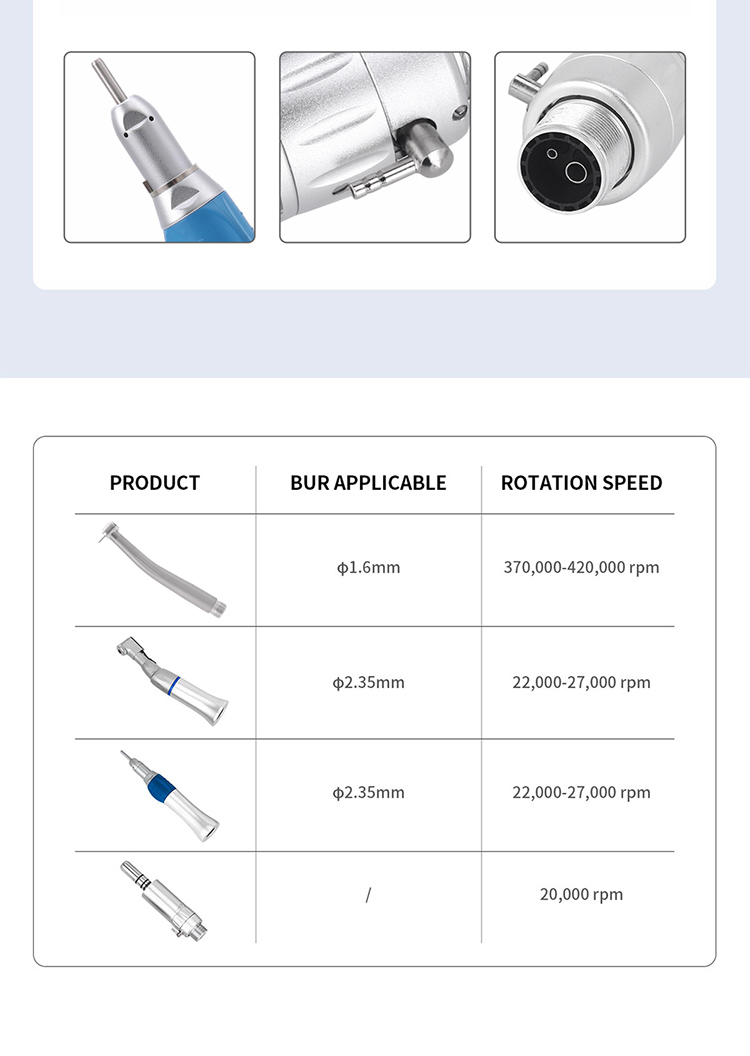

Dental Handpiece Kit Specifications:

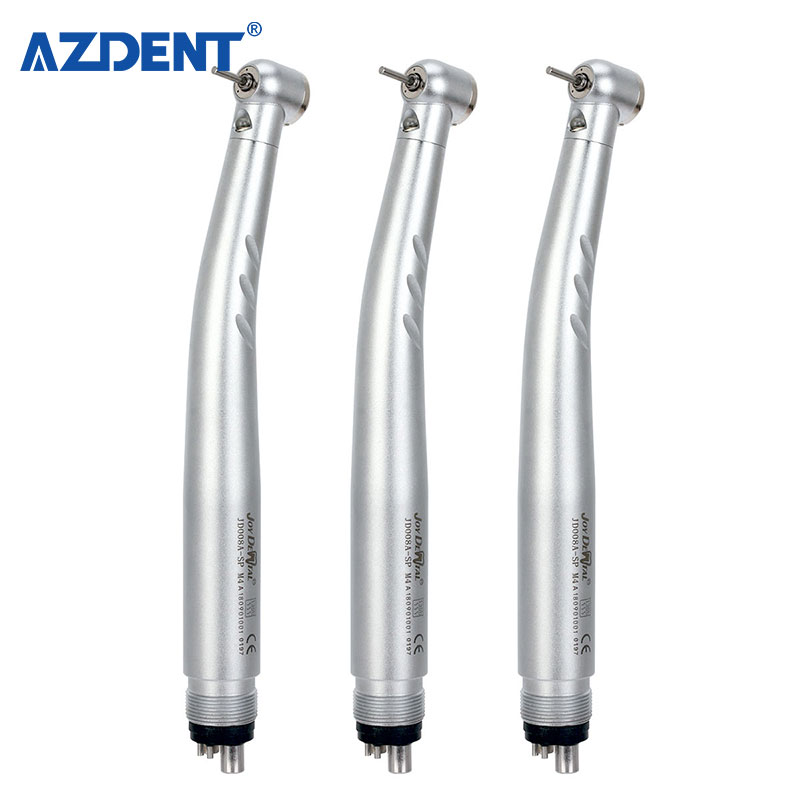

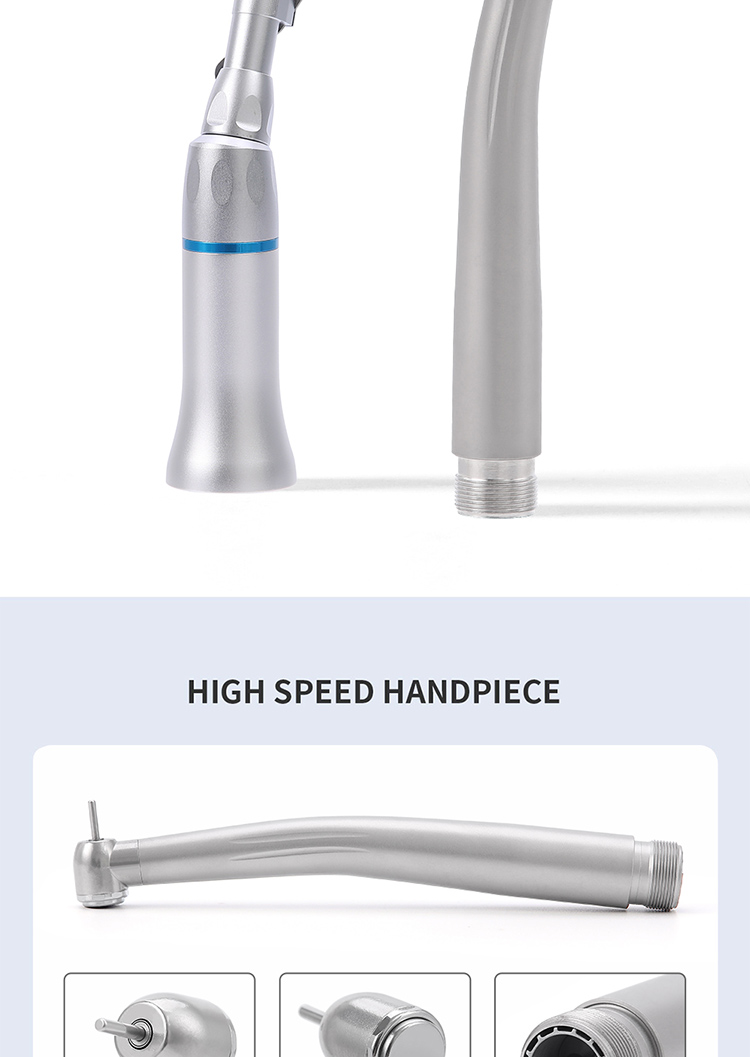

high speed mobile phone
describe: |

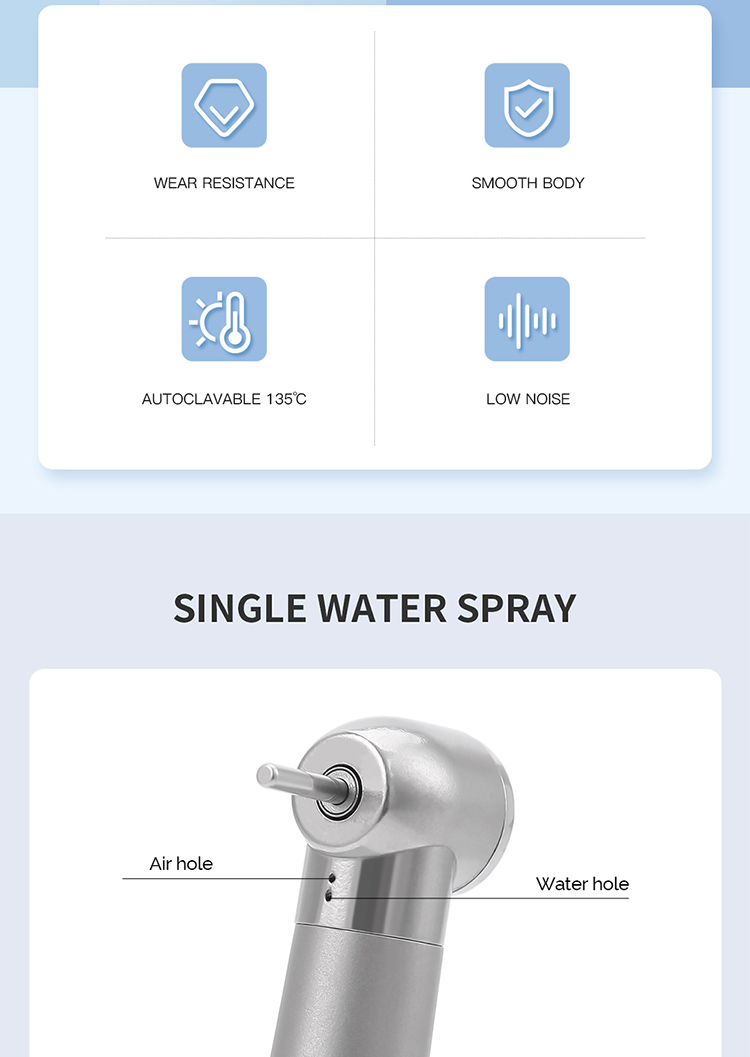

Standard button type, high-speed handpiece, one-way water spray |
needle type |
button |
air pressure |
180~250KPa (1.8~2.5kg force/square centimeter) |
water pressure |
198Kpa (2kg) |
spinning speed |
370,000-420,000 rpm |
head height |
13.14mm |
head diameter |
φ11.2mm |
Applicable drill |
φ1.59mm~φ1.6mm×21mm~23mm (diameter×length) |

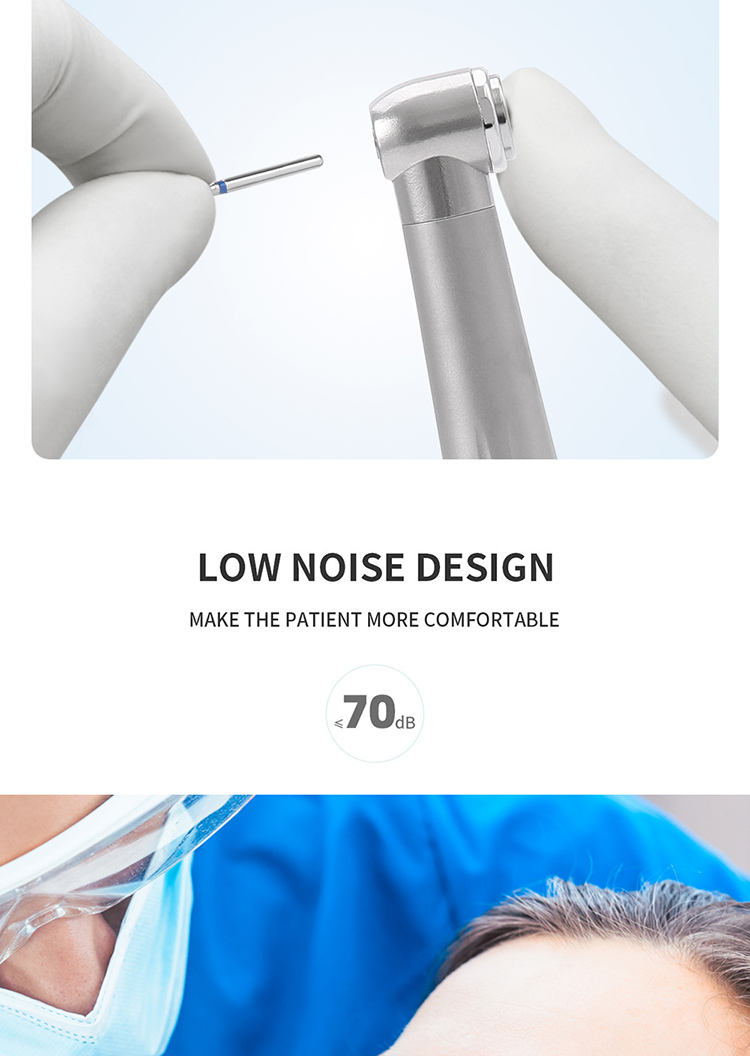

noise |
≤70dB |

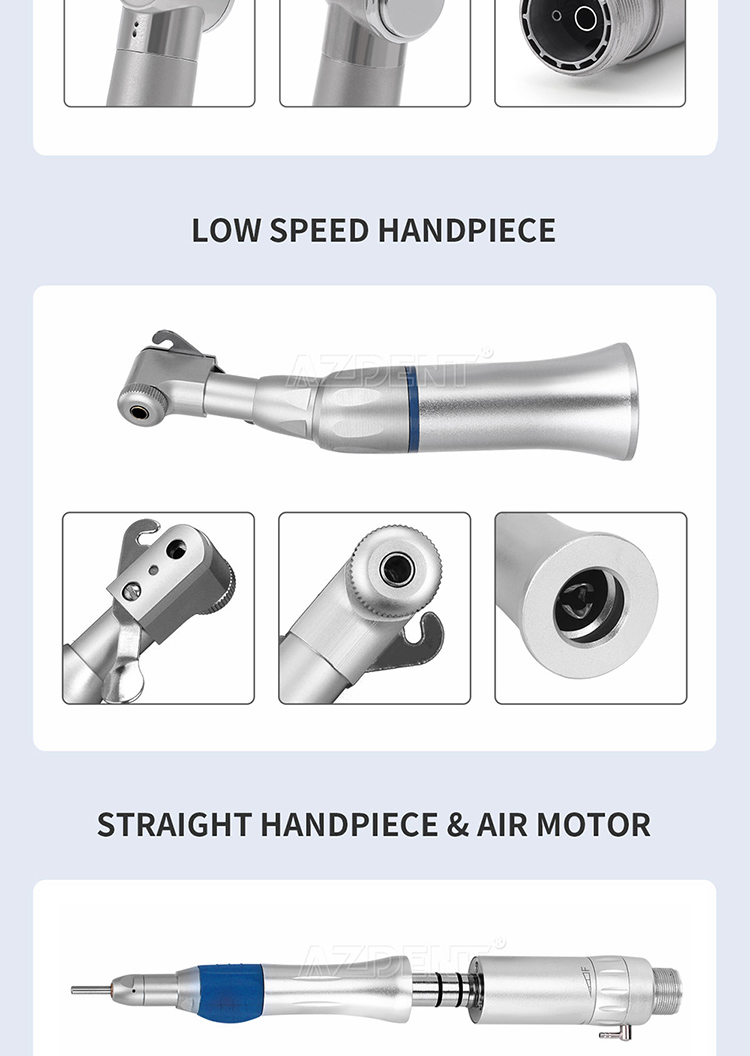

Low speed kit features:
- E-type connector
- Wrench type
- Precision technology, smooth operation, no vibration, smooth operation.
- Compatible with any ISO-compliant E-type phone
- 135°C autoclavable for steam and chemical autoclaves
contra-angle handpiece
- Low speed 22,000-27,000 rpm.
- The shank of the instrument installed in it is 2.35mm

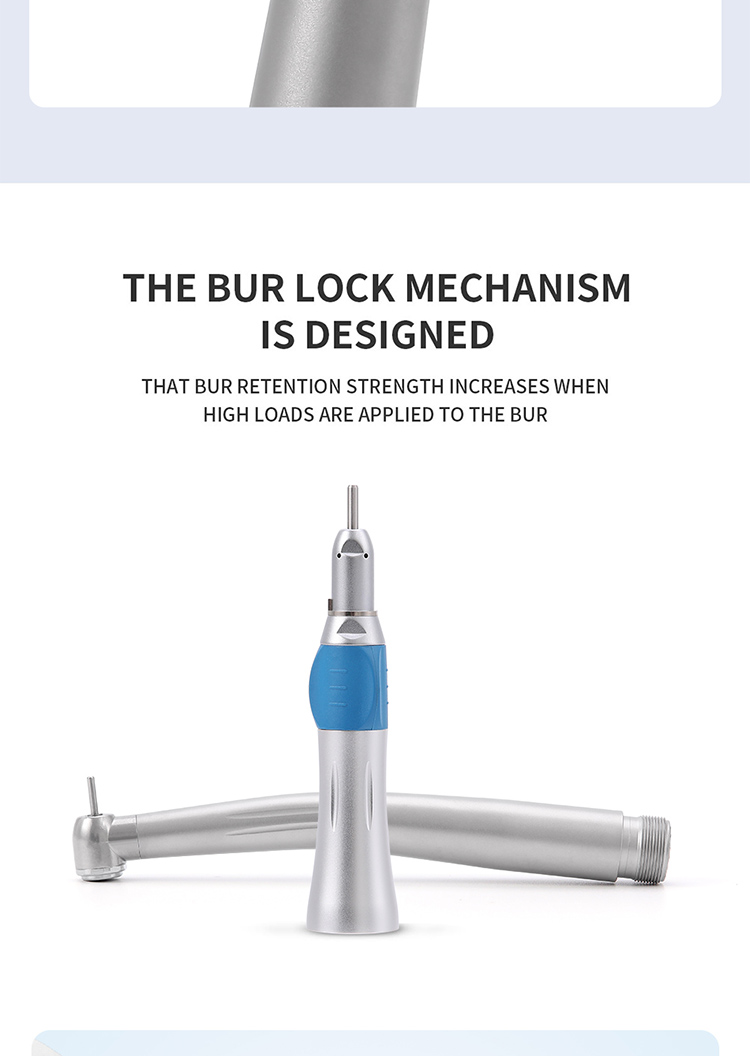

- Secure instruments with rotary latches
- Autoclavable at 135°C
- Compatible with any laboratory or E-type motor
straight nose cone
- Working pressure: 0.3MPa;
- 0.25MPa (the gauge is installed at the end of the air motor to measure air pressure).
- Speed: about 22000-27000r/min (adjustable clockwise or counterclockwise)
- Noise: ≤68dB
- Air consumption: about 56L/min
- Ratio: 1:1
- Maximum speed of contra-angle handpiece: 25000rpm/min.
air motor
- Air supply pressure: 245-392KPa (2.5-4kgf/CM2)
- 1:1 direct drive
- 2 holes
- Maximum speed 20,000 min-1
Specification
Intake pressure(kg/cm2) |
Motor speed(rpm) |
Air waste: (N1/min) |
2.5 |
22,000 |
42 |
3 |
25,000 |
51 |
4 |
27,000 |
72 |

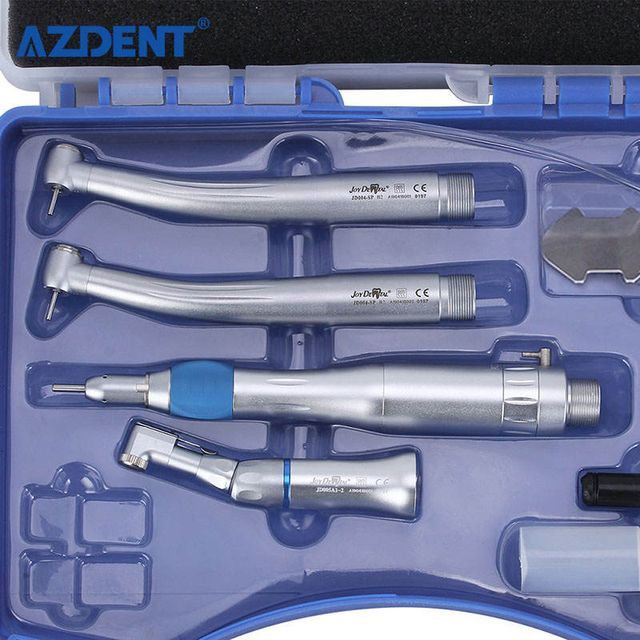

packing list:
- 2 holes for high-speed phone buttons: 2 each
- Type E air motor 4 holes: 1 each
- Straight nose cones: 1 each
- Contra-angle heads: 1 each
- Water spray nozzles: 1 each
- Fuel injection nozzles: 1 each
- CAP wrenches: 2 pcs
Package:
It is mainly packed in cartons or other common safe packages, and you can also put forward your special requirements to us. We will do our best to ensure that the goods arrive safely.
transportation:
1. After completing the payment, your order will be sent by international express (DHL, Fedex, UPS, TNT or EMS).
2. We will provide tracking number so that you can check the status of your item online anytime.
3. It usually takes about 3-8 days for customers to receive the items. But sometimes, customs processing takes more time, so you should wait an extra 2-3 days.
At present, we operate seven categories of dental equipment, dental orthodontic series, dental consumables, dental materials, dental decoration, dental accessories, etc., and more than 600 kinds of products such as dental handpieces, curing light machines, and apex locators. Autoclaves, distilled water machines, ultrasonic cleaners, orthodontic archwires and brackets, dental study models, dental chairs, etc.
