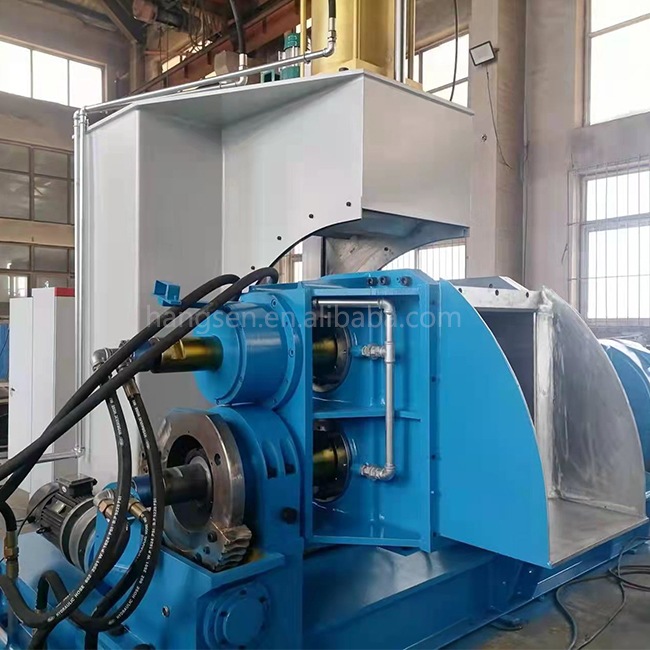

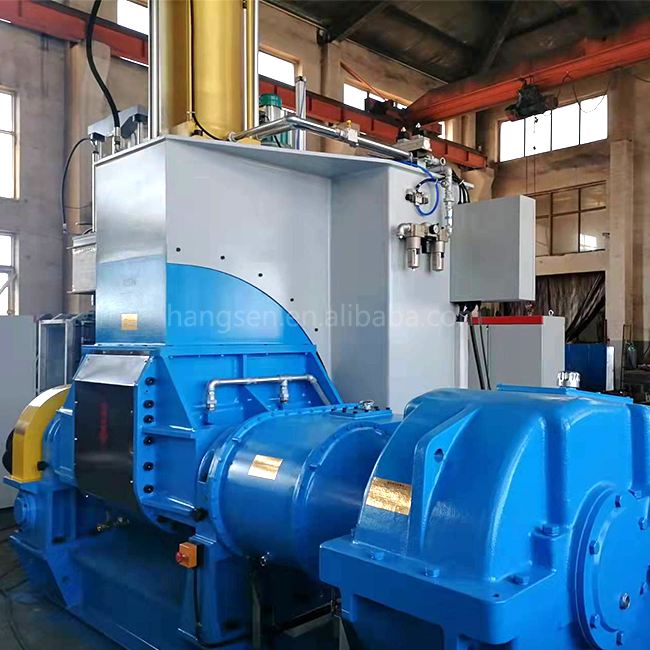

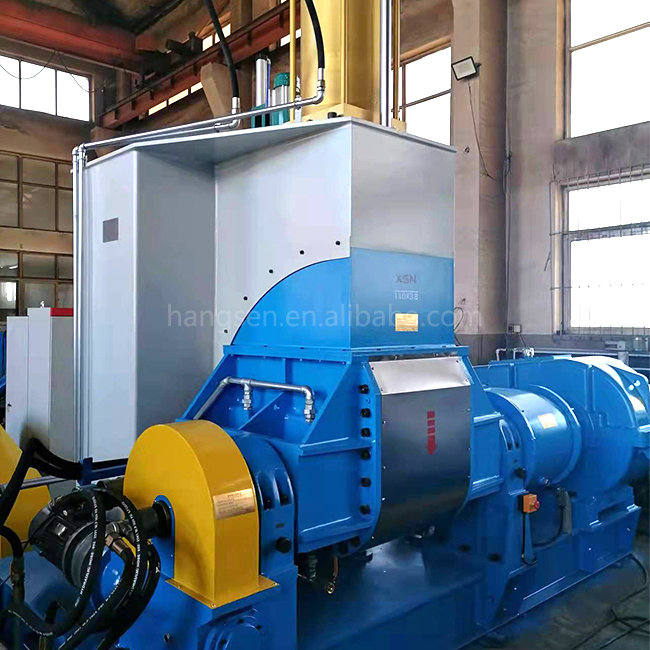

Banbury Kneader Rubber Machine Banbury Kneader Rubber Kneader
- $20000.00 /set
- 1 set
- Qingdao Hangsen Industry And Trade Co., Ltd.
- Shandong, China
- Ms suzen xue

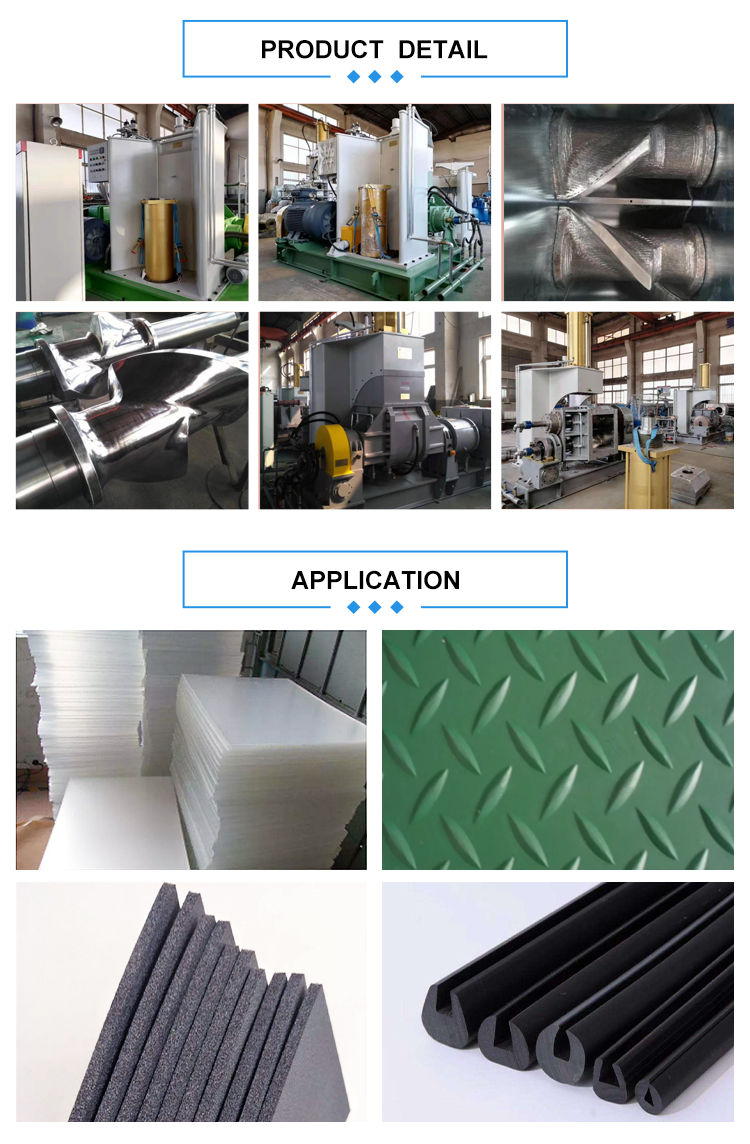

PRODUCT DETAIL
| Supply capacity: | 50 sets per month | Machine color: | blue/green/according to your request |
| Main selling points: | high productivity | Packaging Details: | standard packaging |
| Core components: | PLC, motor, gear | Production capacity: | 80-100kg per batch |
| Voltage: | custom made | Certification: | Hengsen |
| Dimensions (L*W*H): | 4070mm*2721mm*3580mm | Weight (kg): | 10000 kg |
| Applicable industries: | farm, rubber machine | Package preview: | |

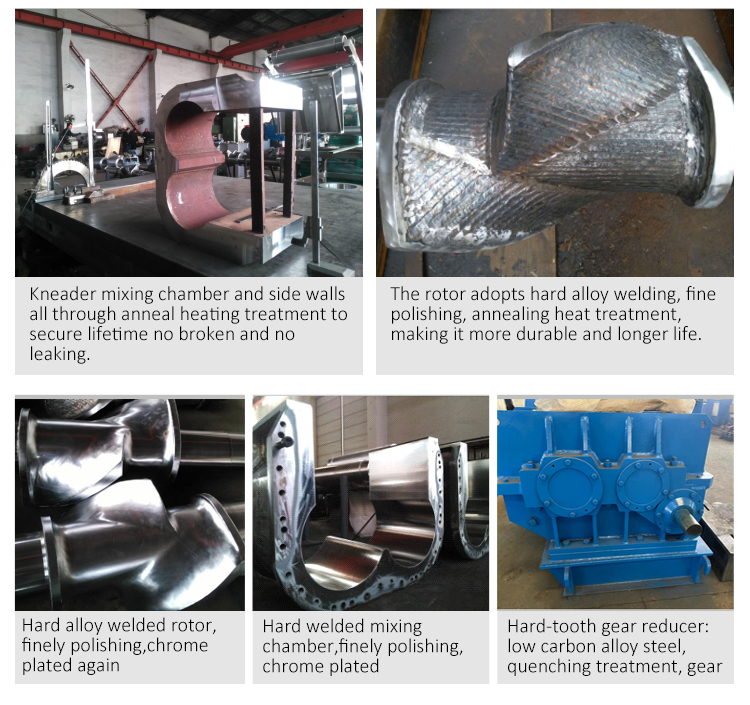

| Motor type: | Hard alloy welding | Type of machine: | Rubber kneader |
| payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram | Warranty: | 1 year |
| Video shipment inspection: | if | After warranty service: | Video technical support, online support, spare parts, |
| Tilt Angle(°): | 45 | place of origin; place of origin: | Shandong China |
| model: | X(S)N55 X(S)N75 X(S)N110 | Discharge method: | motor |
| Core component warranty: | 2 years | brand: | Hengsen |
| Compressed air pressure (MPa): | 0.8 MPa | Mechanical test report: | if |
| Mixing capacity (L): | 75 liters | year: | 2021 |
| port: | Qingdao Port | Showroom location: | Sri Lanka, South Africa, Ukraine, Uzbekistan, Canada, Vietnam, Brazil, Indonesia, India, Mexico, Russia, Thailand, United States |
| Power (kW): | 110 kW | Feeding method: | front |
| State of health: | new |
Equipment application and operation requirements

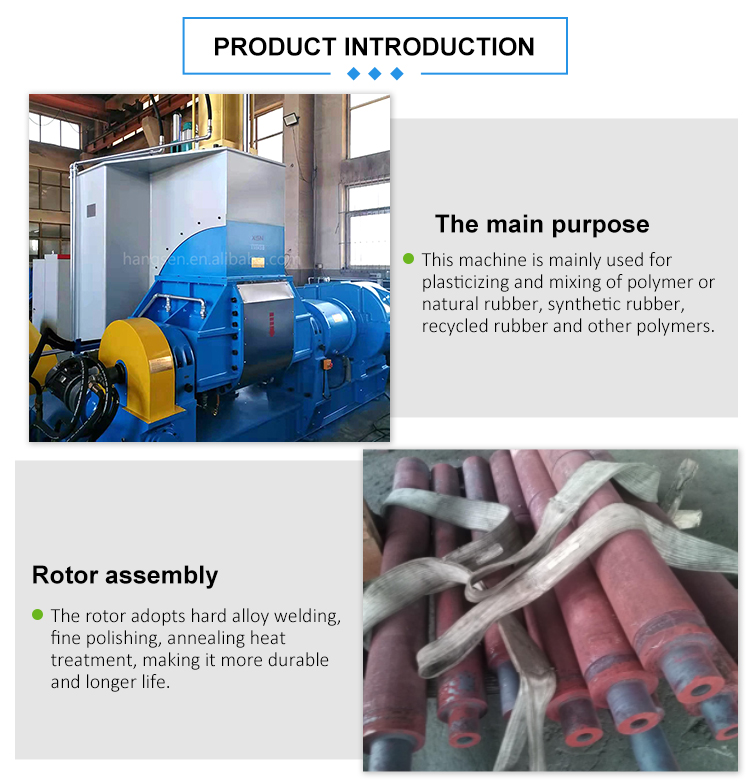

Main application: This machine is mainly used for plasticizing and mixing polymers or natural rubber, synthetic rubber, reclaimed rubber, and other polymers.
operating requirements
Main application: This machine is mainly used for plasticizing and mixing polymers or natural rubber, synthetic rubber, reclaimed rubber, and other polymers.
operating requirements
A. Operating environment: altitude <1000m,
Temperature: 5℃-40℃, max. Relative humidity 95%
B. Cooling water pressure: 0.3-0.4Mpa
Cooling water temperature: ﹤25℃±3℃
C. Compressed air pressure: 6-0.8Mpa
Compressed air consumption: ≥1m³/min
Temperature: 5℃-40℃, max. Relative humidity 95%
B. Cooling water pressure: 0.3-0.4Mpa
Cooling water temperature: ﹤25℃±3℃
C. Compressed air pressure: 6-0.8Mpa
Compressed air consumption: ≥1m³/min
Model | X(S)N35 | X(S)N55 | X(S)N75 | X(S)N110 |
Total volume of mixing chamber (L) | 75 | 125 | 180 | 250 |
Working volume of mixing chamber (L) | 35 | 55 | 75 | 110 |
Drive motor power (KW) | 55 | 75 | 110 | 185 |
Tilting motor power (KW) | 5.5 | 5.5 | 5.5 | 7.5 |
slope | 110 | 110 | 110 | 110 |
Rotor speed (front/rear) (r/min) | 36/30 | 36/30 | 36/30 | 30/24.5 |
Compressed air pressure (Mpa) | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 |
Cooling water pressure (Mpa) | 0.3-0.4 | 0.3-0.4 | 0.3-0.4 | 0.3-0.4 |
Dimensions (L*W*H) (mm) | 3150*1900*2880 | 3280*2120*3090 | 3280*2220*3250 | 4070*2712*3580 |

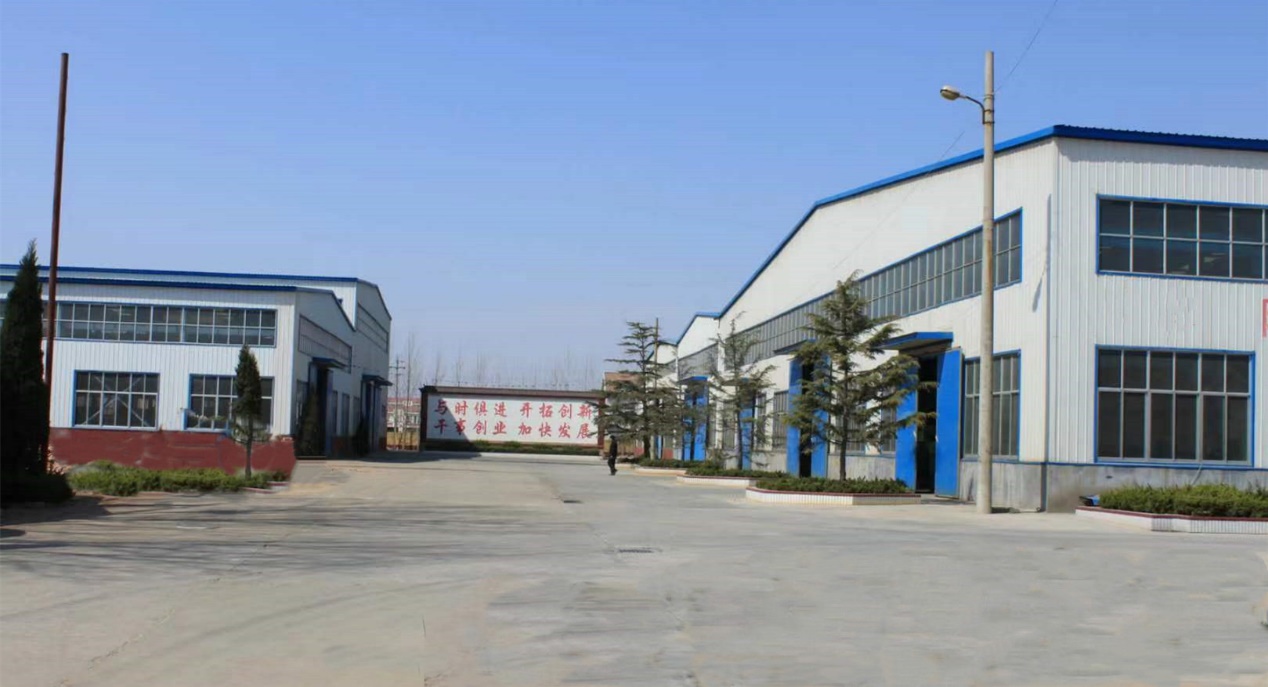

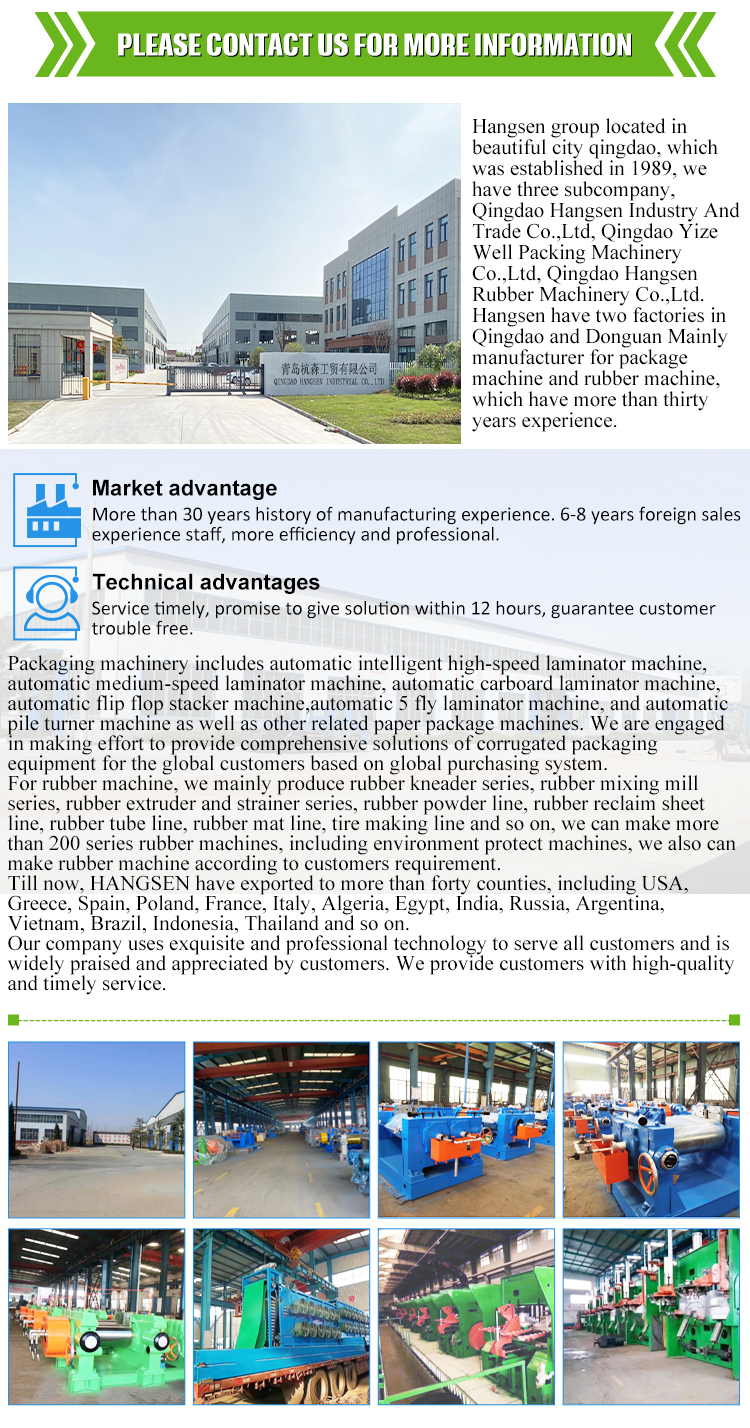

Qingdao Hengsen Group was established in 1967 and currently has more than 500 employees.
Manufacture of rubber machines and compound machines.
As a manufacturer of rubber machinery, Hengsen owns more than 50,000 square meters of land, total assets of more than 100 million US dollars, more than 500 employees, 60 mechanical engineers,
Manufacture of rubber machines and compound machines.
As a manufacturer of rubber machinery, Hengsen owns more than 50,000 square meters of land, total assets of more than 100 million US dollars, more than 500 employees, 60 mechanical engineers,
The company is one of the largest private enterprises specializing in the production of rubber machinery in China.
Our 8m gantry milling machine,
TK6913B CNC boring and milling machine
TPX6213 ground drill
TPX6113 Milling and boring machine
Vertical Machining Center
CY-K630 CNC lathe
2.5-meter vertical lathe and other large-scale advanced processing equipment
We mainly produce the following machinery.
Radial tire equipment
XK-660 Rubber Open Mill
42 to 65.5 inches dual-mode vulcanizing machine
75-105 inch single mold vulcanizing machine
Internal mixer series, rubber mixing machine series, extrusion filter series
Inner tube, baffle, inner tube plate vulcanizing machine
Waste tire recycling line
Rubber recycled sheet production line, etc.,
We can also design and manufacture various non-standard rubber machinery and equipment according to customer requirements.
Our company always follows the market concept of "market demand first, customer first".
So far, Hengsen Group has exported to more than 40 countries and enjoys a good reputation in the world market.
Our 8m gantry milling machine,
TK6913B CNC boring and milling machine
TPX6213 ground drill
TPX6113 Milling and boring machine
Vertical Machining Center
CY-K630 CNC lathe
2.5-meter vertical lathe and other large-scale advanced processing equipment
We mainly produce the following machinery.
Radial tire equipment
XK-660 Rubber Open Mill
42 to 65.5 inches dual-mode vulcanizing machine
75-105 inch single mold vulcanizing machine
Internal mixer series, rubber mixing machine series, extrusion filter series
Inner tube, baffle, inner tube plate vulcanizing machine
Waste tire recycling line
Rubber recycled sheet production line, etc.,
We can also design and manufacture various non-standard rubber machinery and equipment according to customer requirements.
Our company always follows the market concept of "market demand first, customer first".
So far, Hengsen Group has exported to more than 40 countries and enjoys a good reputation in the world market.
