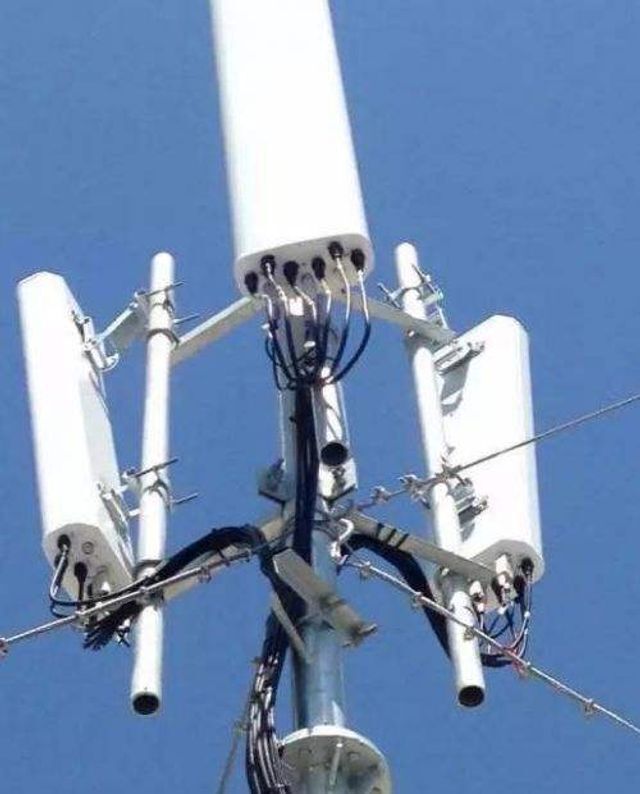

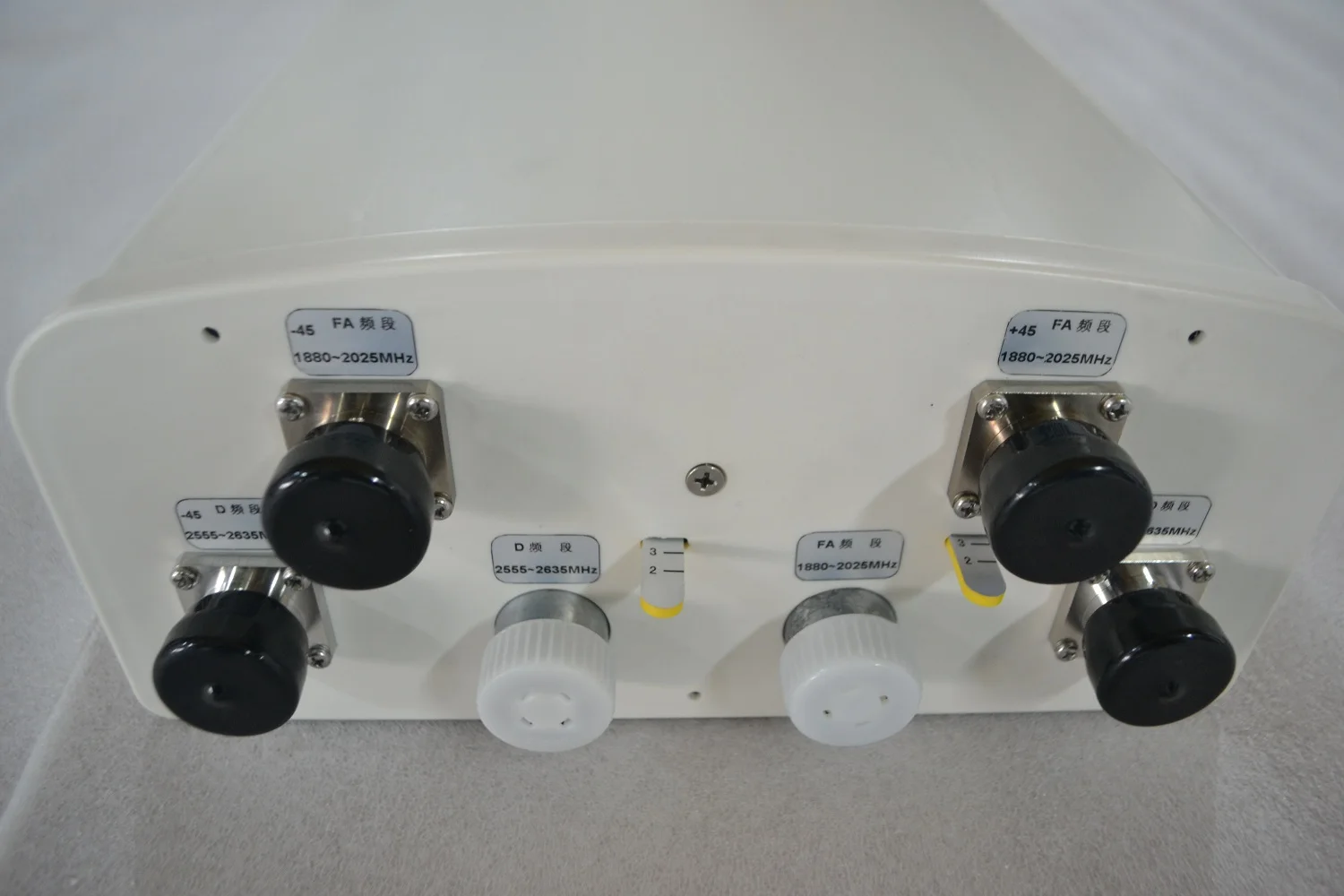

Base station antenna HUAWEI COMBA MOBI TONGYU etc or customized 2/4/6/8 ports for GSM/UMTS/CDMA/LTE
- $200.00 /piece
- 1 piece
- Shenzhen Uonel Technology Co., Ltd.
- Guangdong, China
- Mr Leo yang
| Work Mode: | CDMA GSM UMTS LTE; | Brand Name: | HUAWEI; |
| Certification: | CE FCC RoHS; | Function: | antenna with RET; |
| Package Preview: | ; | Frequency band: | Single band/ Dual band/Tri-band; |
| Model Number: | Base station antenna; | Application: | Base station antenna; |
| Port: | Hongkong or Shenzhen; | Supply Ability: | 200 Pieces per Week; |
| Packaging Detail: | Export carton package As customer's requirement Lead time: 5 days; | Place of Origin: | Guangdong, China; |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram; |
| Frequency range (MHz) | 790-960 | 1710–2170 |
| Polarization | +45°, –45° | |
| Average gain (dBi) | 15~18 dBi | 17~19 dBi |
| impedance | 50 Ω | |
| VSWR | <1.5 | |
| Isolation, between ports | ≥ 28 dB | |
| Intermodulation IM3 (2 x 43 dBm carrier) | ||
| Max. input power/port (at 50 °C ambient Temp) | 500 W | 300 W |
| Horizontal Pattern: | ||
| Half-power beam width -3 dB (°) | 65±6 | 65±6 |
| Front-to-back ratio (180°±30°) | > 25 | |
| Vertical Pattern: | ||
| Half-power beam width -3 dB (°) | 9.5 | 6 |
| Adjustable Electrical Tilt Range | 0 ~ 10°T | 0~ 10°T |
| Adjustable Mechanical Tilt Range | 0 ~ 14° | 0 ~ 14° |
| Side lobe suppression (1st lobe above main beam) | > 16 dB | > 16 dB |
| Support RET | ||
100% Low Price Guarantee:
Uonel provides high-quality products at low wholesale prices
100% Quality Assurance:
All items are ORIGINAL NEW and GENUINE only.
Additional Free Technical Support:
Our Huawei Expert Consultancy support over the phone, by chat, by email or by login remotely.
100% Money Back Guarantee:
You can contact our customer service team to exchange or return any product that you bought from us.
Flexible Secure Payment & Shipment:
Verified authorization: Mcafee Secure, VeriSign Secured
MOQ: 1 pcs
Port: Hongkong / Shenzhen
Lead time: Within 3-10 working days after receipt payment.
Shipment: Express, Air, Sea
Sample availability: Yes( not free)
Package information: carton package with Huawei / ZTE/ Emerson original package or as discussion
Uonel is one of the biggest Huawei&Cisco Network Hardware distributor in china, founded in 2008. We are a global provider of netwotking products with more than 5000 customers.
We provide original new Huawei 2G/3G/4G Wireless network equitments,Routers,Switches,Firewalls,OLTs,GPON modems,optical transceivers.Our company have more than $5million Huawei&Cisco products in stock.
Most of our technical engineers had rich experience in Huawei company,we can provide network design&planning,configration,troubleshooting,maintenance and training service in world wide.
