Bedding Single Side Quilting Embroidery Machine

PRODUCT DETAIL
Sewing machine:Single thread type, double thread type, large hookDimensions (L*W*H):5.4m*4.2m*1.5m
Origin:Jiangsu, ChinaShowroom location:not any
Voltage:AC220V, 50Hz 1.5KwQuilting Thickness:1200gsm
Maximum sewing speed:2200 pins/SPMCore components:engine
Mechanical test report:ifNeedle:Singer MR5 18-23#
Quilting material size:2.8m*3.2mbrand:XJ.
port:Shanghai PortPackaging Details:For sea parcels.
speed:2200 pins/SPMweight:1900
Pitch:2-7mmpayment terms:L/C, Western Union, D/P, T/T, MoneyGram
Mobile style:frame moveApplicable industries:other
Health status:newAfter-sales service provided:Engineers available to service machinery overseas
Supply capacity:200 sets per yearstrength:Can be customized, 1.5Kw
Needle size:2.6m*3.0mAfter warranty service:online support
Video shipment inspection:ifMaximum sewing thickness:1200gsm
Head count:single headMarketing Type:New Products 2020
Warranty:1 yearCore component warranty:1 year

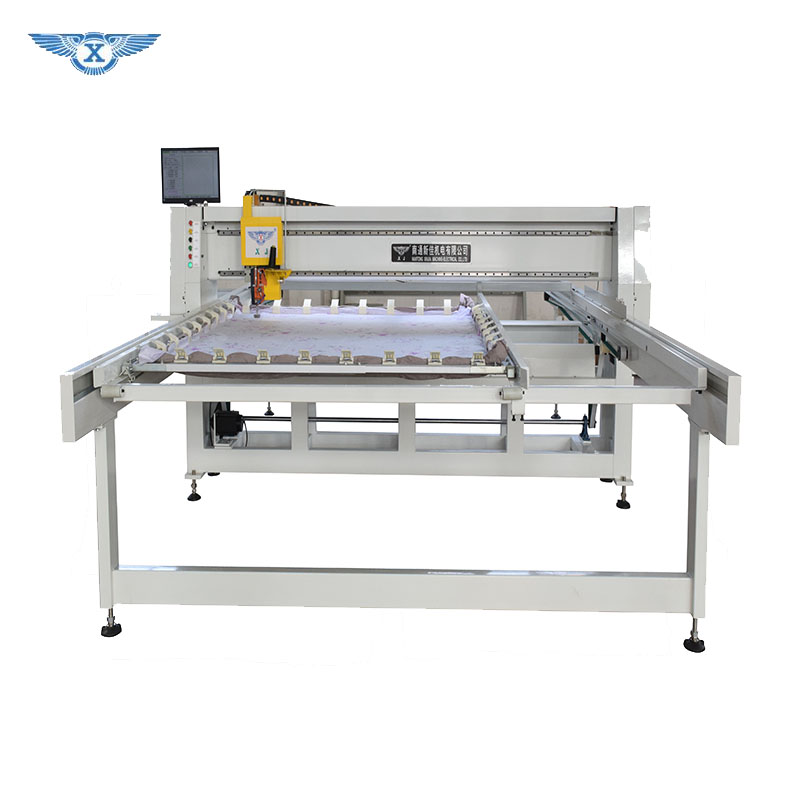

XJ-H Series Computer Single Needle Quilting Machine

(frame moves)



Picture, name, model, quantity, price

This series accepts non-head number and needle pitch customization

Language: Chinese, English, Russian

The most advanced software, easy to operate, simple and stable. If there is an update for the software, we will send it to you, and it will be free for life.

application:

Quilted products: clothing, sleeping bags, summer quilts, mattresses, bedspreads, cushions, etc.





Main details:

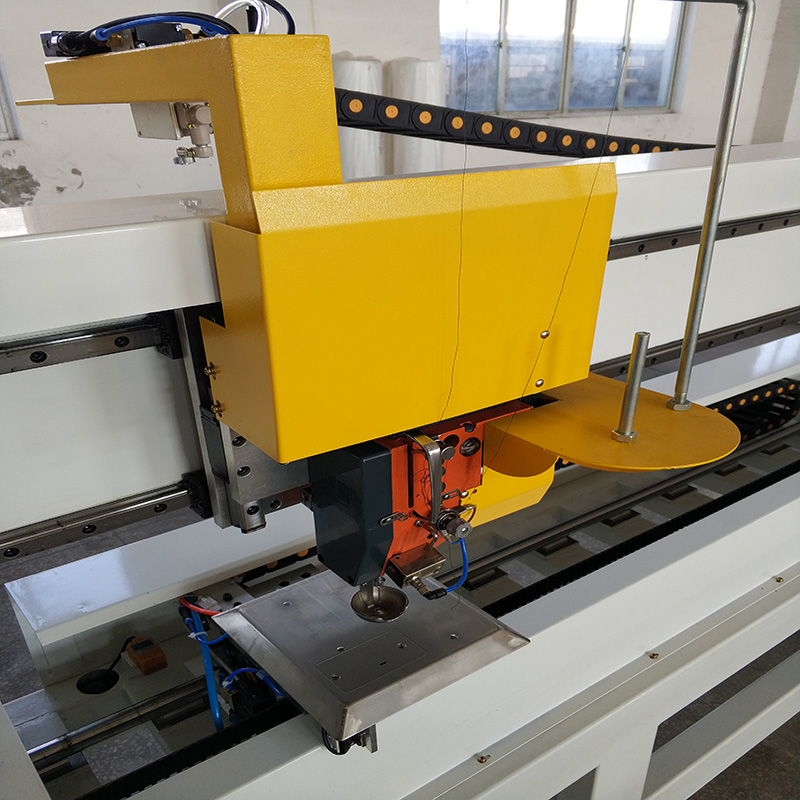

1. The head adopts servo motor to provide powerful and accurate drive
2. More than 200 quilting patterns are saved in the computer, and new patterns can also be read through USB.
3. 2800RPM high-speed operation, precision quilt, low noise, long life machine, to achieve the goal of high output and high quality
4. Automatic quilting according to the selected pattern
5. Provide forward and backward buttons and threading buttons.
6. Koban large size rotary hook ensures low thread breakage
7. Powerful computer functions, professional computer control system, automatically complete the quilting process
8. Can read DST, DSB, ZSK, SWF formats, compatible with patterns in different formats, 100,000 needle patterns on the machine computer, all patterns and programs can be read from USB.







Model image:

Model

XJ-2628H

XJ-2832H

XJ-3032H

XJ-3535H

Maximum quilting material size

2.6m×2.8m

2.8m×3.2m

3.0m×3.2m

3.2m×3.5m

Needle drop size

2.4m×2.6m

2.6m×3.0m

2.8m×3.0m

3.0m×3.3m

sewing machine

Single thread type, double thread type, large hook

maximum

Quilting thickness

1200gsm

Needle

Singer MR5 18-23#

speed

2200 pins/SPM

Pitch

2-7mm

Dimensions (L*W*H)

5.0m×4.0m

×1.4m

5.4m×4.2m

×1.4m

5.4m×4.4m

×1.4m

5.8m×5.1m

×1.4m

strength

AC220V, 50Hz 1.5Kw

weight

1800 kg

1900 kg

2000 kg

2100 kg

After-sales service:

1) Installation and commissioning: the seller can provide installation and commissioning

And provide training service in the buyer's factory, and the buyer needs to pay the visa application fee,

Airfare, accommodation and (if necessary) translation fees for the seller's technical staff.



2) After one year, buyers need to pay a service fee of USD200/day/person, and

As visa application fee, airfare, accommodation and (if necessary) interpreter fees

Fees for Seller's technical personnel.



2.Warranty: For the above machines, the seller provides a one-year warranty, from

The moment the seller ships the item. For each detailed warranty period

section, see the Operator's Manual. wearing parts, consumable materials and

Damage caused by improper operation by the buyer is not covered by the warranty.
