Belt Motor Pipe Grooving Machine and Pipe Grooving Machine with Metal Deburring Sander
- $1052.00 / 1 - 35 sets
$926.00 / 36 - 199 sets
$868.00 / 200 - 599 sets
$758.00 / >=600 sets - 1 set
- Laizhou Xinyue Machinery Co., Ltd.
- Shandong, China
- Ms Nina Shen
PRODUCT DETAIL
| Showroom location: | Germany | Model: | MH100 |
| Cutting width (mm): | 15mm | place of origin; place of origin: | Shandong China |
| Dimensions (L*W*H): | 1330*730*640MM | payment terms: | L/C, T/T |
| Voltage: | 400V upon request | Main selling points: | multifunctional |
| Certification: | International Organization for Standardization | color: | Require |
| Roller size: | 20-76.1mm | Package preview: | |
| Cutting thickness (mm): | 5mm | Marketing Type: | 2020 Hot Products |
| Core components: | motor | weight: | 147 kg |
| pack: | plywood case | port: | Qingdao |
| Video shipment inspection: | if | Applicable industries: | Apparel Stores, Building Materials Stores, Machinery Repair Shops, Manufacturing Plants, Household, Retail, Energy and Mining, Other |
| Packaging Details: | plywood bag | Motor power (kW): | 3.3 kW |
| product name: | Pipe Grooving Machines and Pipe Grooving Machines | Health status: | new |
| brand: | new moon | Weight (kg): | 107 kg |
| Warranty: | 1 year | Mechanical test report: | Not available |
| strength: | 2.5./3.3kw | Core component warranty: | 1 year |
| Type of machine: | Metal pipe slotting machine | Supply capacity: | 1000 sets per month |
Product Description
Belt Motor Pipe Grooving Machine and Pipe Grooving Machine with Metal Deburring Sander

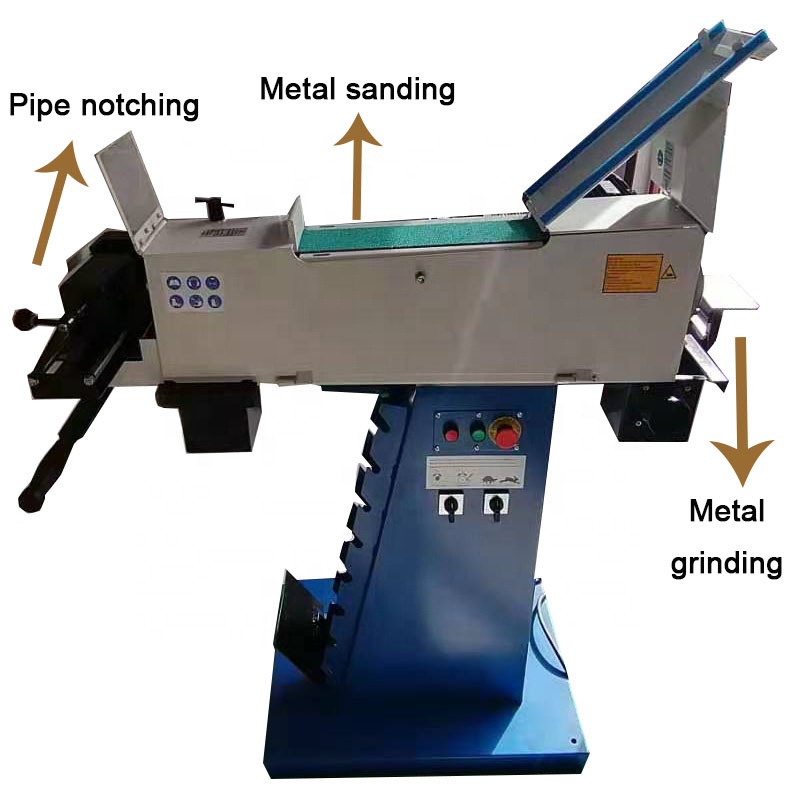

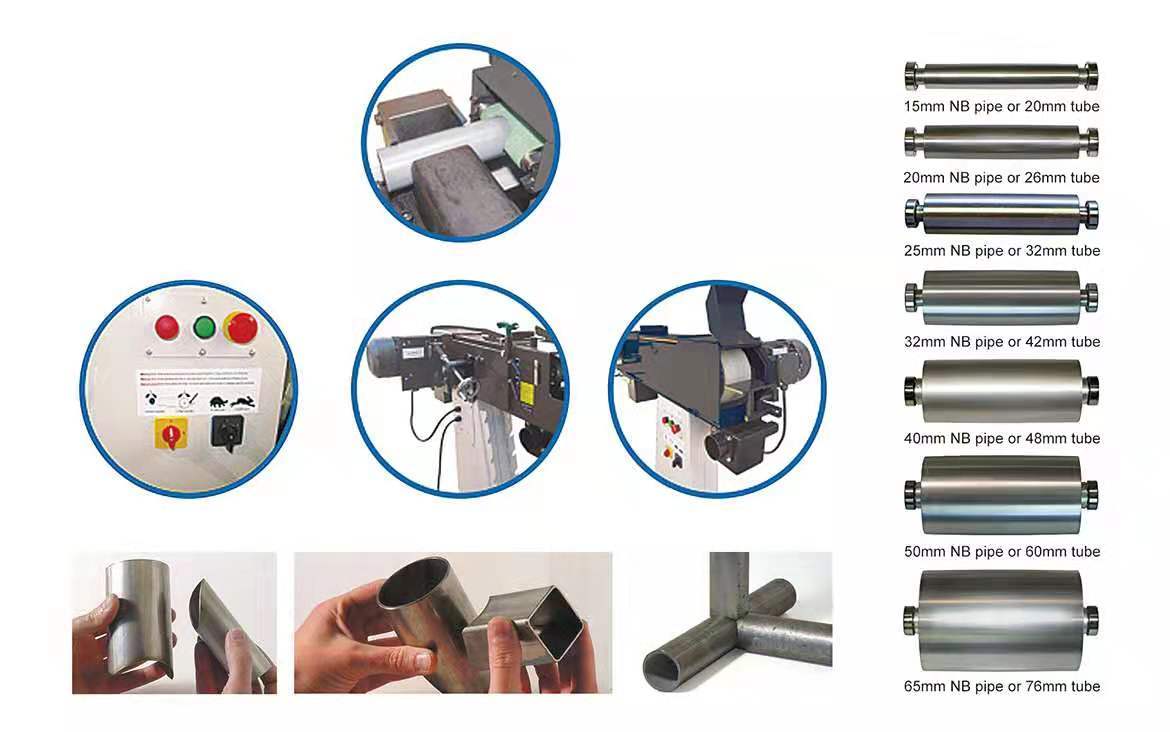

1. Compound action rotary vise to achieve angles between 30°- 90° 2. Belt sander on rear table 3. Deburring stand 4. Easy roll changing system 5. 1 grinding roll 42.4 mm standard, 20-76.1 mm available upon order 6. 1 zirconium corundum abrasive belt, corn 40 standard, 100 x 2000 mm 7. Roller support (space for 8 rollers) 8. 2 dust boxes 9. 1 for operation/adjustment Allen wrench for the machine

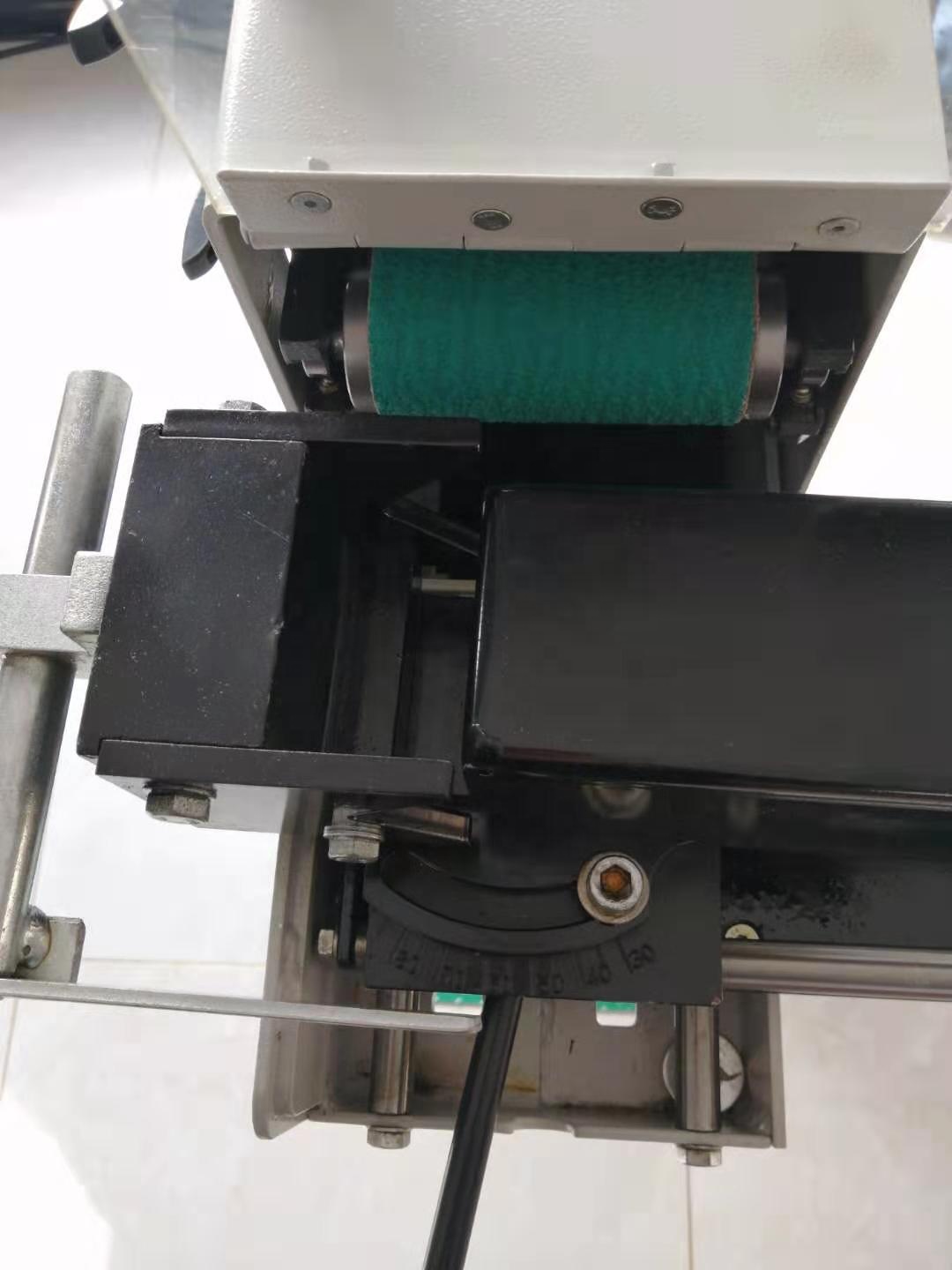

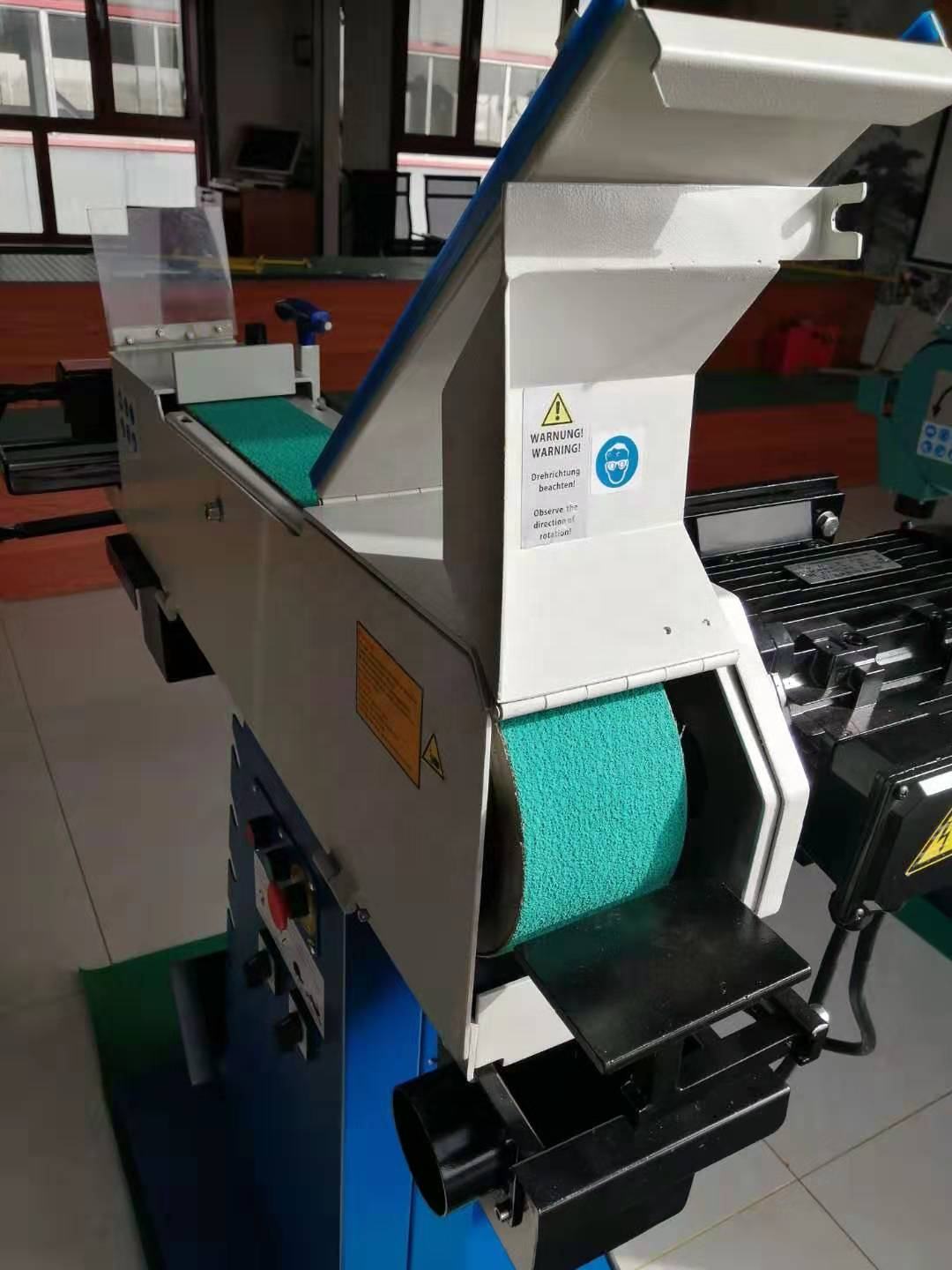

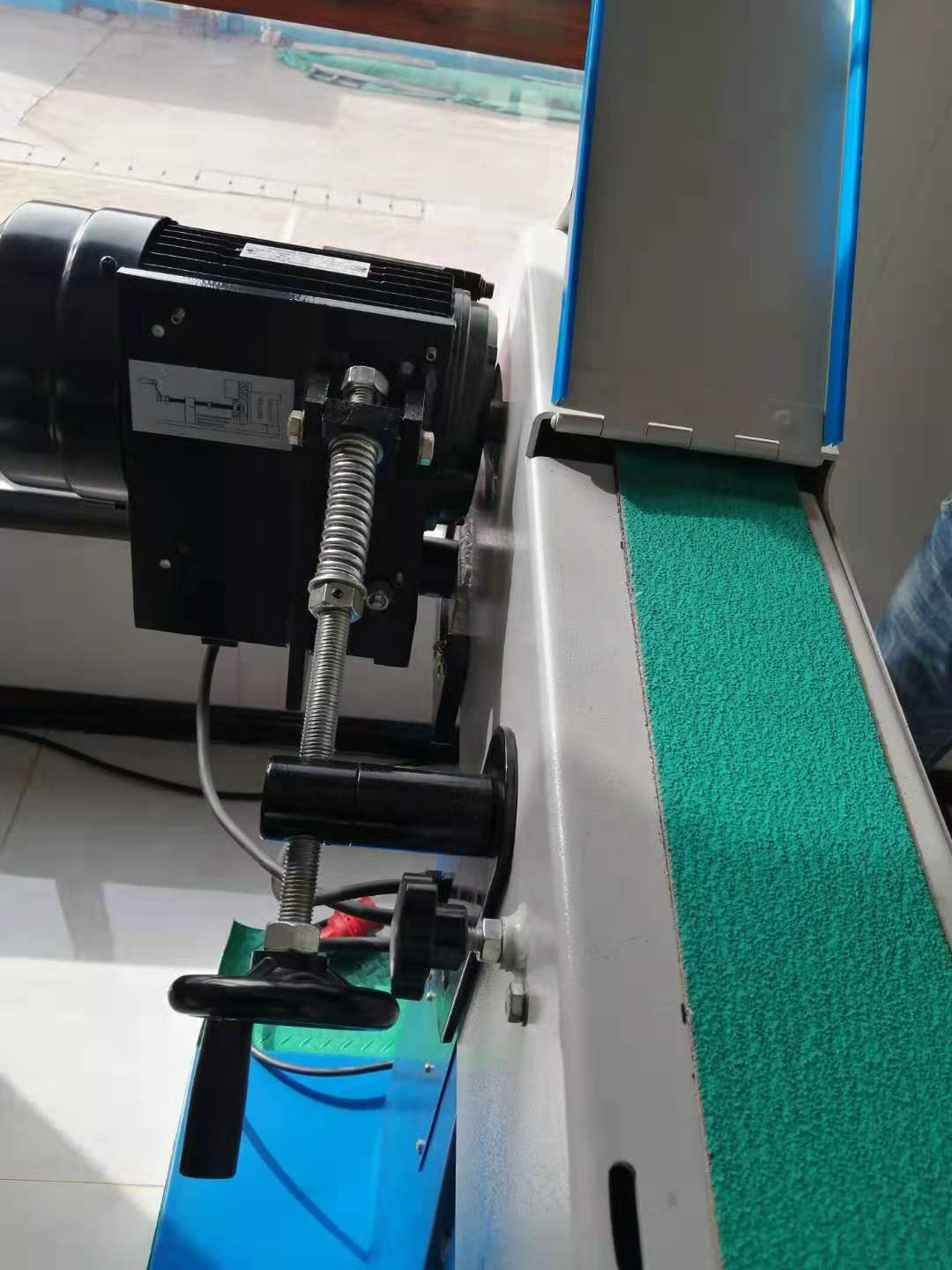

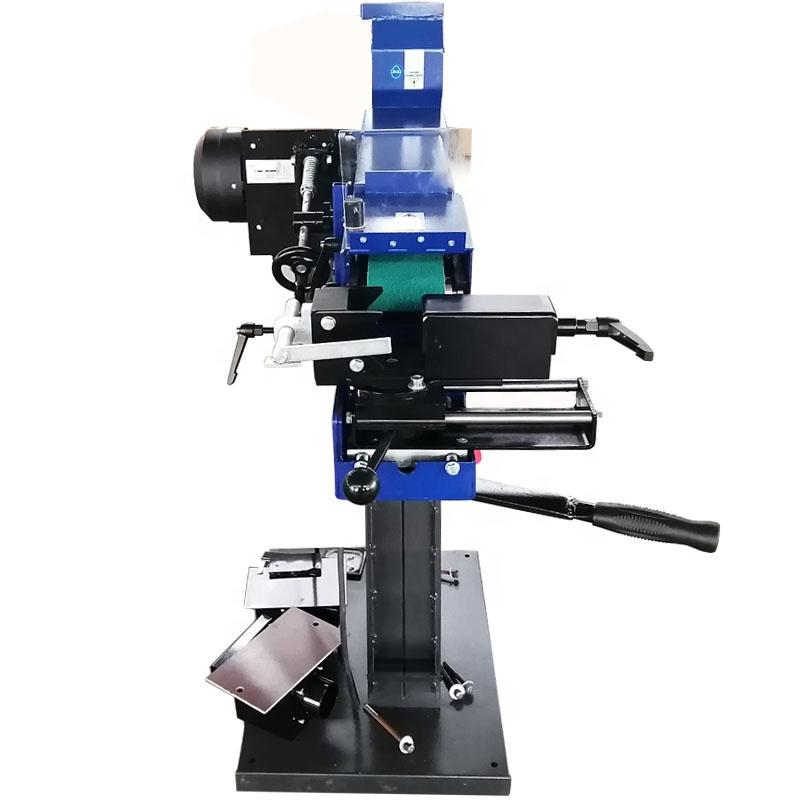

detailed image
Size Information
Model | MH100 |
power supply | 400V |
belt | 100*2000mm |
Drum size | 20-76.1mm |
motor | 2.5/3.3KW |
Motor speed | 1400/2800rpm |
Belt speed (high speed, low speed) | 23.5, 47 m/s |
grinding options | pipe groover |
belt sander | |
Deburring | |
pipe slotter angle | 30°-90°(0-60°) |
Dust removal | additional |
standard roller | 42.4mm |
Machine size | 1250*750*1140mm |
Package dimensions | 1330*730*640mm |
Weight (net/gross) | 147/176 kg |
