Best Selling Container Shipping Container Chassis Container Trailer

PRODUCT DETAIL
Packaging Details:Container or BulkLight:lead
type:Chassis, semi-trailerbrand:star trailer
color:custom madepayment terms:letter of credit, wire transfer
volume:50 cubic metersuse:truck trailer
port:Qingdao, Shanghai, TianjinPackaging Preview:
Maximum payload:35000KGMaterial:Alloy Steel/Aluminum
fetal:12R22.5usage:container handling
landing gear:28Tplace of origin; place of origin:Jinning, China
size:12500x2500x1650mmSupply capacity:7000 units per year
Tare:5500KGCertification:CCC
axis:13T

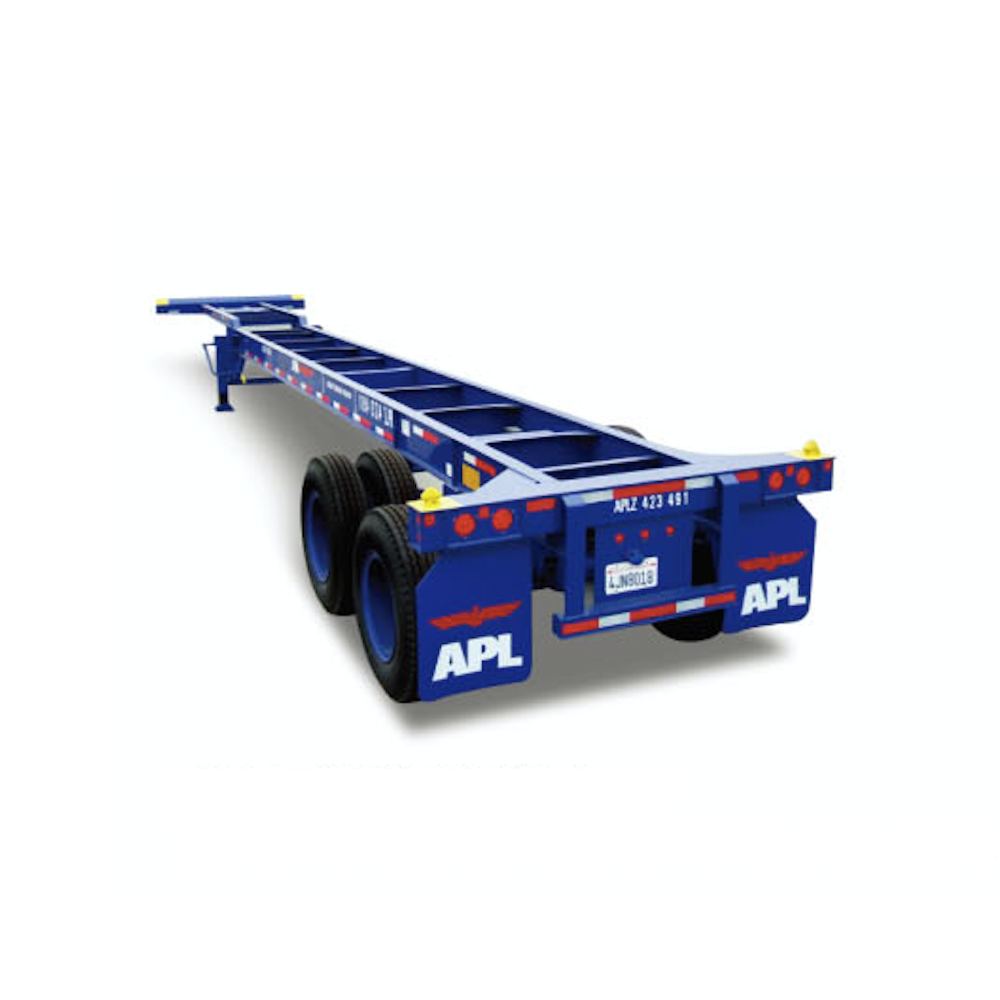

Product Image
painting
Specification
general
The chassis is designed to handle and transport 20' loads, one (1) 40' load or two (2) 20' empty ISO containers on highway and TOFC services. The legal maximum container weight is determined by regulations. The chassis complies with all requirements and standards in effect at the time of manufacture to operate in Canada.
Trailer size
Overall length
12,350 mm
overall width
2,500 mm
total height
1,700 mm
Gold needle location
1,000 mm
Landing gear position
2,350 mm
wheelbase
7,900 mm
wheelbase
1,300 mm
Kingpin plate height
1,530 mm
Trailer body (frame + upper)

Material
High strength, 130,000 psi steel for main frame flanges and no less than 50,000 psi steel for all other flanges.
Main beam
16” high x 5” wide assembled I-beam with high strength top and bottom flanges, 6-3/8” high for GN rails.

landing gear support bracket
The 5/16" thick mounting bracket is supported by two 1/4" thick "L" plates. One (1) 4” x 5.4 lbs/ft channel bracket installed
level between the legs.



Upper coupler assembly
(Kingpin board assembly)
The pick-up plate should be 5/16" thick and fully welded to the main rail and front pad.

Kingpins are 2" diameter square SAE Standard J700B and AAR certified. Forged steel alloy heat treated to
Brinell surface hardness 380 to 420.
2” diameter drain holes.
1/4" thick manufactured channel type kingpin support.


front pad
7” wide x 7-3/4” high rectangular pads made from 1/4” thick and 5/16” thick sheets. There is a flat triangle
Reinforcing plates are welded on each side between the main rail and the front beam to strengthen the beam. Reinforcing plate is
1/4” x 18 1/2” x 18 1/2”.
Dual position for first 20' empty container and 40' loaded container


back support
Tapered rectangular pads for main frame made from 3/8” thick top and bottom plates and 5/16” thick side plates.
6-5/8" high x 4" wide prefabricated box girder pads on sliders, consisting of 1/2" thick top and bottom plates and 5/16" thick side plates
Plate with flip twist lock.
Intermediate support
Hi-Lo intermediate pads are manufactured with retractable twist locks and swing down twist locks.
cross member
Manufactured channel types not less than 3/16” thick.


rear bumper
Bumper steps shall be designed so that the reflective tape required by law is installed in the recessed area to prevent
Reflective tape is damaged.
Step guards are 3/16” x 4” x 4” square. Vertical beams are made from 5"
Wide x 3/8” thick steel flange and 5/16” thick web.
on 01
standard
on 02
standard
Trailer Main OEM Parts

OK
Saf-Holland KP-AAR-LE or Jost Equivalent
twist lock
Bumper or Toca compact retractable and plug-in twist lock

landing gear
19" travel, 55,000 lb capacity. Two-speed manual operation. Square legs with low-profile sandals. Crank is
Installed on the roadside. Manufacturer: JOST A400 series.


pause
Balanced tridem mechanical suspension, 61" axle space, under mounting hanger, with single piece high arch springs (10,200 lbs).
per capacity). On the center of the rear axle 30 inches from the back of the bolster. 36” coat hanger bracket center.
Manufacturer: Hutchens H-9700Tri.


axis
5" Round Shaft, 21,200 lbs. (9.6t) Axle Capacity @ 36” (914mm) Suspension Center, 77-1/2” Track, 28 Splines, 5.5” Haldex
Automatic slack adjuster. 16-1/2” x 7” quick-change brake shoes and linings. A dust cover is provided.
Manufacturer: Hendrickson
axle bearing
A) Cones: HM218248 and HM212049 inner and outer cones. B) Cups: HM218210 and HM212011 inner and outer cups. Manufacturer: ZWZ



shaft seal
1. A) Hendrickson Gold Seal (M380025TX0).

2. B) Semi-Fluid Grease, Chevron Delo (Synthetic).

3. C) Hendrickson stamped steel hubcaps and Hendrickson high performance gaskets.
Hubs and Drums
Hub Pilot DI Hub (HUB-01025FA/FTA), 285.75mm bolt circle, 10 × M22 × 1.5 × 100.8 (3.97”) drum short stud, included
Fill the ports and wheel nuts. Heavy Duty 16.5” x 7” Grey Cast Iron Brake Drums (60001-018). Manufacturer: KIC
fetal
11R22.5 tubeless tire, 14-ply load range G, no owner logo.
Manufacturer: West Lake

rim
22.5 × 8.25 Hub Pilot Dual Mount Tubeless Wheel with Standard Powder Coated White, Two Piece Flange Nuts, 10 Holes, 285.75mm
Bolt ring, 220mm hole, 5 hand holes. Maker: Sunrise or Kamiya.
Trailer Brake System


ABS
Use the Wabco 4S/2M base system. ABS sensors for front and rear axles. Power unit wiring integrated into the main wiring
harness. Meritor/Wabco ECU Valve 400 500 103 0 with Sealco 110800 Spring Brake Valve. and the ABS warning light is located
Roadside taillights.

air storage tank
Three (3) tank system. (Capacity 1,488 cubic inches)
The bottom of the air tank will be equipped with a drain valve. Remote drain valve with cable.
brake chamber
Haldex Gold Seal 30/30 Dual Diaphragm 2.5" Stroke
air connector
Glad-hands: Phillips 12-0081 for emergency Glad-hand /12-0061 for emergency
Pleasant service, with filter.




airline
Will use color coded (red and blue) 3/8” OD nylon airline. Airline
Will be fastened to the gooseneck and main rail to avoid any metal chafing. Air and wires will be connected to
Frame with closed metal clips, protected with rubber material. A hose separator should be installed to prevent the hose
Rub against each other on frame members or air tanks. Rubber grommets will be provided at each location on the air line
Cross the beam. At least 12 inches of excess airline and wire will be provided and kept inside the front pad.
Trailer Electrical System

Voltage
24 volt lighting system with Phillips wiring harness for ABS system.
Socket (7-pin socket)
Phillips 16-722
Stop/Turn/Tail Lights
Stop/Turn/Tail LED Light, Truck-Lite 44322R or Equivalent, Red
Gap/Marker Lights
Gap and Marker LED Lights, Truck-Lite 30 Series or Equivalent
License Plate Light
LED License Plate Light, Truck-Lite 15040
Triangular reflector
Peterson 489A/R or similar
Eye-catching reflective tape
Install manufacturer according to ISO specification: 3M or Avery.
trailer paint

metal preparation
Commercial sandblasting of all metal surfaces
primer
Electrophoretic primer (minimum 20μm)
topcoat
Powder Coated Topcoat (Approx. 60μm)
color
customizable
Marking
Install according to ISO regulations and customer requirements.
Trailer Accessories

ID holder
Installed on the roadside. Manufacturer: Phillips 16-802.

fender
24” x 20” flaps. Clearance between the bottom of the fender and the ground is approximately 6 inches @ no load.
Fenders will be supplied and installed by the customer.
fender
steel standard
toolbox
steel standard
Spare tire rack
steel standard
flanker
steel standard
rope hook
steel standard
Trailer Euphroe
steel standard
