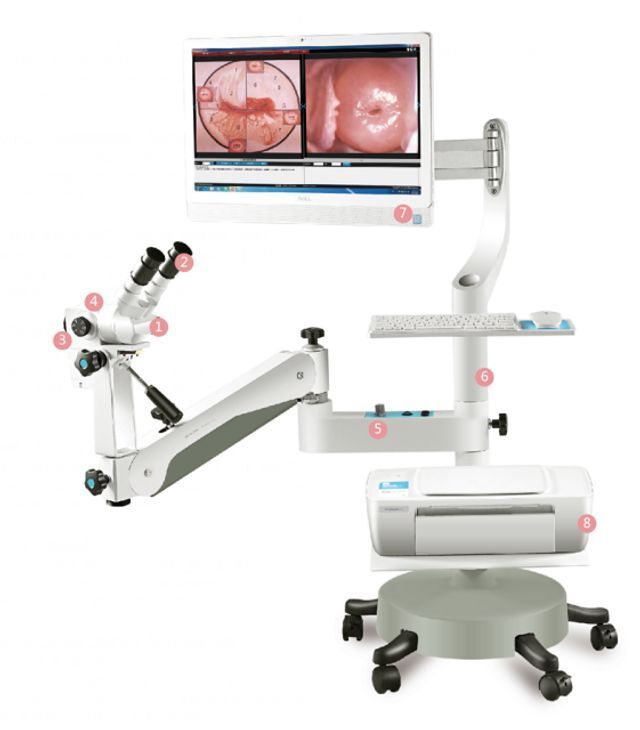

Bets result professional integrated HD video optical microscope for gynecology vagina examination and image management system
- $9600.00 / 3 - 29 sets
$7500.00 / 30 - 49 sets
$6200.00 / >=50 sets - 3 sets
- Kernel Medical Equipment Co., Ltd.
- Jiangsu, China
- Mr KERNEL Medical
| Format: | Green filter; | Quality Certification: | ce; |
| Product name: | HD optical video colposcope; | Warranty: | 1 Year; |
| Material: | Metal; | Instrument classification: | Class I; |
| Brand Name: | Kernel; | Place of Origin: | Jiangsu, China; |
| Eyepiece: | 0 degree or 45 degree; | Packaging Detail: | packaging in carton; |
| Type: | Visual Acuity Examination Apparatus; | Power Source: | Electricity; |
| Supply Ability: | 100 Sets per Month; | Magnification: | Max. 32X; |
| Port: | Shenzhen port; | After-sale Service: | Online technical support; |
| Package Preview: | ; | Shelf Life: | 1years; |
| Acidic acid: | Acidic acid reaction and counting down; | Model Number: | KN-2200BII; |
| Payment Terms: | L/C,D/A,T/T; | Safety standard: | GB/T 32610; |
(1)Product introduction

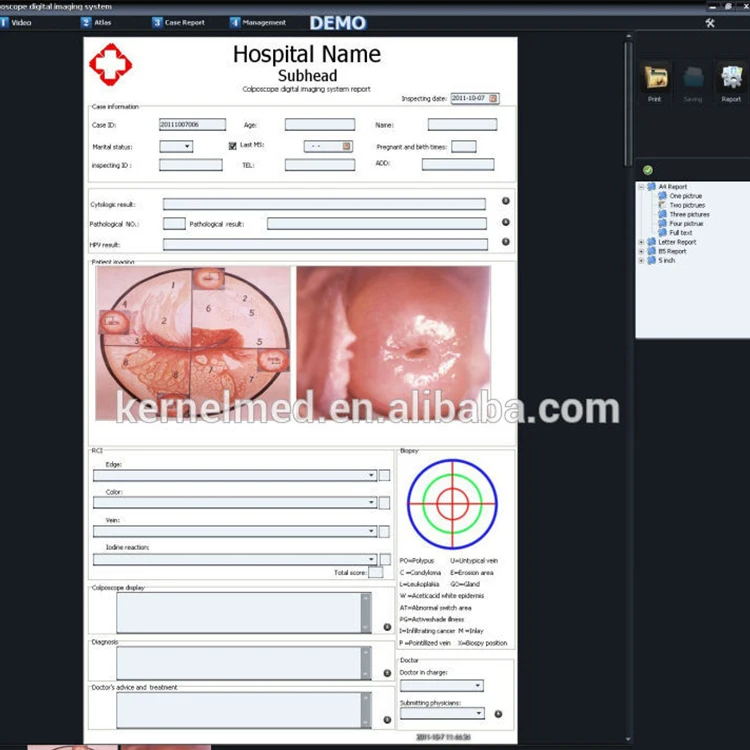

It is image workstation management system combining computer technology and digital colposcope.
It is a new product collects digital imaging technology and colposcope technology.
It is applied for gynecology inspection. This technology is different from traditional colposcope inspection.
It cancels ocular and breaks through limit of optic colposcope inspection.
1.Properties: Obstetrics & Gynecology Equipments
2.Type: gynecology examination
3.Brand Name: Kernel
4.Model Number: KN-2200B2
5.Place of Origin: Jiangsu, China (Mainland)
6.light source: Single way halogen cold light source
7.camera system: 1/2'' color CCD,Automatic focus
8.gynecology examination: colposcope
9.endoscope: video colposcope
10.colposcope: digital and electronic colposcope
11.connect computer:desktop&laptop
(2) Application
1.Suitable for gynecology examination and cervical cancer early find
2.On the clinical, checkup with vulva, vagina, cervix and other part
(3) Features

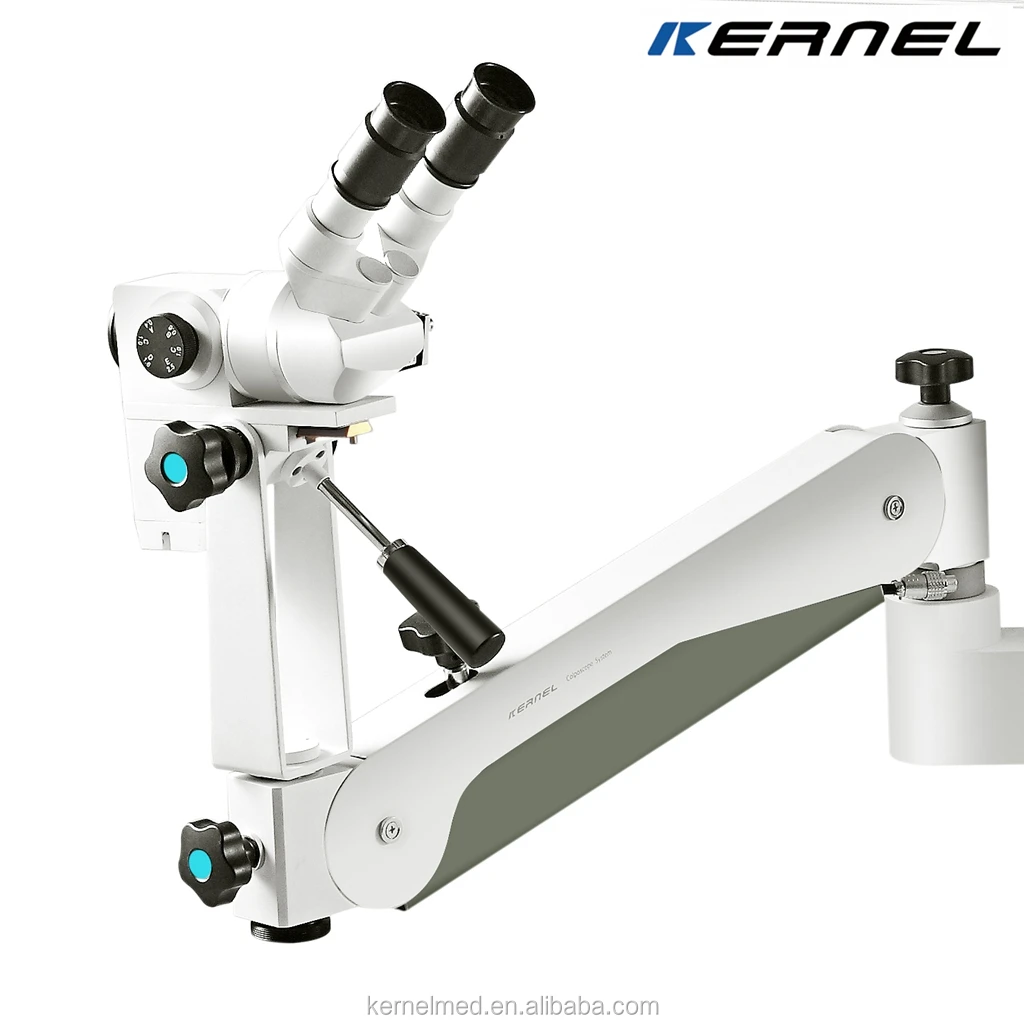

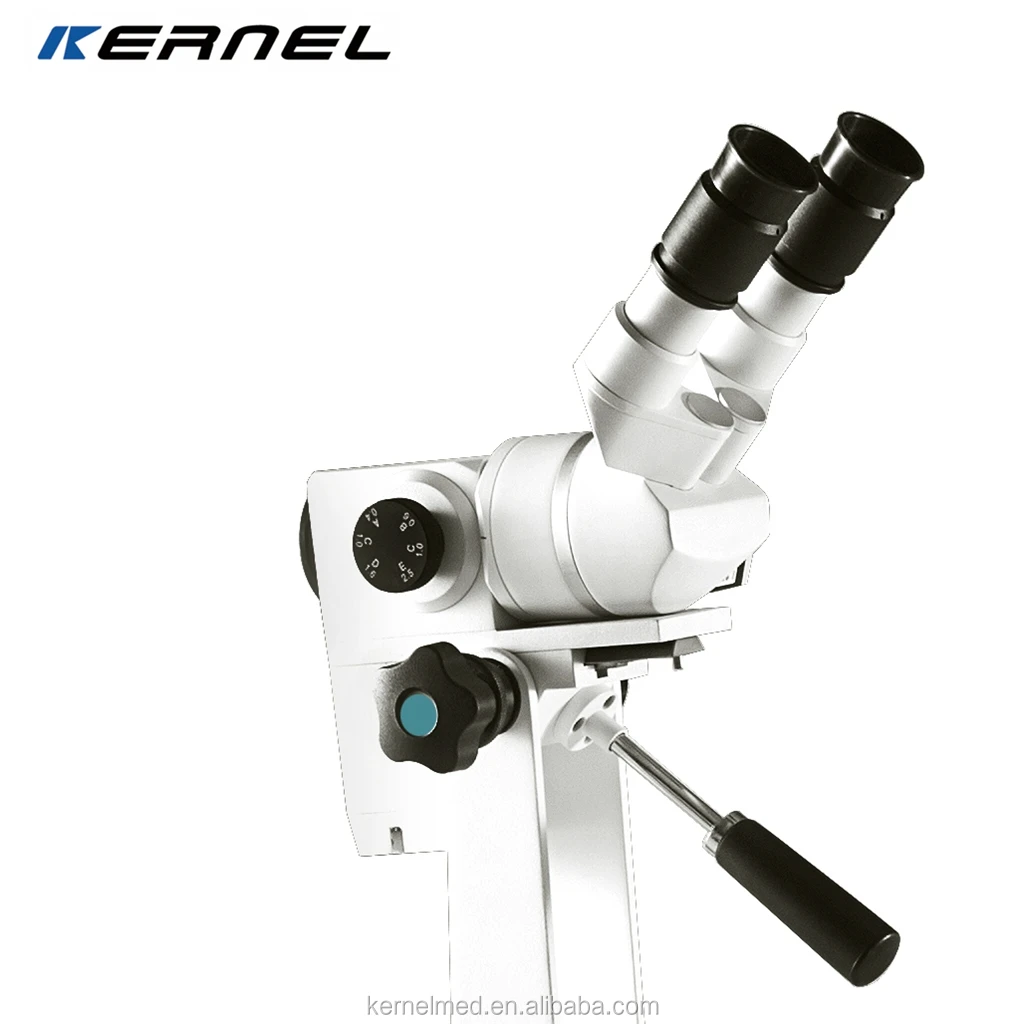

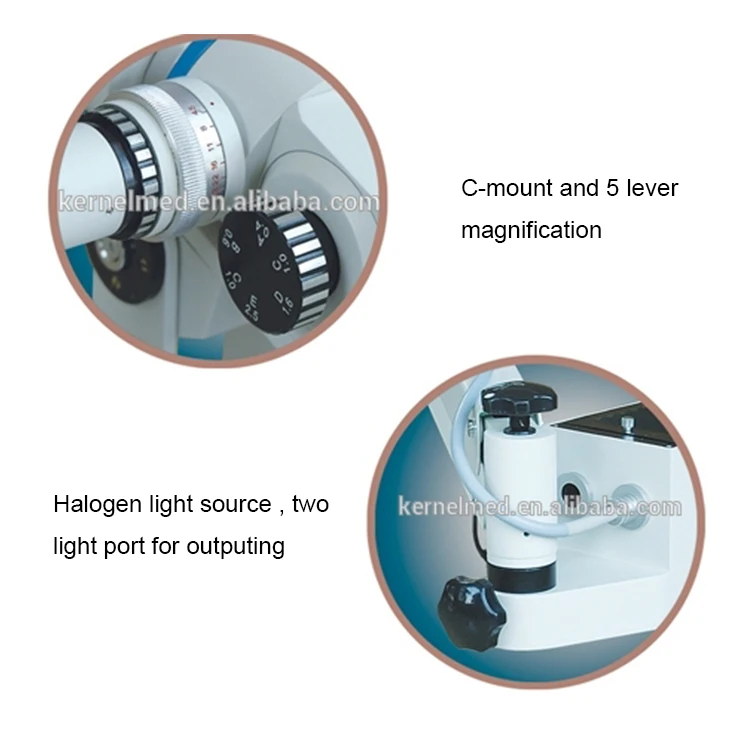

1 Optical system is five gears ,zoom ,and focus, Strong three-dimensional sense, Distinct gradations, Wide view,
2.In the Optical Ocular has a ruler, it can measure the size of the diseased region(D reg)
3.The double optical path cold light source of the integration design and the fiber conduction system.
The brightness can be adjusted
4.With a green filter, convenient to observe the capillary of diseased region.
5. High definition and color CCD,
6.Flexible and convenient spring arm bracket,and can be locked and adjusted at any angle
7.The unique light splitting grating design and the sole CCD imaging vernier device ,making the screen form the three dimensional imaging, and all the different levels diseased region tissue can gain the best observation effect.
Operation System:
Windows XP
Windows 7
32-bits operating system
(4) Parameters
|
Power supply |
AC220V±10%,50Hz±2% |
|
Monitor |
resolution is not less than 1440 * 900 pixel |
|
Computer |
DELL all-in-one PC, wireless blue tooth mouse and keyboard |
|
camera:
|
USB connector, color camera 1/1.8” SONY CMOS 3088 *2064 pixel picture
|
|
Light source |
LED |
|
Binocular |
five levels zoom system Magnification :from 2.66X to 32X 3088 *2064 pixel |
|
Working distance |
200mm~400mm |
(5) Operation
1. It is prohibited to do any gynecology examinations such as vaginal a day before the colposcope examination
2. It is prohibited to use vaginal drug two days before the colposcope examination
3. It is prohibited to do colposcope examination during menstrual period.
