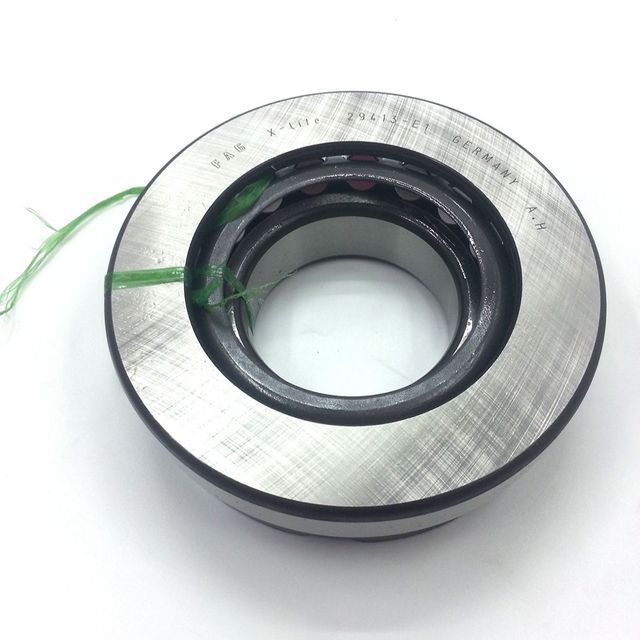

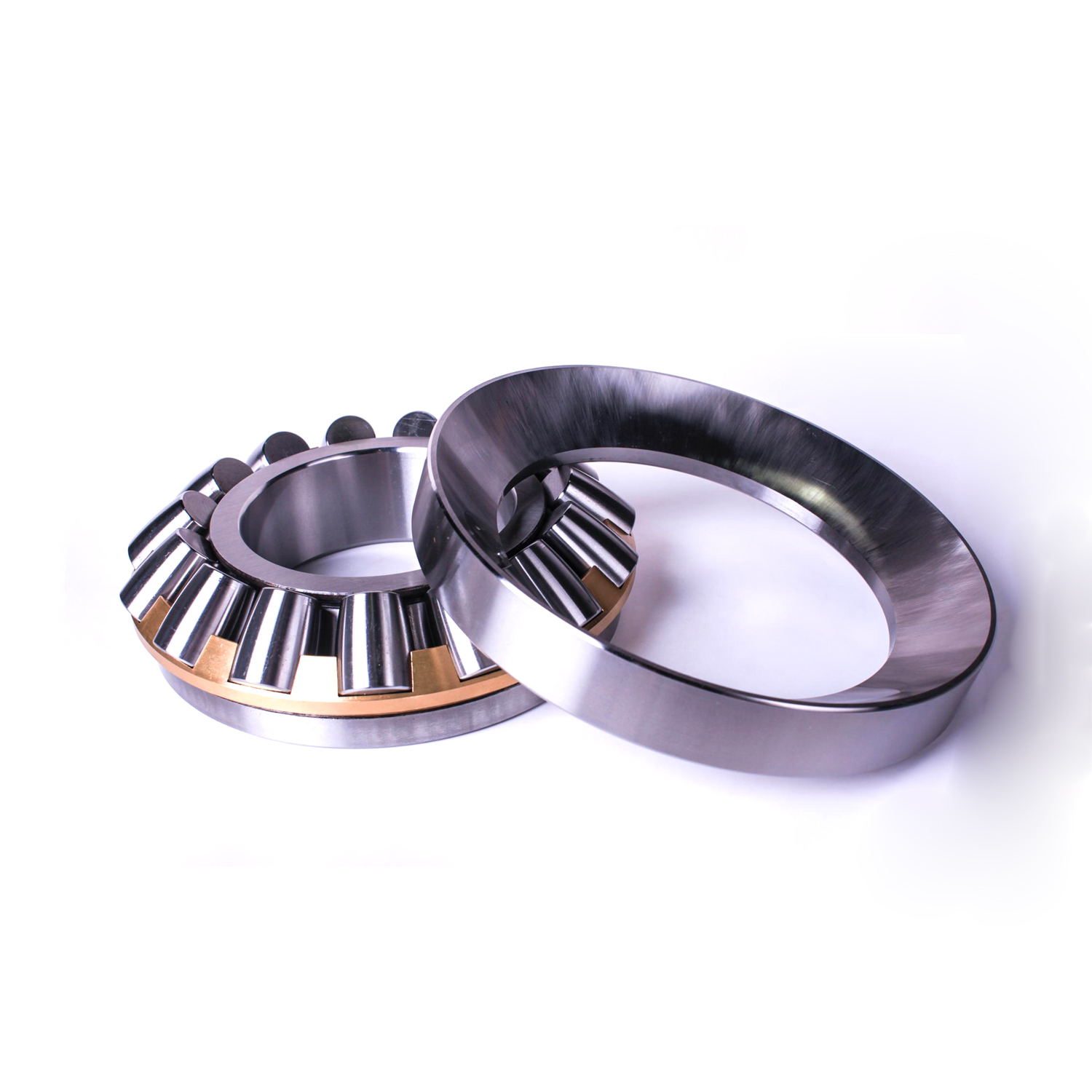

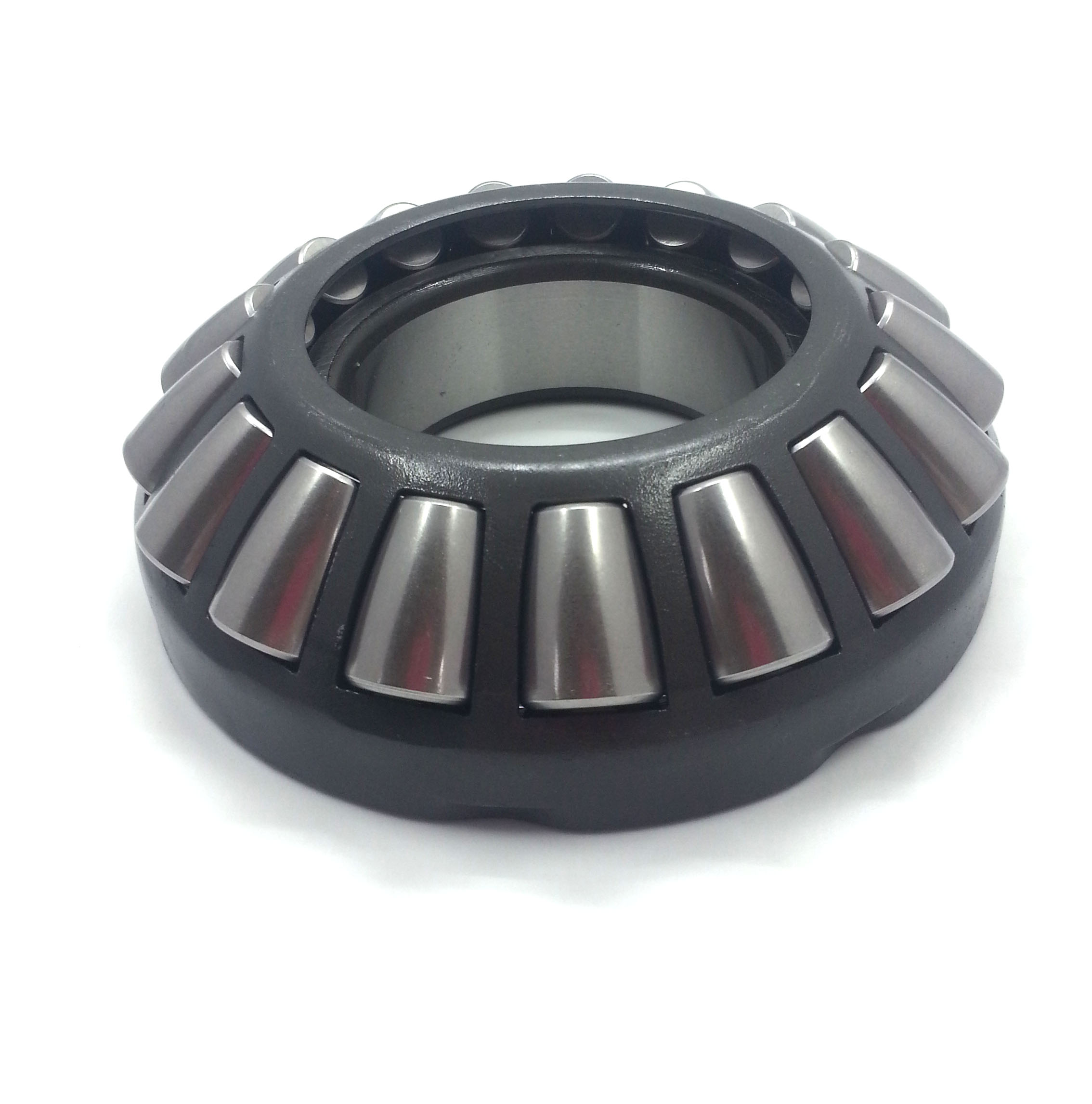

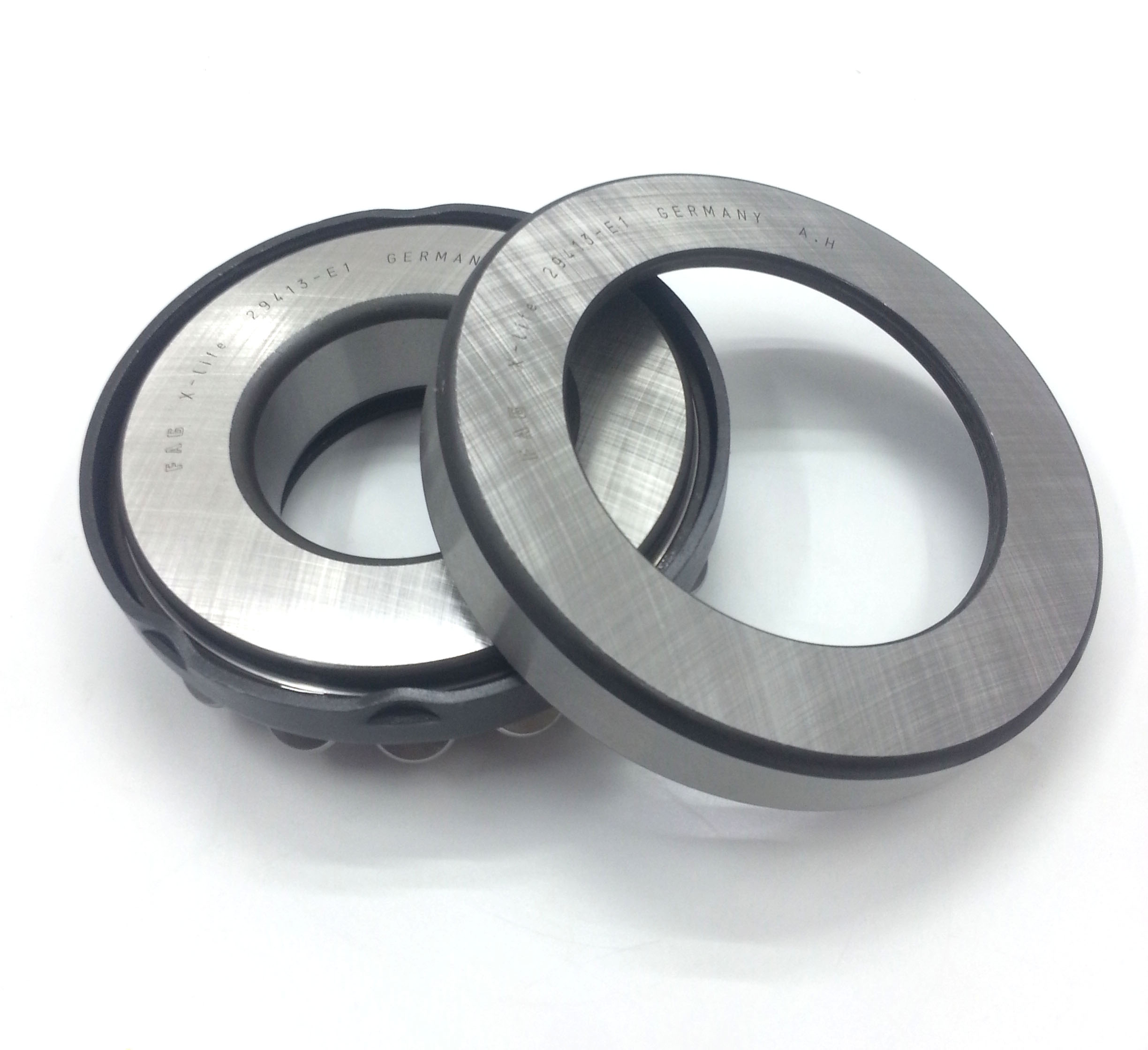

Betton self-aligning thrust roller bearing 29416E 29416M

29000 type bearings are asymmetric spherical rollers, which can reduce the sliding between rollers and raceways during work. The length, diameter and number of rollers have high bearing capacity. They are usually lubricated with oil, and can be used for grease lubrication at low speeds. In design selection, it should be preferred;

80000 type thrust cylindrical roller bearings, 90000 type thrust tapered roller bearings and AXK type thrust needle roller bearings can bear one-way axial load, which is much larger than the axial load capacity of thrust ball bearings, and has high rigidity. Small footprint.

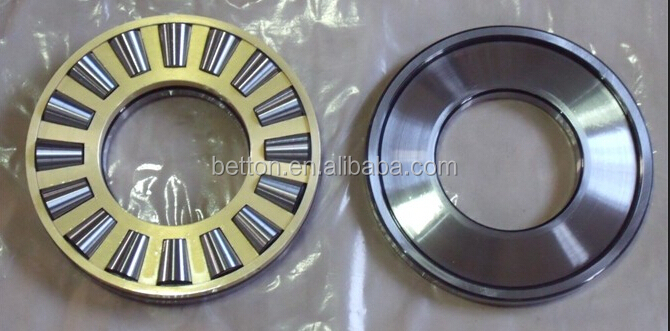

Cylindrical roller thrust bearings and thrust tapered roller bearings are used for low-speed applications, and the rotational speed of thrust tapered roller bearings is slightly higher than that of cylindrical roller thrust bearings. Thrust cylindrical roller bearings are separable bearings that can withstand axial loads and slight shocks to limit the axial displacement of the shaft (or housing) in one direction, so they can be used for one-way axial positioning. But its carrying capacity is far greater than that of thrust ball bearings. When the rollers are rolling, the two ends of the rollers are at different speeds, and the roller raceway will inevitably slide in the ring. Therefore, the limit speed of this bearing is lower than that of thrust ball bearings, and it is generally only suitable for low-speed bearings. occasions of operation.

Standard design thrust cylindrical roller bearings with machined metal solid cages, cages of other types or materials are available upon request. Thrust tapered roller bearings can bear axial loads and limit the one-way axial displacement of the bearings, so they can be used as one-way bearings. Axial positioning is adopted. Compared with cylindrical roller thrust bearings, it has larger load capacity and less slippage, but lower speed limit.

1. Single box packing, then in carton, then in pallet.

2. According to customer needs.
