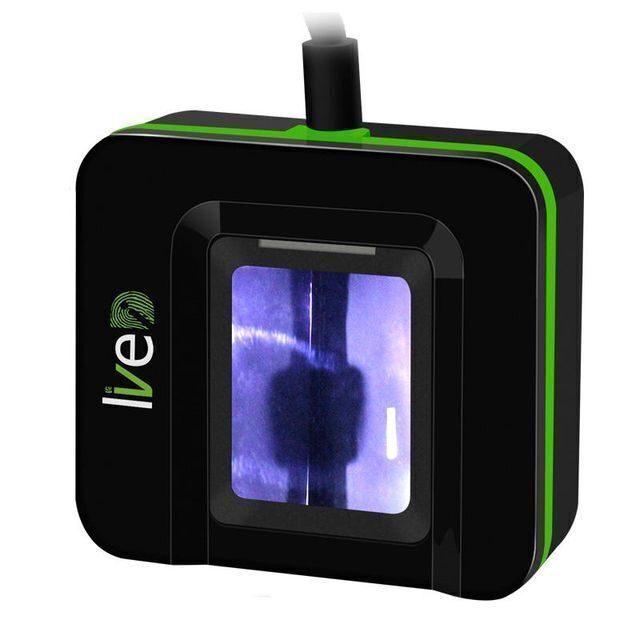

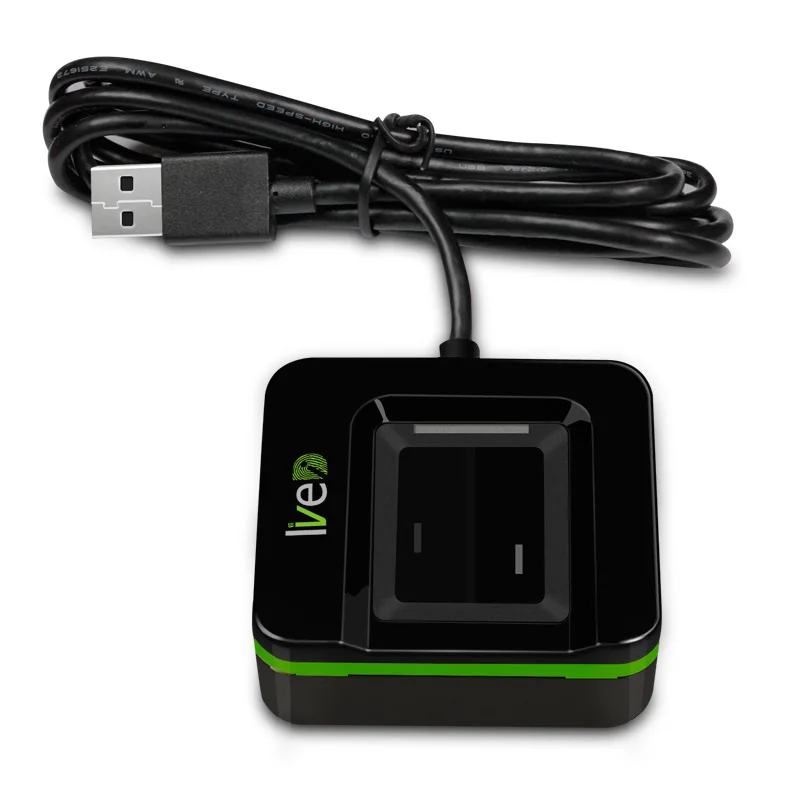

Biometric Finger Scanner 20R For Access Control System Fingerprint Reader USB Fingerprint Sensor
- $30.00 / 1 - 19 pieces
$29.50 / 20 - 49 pieces
$29.00 / 50 - 99 pieces
$28.50 / >=100 pieces - 1 piece
- Shenzhen Ximi Technology Co., Ltd.
- Guangdong, China
- Ms Vicky Wen
PRODUCT DETAIL
| Selling Units: | Single item; | Customized support: | Customized logo; |
| Pixel resolution: | 500DPI; | Package Preview: | ; |
| Size: | 49*49*18mm; | Operating System: | WINDOWS7/8/10/XP/VISTA(32/64BIT) linux(32/64bit)/android/IOS; |
| Template size: | 280*360; | Area: | 14mm*17mm; |

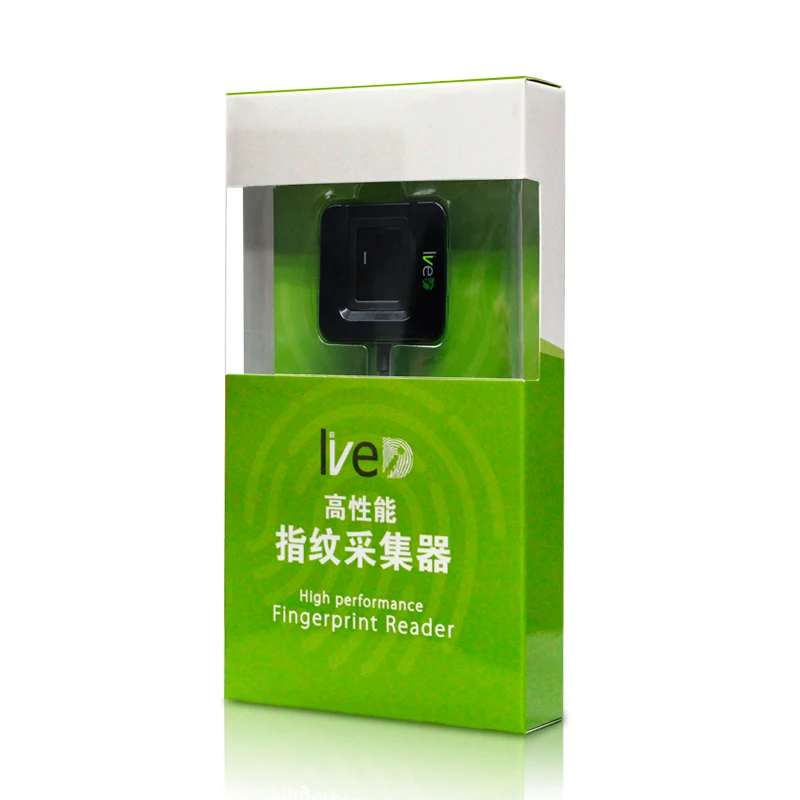

| Packaging Detail: | 10pcs per plastic plate, 50pcs per carton; | Single gross weight: | 0.200 KG; |
| Single package size: | 12X10X6 cm; | Resolution: | 500 Dpi; |
| Communication: | USB; | Type: | Fingerprint; |
| Place of Origin: | Guangdong, China; | Brand Name: | XIMI; |
| Model Number: | 20R; | Operating Temperature: | -20°C - 50° C; |
| Certification: | CE FCC; | Registration speed: | <0.5 sec; |
| Warranty: | 1 Year; | SDK: | C#,Jave; |
| Special Features: | USB Reader; |
Product Description
20R fingerprint is the latest instrument is more compact a fingerprint device, surface of the hard steel material, appearance is extremely elegant, the output images up to 500dpi, is a superior performance compared to the fingerprint input device, you can a wide range of applications in social security, public security, attendance, fingerprint encryption, embedded, and many other applications.
Features

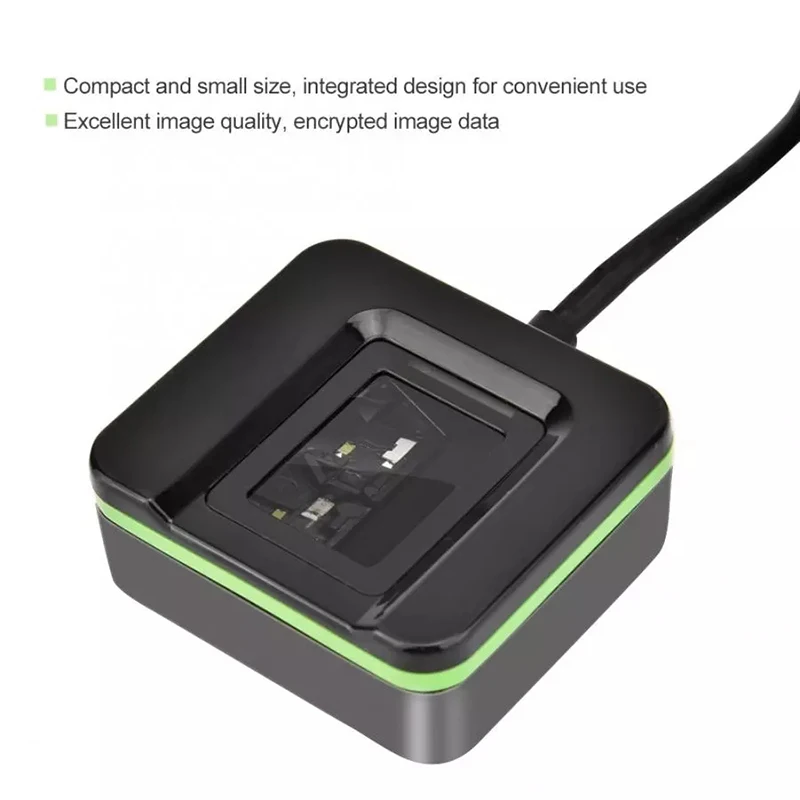

1, Small size.
2, Excellent image qualit.
3, Encrypted image data.

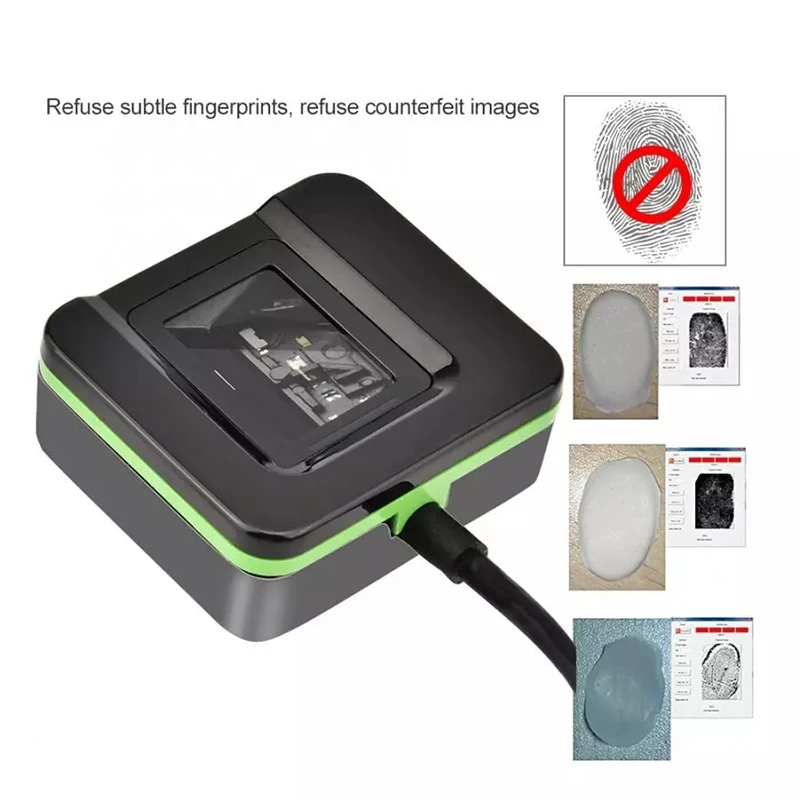

4, Refused to subtle fingerprints.
5, Refused to fake the image.
6, Support the fingerprint rotation.
7, Rough fingerprint processing.

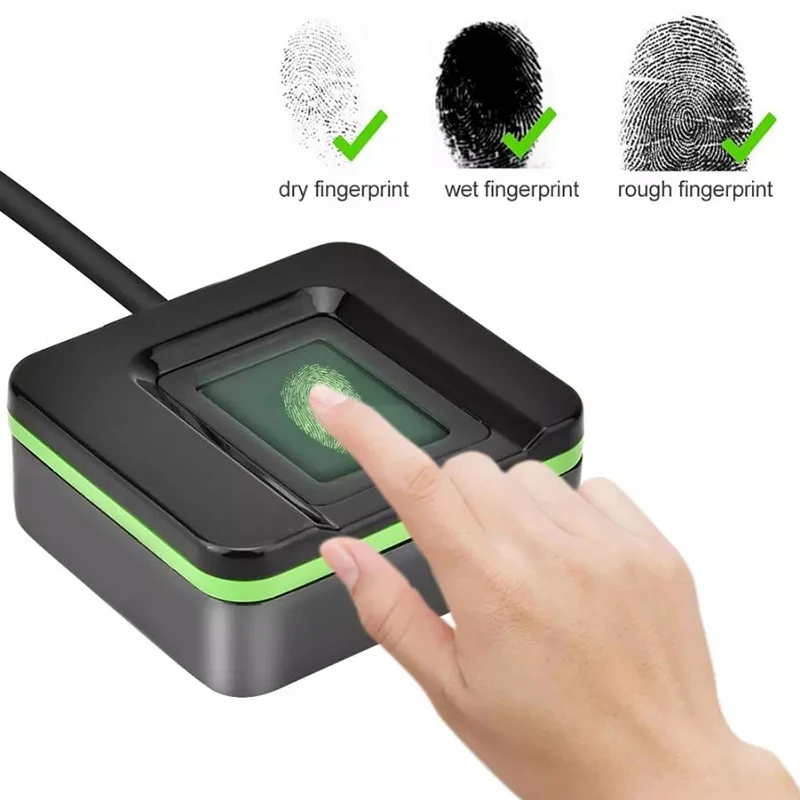

8, Support dry, wet, or rough fingerprin.

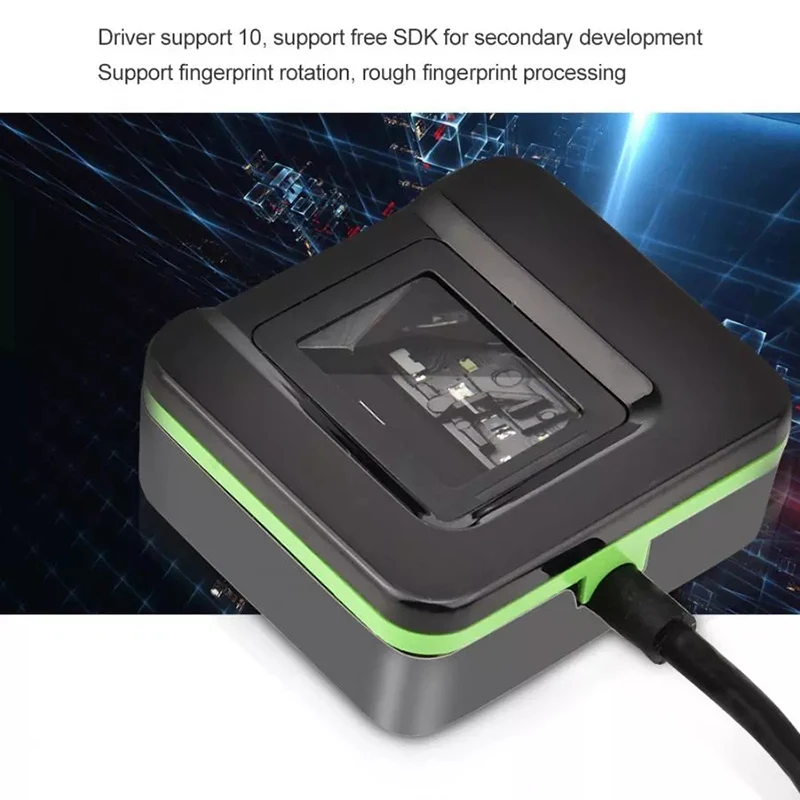

9, Driver support10,Support free SDK for secondary development, support for language: CB, VB, VC, Delphi, PB8, VBdemo, VFP
2, Excellent image qualit.
3, Encrypted image data.
4, Refused to subtle fingerprints.
5, Refused to fake the image.
6, Support the fingerprint rotation.
7, Rough fingerprint processing.
8, Support dry, wet, or rough fingerprin.
9, Driver support10,Support free SDK for secondary development, support for language: CB, VB, VC, Delphi, PB8, VBdemo, VFP
Specification
·Fingerprint sensor: ZK Optical Sensor with strengthen film
· Resolution: 500DPI/256 grayscale(8-bit)
· Scan size: 15.24*20.32mm(FAP20)
· Image size: 300*400
· Interface: USB1.1, compatible with USB1.0,1.1,2.0
· Registration speed: <0.5 sec
. Registration angle: 360°C
· Operating Temperature: -20°C - 50° C
· Operating Humidity: 0-90%
· Operating System: WINDOWS7/8/10/XP/VISTA(32/64BIT) linux(32/64bit)/android/IOS
· USB cable length: 180 CM
· Dimension (L*W*H): 124.5mm*102mm*34mm
· Power Supply: 5.0V +/- 0.25V ( USB interface power)
· Current : Capture fingerprint: max 250 mA
· Idle mode : max 25 mA
· Suspend mode : <0.5 mA
· Size:49*49*18mm(L*W*H)
· Resolution: 500DPI/256 grayscale(8-bit)
· Scan size: 15.24*20.32mm(FAP20)
· Image size: 300*400
· Interface: USB1.1, compatible with USB1.0,1.1,2.0
· Registration speed: <0.5 sec
. Registration angle: 360°C
· Operating Temperature: -20°C - 50° C
· Operating Humidity: 0-90%
· Operating System: WINDOWS7/8/10/XP/VISTA(32/64BIT) linux(32/64bit)/android/IOS
· USB cable length: 180 CM
· Dimension (L*W*H): 124.5mm*102mm*34mm
· Power Supply: 5.0V +/- 0.25V ( USB interface power)
· Current : Capture fingerprint: max 250 mA
· Idle mode : max 25 mA
· Suspend mode : <0.5 mA
· Size:49*49*18mm(L*W*H)

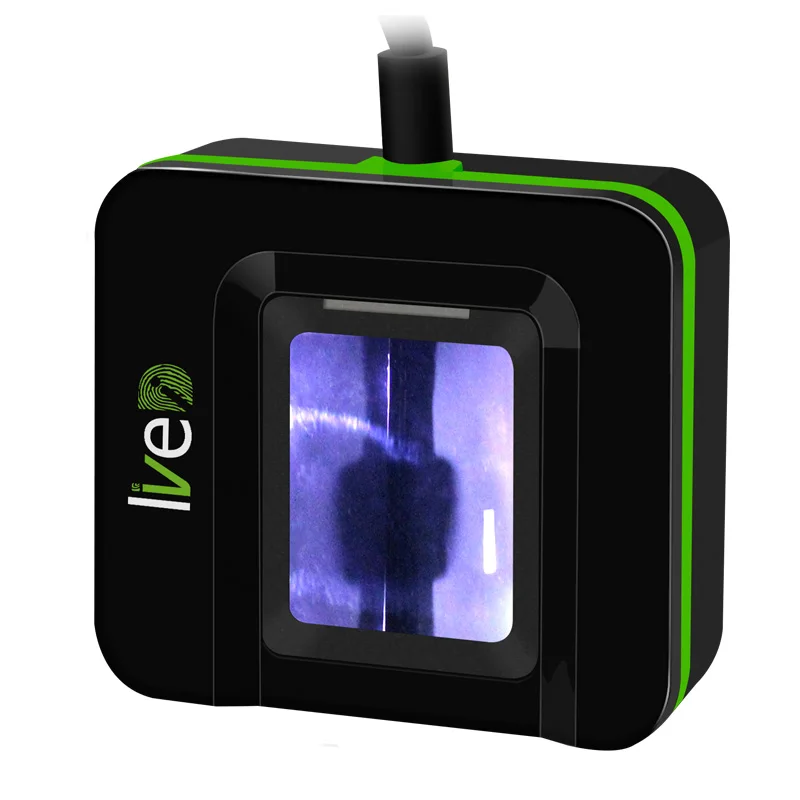

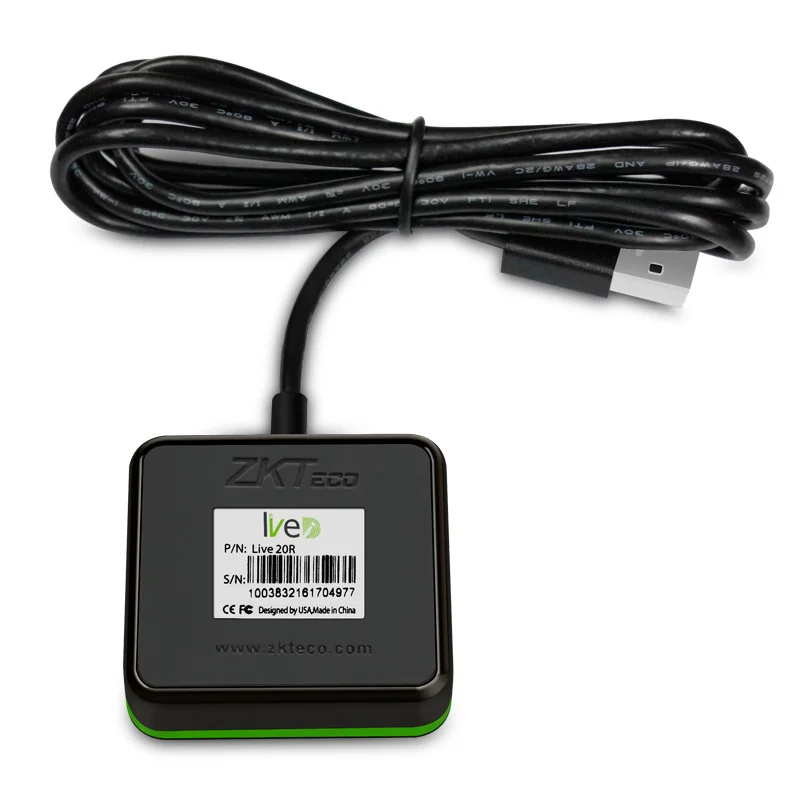

Details Images
Certifications
Company Profile

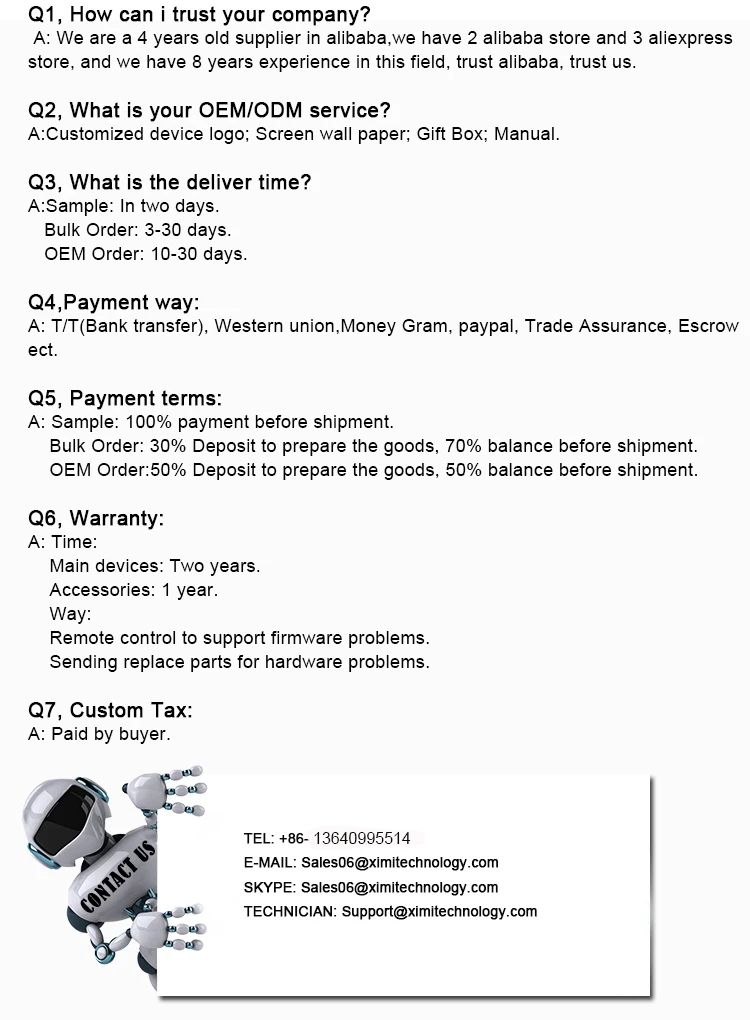

FAQ
