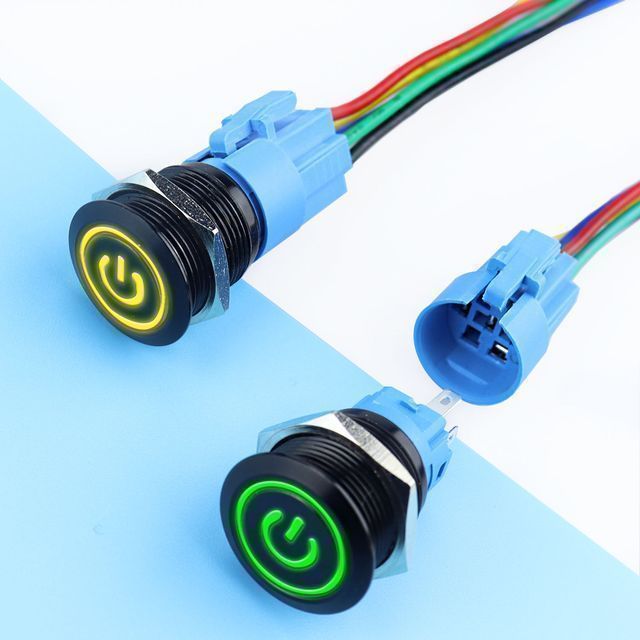

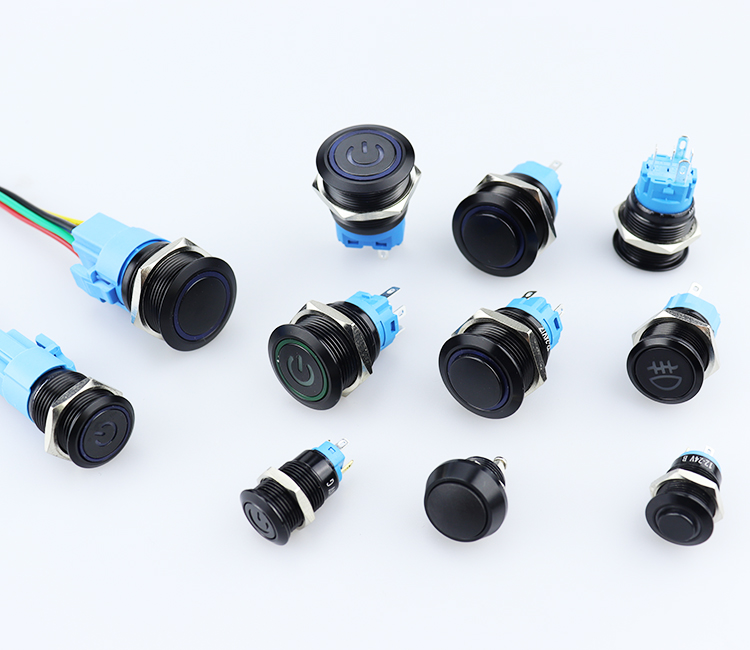

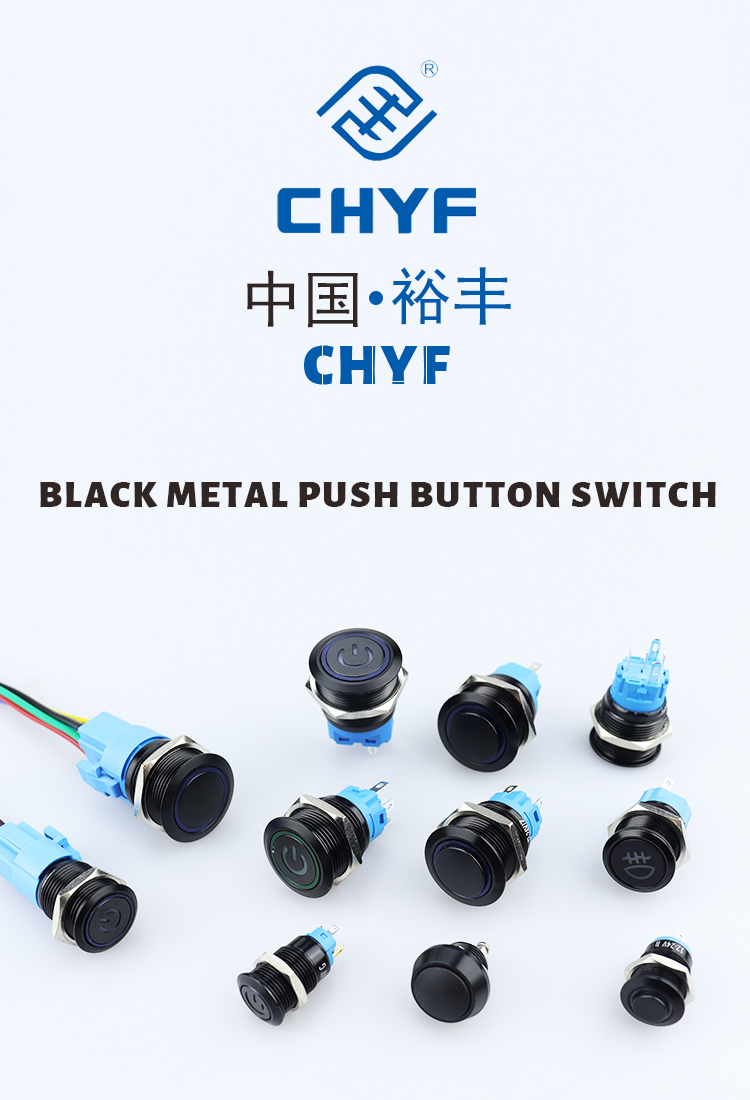

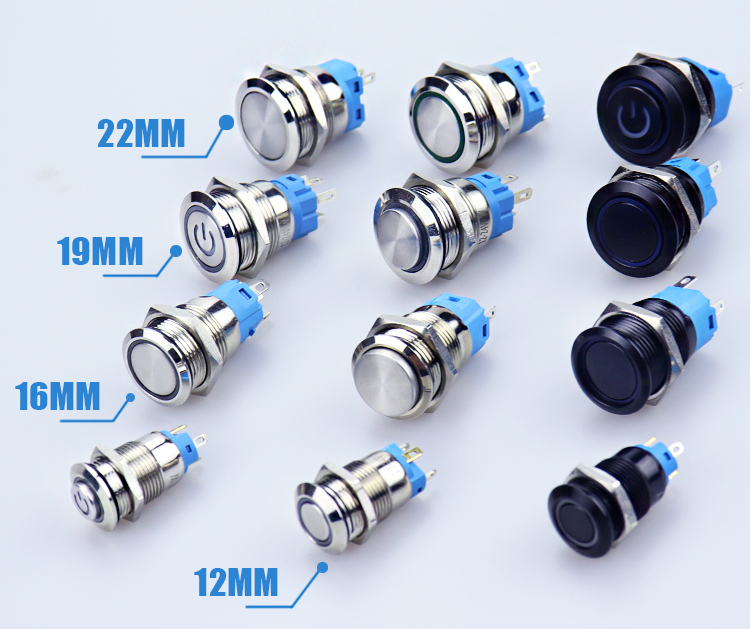

Black Metal Push Button Switch 12mm 16mm 19mm 22mm Waterproof Small Luminous With LED Momentary Lock Push Button Switch
- $0.46 / 1 - 99 pieces
$0.44 / 100 - 499 pieces
$0.41 / >=500 pieces - 1 piece
- Wenzhou Yufeng Import& Export Co., Ltd.
- Zhejiang, China
- Ms Jessica Zhang

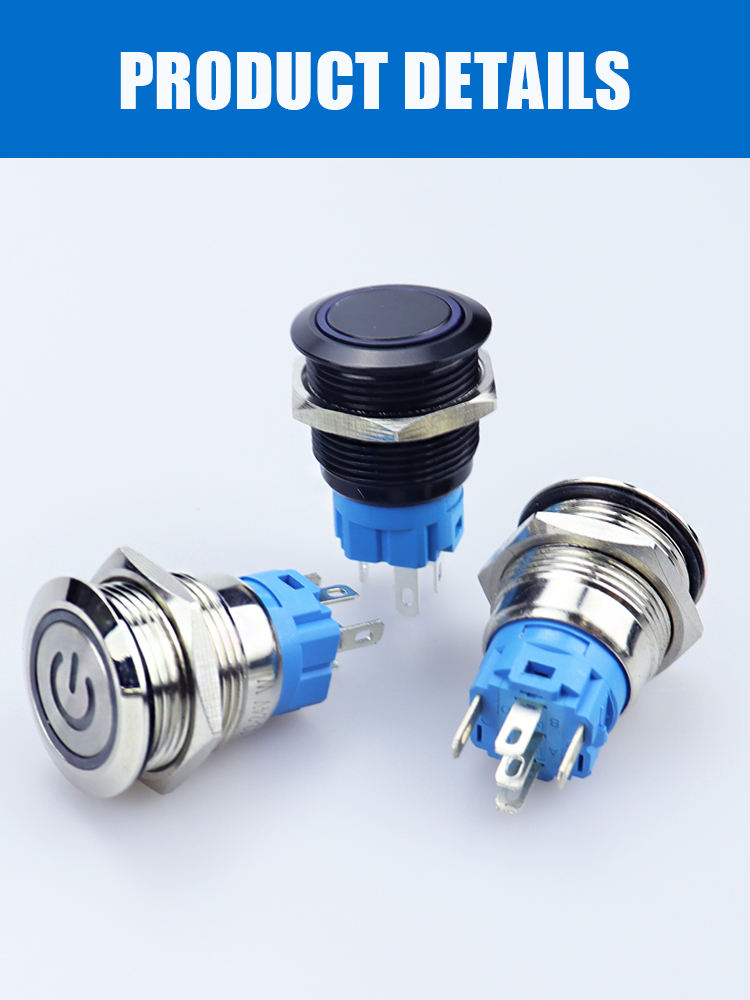

PRODUCT DETAIL
| Is it smart: | Do not | Protection class: | IP65 |
| Packaging Preview: | brand: | CHYF | |
| Packaging Details: | Carton can be customized according to customer requirements | payment terms: | L/C,Western Union,D/P,D/A,T/T,MoneyGram |
| place of origin; place of origin: | Zhejiang, China | Certification: | Chief Executive |
| model: | YF-12-P10Z-ET | port: | Shanghai/Ningbo Port |
| maximum. current: | 3A | maximum. Voltage: | 220V 12V |
| Lead: | Yes |
product name | power switch button |
Material | Stainless Steel/Nickel Plated Brass/ |
switch class | 2A/36VDC |
terminal type | pin terminal |
point resistance | Maximum 50MΩ |
Insulation resistance | ≥1000MΩ |
isolation strength | 1500VAC, 50Hz/60Hz |
Operating temperature | -25℃~+55℃ |
Mechanical life | more than 500000 times |
Electrical life | more than 100000 times |
Panel thickness | 1~15mm |
operational pressure | Abu 4N |
Operating stroke | about 2mm |
Intellectual Property Degree | IP65 |
Contact material | silver alloy |
LED type | High brightness LED lights, cool |
Luminous color | red, green, blue, yellow, white, orange, purple |
Rated voltage | AC/DC 3V, 5V, 6V, 12V, 24, 36V, 48V, 110V, 220V |
Rated current | ≤20mA |
