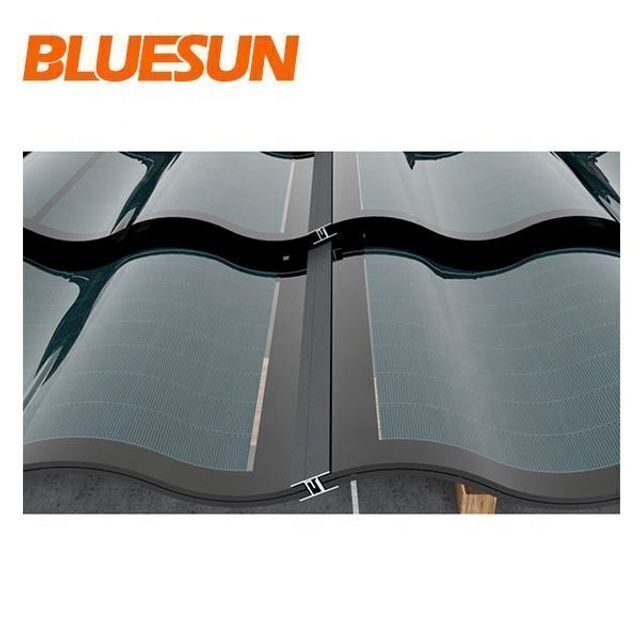

Bluesun single glass solar roof tiles photovoltaic solar roof panel tile black
- $1.80 / 100000 - 999999 pieces
$1.70 / 1000000 - 9999999 pieces
$1.60 / >=10000000 pieces - 100000 pieces
- SOLAR WORLD CO.,LTD
- Anhui, China
- Ms Hazel He
PRODUCT DETAIL
| Weight: | 10KG; | Open-circuit voltage: | 10.6V; |
| Product name: | Solar roof tile; | Power: | 30W; |
| Payment Terms: | L/C,Western Union,T/T,MoneyGram; | Hip type: | CIGS; |
| Port: | Shanghai or Ningbo; | Package Preview: | ; |
| Warranty: | 5YEARS; | Place of Origin: | Anhui, China; |
| Packaging Detail: | 30pcs per pallet,Standard export package, Composite material box; | Supply Ability: | 10000000 Watts per Month; |
| Brand Name: | Bluesun; | Short-circuit current: | 4A; |
| Junction box: | 39*46*16.6 (mm) IP67; | Certification: | CE; |
| Model Number: | BSM-30S; | Waterproof grade: | IP67; |
| Size: | 500*718*41mm; | Cable type: | 2.5mm solar cable 450 (+10/-0) mm; |
Products Description

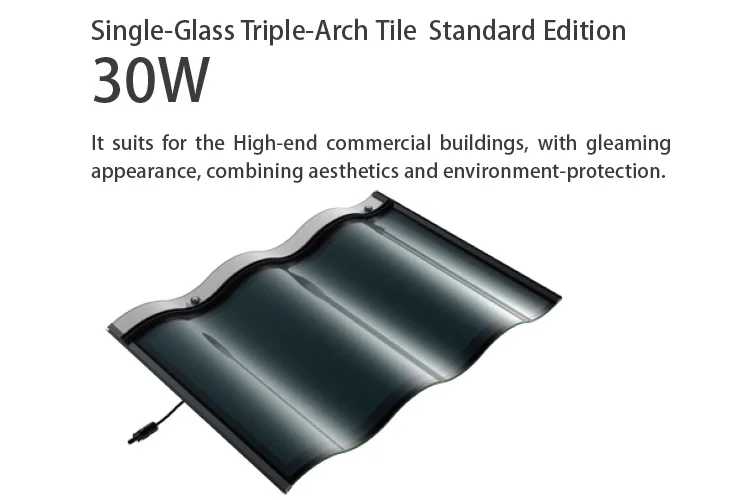

30W Single Glass Solar Tile
Solar tile not only has the functions of waterproofing and heat insulation, but also changes the dependence of buildings on external energy sources, making zero-energy buildings possible.
Single-Glass Roof solar tile series
With innovative single-glass structure, light and beautiful, it can be widely used in load-bearing; made from toughened
glass, it is firm and tenacious, showing the dynamic architectural aesthetics with great fashion.
glass, it is firm and tenacious, showing the dynamic architectural aesthetics with great fashion.
Environmentally friendly building materials
The combination of traditional building materials and thin-film solar technology can not only replace traditional tiles as
building materials, but also replace traditional photovoltaic panels.
building materials, but also replace traditional photovoltaic panels.
Technical Details
product model: | BSM-30S | |
length: | 700mm | |
width: | 500mm | |
arch height: | 35mm | |
weight: | 5.2KG | |
color: | black | |
junction box: | 68*68*19.7 (mm) IP67 | |
cable type: | 2.5mm solar cable 450 (+10/-0) mm | |
cable connector: | pv connector | |
Physical parameters | ||
chip type: | CIGS | |
power: | 30W | |
short-circuit current: | 4.45A | |
open-circuit voltage: | 10.16V | |
current at PMPP: | 3.87A | |
voltage at PMPP: | 7.79V | |
Electrical parameters | ||
loading grade: | 2400Pa | |
waterproof grade: | IP67 | |
fire-proof grade: | A | |
hail-proof grade: | level 4 (ANSI FM 4473) | |
working temperature: | -40°C to +85°C | |

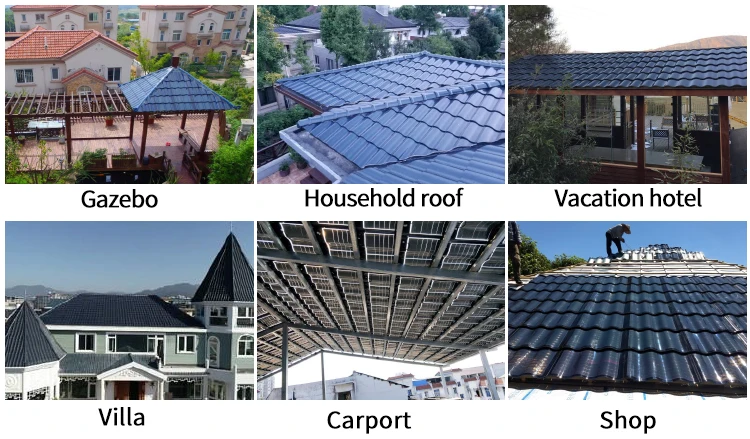

Applications
By Sea | Delivery from Shanghai or Ningbo seaport | ||||
By Air | Departure from Shanghai Pudong Airport | ||||
By Express | By TNT/DHL | ||||

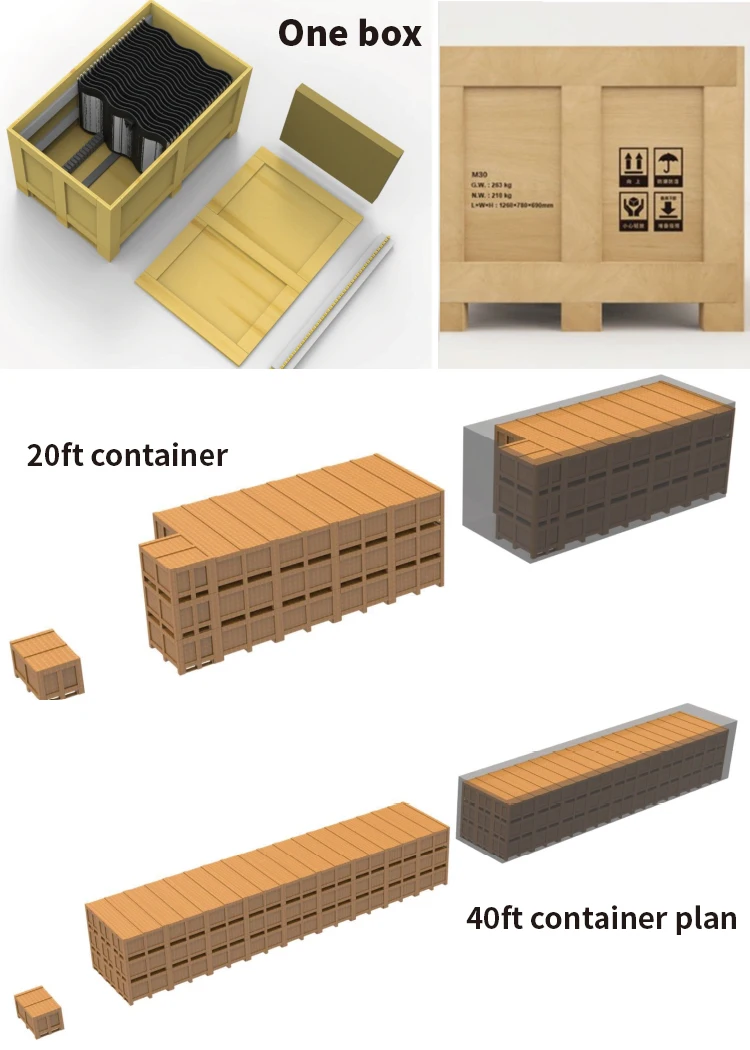

Packing & Delivery
One Box | Packing Specification (mm) | Gross Weight | Net Weight | Number per carton (pcs) |
1260*780*690 | 263 | 210 | 40 |
Loading Quantity (CTN) | Loading Quantity (PCS) | Total Weight (T) | Volumn (m3) | |
20ft Container | 39 | 1560 | 10.3 | 27.6 |
40ft Container | 81 | 3240 | 21.5 | 54 |
Payment
Payment Term | T/T | EXW | |||
FOB | |||||
CFR(C&F) | |||||
CIF | |||||
L/C | L/C amount above 50,000 usd, we can accept L/C at sight | ||||
Paypal | |||||
West Union | |||||
Delivery Time | 7~10days after receiving payment for one container | ||||
We welcome use Trade Assurance, you'll enjoy:
100% product quality protection
100% on-time shipment protection
100% payment protection for your covered amount
100% on-time shipment protection
100% payment protection for your covered amount
