Bronze bushing sintered bearing precision parts aluminum copper matching sleeve brass bronze bushing
- $0.50 / >=5 pieces
- 5 pieces
- Wuxi Eternal Bliss Alloy Casting & Forging Co., Ltd.
- Jiangsu, China
- Ms Juliet Zhu
PRODUCT DETAIL
model: | EB77732 | product name: | bronze bushing |
port: | Shanghai port | Material: | bronze medal |
type: | Sleeves, Bearing Sleeves, Sleeves | Origin: | Jiangsu, China |
feature: | high precision | Packaging Details: | Plywood box: 1500 x 1000 x 1000mm (max) 20ft container: 25 tons (max) |
Applicable industries: | Energy and Mining | Bushing Type: | straight/flange |
payment terms: | D/A, D/P, T/T, Western Union, MoneyGram | Supply capacity: | Annual output 4000 tons |
size: | according to your drawing | brand: | EB |

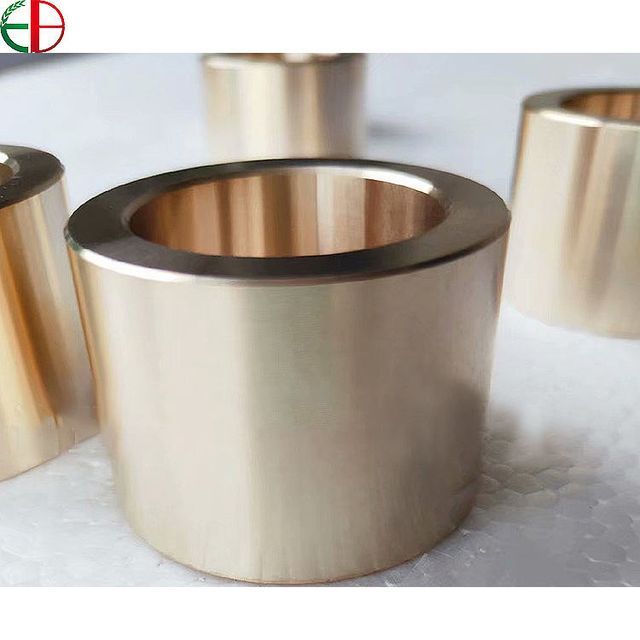

Bronze bushing sintered bearing precision parts aluminum copper matching sleeve brass bronze bushing
1. Name:Sintered bronze bushing
2. Material: Bronze
3.aspect:Sample processing according to your requirements
Specification: | |
Material |
1. Bronze; Iron copper; MPIF standard F-0000-K23; FC-0200; FG-0303 series 2.OEM according to your requirements |
Operating temperature: | -40℃~+200℃ |
Density and Gravity: | 6.4-7.3 g/cm3 |
Oil impregnation rate: | 15% - 23% |
Graphite content: | 1% - 3% max |
Swipe speed: | 6.0 [m/s] |
Static load capacity: | 10 N/mm2 |
Maximum PV value: | 1.6 N/mm2 m/s |
Dynamic load capacity: | 5 N/mm2 |
Speed of work: | 2.5m/s |

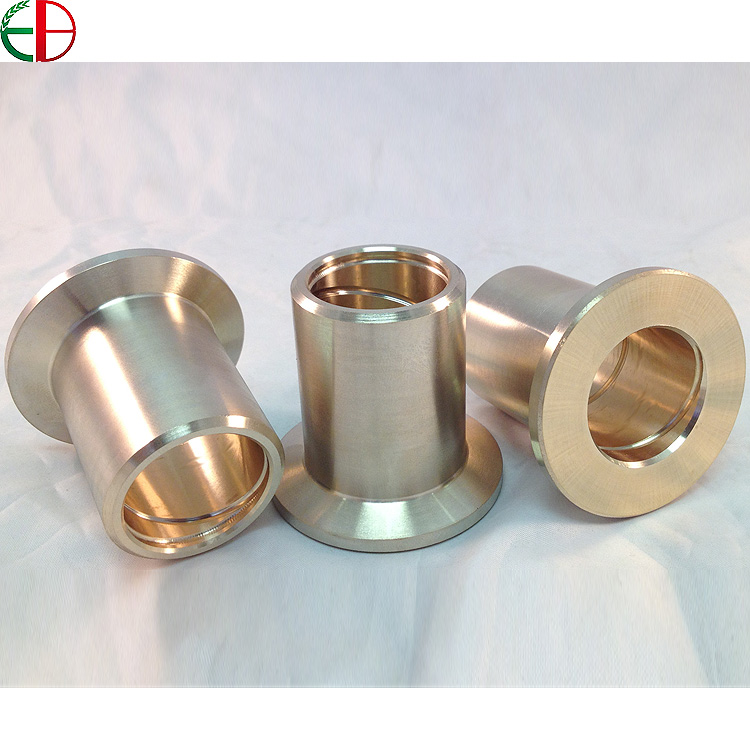

Shape Type: | cylinder; flange; ball (with ring) |
For load direction: | Radial, Thrust, Combination Radial and Thrust |
Yield Strength: | 15000 psi |
Shaft Mount Type: | Crimp |
Tapered Bushings (Metric Bore) | Tapered Bushing (Inch Bore) | ||||
No. | Bore range | No. | Bore range | ||
minimum value | maximum. | minimum value | maximum. | ||
1008 | 9 | 25 | 1008 | 3/8 | 1 |
1108 | 9 | 28 | 1108 | 3/8 | 1 1/8 |
1210 | 11 | 32 | 1210 | 1/2 | 1 1/4 |
1215 | 11 | 32 | 1215 | 5/8 | 1 1/4 |
1310 | 14 | 35 | 1310 | 1/2 | 1 3/8 |
1610 | 14 | 42 | 1610 | 1/2 | 1 5/8 |
1615 | 14 | 42 | 1615 | 1/2 | 1 5/8 |
2012 | 14 | 50 | 2012 | 5/8 | 2 |
2017 | 18 | 50 | 2017 | 3/4 | 2 |
2517 | 16 | 60 | 2517 | 3/4 | 2 1/2 |
2525 | 18 | 60 | 2525 | 7/8 | 2 1/2 |
3020 | 25 | 75 | 3020 | 1 1/4 | 3 |
3030 | 35 | 75 | 3030 | 1 1/4 | 3 |
3525 | 35 | 90 | 3525 | 1 1/2 | 3 1/2 |
3535 | 35 | 90 | 3535 | 1 1/2 | 3 1/2 |
4030 | 40 | 100 | 4030 | 1 3/4 | 4 |
4040 | 40 | 100 | 4040 | 1 3/4 | 4 |
4535 | 55 | 110 | 4535 | 2 1/4 | 4 1/2 |
4545 | 55 | 110 | 4545 | 2 1/4 | 4 1/2 |
5040 | 70 | 125 | 5040 | 2 3/4 | 4 1/2 |
5050 | 70 | 125 | 5050 | 3 | 5 |
QD Bushing | |||
No. | weight (Kilogram) |
Bore range | |
minute. | maximum. | ||
Japan Airlines Association | 0.36 | 3/8 | 1 1/4 |
SH | 0.45 | 1/2 | 1 11/16 |
safety data sheet | 0.54 | 1/2 | 2 |
SD | 0.68 | 1/2 | 2 |
SK | 0.91 | 1/2 | 2 5/8 |
SF Express | 1.59 | 1/2 | 2 15/16 |
Second | 4.08 | 7/8 | 3 1/2 |
Q: Are you trading company or manufacturer?
A: We are factory.
Q: How long is your delivery time?
A: Generally 5~10 days if the goods are in stock. If the goods are not in stock, it is 45 days, according to the quantity.
Q: What's your payment terms?
A: Payment<=1000USD, 100% in advance. Payment >= USD 1000, 50% T/T in advance, balance before shipment. Irrevocable L/C at sight.
