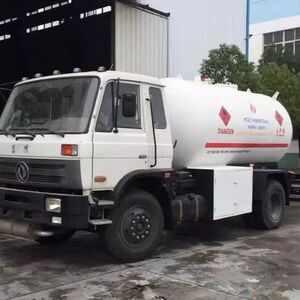

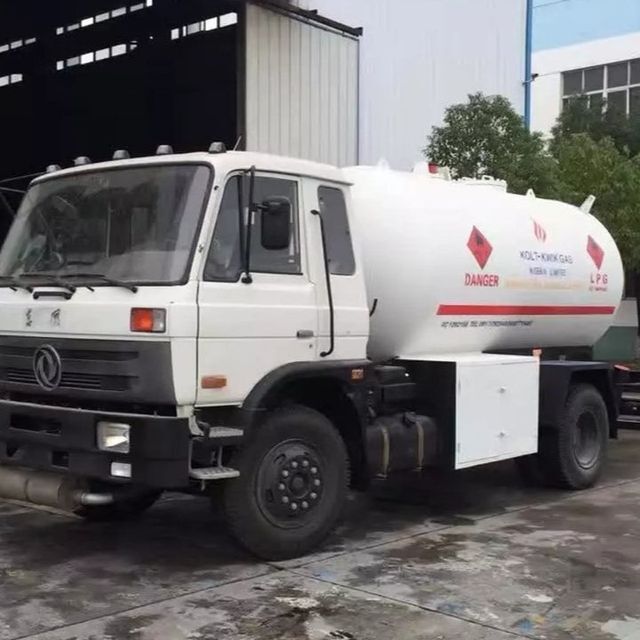

Bulk LPG Bobtail Truck 15.000 Liters LPG gas Dispensing Tank 6tons for Nigeria market
- $9999.00 /unit
- 1 unit
- Hubei Chusheng Vehicle Co., Ltd.
- Hubei, China
- Ms Lucy Wang
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram; | Product name: | LPG Bobtail Truck 15.000 Liters LPG gas Dispensing Tank 6tons; |
| Capacity: | 15m3; | Tank Material: | Q345r/Q370r Carbon Steel, 16mndr; |
| Key Parts: | Explosion-Proof Pump, Motor, Filling Weight Scale; | Drive Type: | Right Hand Drive, or Left Hand Drive; |
| Other Name: | LPG Filling Truck, LPG Gas Filling Truck, LPG Tank; | Condition: | New; |
| Brand Name: | CSC; | Model Number: | Cylinder refilling type; |
| Engine Horse Power: | 116HP. 140HP. 160HP. 170HP. 190HP; | Used for: | Filling LPG Gas Cylinders; |
| Truck brand: | HOWO, Dongfeng, Foton, JAC, Jmc etc.; | Supply Ability: | 1000 Units per Quarter LPG Dispensing Truck; |
| Filling Medium Density: | Liquid Petroleum Gas, 0.42-0.55tons/M3; | Weight: | 12500; |
| Dimension(L*W*H): | 7200*2300*2950; | Drive Model: | HOWO 4X2, 6X4, 8X4 LPG Bobtail, 6tons LPG Truck; |
| Place of Origin: | Hubei, China; | After-sales Service Provided: | Engineers available to service machinery overseas; |
| Packaging Detail: | bulk or roro shipping; | Delivery Detail: | 25-35 working days; |
| Port: | Shanghai port; |
Bulk LPG Bobtail Truck 15.000 Liters LPG gas Dispensing Tank 6tons for Nigeria market
Features
1) Loading capacity: 2tons 5tons 6tons 8tons 10tons
2) Tank Volume: 3m3, 5m3, 8m3, 10m3, 12m3, 15m3, 18m3/ 3000L, 5000L, 8000L, 10000L, 12000L, 15000L, 18000L etc.
3) Truck engine brand: Weichai Yuchai Yunnei for option
4) Main parts installed on lpg bobtail: blackmer/corken pump, cylinder filling gun, dispenser filling weight scales, flow meter, Pressure Gauge, Level Gauge etc.
Item No. Parameters
Overall Dimension 7200*2300*2950 mm
Gross Vehicle Weight 12500 kg
Curb Weight 7500 kg
Loading Weight 5000 Kg
Approach/Departure Angle 25/18 degree
Engine Yuchai engine
Engine horsepower 130 HP Euro II
Displacement 5.900 L(Diesel)
Max Driving Speed 90 km/h
Tire 10R22.5 (7 pieces with one spare tire)
Tank Capacity 12 CBM
Filling Content Liquefied Petroleum Gas (Propane)
Tank Dimension(diameter*thickness*length) 1700*8*5140 mm
Tank Material Q345R high tension steel, 10mm Thick Tank Body.
Tank Specification Designed Pressure: 1.66Mpa Filling Ratio: 0.55 kg/LWorking
Temperature: under 50 centi-degree
Corrosion Allowance: 1mm
Main Accessories Emergency Cut-off Valve, Safety Valve, Ball Valve, Liquid level meter, Pressure gauge, Temperature Gauge, Valve Boxes, lpg dispenser, lpg filling gun.
LPG Bobtail refilling truck
Volumetric flow meter
Flange size NPT 2” (DN50)
Max capacity GPM 100, LPM 380.
Working pressure 350PSI, 24Bar.
Working temperature -40-70 centi degree.
with Mechanical Register, strainer, air eliminator, printer, Diff. Valve and Back Check Valve.
Hydraulic Pump
Flowrate varies from 5cbm per hour to 15cbm per hour
LPG cylinder filling nozzle
Used on 12.5KGS cylinder
6 units 12cbm lpg bobtail truck exported to Tanzania
50units ASME standard 54CBM lpg tank trailer exported to Bolivia
16 units lpg tank skids exported to Nigeria
5 units 120cbm lpg storage tanks exported to Nigeria
1. Xiagong Chusheng (Hubei) Special-purpose Vehicle Manufacturing Co., Ltd. is a famous and the biggest manufacturer with professional experience in special automobile field for more than 15 years in China. We have more than 3000 workers, 400 technicians, and factory scale is more than 690,000m2.
2. Our most advantage and leading products including LPG tanker series, Water Tank, Fuel tank, Refrigerated Truck, Garbage Truck, Towing/Wrecker truck, Dump Truck, Sewage Suction Truck, Concrete Mixer Truck, Bulk Cement Truck, Van Truck, Sweeper Truck, Truck with Crane, Fire fighting Truck, High-altitude Operation Truck, Chemical Liquid Truck, Milk Transport Truck, LED Display Truck, Various Semi-trailer, Spare parts etc.
3. We have rich export experience to more than 60 countries, such as Ghana, Togo, Sudan, Kuwait, Peru, Nigeria, Benin, Angola, Tajikstan, Azerbaijan, Namibia, Burma, Korea, Iran, Afghanistan, Iraq, Philippines, Vietnam, Saudi Arabia, Mexico, Chile, Bolivia, Tanzania, Zambia, Zimbabwe, Yemen etc.
We have strict quality control of raw material, professional management team and technical workers, advanced equipments, strict inspection before delivery, excellent packing and shipping team.
