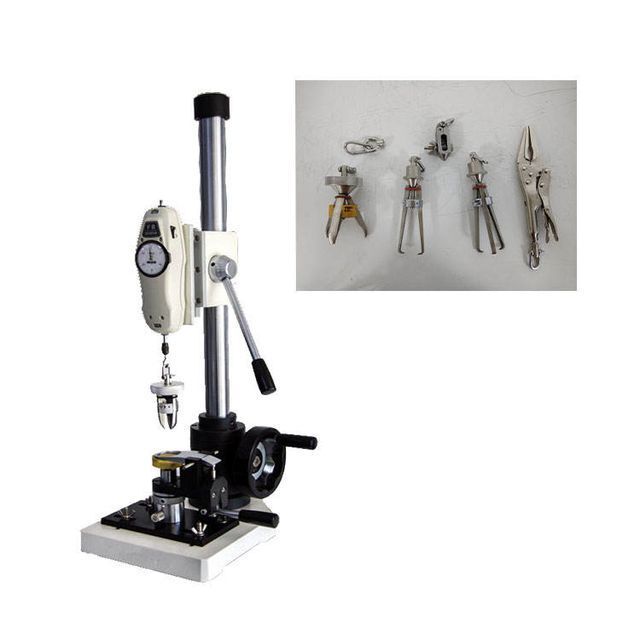

Button Pull Test Machine With High Quality

PRODUCT DETAIL
Place of Origin:Guangdong, China;Packaging Detail:1. Out packing:Standard export wooden case. 2. Inner packing:With careful stretch film wrap product, hard wood board+ strong bandage to fix corners. 3. Checking teams: Specialized staff to inspect and classified your goods;
Weight:36 KG;Application:Garments;
Warranty:12 Months;Voltage:Manual;
Clmaps:Lower Fabric Clmap;Standard:EN 71- part 1, ASTM F963, M&SP115A &etc;
Dimension(L*W*H):320*350*810 mm;Condition:New;
Automatic Grade:Manual;Selling Units:Single item;
Marketing Type:New Product 2020;Power:Manual;
Certification:ASTM;Force Gauge:30KG;
Features:Easy Operation;After-sales Service Provided:Engineers available to service machinery overseas;
Single package size:35X40X90 cm;Video outgoing-inspection:Provided;
Core Components:PLC,Engine;Grips:Upper Universal Grip, Upper Grasp Button Grip, Upper Stud Grip;
Machinery Test Report:Provided;Warranty of core components:6 months;
Item:Fabric Inspection Machinery;Showroom Location:Germany,Indonesia,Spain,Thailand;
Single gross weight:45.000 KG;Production Capacity:100%;
Function:Garments Inspection;Brand Name:ZONHOW;
Machine Type:Testing Machine;Package Preview:;
Applicable Industries:Retail,Other;
Product Description



 1. Application

  • Snap button testing tester is used to determine the holding or breaking strength of prong-ring attached snap fasteners onto garments, prevent the buttons divorce from the clothing,which case the dangerous if baby swallowing the buttons. So that every button and fixed parts on the clothing are required the detection of the button pull test.



  • Button tensile tester is a important testing procedure,especially in Infant and children's clothing design and manufacturing. On the button fasteners apply a suitable power through the intensity of the instrument to record. When the tension table shows the appropriate intensity, the operator should immediately press the timer in order to calculate the time.





2.Technical standards

    16 CFR 1500.51-53, ASTM WK4510 PS79-96, ASTM F963, EN71-Part1, M&S P115A







3.Technical parameters

Model DZ-316
Size 280*230*770mm
capacity 30Kg
Machine Weight About 32Kg
Material of grips Stainless steel
Warranty 12 months



DZ-316I Imada 30 kg gauge 2.5Kg
DZ-316L Lifting ring 23g
DZ-316G Upper Stud Clamp 95g
DZ-316M Upper Snap Clamp  297g
DZ-316P Plane clamp 123g
DZ-316J Long Nose Vise Clamp  190g
DZ-316E Two Pronged Clamp 145g
DZ-316S Three Pronged Clamp 155g







Different testers

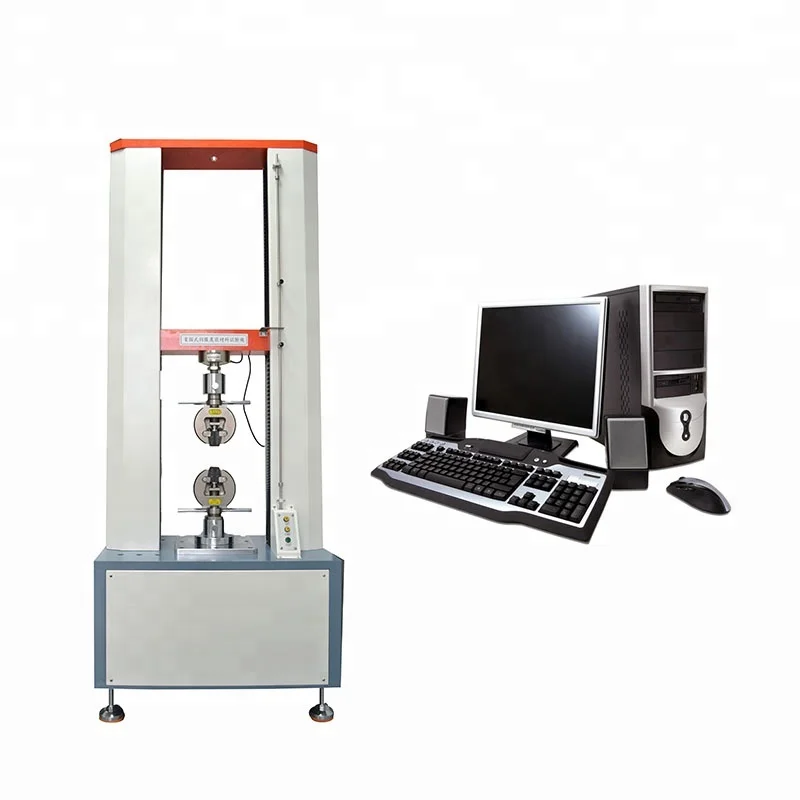

Universal tensiel tester(5T)      Universal tensile tester(200kg)    Mobile drop tester(1.5/2m)      Wire elongation tester

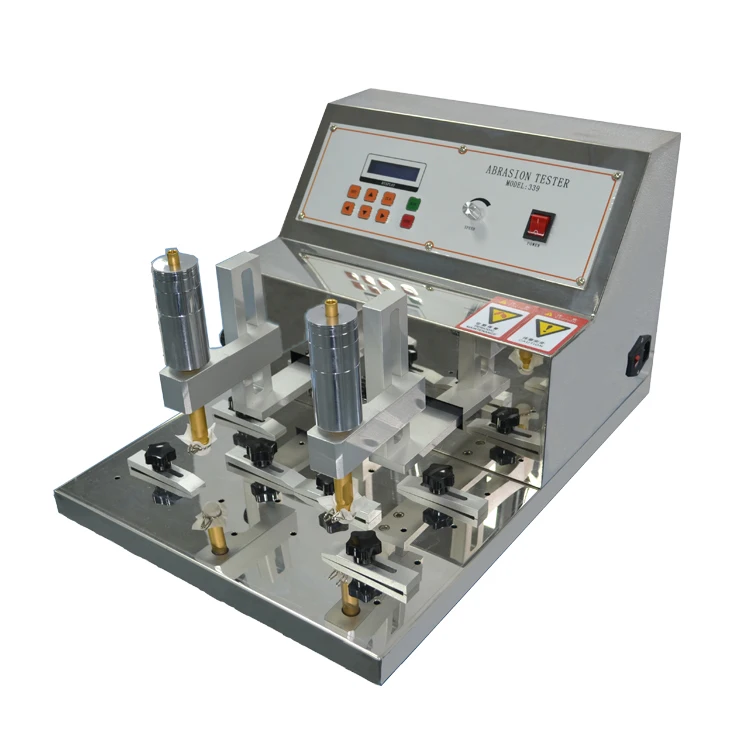

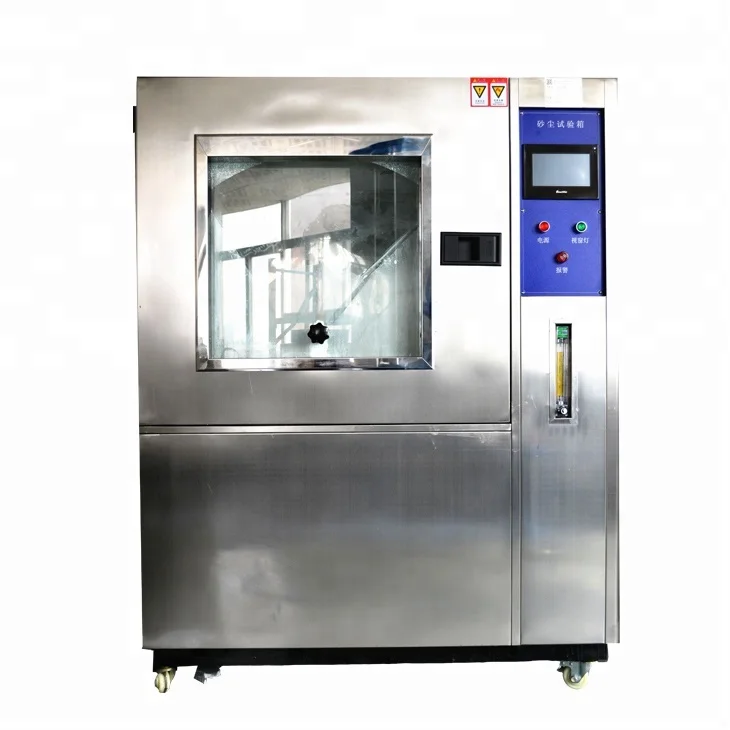

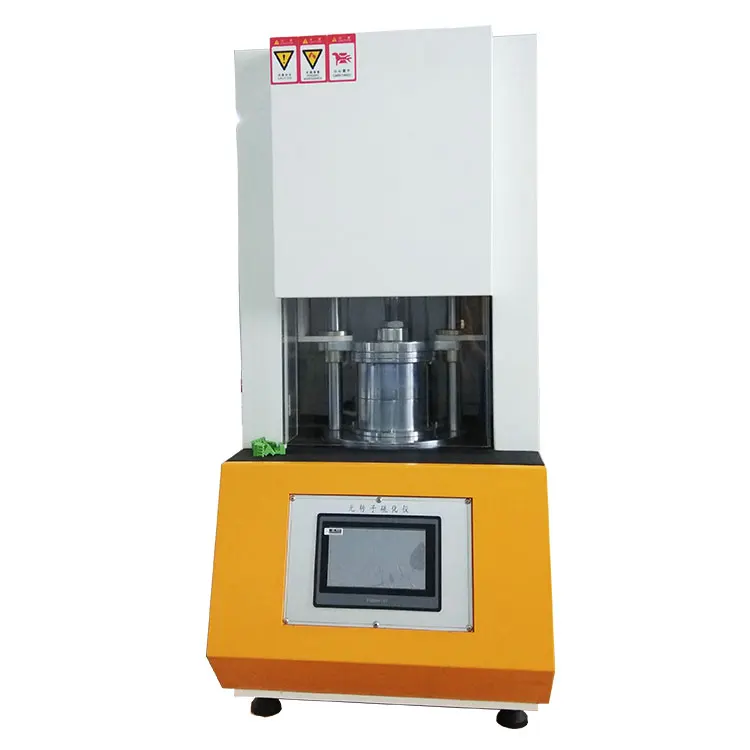

Humidity climatic chamber                    Dust test chamber                 339 Abarasion tester          Moving die Rheometer



Packaging & Shipping

We have professional packing workers to pack your products!



Packing:

1. Out packing:Standard export wooden case.

2. Inner packing:With careful stretch film wrap product, hard wood board+ strong bandage to fix corners.

3. Checking teams: Specialized staff to inspect and classified your goods.



Shipping:

You can specify other shipping methods such as Airmail, FEDEX or DHL. We shall let you know about the shipping cost after receipt ofyour order. It's more preferable for you to provide us with your own FEDEX/DHL account number so that the delivery charge can be charged directly from your account.







Our Services



If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-conference. If customers require on-site service, the transport and travel expense shall be borne by customer.



1. Pre-service

  •     --24 Hours online service for your consult.
  •     --Help choose right model,and a series  of service, person,advise.



2. Middle service

  • Give you best offer
  • Provide discount for many sets order
  • Do customer's request:
  • Choose payment term you convienent.
  • Promptly production and delivery,inform you in time.
  • Can provide invoice value as you like to decrease your tax.



3. After sale service

  • 1 year warranty service and all life maintenance.
  • Technical Egineer are avalible for oversea trainning.
  • Free change for some parts
  • Remote control technical consult
  • Free installation DVD
  • Maintenance plan



4.Commitment

  • We will sign a letter of commitment while we sign the contract, which will improve your confidence to us.



5.Good Packaging

  • Good Packaging:  Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.
Company Information

  • Though 11 years of continous development, our company has established the main products line of universal strength testing machines for tension ,compression, flexure, and shear, environment testing chambers and abrasion testing machines. Our equipment is used in over 80 countries wordwide and supported by a network of offices and approved agencies. Our products are used in all industries and educational sectors and we have an enviable reputation for innovation, quality product and excellent customer support.





     Our Products





FAQ
  • 1.Are your company a trading one or a factory ?Factory + trade (integration),10 years focusing on test instruments field,3 years exporting experience.

OEM is also acceptable for us.

  • 2.What’s the delivery term?

At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-20

working days after deposit receipt. If you are in urgent need, we can consider making special

arrangement for you.

  • 3.Do you accept customization service?

Yes, of course, we can not only offer standard machines, but also customized machines according to

your request. Don’t hesitate to tell us your requirement, we will try our best to meet your needs.







  • 4.What is the order process?

Inquiry - quotation - communication - order confirming - deposit payment - production - testing and

debugging - balance payment - packing - delivery - customer receiving - after service.



  • 5.What is your warranty ?
              - 12 months product warranty.Free components will be provided if any performance failure occurs within 12 months caused by non-human damage.
