CALT MPG 6-axis CNC manual pulse generator with emergency stop knob
- $63.00 / 1 - 9 pieces
$58.00 / 10 - 29 pieces
$50.00 / >=30 pieces - 1 piece
- Shanghai Qiyi Co., Ltd.
- Shanghai, China
- Mr Jayvon Lee
PRODUCT DETAIL
| Single piece packaging size: | 25X16X12cm | Marketing type: | normal product |
| Core components: | Rotary encoder | Sales unit: | Single product |
| Output form: | NPN+R/line driver | brand: | computer-assisted technology |
| Material: | plastic | Output: | digital sensor |
| Packaging details: | carton | Showroom location: | not any |
| Health status: | new | style: | hard |
| Place of origin: | China Shanghai | Warranty: | 1 year |
| Weight (kg): | 2 | Applicable industries: | Manufacturing plants, machinery repair shops |
| solve: | 25/100 options | Mechanical test report: | not available |
| External dimensions: | 142*74mm | theory: | optical sensor |
| Voltage: | 5V, 5~26V optional | Gross weight of single piece: | 1.500kg |
| Video outbound inspection: | not available |
Product Description

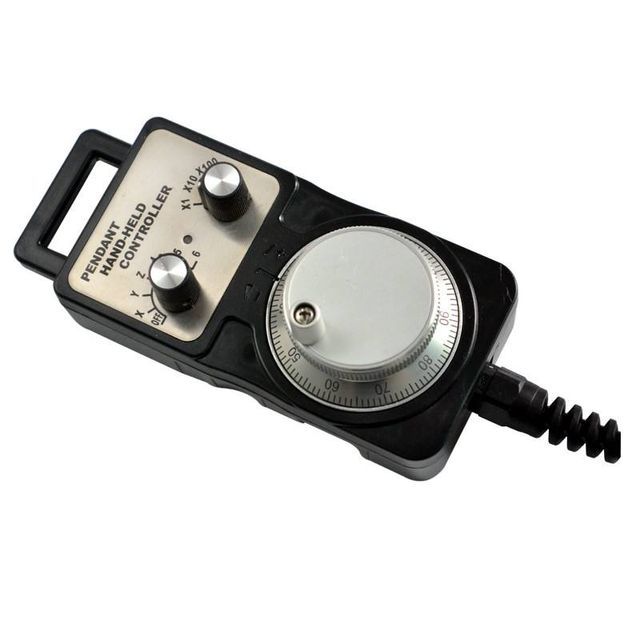

CALT mpg 6 axle with emergency stop knob
Used for origin correction and signal separation of CNC machine tools. Full plastic shell, high dielectric strength, shaft switch and oil-proof seal design.

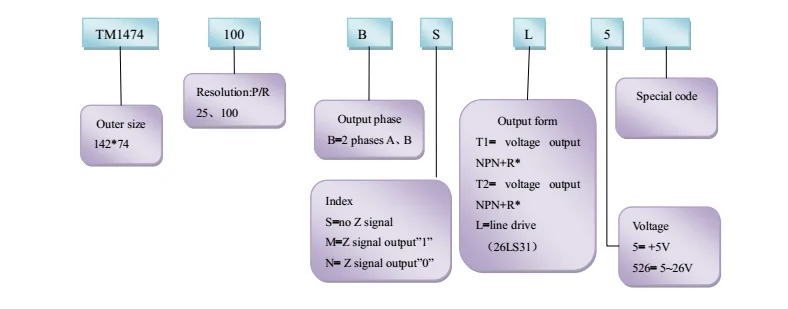

There are other MPG form factors available, just refer to the selection guide above which should help you find the model of the correct encoder you are looking for.

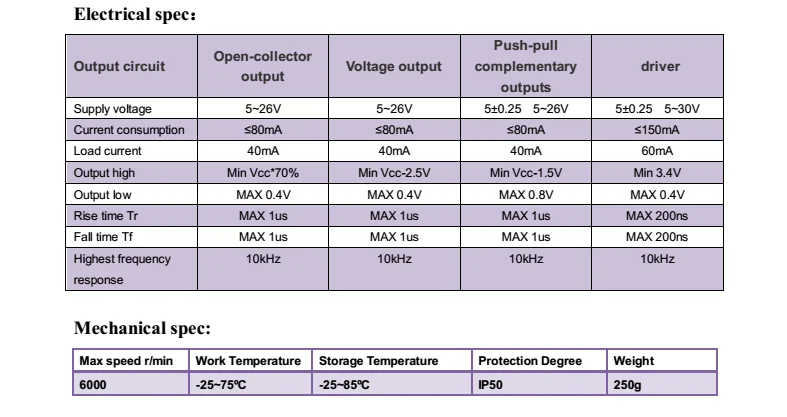

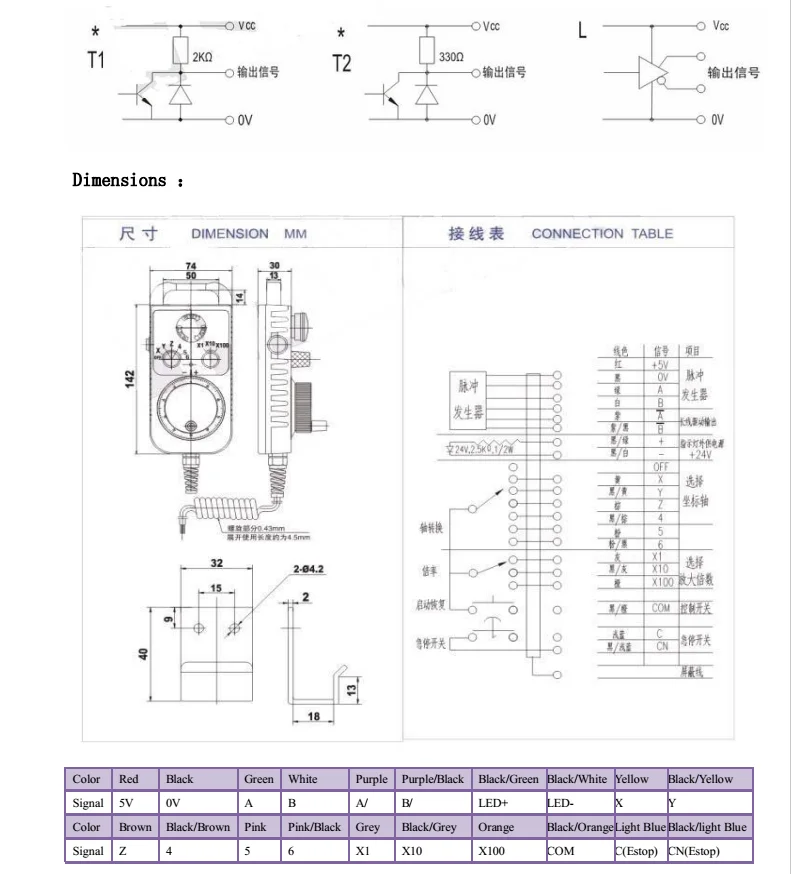

Specification
other products

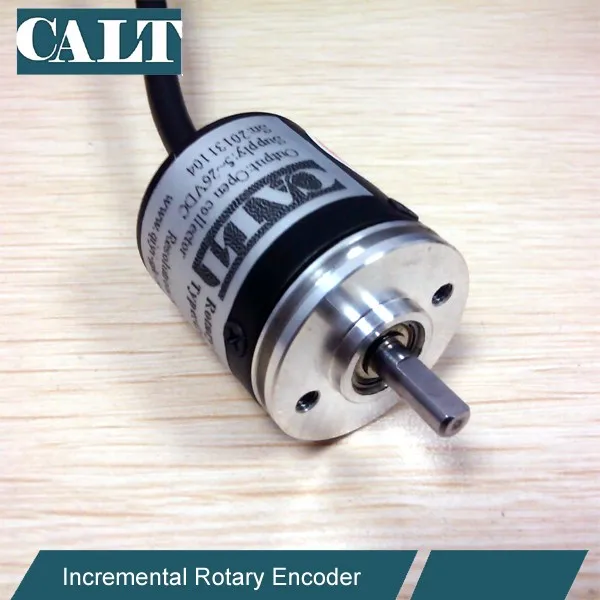

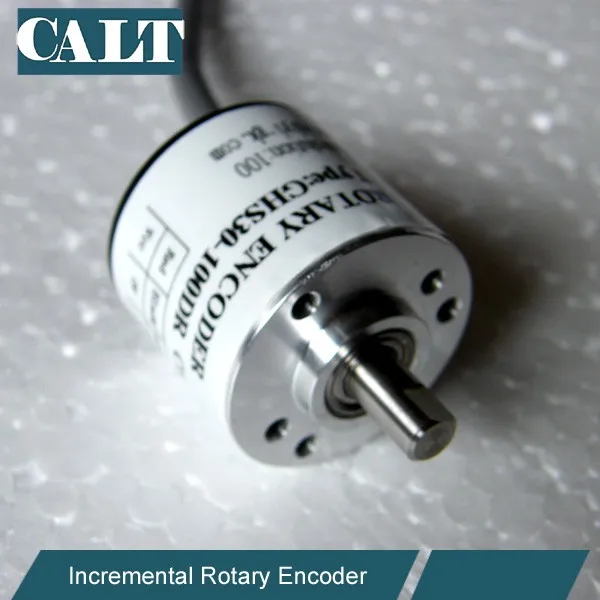

25mm outer diameter encoder30mm outer diameter encoder
