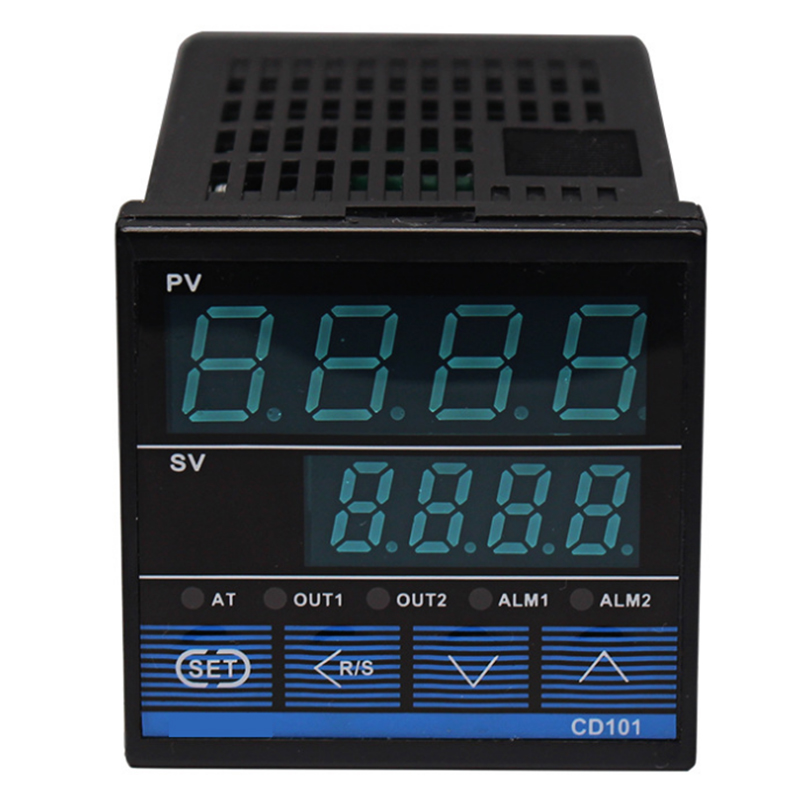

CD101 Dual Digital PID Relay Output F/C Temperature Control CD101FK02-M*AN-NN

PRODUCT DETAIL
custom made:Yesmodel:CD101
brand:Zhongtian OptoelectronicsOrigin:Zhejiang, China
control method:PIDsThermocouple:K,R,B,N,L,J,S,E,T,PL,U
alarm:choose 1 or 2 or noWarranty:1 year
Certification:CE certificationPackaging Details:Item
type:CH102, industryCurrent input:0-20mADC
Product Description



CD/CH series thermostat E5 series thermostat
REX series thermostat Copy import series
XMT -6000 Series Temperature Controller XMT series thermostat
SH series thermostat TE/TD Series Temperature Controller
TC series thermostat Other series thermostat
SG series thermostat
Selection parameters



panel size
CD101 48x48mm
CD401 48x96mm
CD701 72x72mm
CD901 96x96mm
input type
TC, RTD (K, J, E, T, S, PT100, Cu100, Cu50, menu switching)
Analog signal: 0-5V, 0-10V, 1-5V, 4-20mA
output type
SSR, relay, 0-10v, 4-20mA
power supply
85~265VAC 50~60Hz or 24VDC
accuracy
±0.5FS control
method
PID control (with auto-tuning) or auto-tuning, or on/off
The sampling period
0.5 seconds
operating environment
0-50°C, non-condensing,
humidity
<85%
