CE certified OCEPO ​​Construction tool wire binding machine

PRODUCT DETAIL
Delivery Details:3 days after ordermodel. :(Li-ion) WL-210/WL-400
model:WL-210, WL-400product name:CE certified OCEPO ​​Construction tool wire binding machine
Winding per knot:2-3 lapsCertification:Chief Executive
Maximum bundle diameter:21mm/40mmtype:automatic
Warranty:1 yearstrength:lithium ion
brand:OCEPOplace of origin; place of origin:Beijing China
application:Rebar Binding MachineAfter-sales service provided:Engineers can repair machinery overseas
Packaging Details:Plastic box, 1pc/box, GW: 7.5KGpayment terms:Letter of Credit, T/T, Western Union, MoneyGram
port:TianjinSupply capacity:450 sets of CE certified OCEPO ​​construction tool wire binding machine per month
Product Description

It is used to fasten steel bars in construction.

1. Fully automatic, the operation is very simple.
2. High quality.

model.
WL-210 Lithium Ion
WL-400 Lithium Ion
Max Tying Dia.
21mm
40mm
voltage and capacity
DC14.4V(4.4AH)
DC14.4V(4.4AH)
charging time
about 70 minutes
about 70 minutes
Knotting speed per knot
0.7s
0.75s
Ties per charge
Over 3200 relationships
Over 3200 relationships
Revolutions per draw
2 turns/3 turns
2 turns/3 turns
tie for each coil
About. 195 (3 turns)
About. 130 (3 turns)
Tie length
380mm/2 turns, 550mm/3 turns
650mm/2 turns, 750mm/3 turns
line type
Black annealed or galvanized wire
Black annealed or galvanized wire
northwest
1.8kg
1.9kg
Dimensions (LxWxH)
275x120x275mm
295x120x275mm

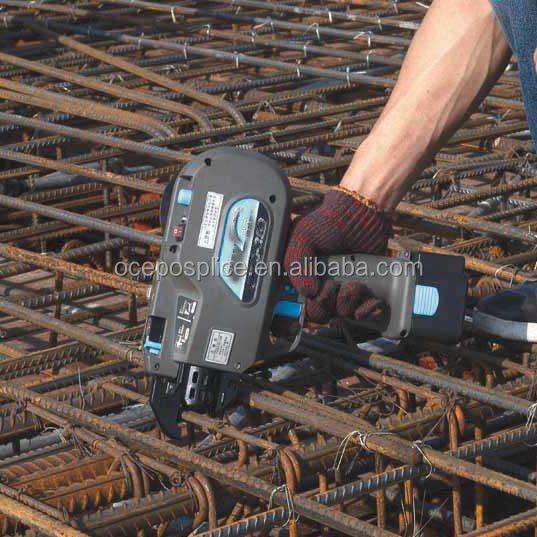

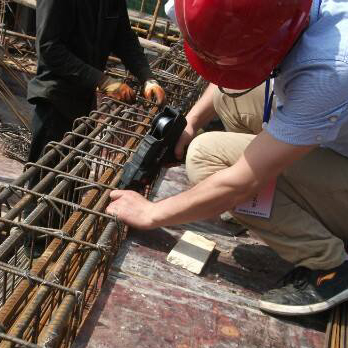

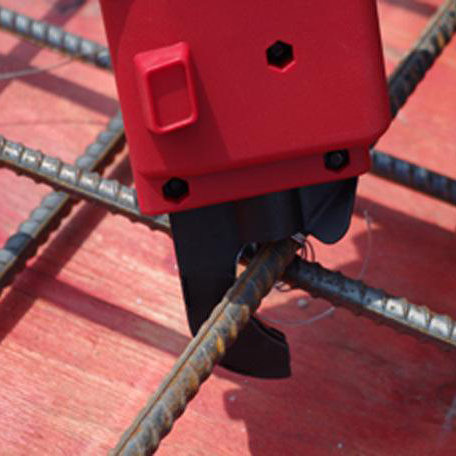

Product display
Accessories

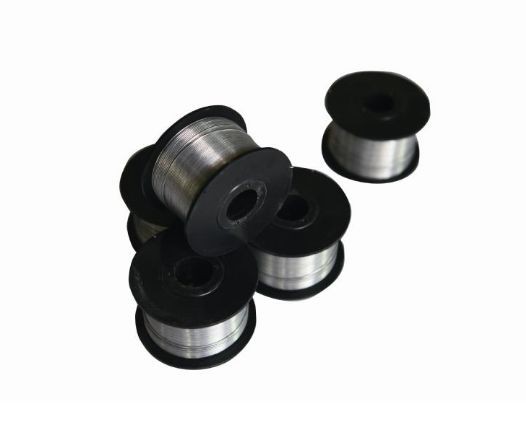

metallic line

Model: WL

Diameter: 0.8mm

Material: Q195

Length: 100m

Packing: 50pcs/carton, 449*310*105mm, 20.5kg, 0.017CBM

2500pcs/pallet, 1020*920*1000mm, 1000kg, 0.94CBM

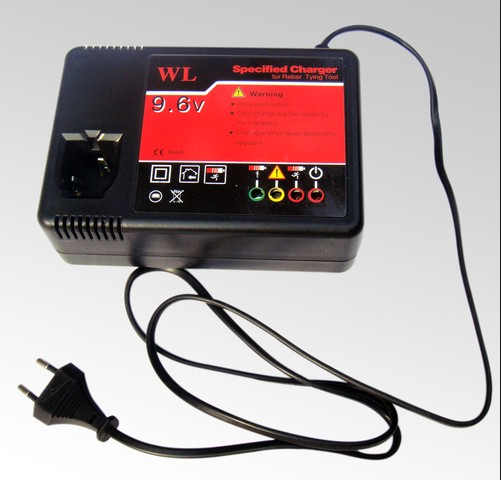

charger

Model: WL-A4

Charger voltage: 110-240V

50/60Hz

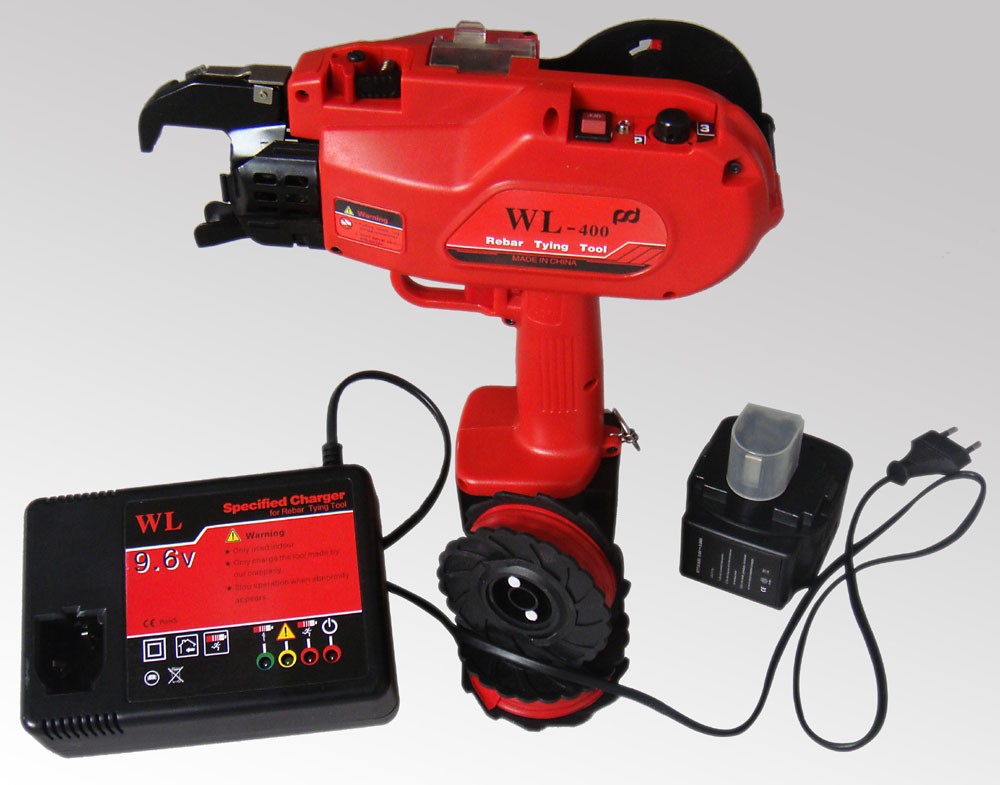

Rebar Binding Machine

1 machine
2 battery packs
1 fast charger
3pcs wire coil
1 specification
1pc Allen key
1 pc needle nose pliers

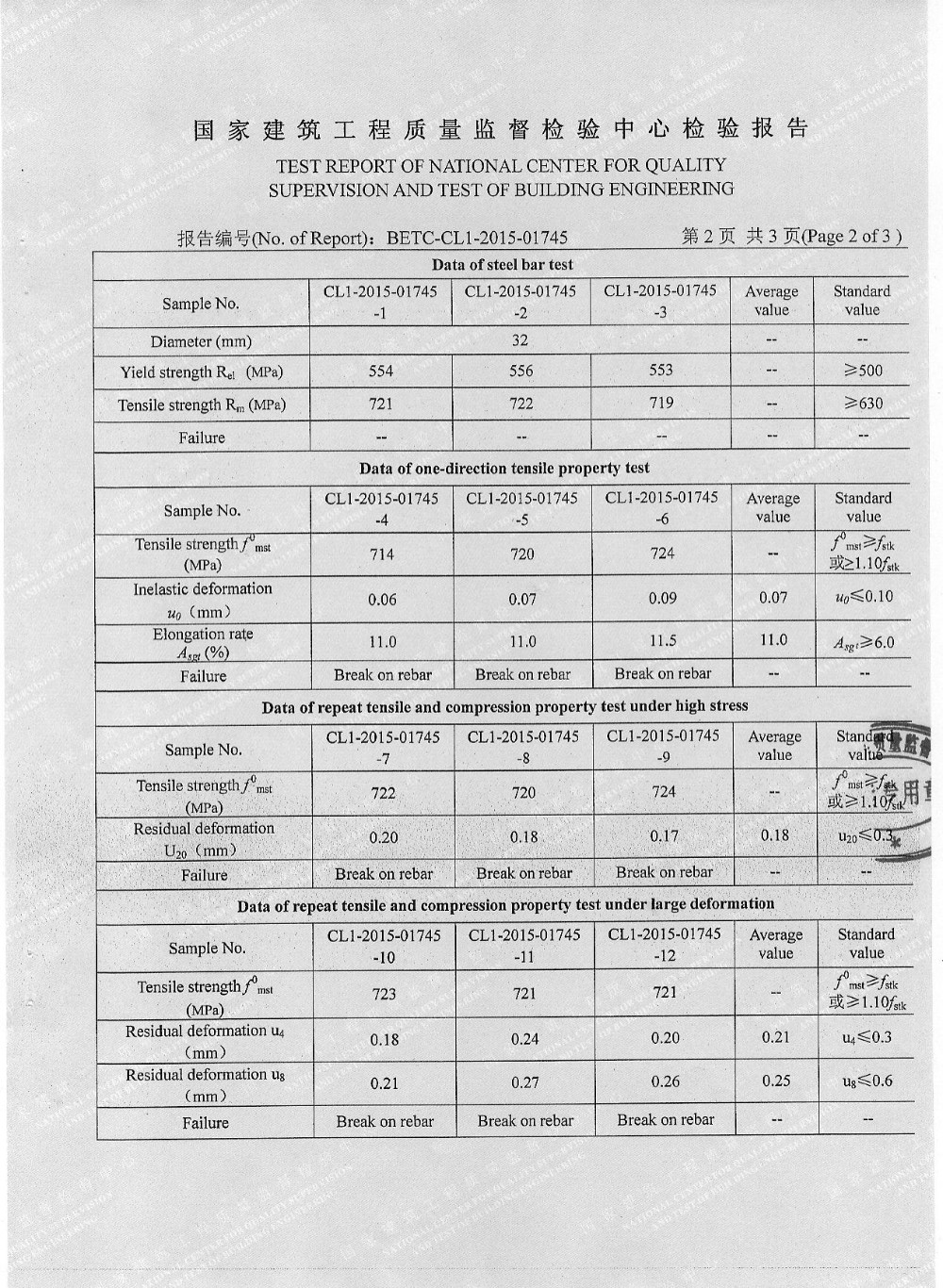

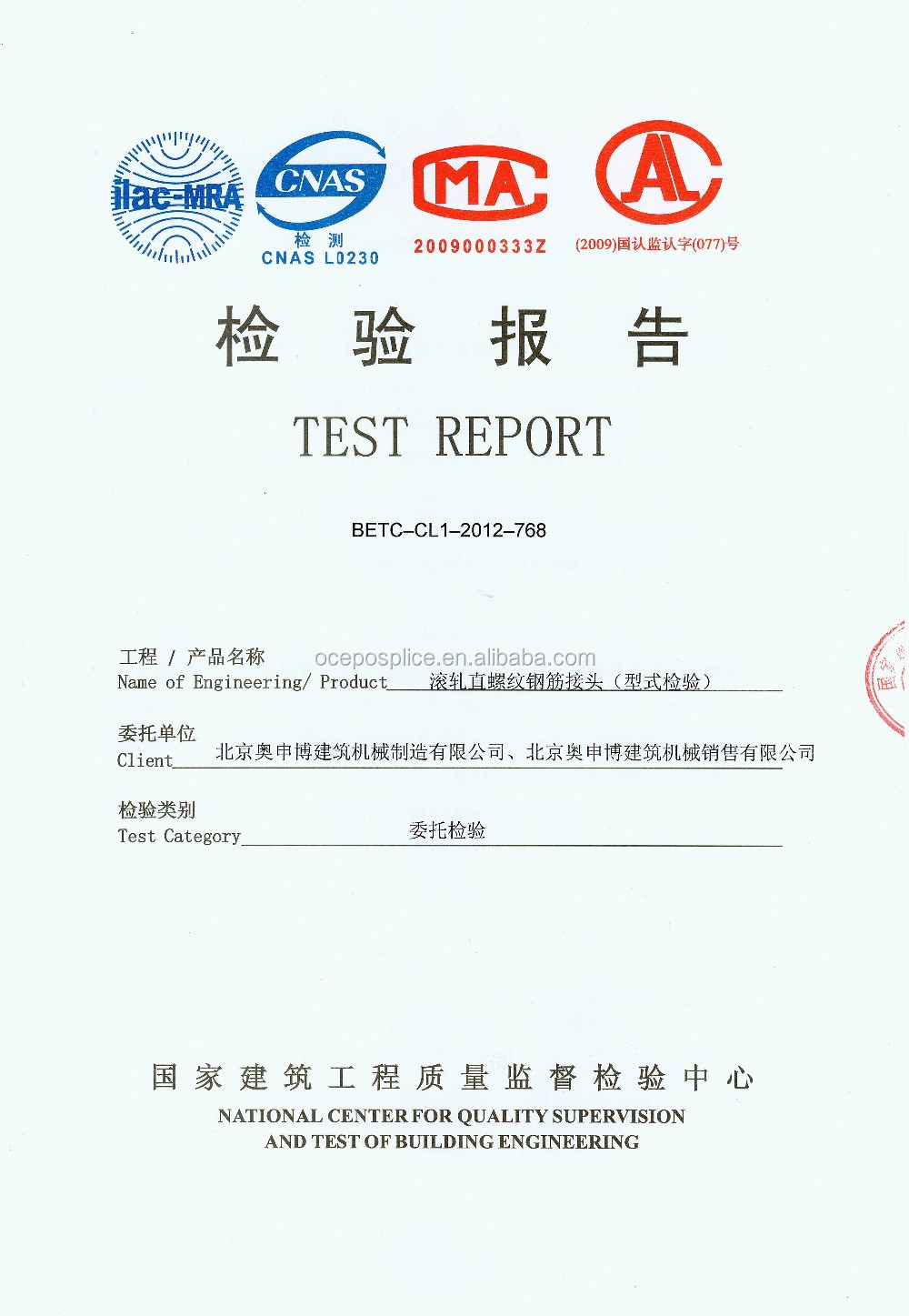

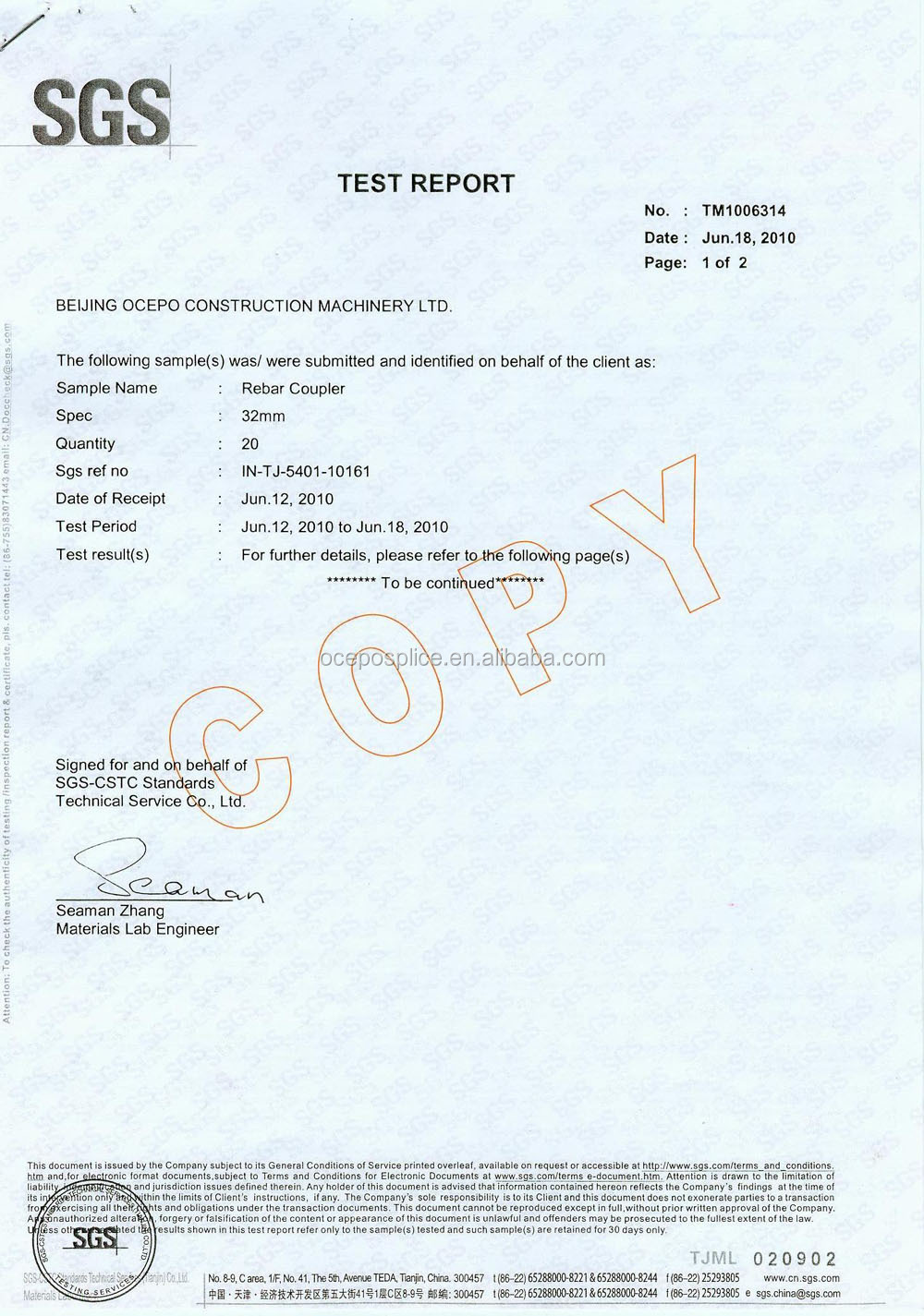

Our certification
Packaging and Delivery

Packaging details: plastic box, 1pc, GW: 7.5kg

Delivery Details: 3 days after placing the order.

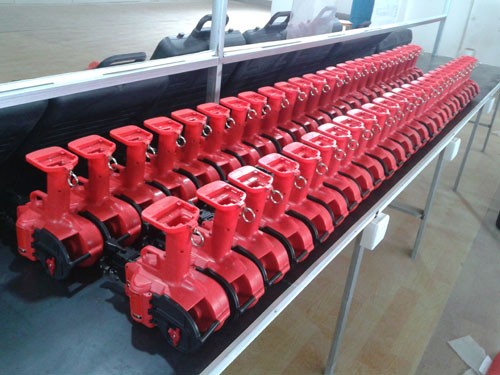

production line

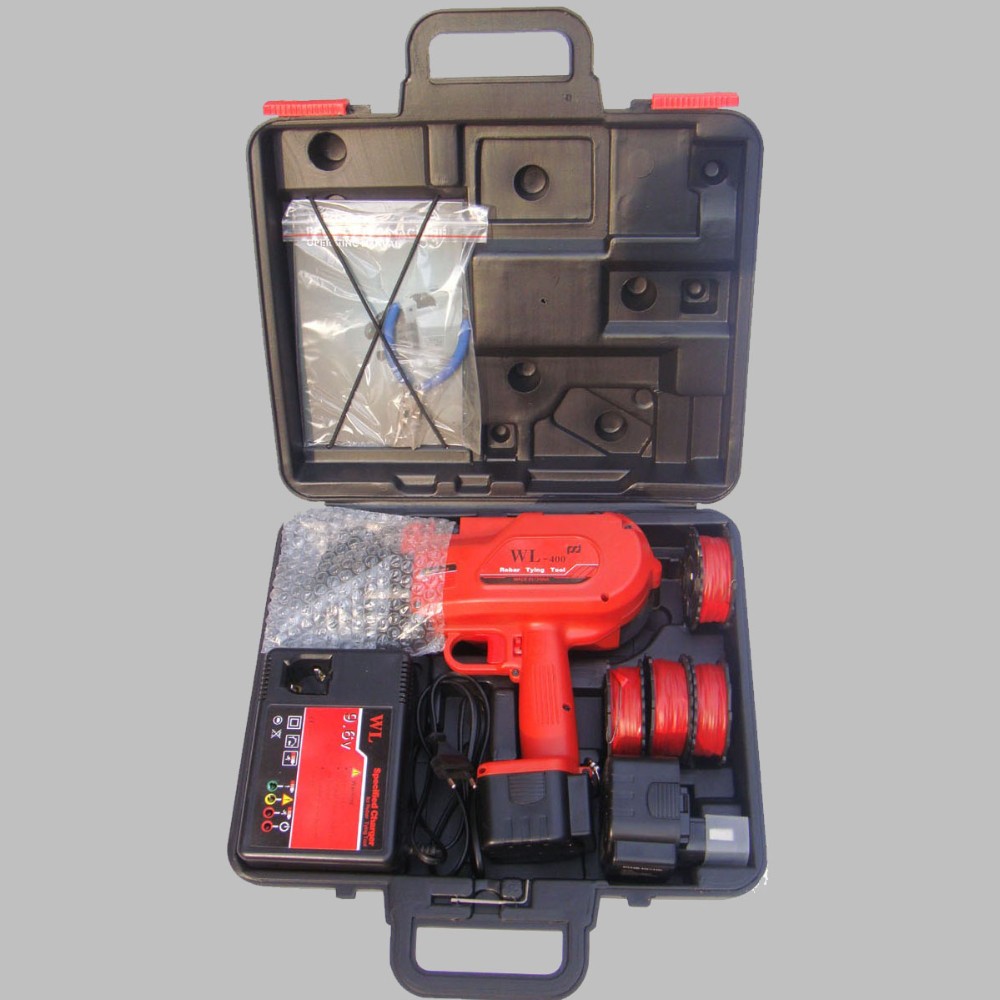

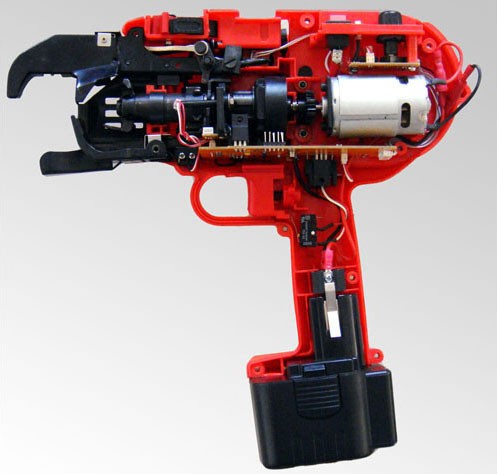

internal view

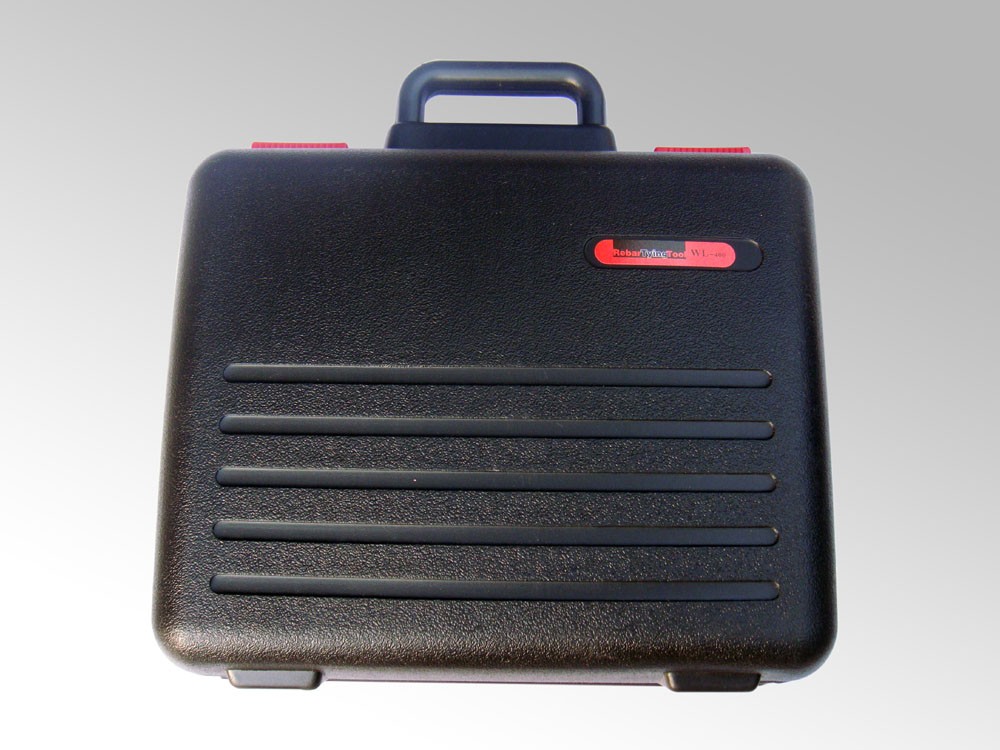

outer bag

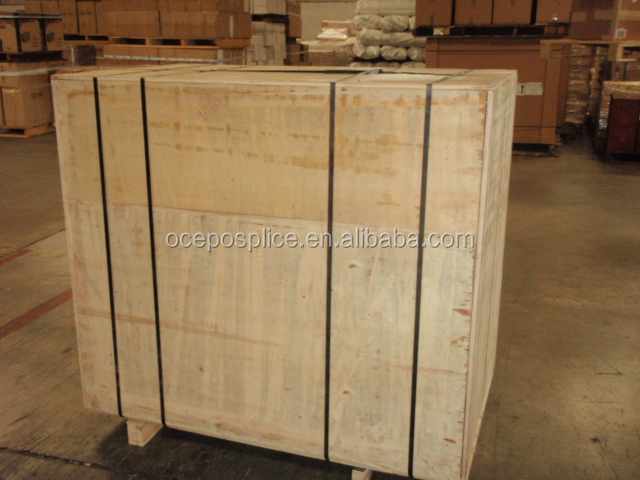

plywood box
Express
transportation

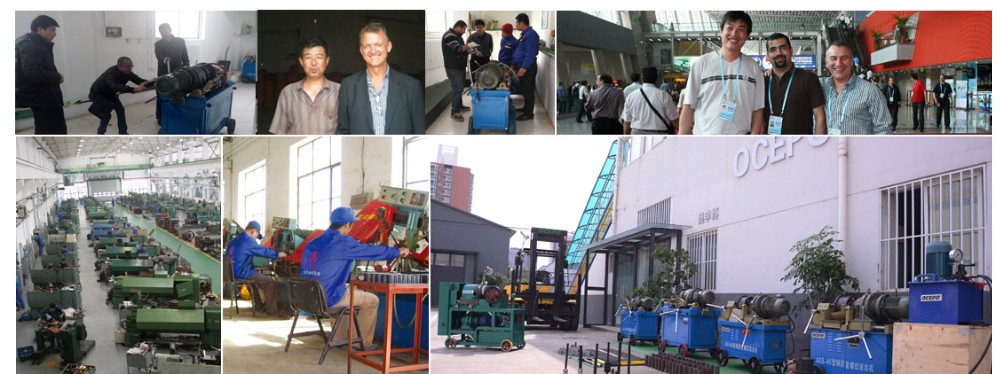

our company

factory

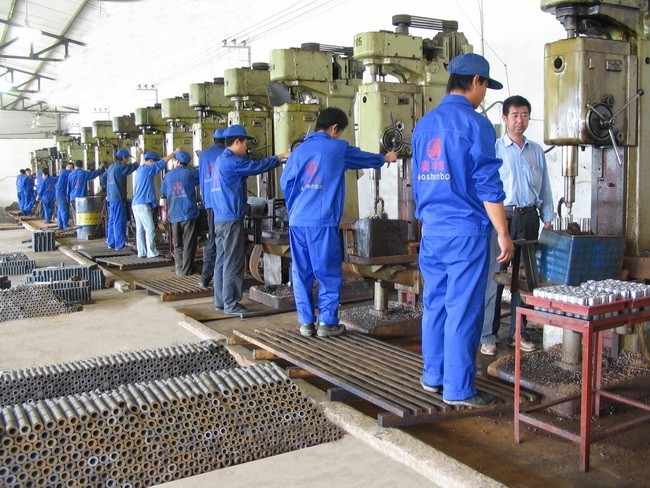

workshop


Related Products

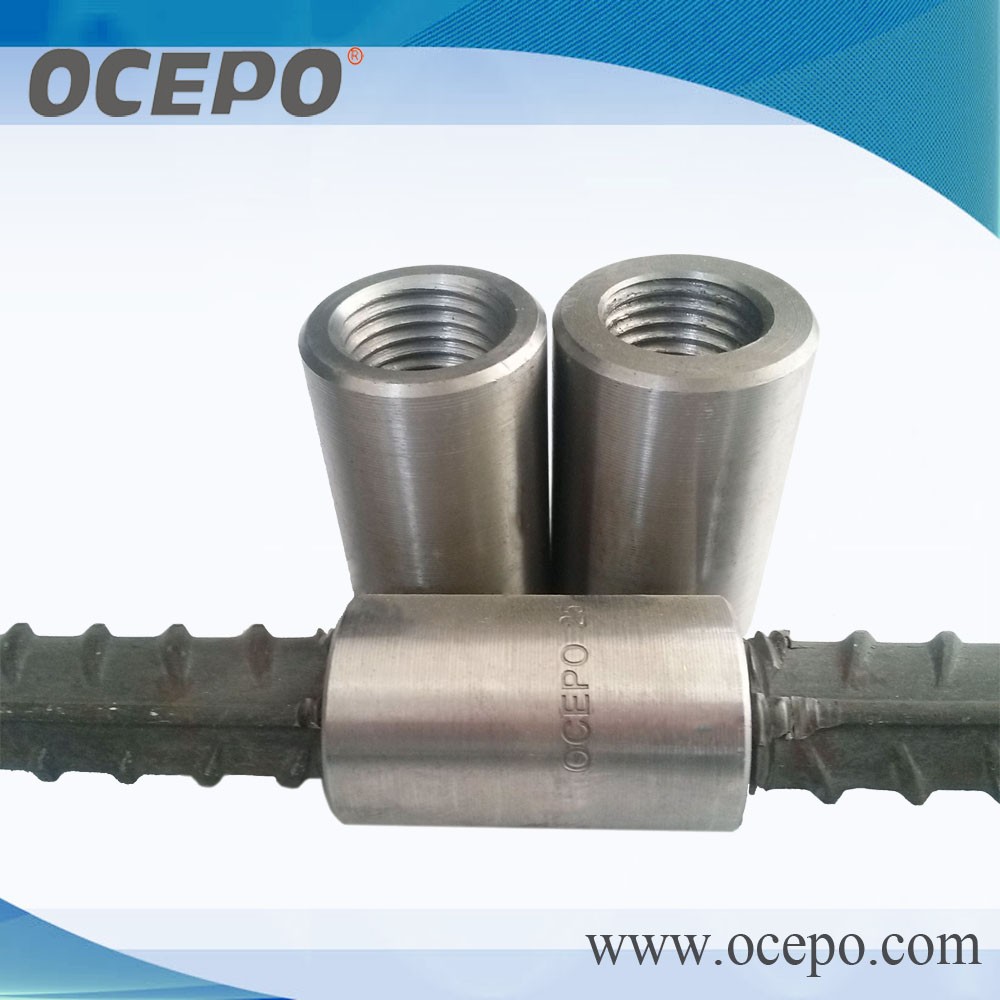

Rebar coupler

Type: 16-40mm

Parallel, reducing, end upsetting, cold stamping, conical, weldable joints, etc. for mechanical connection of steel bars.

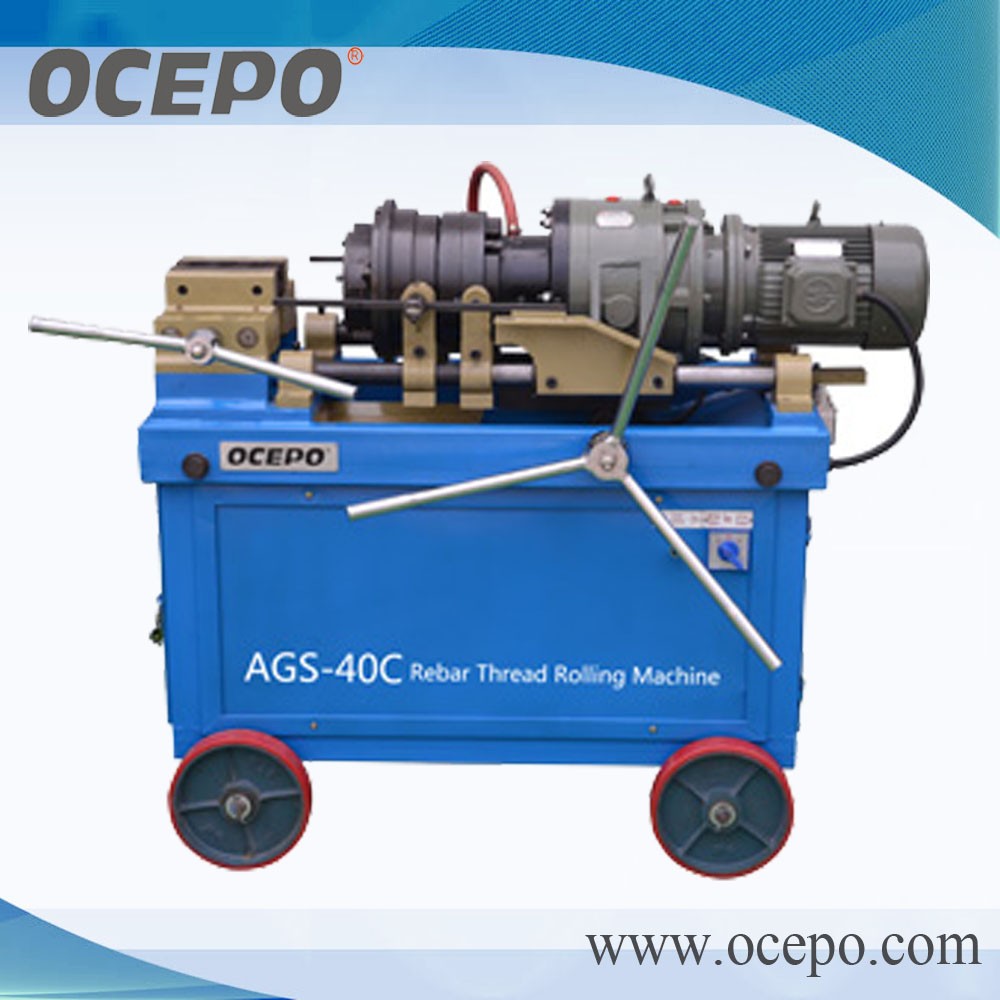

Thread rolling machine

Model: AGS-40C

Thread rolling does not cut threads and therefore preserves the highest tensile strength of the base metal. Meet the requirements of JGJ107, ACI318, BS8110, DIN1045, UBC1997, etc.

Can process steel bars with a diameter of 16-40mm








Upsetting machine

Model: GD-150

Can meet the standards: JGJ107, ACI318, BS8110, DIN1045, UBC1997, etc. Rebars with a diameter of 16-40mm can be processed.
