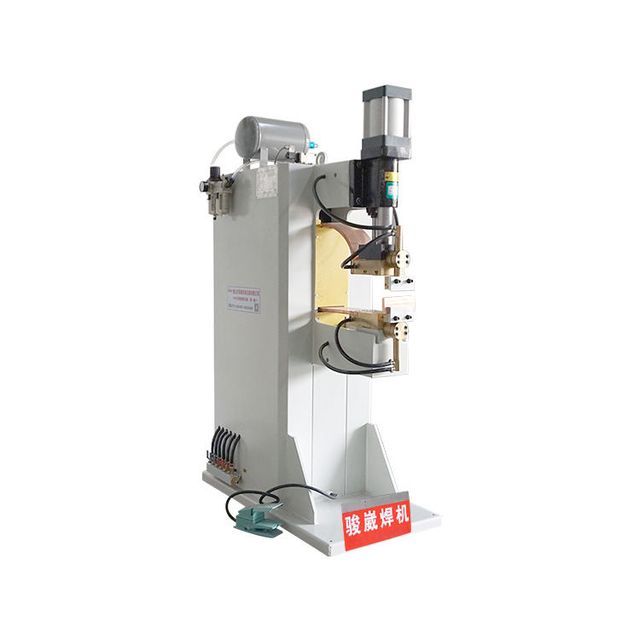

CNC multi-function pneumatic spot welding machine equipment
- $3700.00 / 1 - 4 sets
$3500.00 / 5 - 9 sets
$3300.00 / >=10 sets - 1 set
- Foshan Junwei Intelligent Machanical Equipment Technology Co., Ltd.
- Guangdong, China
- Ms Zou Judy
PRODUCT DETAIL
Core components: | PLC, motor, water pump | Package preview: | |
aspect: | 190*105*80 | port: | Foshan, China |
Power (kW): | 63 | Origin: | Guangdong, China |
usage: | Wire mesh welding | After warranty service: | 1 year |
Supply capacity: | 200 sets per month | payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram |
brand: | Denway | After-sales service provided: | Video Technical Support Online Support |
Applicable industries: | Hotels, Clothing Stores, Building Materials Stores, Machinery Repair Shops, Manufacturing Plants, Food & Beverage Plants, Farms, Restaurants, Home Use, Retail, Food Stores, Printing Shops, Construction, Energy & Mining, Food & Beverage Stores, Other, Advertising company | feature: | high efficiency |
Marketing Type: | New Products 2020 | Health status: | new |
Custom machine price: | negotiatable | product name: | Wire mesh welding machine |
application: | screen welding | Mechanical test report: | if |
Function: | Pressure welding | Showroom location: | not any |
Input voltage: | 380V | Warranty: | 1 year |
type: | Pressure welding machine | Packaging Details: | plywood case |
Main selling points: | multifunctional | Weight (kg): | 300 kg |
Core component warranty: | 1 year | Video shipment inspection: | if |
Type of machine: | Pressure welding machine | MOQ: | 1 set |
Product overview
1. The one-piece tube is specially designed to ensure welding stability
and speed 2. Spot and projection welding functions. 3. Computer control system, stable voltage and current, multi-time
Discharge (MTD), canEasily meet various work needs.
4. Can weld iron and stainless steel.

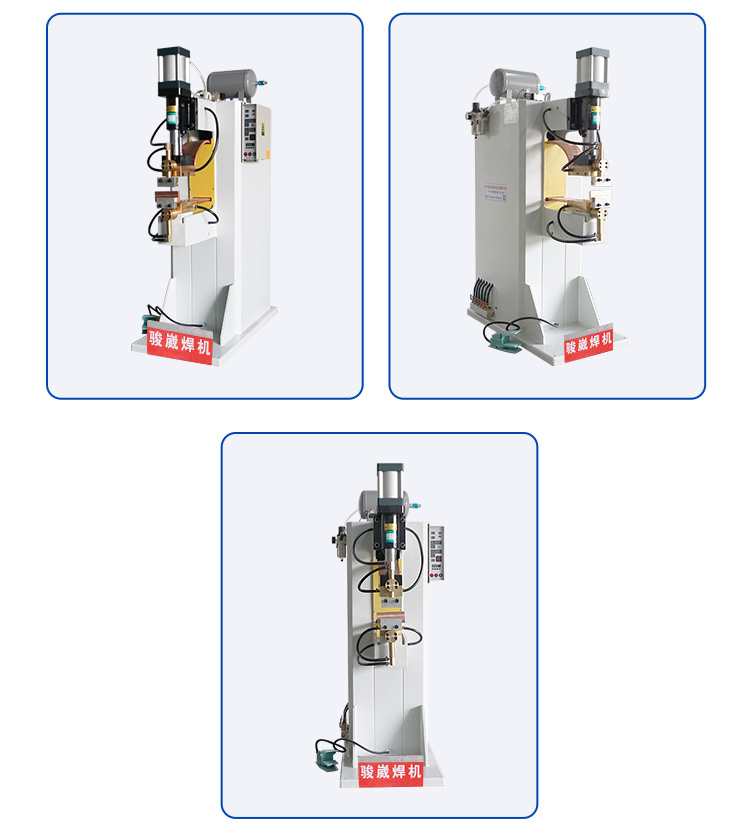

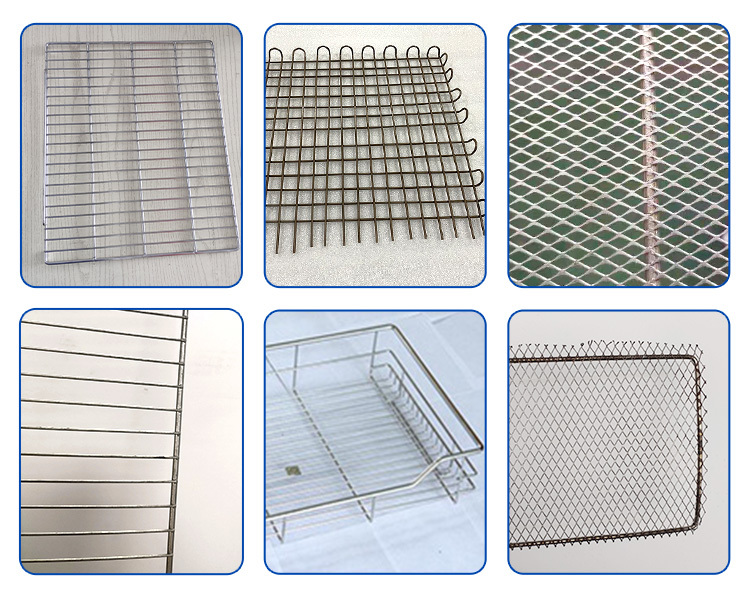

sample display
product specification
Standard presses/spot welders It is the RTS machine of our products. It is characterized by strong welding and beautiful welding shape, which can be operated by anyone. It is safe and efficient. No need for welding rods, no need for professional welders, up to 5 months payback, 1 year quality assurance, if there is any problem, we will provide you with free repair, human damage factors and exhaustion of consumables.

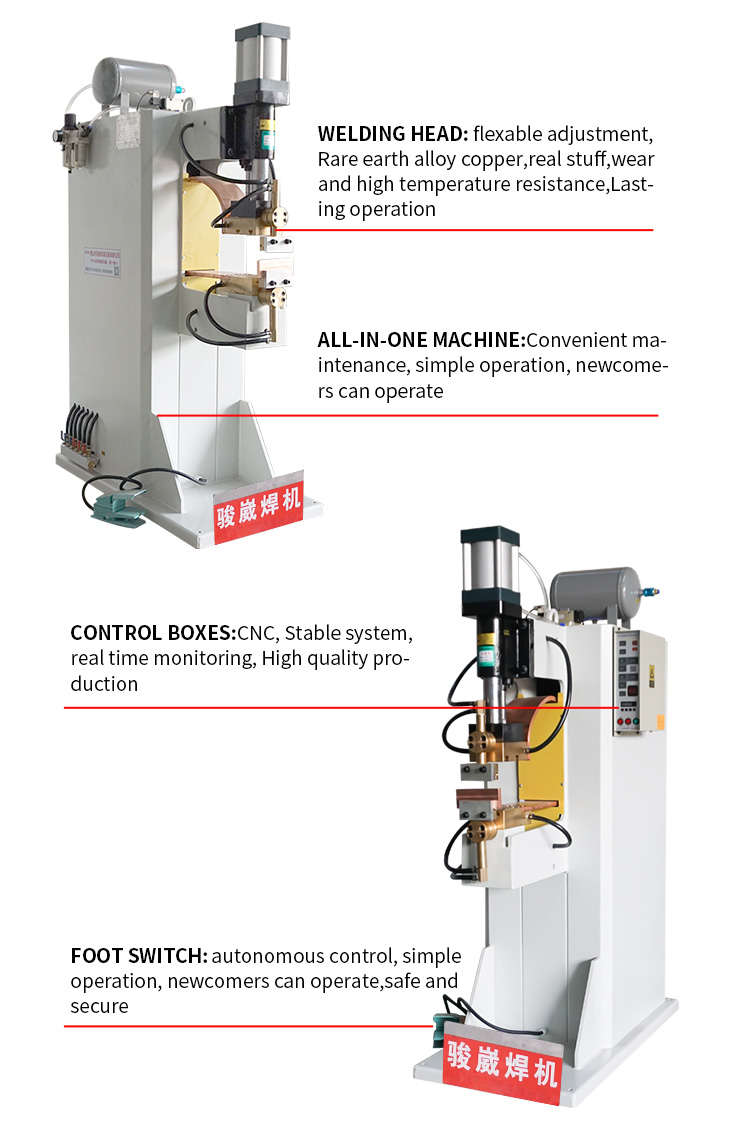

Welding head:Flexible adjustment, rare earth alloy copper, real material, wear resistance and high temperature resistance, durable.
One machine:Easy maintenance and simple operation, even beginners can operate it.
control box: CNC, stable system, real-time monitoring, high-quality production.foot switch: Independent control, simple operation, even beginners can operate, safe and secure.
Pure copper raw material
Small resistance, less heat generation, good conductivity, long life (more than 5 years)
Thickened steel plate
Strong, stable, strong stability, low noise, not easy to move when welding
accurate measurement
accurate measurement ofWorkpiece size is an important step in making a good machine
Model | Input voltage | Rotation capacity kVA | rated frequency hertz | Nominal Duty Cycle % | Arm length mm | Electrode travel mm | cooling water consumptionl/min | Maximum welding capacity (two pieces of low carbon steel welded) mm |
25KVA | 380V*3 | 25 | 50/60 | 50 | 350 | 50 | 3 | 1.0+1.0 |
40KVA | 380V*3 | 40 | 50/60 | 50 | 350 | 50 | 3 | 2.0+2.0 |
50KVA | 380V*3 | 50 | 50/60 | 50 | 380 | 60 | 4 | 3.0+3.0 |
63KVA | 380V*3 | 63 | 50/60 | 50 | 380 | 60 | 4 | 3.5+3.5 |
80KVA | 380V*3 | 80 | 50/60 | 50 | 400 | 75 | 5 | 4.0+4.0 |
100KVA | 380V*3 | 100 | 50/60 | 50 | 400 | 75 | 6 | 4.5+4.5 |
160KVA | 380V*3 | 160 | 50/60 | 50 | 400 | 75 | 8 | 5.0+5.0 |
200KVA | 380V*3 | 200 | 50/60 | 50 | 400 | 75 | 10 | 6.0+6.0 |
Provide non-standard customized services
Spot welding machine, projection welding machine, butt welding machine, automatic welding machine, semi-automatic welding machine and other welding equipment.
Can be customized according to workpiece requirements
