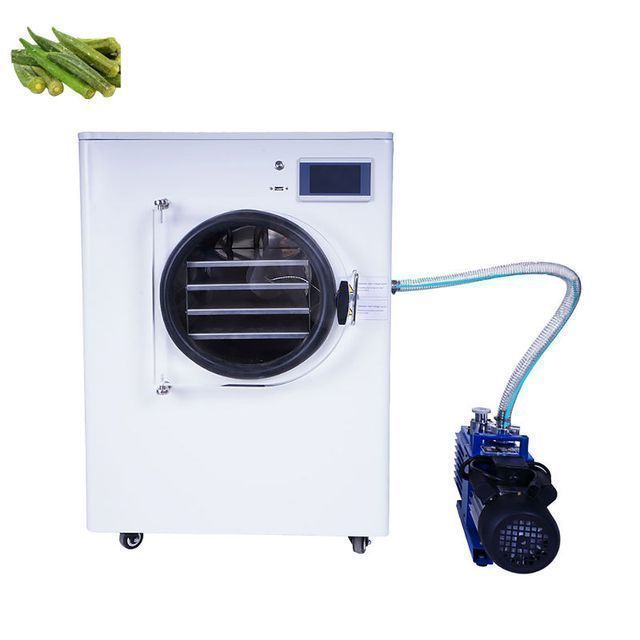

CQ Freeze Dryer Small Vacuum Laboratory Freeze Dryer Household Mini Food Freeze Dryer

PRODUCT DETAIL
place of origin; place of origin:Henan, ChinaCore components:engine
Warranty:1 yearapplication:Food freeze dryer, pharmaceutical processing, chemical processing, food processing
Material:Stainless steelTypes of:Vacuum Freeze Dryer
strength:750WMechanical test report:if
port:Paper bowl forming machine Shanghai, Qingdao, Shenzhen, etc.Showroom location:not any
Dimensions (L*W*H):750*630*1120mmVoltage:220V
Packaging Details:Fixed in standard export carton Machine surface protection, plastic fastening Manufacturer's logo printed on the outside of the package 30% deposit when placing an order, 70% balance paid before delivery after 7 days after receiving the balanceRaw materials:various materials
Marketing Type:New Products 2020State of health:new
product name:Vacuum Freeze DryerWeight (kg):127
way to heat up:electro-thermalSupply capacity:100 sets per month
payment terms:Western Union, T/T, MoneyGramMain selling points:multifunctional
Applicable industries:Manufacturing plants, food and beverage plants, restaurants, household, retail, food stores, food and beverage storesVideo shipment inspection:if
Freeze-drying area:0.1㎡Package preview:
Core component warranty:1 yearCondensing temperature:≤--40℃
Ultimate vacuum:1.310pa (no load)

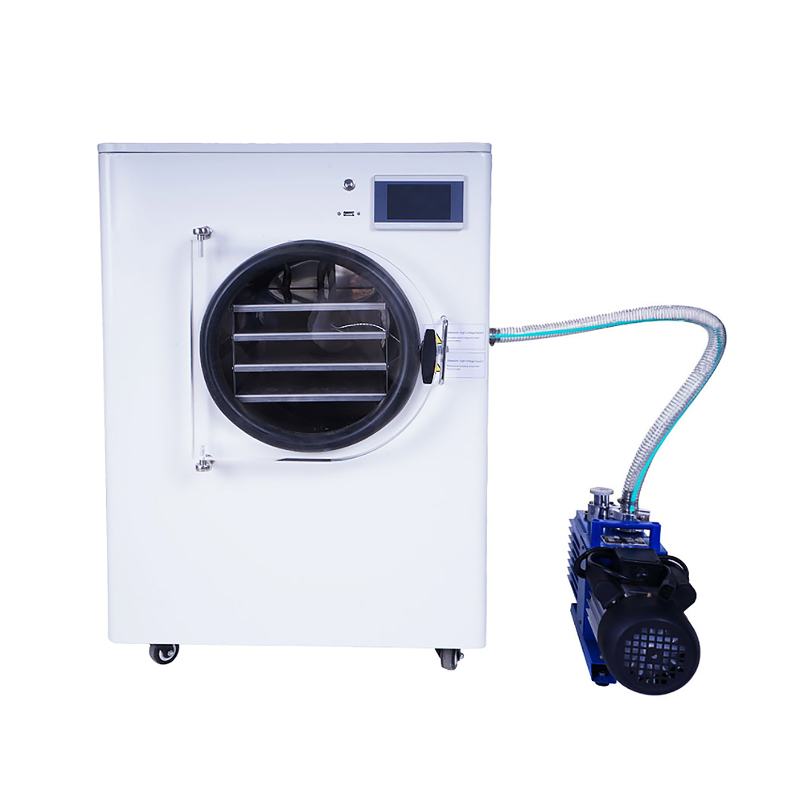

CQ Freeze Dryer Small Vacuum Laboratory Freeze Dryer Household Mini Food Freeze Dryer

Product Description

introduce:

Vacuum freeze dryers are widely used in food, fruit, vegetable, fish, sea cucumber, shrimp, meat drying, chemical, biological and other industries. The products dried by the food dehydrator have good taste, good color and good shape. Compared with freeze-dried food, air-drying, dehydration and other technologies are adopted, and the biggest feature is that the color, aroma, taste, shape and nutritional content of the original ecological food are retained.

Technical Parameters

Model CQ-HFD-1 CQ-HFD-4 CQ-HFD-6
Drying area (square meter) 0.1 0.4 0.6
Ultimate vacuum 15Pa 15Pa 15Pa
Capacity per batch 1~2 kg 4~6 kg 6~8 kg
Shelf clearance(mm) 45 45 45
Power (W) 750W 1100W 2300W
weight 50 kg 80 kg 120 kg
tray 140*278mm, 3 pieces 200*450mm, 4pcs 330*440mm, 4 pieces
size 400*550*700mm 510*700*850mm 710*800*1100mm

main feature

1. Compact structure, easy maintenance, low price, fully automatic control, easy operation;

2. One machine is multi-purpose, suitable for food, fruit, vegetable, fish, sea cucumber and other materials.
3. Excellent design, low energy cost, only need electricity to work.
4. Sturdy stainless steel sample tray and sample chamber, safe and reliable samples, easy to clean.
5. The transparent plexiglass door can directly observe the sample processing process.

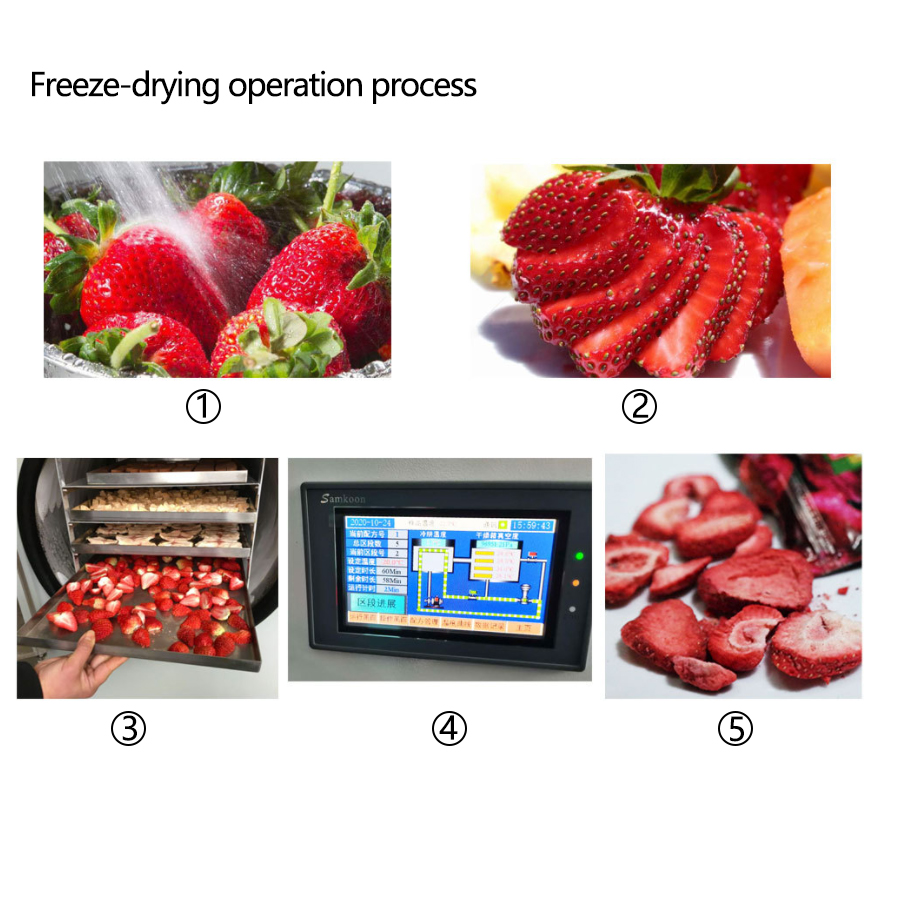

Freeze-drying process

1. Clean up.

2. To slice, cut into pieces.

3. Put it flat on the tray and put it into the freeze-drying chamber.

4. Set the freeze-drying process and intelligently control the operation of the equipment.

5. Take out the sealed package after freeze-drying.

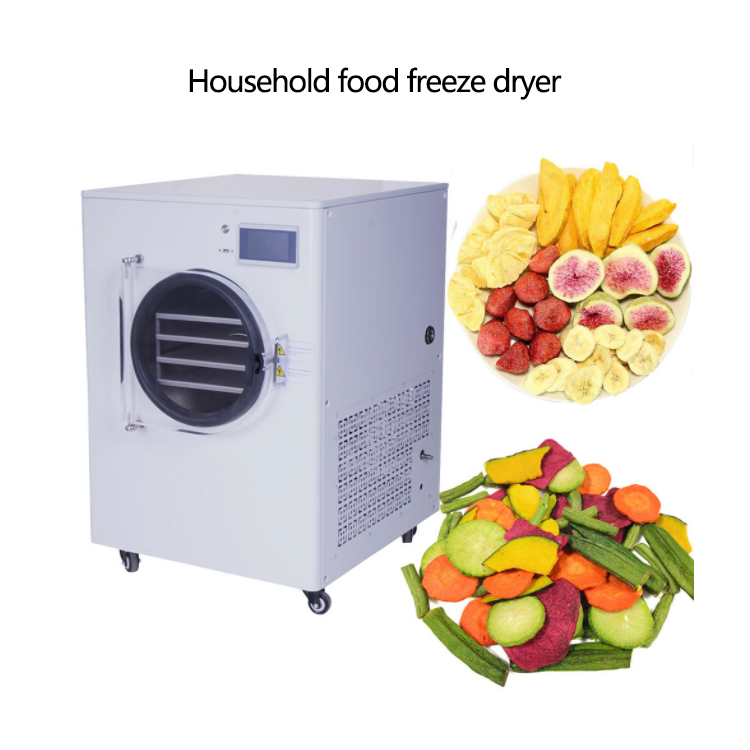

CQ Freeze Dryer Small Vacuum Laboratory Freeze Dryer Household Mini Food Freeze Dryer

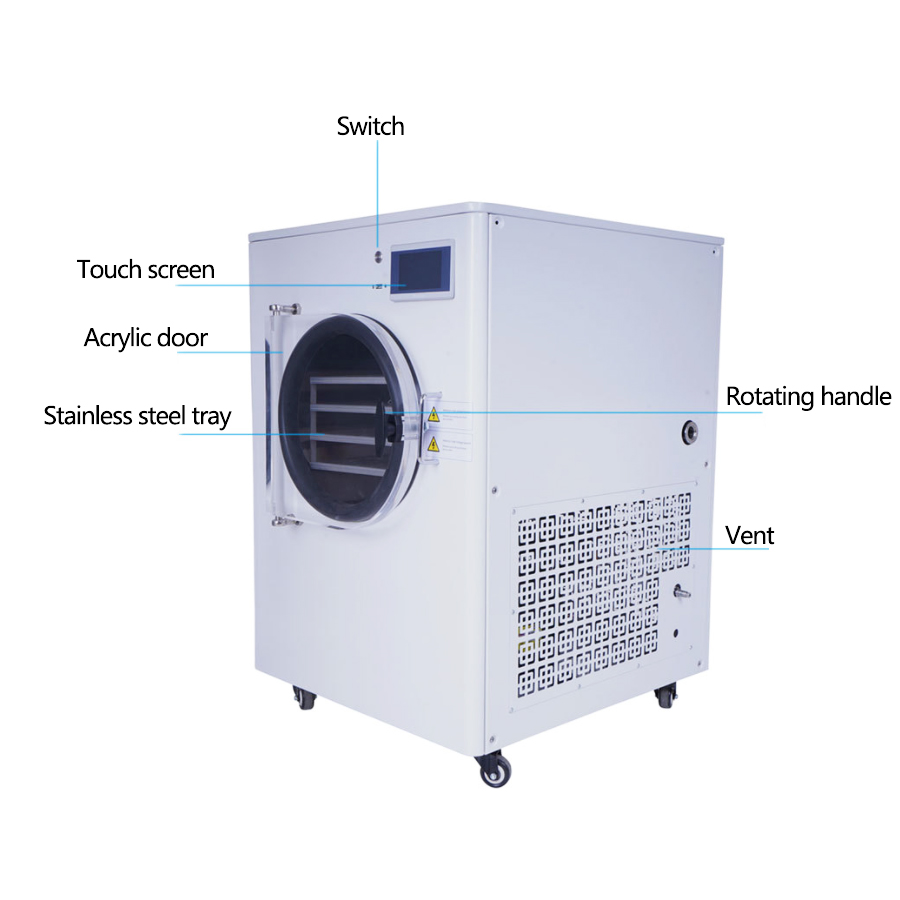

Product Details



Working Standards:
The refrigerated vacuum dryer removes the moisture in the pre-frozen material in a high vacuum state, so that the moisture evaporates in the ice state without melting into water.
The machine pre-freezes the material, and then generates a high vacuum state to heat and dry the material at low temperature. Compared with other drying methods, it can maintain the physical properties best, and it can last for a long time after drying.

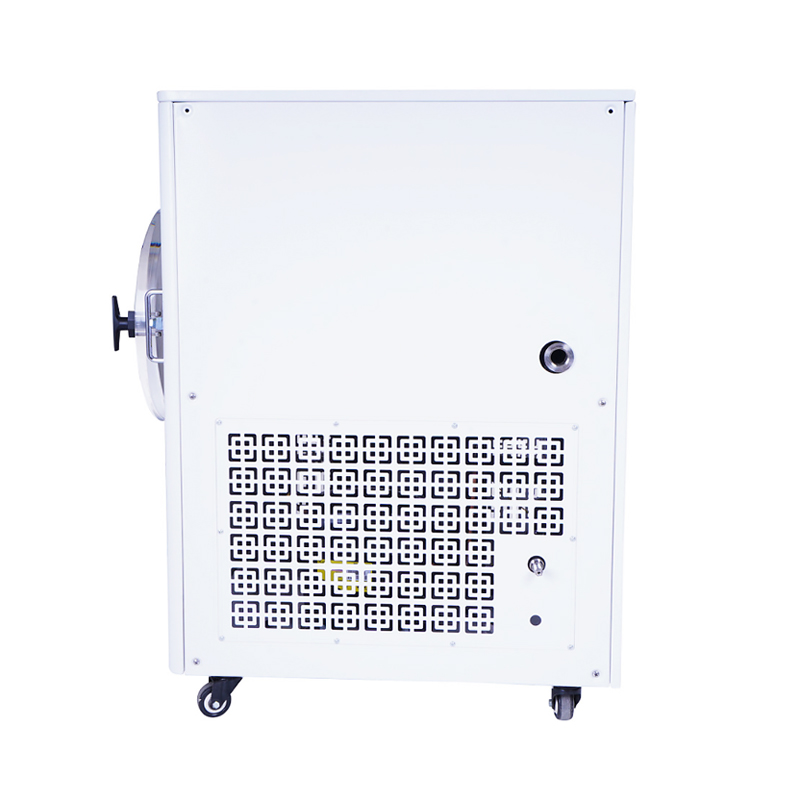

CQ Freeze Dryer Small Vacuum Laboratory Freeze Dryer Household Mini Food Freeze Dryer

our service

Installation video to help customers assemble

24-hour technical support via phone or email

• one yearWarranty Period
