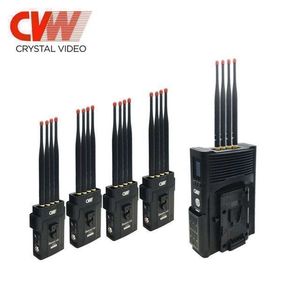

CVW Long Range 500m Wireless Transmitter and Receiver Kit with Tally

PRODUCT DETAIL
Supply capacity:200 sets per month after pre-test deliverydistance:500 meters
place of origin; place of origin:Guangdong, Chinaport:Shenzhen
application:HD video education sports broadcastpayment terms:wire transfer
Resolution:1080P/60HzPackage preview:
interface:3G-SDI, HD-SDI, RJ45, USBPackaging Details:boxed
model:Beamlink quad-corefrequency:5Ghz
brand:CVWCertification:FCC, CE



overview

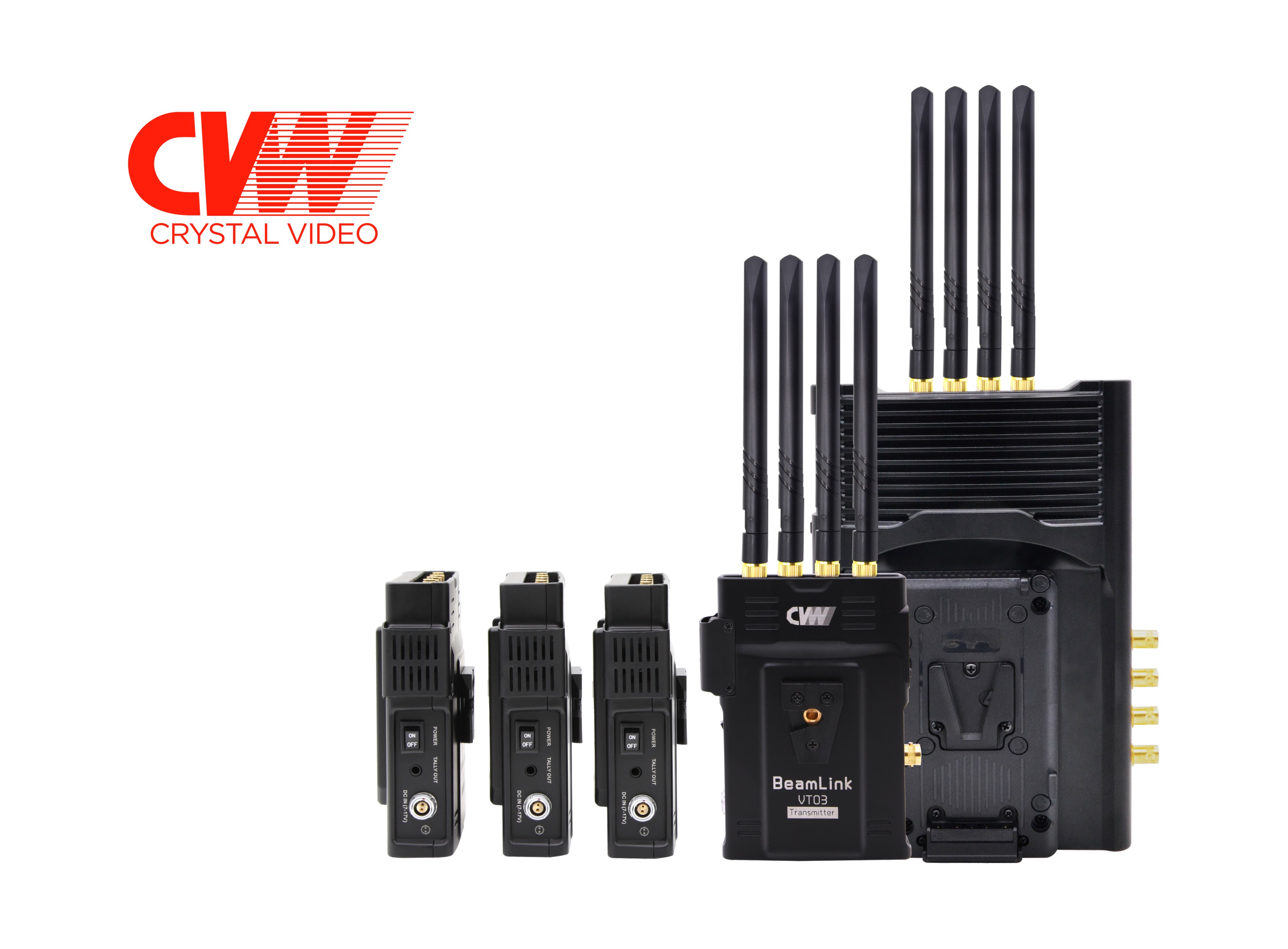

The Beamlink Quad is a wireless video kit that supports up to 4 cameras simultaneously and has ports like HDMI, SDI, tally and audio jacks.



feature

  • Supports up to four cameras
  • Up to 500m/1640ft transmission range (line of sight)
  • ultra low latency
  • 4x4 MIMO & Beamforming, enhanced anti-interference ability
  • Support one mode among RS232, RS422, RS485
  • Support IP streaming (RTSP)



Specification



Tx (4 Tx)

prescription

antenna pattern

4 x 4 MIMO and beamforming

4 x 4 MIMO and beamforming

transmission power

17dBm

17dBm

working frequency

5.1-5.8GHz

5.1-5.8GHz

resolution

720p50/59/60, 1080p23/24/25/50/59/60, 1080i50/59/60

interface

HDMI, 3G-SDI, Tally, RS232 and RS422

HDMI, 3G-SDI, Tally, RS232 and RS422, RJ45

Operating Voltage

7-17V

7-17V

Transmission range

up to 500 meters

up to 500 meters

energy consumption

10W

20W

audio format

PCM, MPEG-2

PCM, MPEG-2

Product size(mm)

94(L)x39(W)x126(H)

176(L)x81(W)x235(H)
