Caravan RV Acrylic RV Side Window Roll Out RV Window 35x50

PRODUCT DETAIL
color:black/white/customplace of origin; place of origin:Henan, China
Dimensions (hardware):350*500mmwindow frame:Aluminum alloy
Packaging Details:Caravan RV Acrylic RV Side Window Roll Out RV Window 35x50 Packing: 1. International shipping carton; 2. International shipping wooden box.Install:24-55mm thick wall
Inner window:PB Indoor Pleated BlindsOpening angle:8.8/35 degrees
product name:FPW side push-out windowSingle package size:40X55X15 cm
brand:JishunApplies to:Rv Caravan RV Trailer/Construction
appearance:Flat outside and convex insideSales unit:single product
Gross weight per piece:2.341 kgtype:other parts
Glass:Double layer acrylic glass

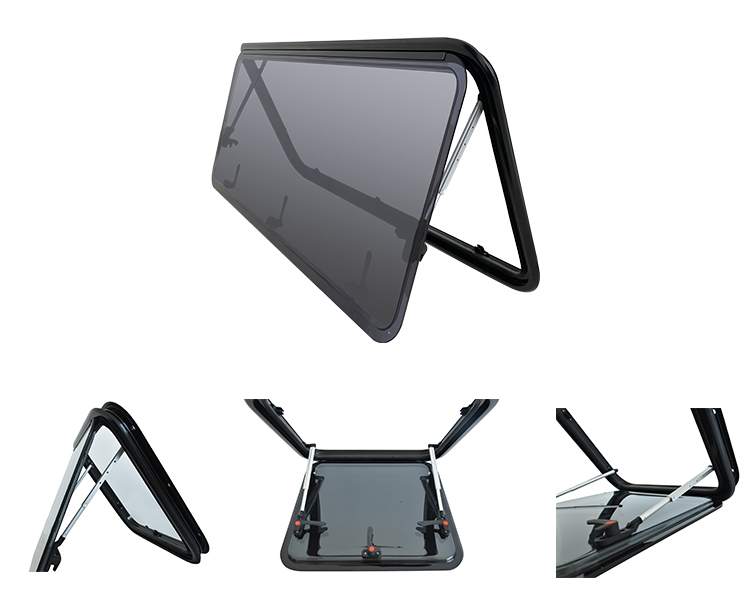

Caravan RV Acrylic RV Side Window Roll Out RV Window 35x50

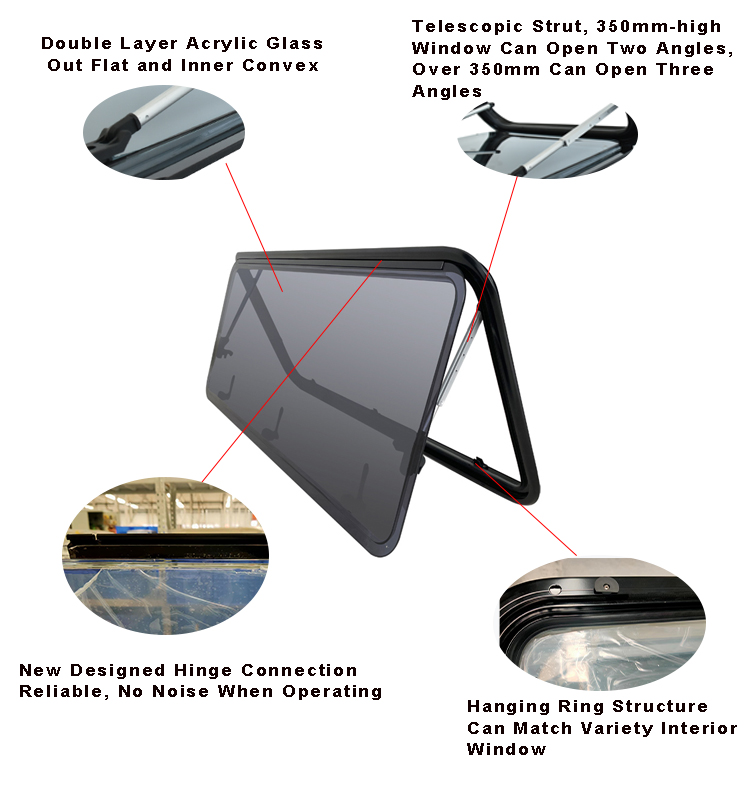

The FPW type motorhome window is made of double-layer acrylic glass and high-quality aluminum alloy, which is specially designed for motorhomes and buildings. The glass structure is flat on the outside and convex on the inside. With this design and structure, the FPW motorhome window has good performance in reducing wind noise. Wind, light structure, easy installation, reliable and durable, the connection adopts a new hinge structure, opening and closing without noise.

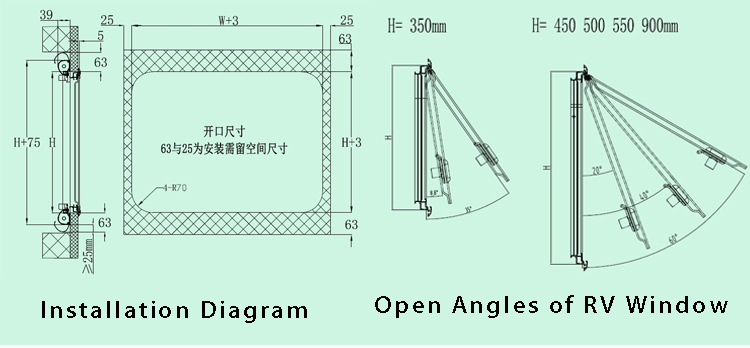

size

FPW-HW

Glass size/mm

(H-21.4)-(W-21.4)

Cut hole size/mm

(H+3)-(W+3)

FPW-350-500 328.6-478.6 353-503
FPW-450-500 428.6-478.6 453-503
FPW-450-610 428.6-588.6 453-613
FPW-450-900 428.6-878.6 453-903
FPW-450-1100 428.6-1078.6 453-1103
FPW-500-500 478.6-478.6 503-503
FPW-500-900 478.6-878.6 503-903
FPW-500-1200 478.6-1178.6 503-1203
FPW-900-900 878.6-878.6 903-903

Note: 1. FPW RV windows are specially designed for RVs or buildings, and are suitable for wall thickness of 24-55mm;

2. The above sizes are only a part of the window size, we can customize special sizes according to customer's requirements, please click here to discuss further.

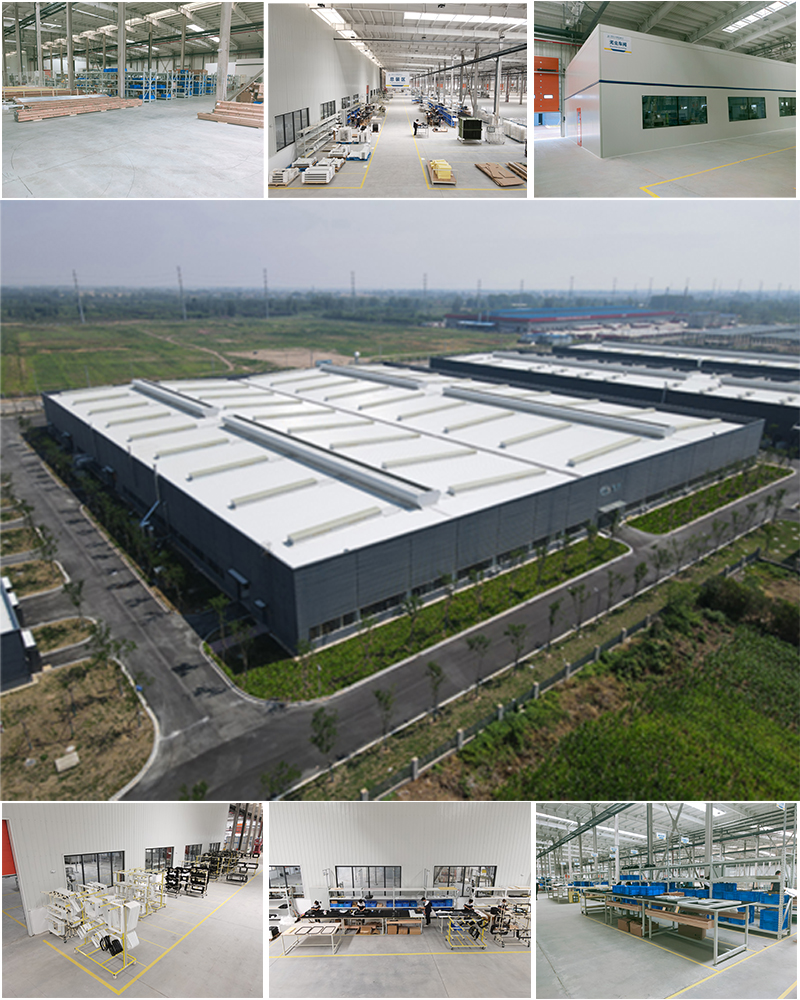

Shangqiu Jishun Auto Parts Co., Ltd. has invested more than 30 million yuan, covers an area of ​​15,000 square meters, has modern workshops and R&D centers, and is equipped with leading related high-standard supporting facilities.
As a leading RV parts manufacturer, we focus on the full-process manufacturing of RV parts. The main products are RV trunk doors, RV windows, RV passenger doors, awnings, etc., which are well received by customers for their high-performance production efficiency and product quality, and sell well in domestic and foreign markets. The annual production capacity is 20,000 sets, and the annual output value is 260 million yuan.
In terms of R&D and quality team building, Jishun has a professional R&D team with many years of experience in the RV auto parts industry, including more than 20 employees with bachelor degree or above. Therefore, Shangqiu Jishun Auto Parts Co., Ltd. has strong product research and development capabilities to serve our customers. Leading the development of the RV parts industry through continuous independent innovation and creating more added value for customers is the purpose of our company.
In terms of investment in research and development and quality control equipment, Jishun has established a professional performance testing laboratory to meet the different requirements of customers, equipped with multi-functional testing machines, colorimeters, weather resistance and corrosion resistance test chambers, self-designed fatigue tester, etc.
We are committed to building the Jishun brand into a first-class brand, and creating value for customers with original quality is our eternal pursuit.





1. Q: Are you a manufacturer?
A: Yes, we are a manufacturer, our factory covers an area of ​​15,000 square meters, with a modern building and R&D center, equipped with leading related high-standard supporting facilities.
2. Q: Can you do OEM?
A: Yes, we can produce products according to customer's requirements, and can also put customer's logo on it.
3. Q: What are your payment terms?
A: We accept T/T, L/C, Western Union, etc.
4. Q: What is your delivery time?
A: According to the order quantity, after the customer pays, we will provide the production plan to the customer, and continuously update the production video or photos to the customer.
5. Q: How do you conduct quality control?
A: We have quality inspectors in each production link, from raw materials to assembly process, there are no defective products before delivery, but if there are quality problems, we will exchange for you free of charge.
