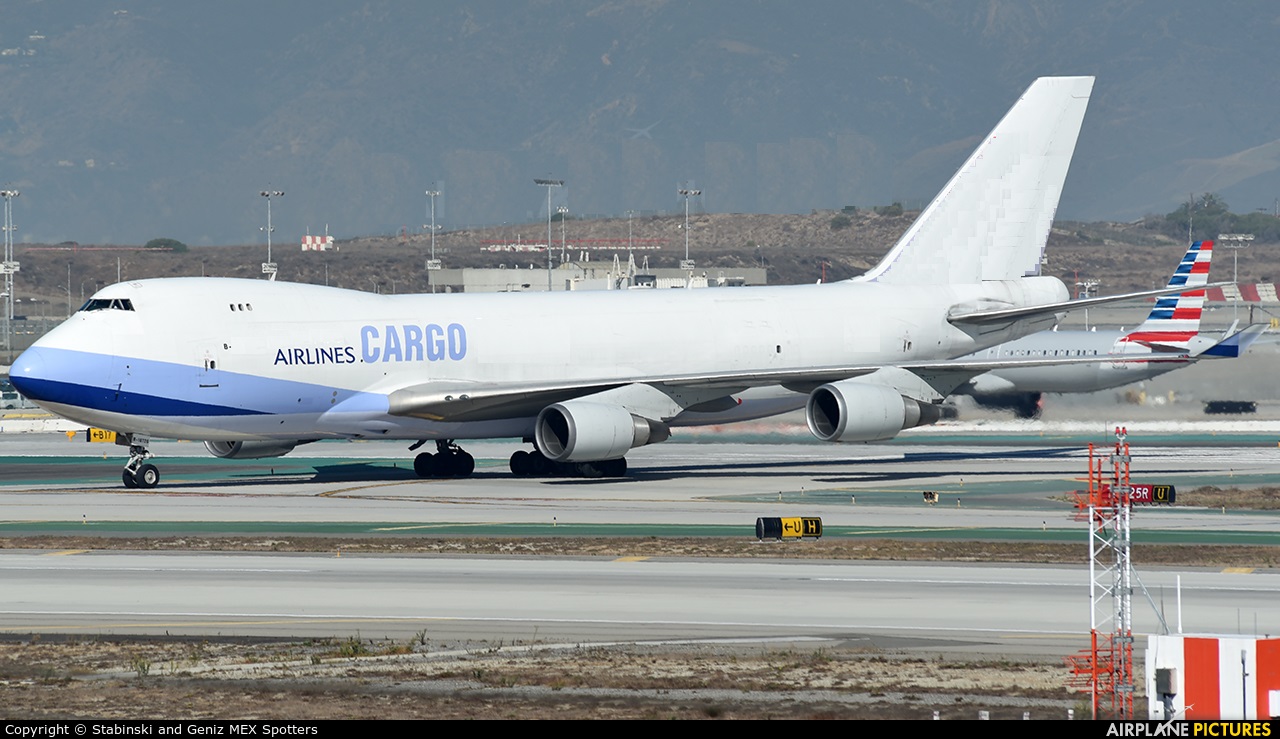

Cargo Aircraft Jet 747-400F Classic Aircraft Long Term Cargo Charter

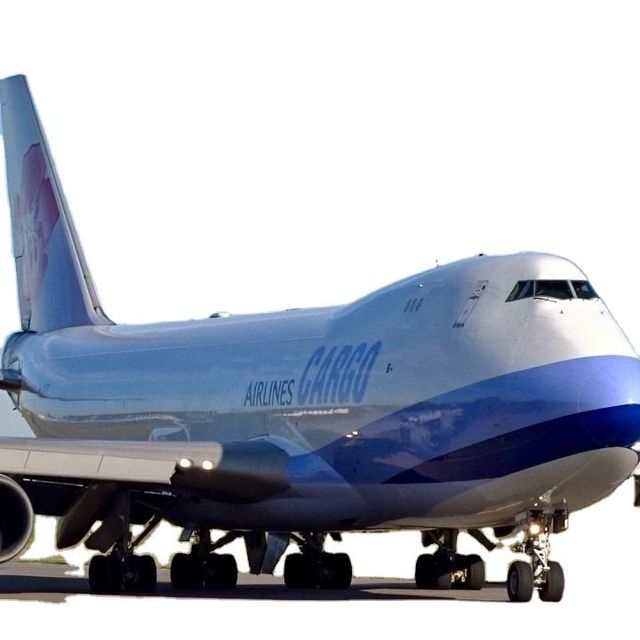

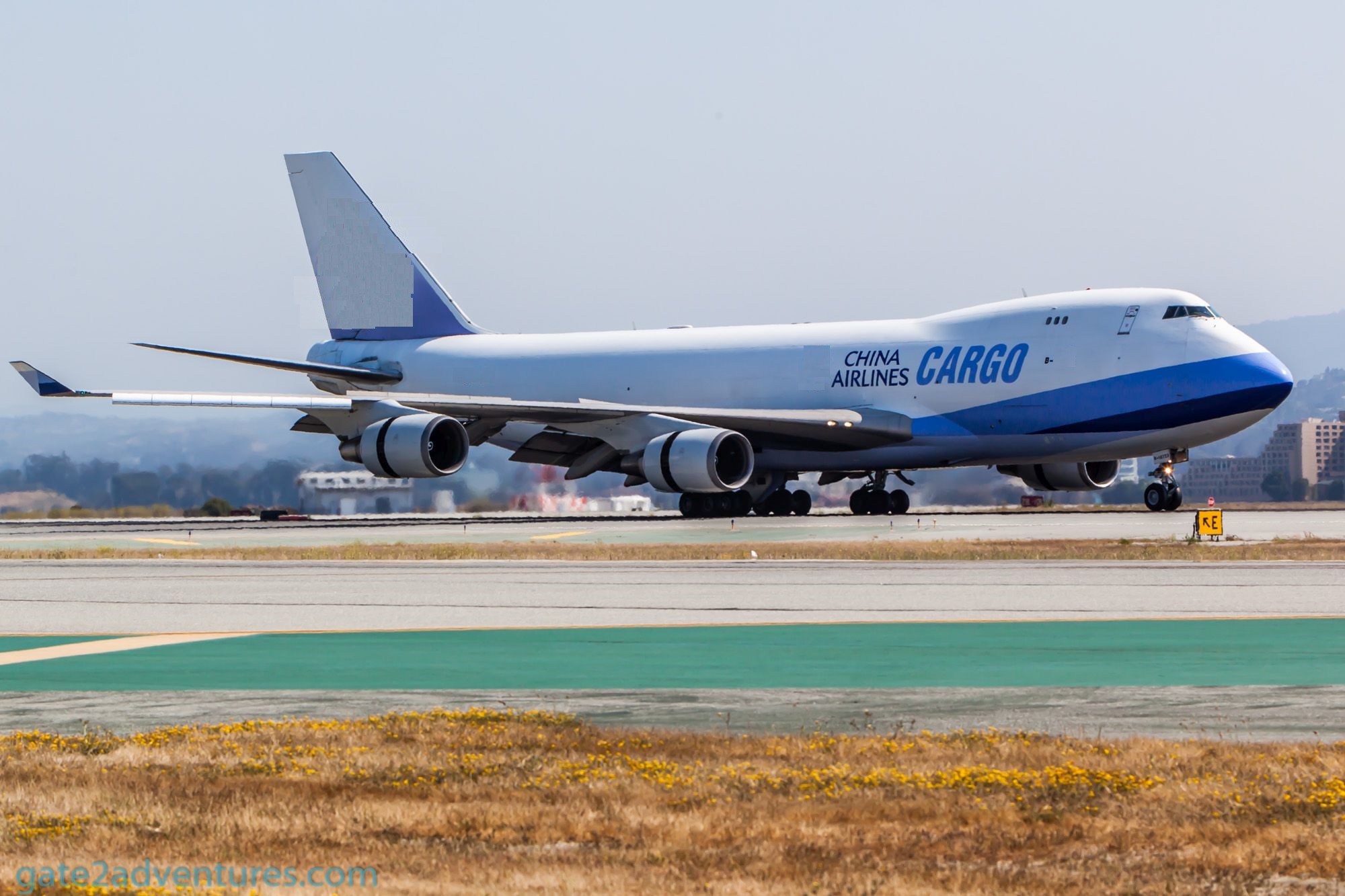

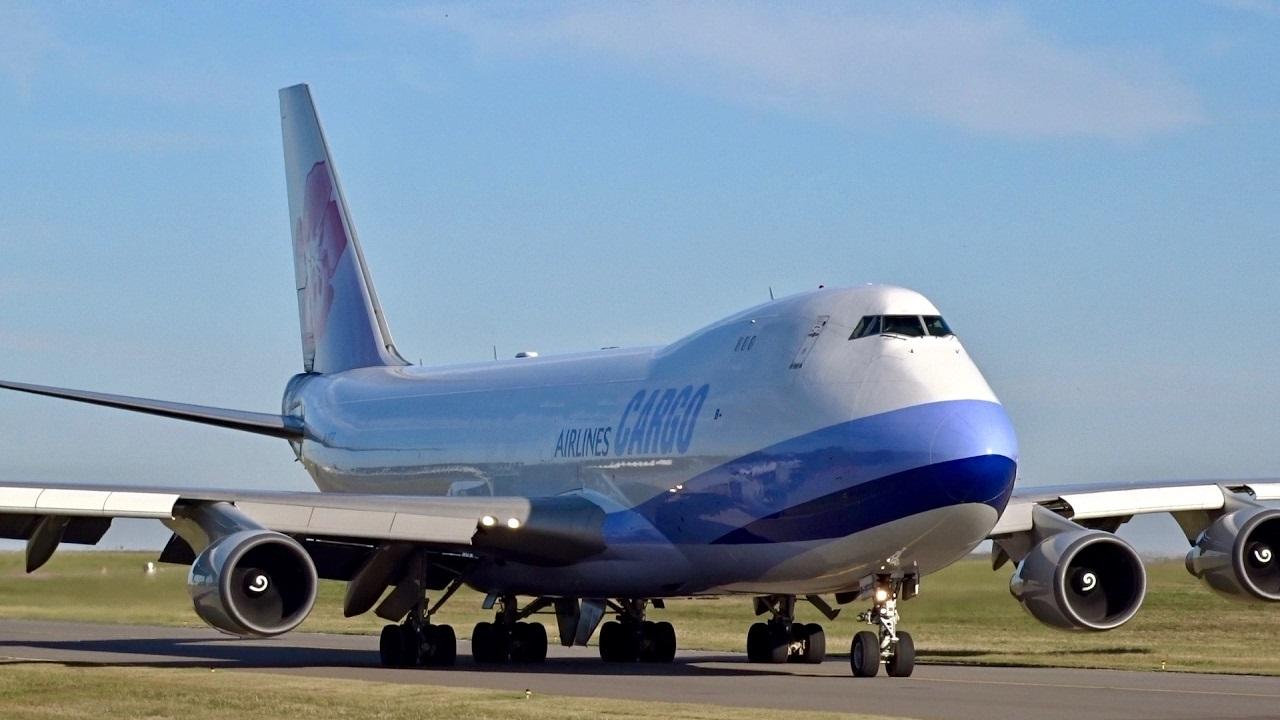

The Boeing 747-400F can carry loads in excess of 100 tons on long-haul flights of up to 13 hours. It has side and nose loading doors so it can transport all kinds of cargo.

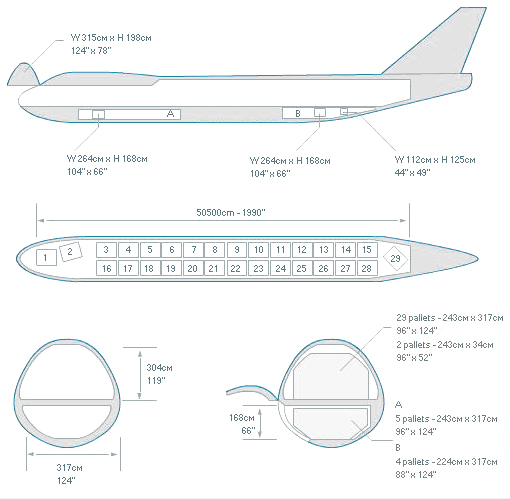

Compartment load capacity

Main: 29 – 96" x 125" (244 cm. X 318 cm.)

Position 1: 1 – 88" x 125" (224 cm. X 318 cm.)

Lower: 9 - 88" x 125" x 64" 3,285 cc. feet (93.0 m3)

Or: 9 - 96" x 125" x 64" 3,855 cc. feet (109.2 cubic meters)

Lower bulk cargo area: 920 cubic feet (26 cubic meters)

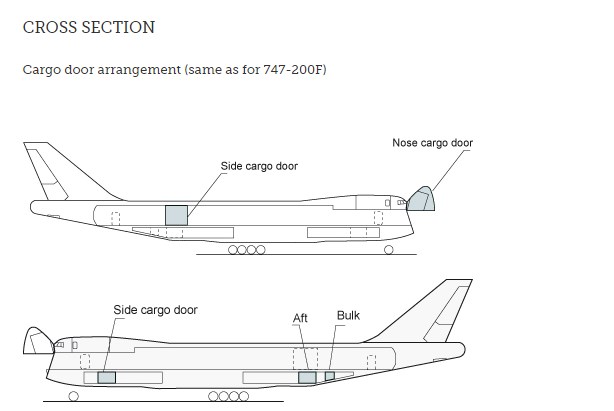

Cargo door size

Main Cargo Door: 134″ x 120″ (340 cm. X 310 cm.)

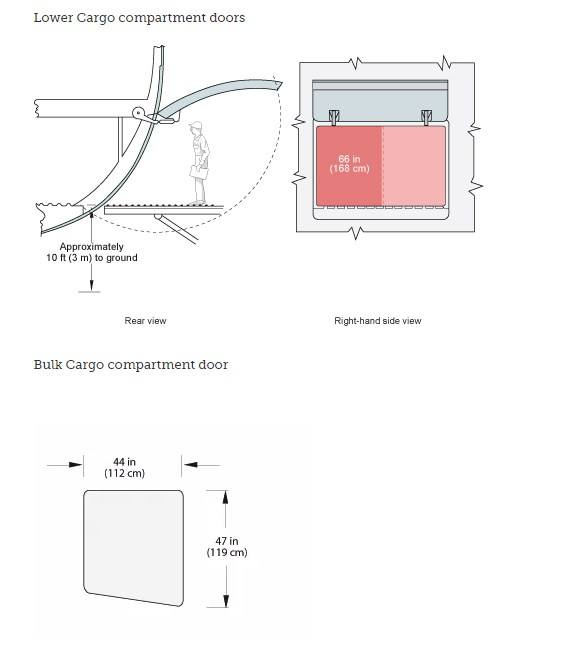

Lower Front Door 110″ x 104″ (168 cm. X 264 cm.)

Lower Rear Door 110" x 104" (168 cm. X 264 cm.)

Lower Rear Bulk Door 44" x 47" (112 cm. X 119 cm.)

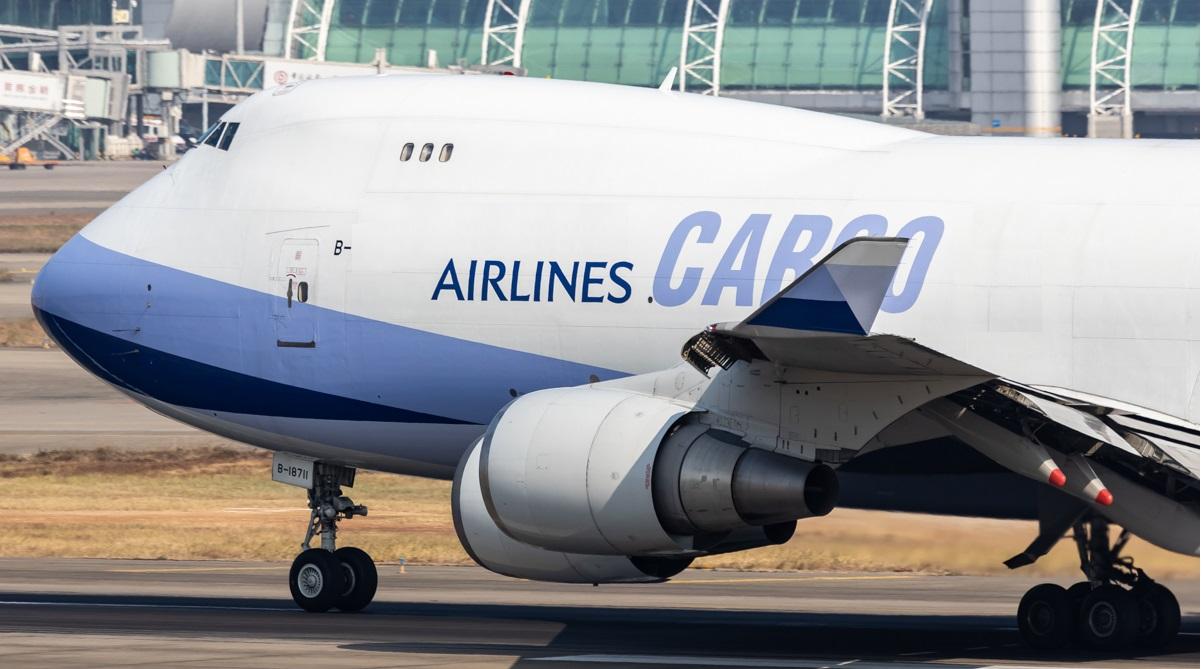

Boeing 747-400F Specifications
*Manufacturer: Boeing* Category: Large Cargo Airliner
* MTOW: 875,000 lbs (396,890 kg) * Maximum Payload: 274,100 lbs (124,330 kg)

Performance
*Cruising speed: Mach 0.845 (498nm; 922km/h) *Range: 3,110nm (5,760km)

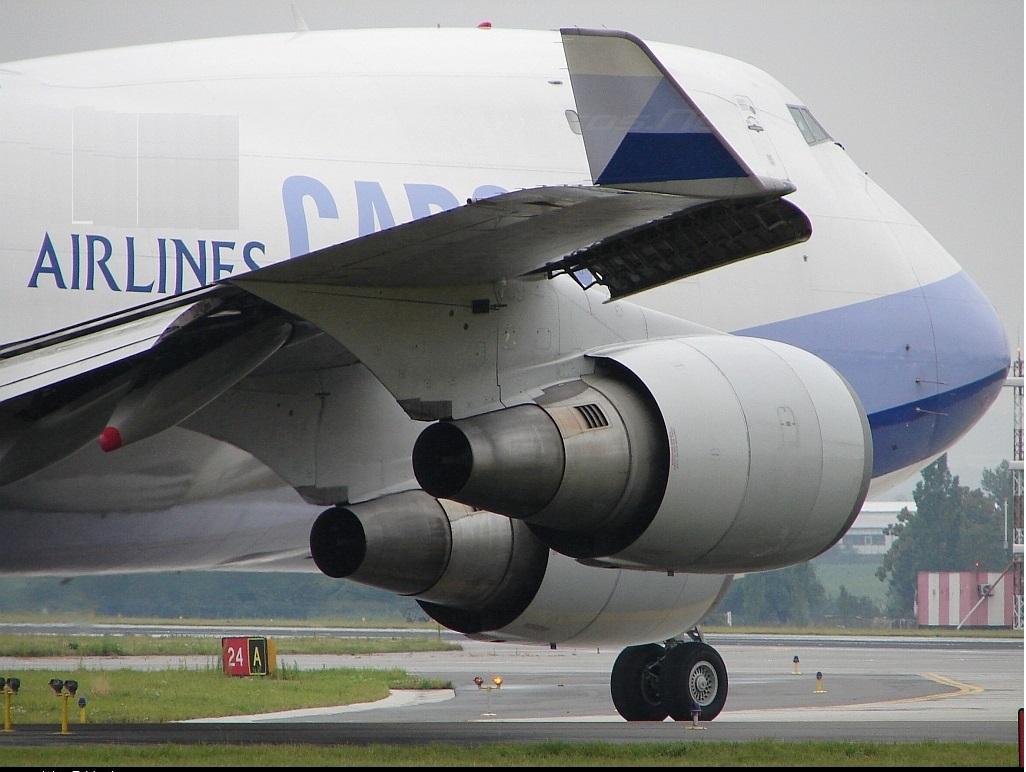

* Runway: 9,550 feet; 2,910 m (takeoff) * Engines: 4x PW4000 / GE CF6 / RR RB211
* Thrust: 56,400–63,300 lbf (251–282 kN) each

aspect

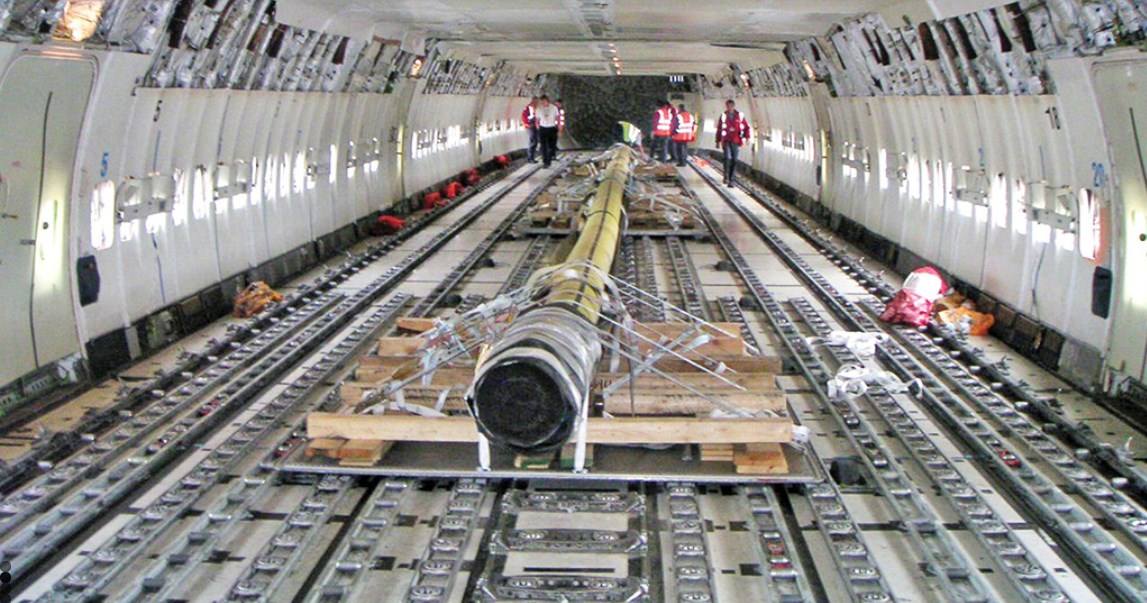

* Cargo volume: * Main deck: 21,462 cubic feet (607.7 m³) * Lower cargo hold: 4,601 cubic feet (130.3 m³)
* Volume: 520 cubic feet (14 m³) * Height: 63 feet 8 inches (19.41 m)
* Length: 231 ft 10 in (70.66 m) * Wingspan: 211 ft 5 in (64.44 m)

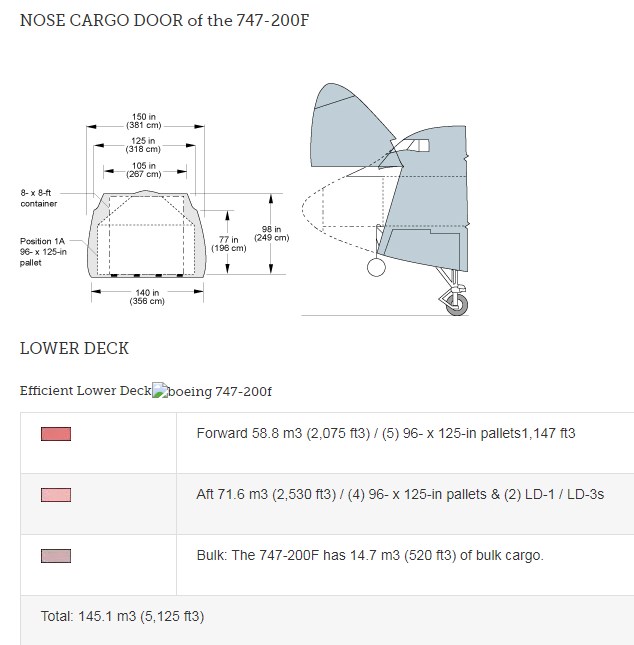

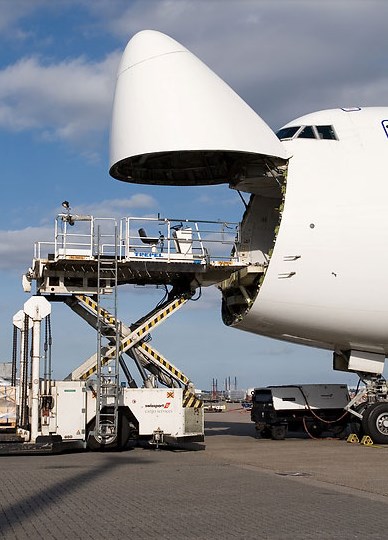

nose cargo door

The 747-400F Freighter has a hinged nose that flips up for loading and unloading oversized or extra-long cargo. For large shipments or freight, this would be a useful feature.
