Charger Elcon tc CAN bus Air Liquid 1.8KW 3.3KW 6.6KW OBC Hk jh 1800w 3300w 6600w Lead Acid Lithium Charger
- $200.00 /piece
- 1 piece
- Benbv Trade Co., Ltd.
- Hunan, China
- Ms Dodolook W
PRODUCT DETAIL
| Packaging Details: | Plastic bag+box FEDEX 5-7 days DHL: 3-5 days UPS: 7-10 days Shipping is not accurate | Applicable battery type: lithium/lithium iron phosphate: | Output DC 66V-650V |
| payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram, Credit Card | Elcon tc charger CAN bus air liquid: | 1.8KW 3.3KW 6.6KW OBC Hk jh 1800w 3300w 6600w |
| model: | 1.8KW/3.3KW/6.6KW OBC | TC charger 1.8KW 3.3KW 6.6KW: | AC90-265V OBC |
| place of origin; place of origin: | Zhejiang, China | Use the app: | Electric vehicle/car/trunk/forklift/hybrid EV |
| CE /IATF/ISO9001 quality control: | 1 year warranty | Certification: | CE ISO9001 LVD EMC IATF |
| Package preview: | brand: | Elcon TC Charger | |
| port: | Shenzhen | Efficiency>98%: | Programmable/with CAN communication |
| IP Rating 67 Waterproof: | including connector | cooling system: | Air-cooled/air-cooled/water-cooled/liquid-cooled |
| Maximum output voltage current: | Maximum 80A 650V | Supply capacity: | 100 pieces per week |
Specification
#Original Elcon TC HK-J HK-H Series Charger | value | |
Charger power | 1.8KW 3.3KW 6.6KW 1800W 3300W 6600W | |
brand | Elcon TC Charger | |
use the app | Electric Vehicles/Cars/Trucks/Forklifts/Hybrid Electric Vehicles/Campers/Caravans/Boats/Club Cars/Motorcycles | |
CAN bus control | CAN bus speed 250Kbps or 500Kbps, CAN IDs E5, E7, E8 or E9 | |
Advantage | 93% high efficiency power factor correction High voltage input and output range high frequency high power Built-in auxiliary 12v 5A power supply Full 1-year repair and replacement warranty IP67 fully sealed and potted Free Custom Programming Used in series | |
Other similar products | <2000W , 220V 1.5-8KW , 380vac 10-50KW | |
DC converter | UHF DC-DC converters available in 500W, 1000W and 1500W sizes | |
model sheet
charging power | Rated voltage/current | voltage range | Model name (CAN control |
1.8 kW | 48v 25A | 18-66V | HK-H-H66-25 |
72v 25A | 25~99V | HK-H-H99-25 | |
96V 16A | 34~132V | HK-H-H132-16 | |
3.3kw | 72V 40A | 25~99V | HK-J-H99-40 |
84V 40A | 30~116V | HK-J-H116-40 | |
96V 32A | 34~132V | HK-J-H132-32 | |
144V 23A | 50~198V | HK-J-H198-23 | |
312V 10A | 110~440V | HK-J-H440-10 | |
540V 6A | 170~650V | HK-J-H650-6 | |
6.6 kW | 72V 80A | 25~99V | HK-J-H99-40 |
84V 80A | 30~116V | HK-J-H116-40 | |
92V 64A | 34~132V | HK-J-H132-32 | |
144V 46A | 50~198V | HK-J-H198-23 | |
312V 20A | 110~440V | HK-J-H440-10 | |
540V 12A | 170~650V | HK-J-H660-10 |
What is a car charger
OBC chargers, also known as on-board chargers, are widely used in new energy/electric vehicles, RV, HEV, EV power conversion projects, mainly composed of power circuits (rectification + PFC + phase-shifting full bridge) and control circuits, and are key components of automotive power Electronics, the main function is AC/DC converter. The car charger takes AC power as input and output as DC to charge the power battery directly.
Key features:Converts AC from the grid to DC stored in the high voltage vehicle battery / saves time and makes it easier to get a fully charged car
At the same time provide charging plug connector, welcome to inquire
Wendy

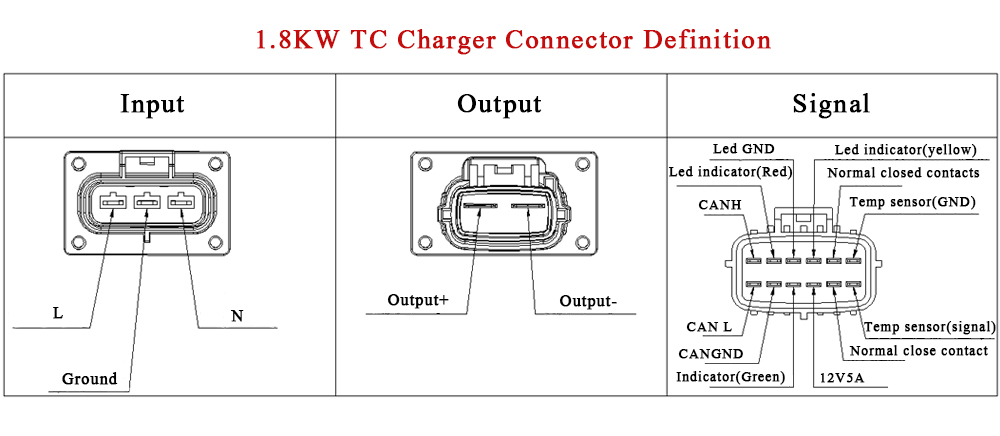

Wendyschematic diagram

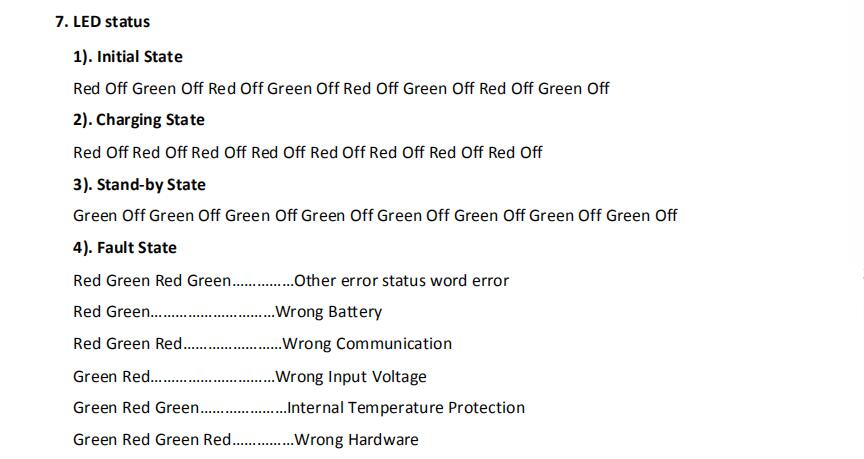

troubleshooting
If the charger seems to stop charging prematurely, we recommend connecting to the BMS unit, using the BMS utility and monitoring the charge current limit (CCL) to determine if the BMS is limiting current.
If CCL is zero, the BMS will shut down the charger for some reason.
If CCL is non-zero, the charger may be defective or have a wiring problem.
Please refer to the Troubleshooting Guide for more information which is located under/in the manual
