Chico JY-100 semi-automatic double-head handbag gift box eyelet eyelet machine shoe eyelet eyelet machine

PRODUCT DETAIL
Packaging details:wooden boxCutting speed:195/minute
brand:QikePlace of origin:China
Aperture:2.5mm-10mmElectricity (kW):0.55kW
payment terms:L/C, D/A, D/A, wire transferweight:240
Core component warranty:1 yearport:Shanghai/Ningbo
weight:240kgCore components:engine
usage:boxes, shoes, paperName:Eyelet primer
strength:0.55kWDimensions (length*width*height):1000*620*1650mm
Marketing type:New products for 2022Showroom location:not any
Applicable industries:Clothing Stores, Manufacturing Plants, Machinery Repair Shops, Food and Beverage Plants, Restaurants, Household, Retail, Print Shops, Construction Engineering, Energy and Mining, Food and Beverage Stores, Others, Advertising AgenciesMechanical test report:if
Health status:newVoltage:380V/220V
Supply capacity:200 sets per monthVideo outbound inspection:if
speed:190 rpmHole spacing adjustment range:60-160mm, 120-220mm
Voltage:220 voltsWarranty:1 year
Product Description

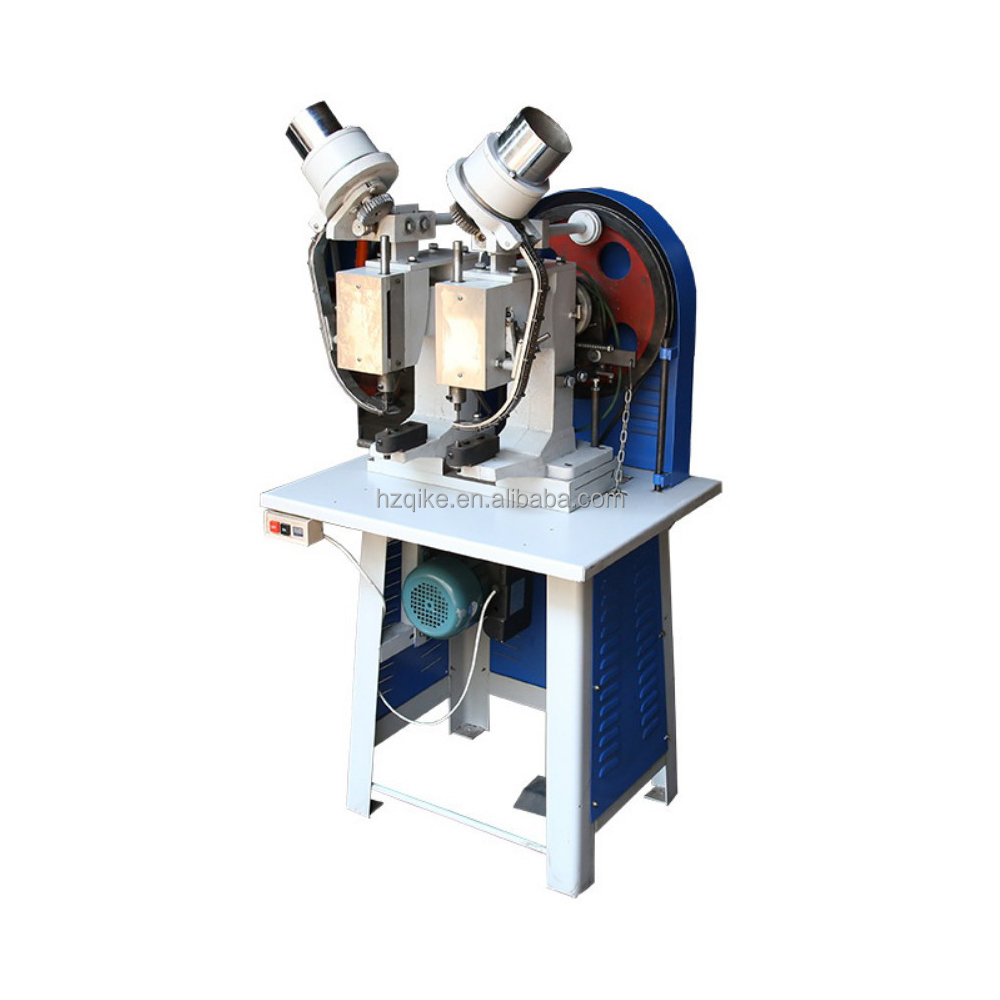

Chico JY-100 semi-automatic double-head eyelet buttonhole machine handbag gift box shoe eyelet buttonhole machine

NailerThis machine is semi-automatic and can produce silk-marked paper-plastic bags with a thickness range of 0.1-0.5cm. Shoe leather. Widely used in handbags, carton ring production, archive bags, archive bag press rings, confidential files, ordinary file decoration, card binding, tag eyelets, anti-counterfeiting packaging bag sealing bags, clothing, hats, leather goods, leather products , leather products, leather products, leather products, leather products, Backete mattress air hole button production, etc.;

Name: JY-100 double-head eyelet machine Speed: 195/min Hole pitch adjustment range: Large pitch: 60-160mm Small pitch: 120-220mm Eye diameter: 2.5mm-10mm Electric power: 0.55kW Speed: 190rpm Dimensions: 1000 * 620*1650 Weight: 230kg
Machine features:1. The operation is simple, and the combination of perforation, buttonholes and hemming is formed at one time. The hole is automatically and continuously fed, and there will be noEyeletsPhenomenon. The structure is very reasonable. QEyeletsSmooth, no scratches on hanging objects. 2. It is especially suitable for punching corns on handbags. It is fast and can produce an average of 12,000 bags/day per machine. (otherEyeletsMachines cannot compare)

Size Information
Name
Double head corn eye machine

Model
JY-100

speed
195/minute

Hole spacing adjustment range

Large distance: 60-160mm
Small distance: 120-220mm
Eye diameter
2.5mm-10mm

Voltage
380V/220V

weighing

230kg
