China 300tpd Cement Plant Professional Manufacturer

PRODUCT DETAIL
port:Nantong or Shanghai PortCore Components Warranty:1 year
Voltage:By designDimensions (L*W*H):By design
Health status:newpayment terms:Letter of credit, wire transfer, cash
Process loop:closed circuit, open circuitbrand:Pengfei
After Warranty Service:Video technical support, online support, spare parts, on-site maintenance and repair servicesCertification:ISO9001, CE, etc.
Applicable industries:cement processing machineMotor supplier:Siemens, TECO
Video external inspection:ifCore components:engine
Equipment Color:According to demandstrength:By design
Local service location:not anyProcess type:wet, dry
Supply capacity:100 sets per yearMarketing Type:New Products 2020
Material:Limestone, Sandstone, Clay, Iron Ore, GypsumWarranty:1 year
application:Production of clinker and cementMain selling point:energy saving
Showroom location:not anyAfter-sales service provided:Engineers can service machinery overseas, on-site installation, commissioning and training, on-site maintenance and repair services
Mechanical test report:ifplace of origin; place of origin:Jiangsu, China
Packaging Details:All the packages in the cement plant are suitable for ocean transportation and inland transportation, 1. The kiln shell is transported in 6 sections. 2. The stand is packed on the mat. 3. Small parts are packed in wooden boxes and iron racks. 4. There will be a mark on the box. Namely destination port, net weight/gross weight, height*length*weight, cweight:Kilogram

Jiangsu Pengfei 300tpd Cement Plant China Professional Manufacturer





Product Description (Cement Plant)

The cement production line is a production line construction project composed of a series of supporting equipment for finished cement, mainly composed of crushing equipment, homogenization equipment, raw material preparation equipment, drying equipment, preheating pre-decomposition equipment, clinker sintering equipment, etc. Equipment, cooling equipment, crushing equipment, packaging equipment, conveying equipment, environmental protection production dust removal equipment, etc. Jiangsu Pengfei Group supplies process design, civil engineering, complete sets of equipment, installation and trial operation, technical services, and general contracting.



Design Basis:

1. Production method: establish a 300tpd cement production line with 5-stage cyclone preheater. From limestone crushing, raw material grinding, combustion system, cement mill, packaging and other production facilities.

2. Design capacity

Clinker: 300tpd

90000tpy Operating days per year: 300

Annual cement production capacity: 101,020 tons

The above products are based on Chinese cement standards and can be adjusted according to local cement standards.

3. The ratio of bagged and bulk cement

Bags: 70% Bulk: 30%

4. Shipping methods for materials and products

Raw materials, fuel and cement are transported by truck.



Materials and heat consumption:

Theoretical consumables: 1.514kg/kg.Cl

Clinker heat consumption: 4098kJ/kg.Cl

Equipment List

part

Device name, specifications, parameters

capacity

Limestone crushing and conveying

Primary: Jaw Crusher

Model: 400×600

Capacity: 17~115t/h

Secondary: Hammer Crusher

Model: 800×600

Capacity: 25~35t/h

25~35t/h

iron ore crushing

Jaw Crusher: PEX250×750

14 cubic meters/hour

Raw material grinding

Size: 2.2×7.5m

Feed size: ≤25mm

Product fineness: 12% (0.08mm square hole sieve)

Main motor power: 380kW

closed edge drive

23 tons/hour

medium hardness

Waste gas treatment

Air-conditioning tower: Specifications: φ3.85×26m

Water spray volume::4t/h max



Electrostatic precipitator model: CDPK

Electric field cross-sectional area: 30m2

Handling air volume: 112000 m3/h

Preheater system



high temperature fan

Model: 1858SIBB24

Handling air volume: 85000m3/h

Full pressure: 7200Pa

Working temperature: 350 degrees

Main motor power: 280kW



Five-stage cyclone preheater

C1: 1-diameter 2569mm

C2 ,C3: 1-Dia2769mm

C4, C5: 1-Dia2944mm

12.5 tons/hour

Lift pump

Specifications: Diameter 800×4000mm

Lifting height: 45m

With roots blower: RE-145, 45kW

25 cubic meters/hour

Kiln Medium

rotary kiln

Size: 2.7×45m

Slope: 3.5%

Main speed: 0.3~2.25r/min

Auxiliary speed: 0.08785r/min

Main power: 75kW

12.5 tons/hour

Out of the kiln, clinker cooling and transportation

cooler

Size: 2.8×28m

Main motor: 55kW

12.5 tons/hour

Burner

Type: three channel

4 tons/hour

Gypsum Crusher

Model: PEX-250×750

Feed size: ≤210mm

Outlet size: ≤25mm

Motor power: 30kW

20 tons/hour

cement grinding

ball mill

Size: 2.2×7.5m

Feed size: ≤25mm

Product fineness: 330m2/kg

Main motor: 380kW

Drive Type: Edge Drive

15 tons/hour

O-SEPA Separator

Specification: N-500

Air volume: 30000 m3/h

15 tons/hour

Cement Packaging

Two spout packaging machine

30 tons/hour






 company information

Position advantage

Pengfei Group enjoys an advantageous geographical location and is the largest production and export base of large-scale rotary equipment in the coastal areas of China. Location advantage: Jiangsu Pengfei Group Co., Ltd. is located in the main transportation county in the middle of Hai'an County, Jiangsu Province. It takes two hours from the company to the international metropolis of Shanghai. The international Nantong port and Shanghai port located at the mouth of the Yangtze River make it very convenient for our company to export large-scale equipment.

Business Scope

1. It has the comprehensive ability to provide turnkey projects of technical design, complete sets of equipment, installation and commissioning, and commissioning for new dry-process rotary kiln cement production enterprises with a daily production capacity of 10,000 tons.

2. Provide complete sets of equipment and technical services such as grinding, calcining, oil extraction, crushing, dust removal, transportation, and lifting for metallurgical, chemical, electric power, mining, coal, petroleum, and environmental protection enterprises, ETC.



Company Overview

The company has six subsidiaries including machinery factory, installation factory, electronics factory, foundry, installation factory, new building materials factory, covering an area of ​​350,000 square meters and total assets of 820 million yuan. There are 1,500 employees and 450 engineering and technical personnel, with an annual production capacity of 300,000 tons. Pengfei has an annual production capacity of 400 sets of large ball mills, 300 sets of roller presses, 260 sets of pre-grinding equipment, and 150 sets of large rotary kilns.



Thank you very much for your inquiry and will gladly submit it by private order.



Jiangsu Pengfei Group Co., Ltd.

 Contact (Sales Manager): Sally Wang

Tel: +8615962769091

Skype:wang.sally98

WhatsApp:+8615962769091

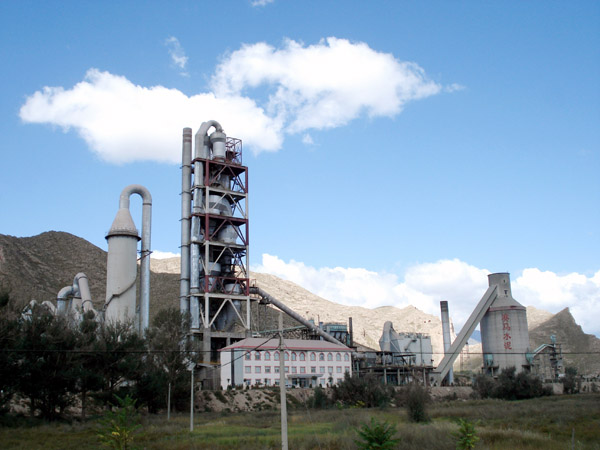

cement plant

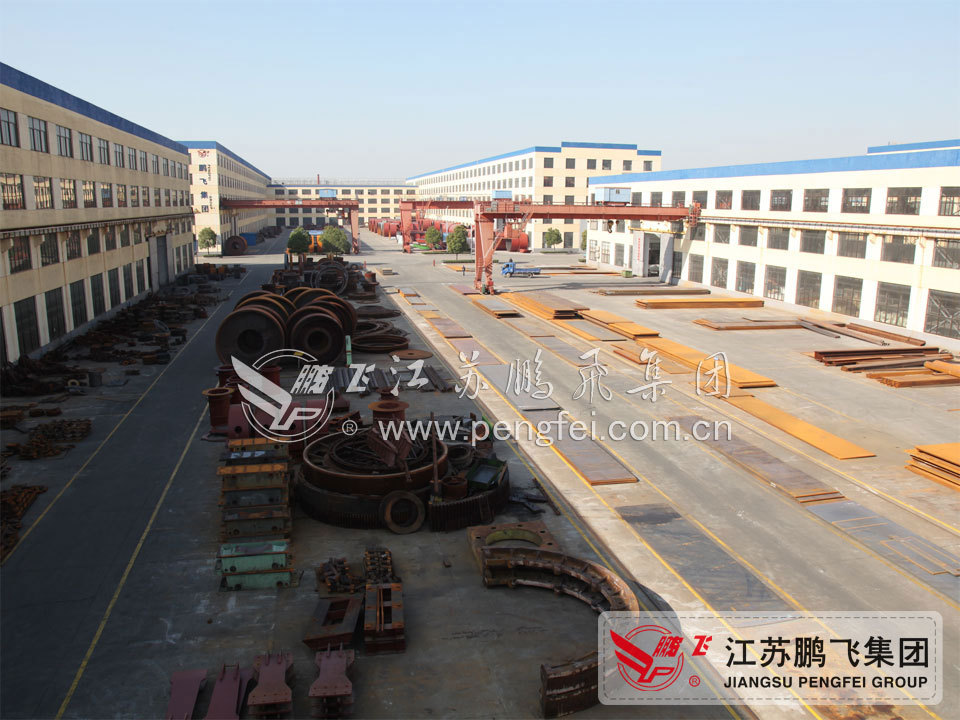

Cement complete equipment production and export base

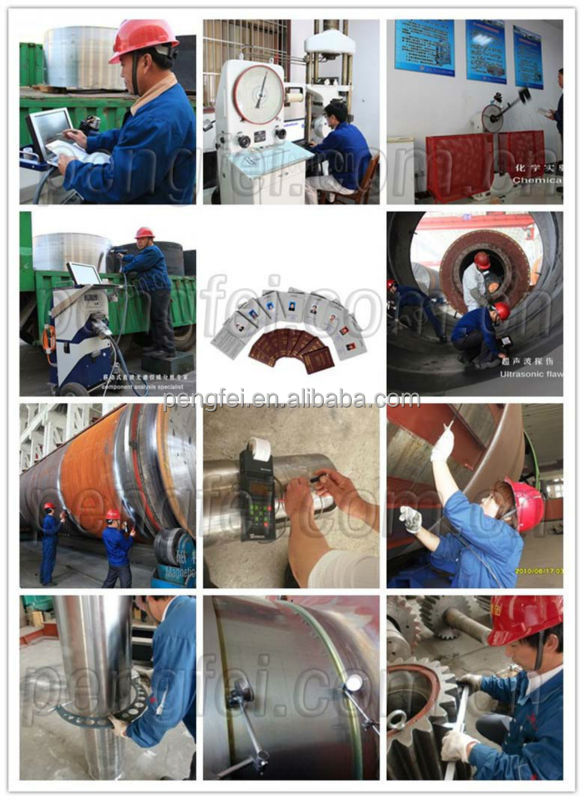

Quality Control

Certificate

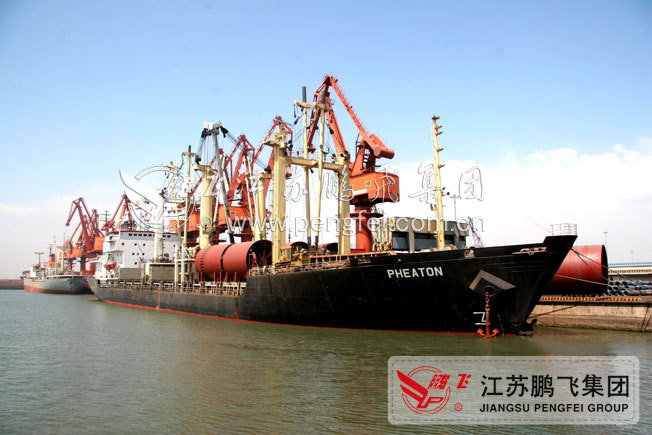

Packaging and Shipping
