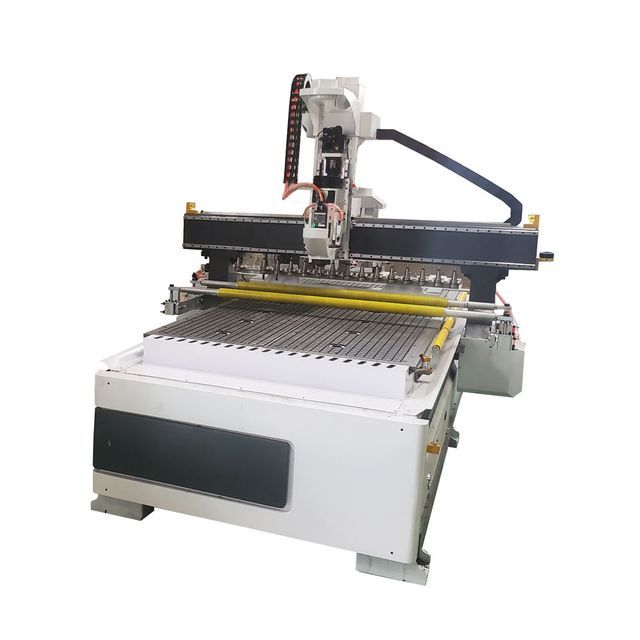

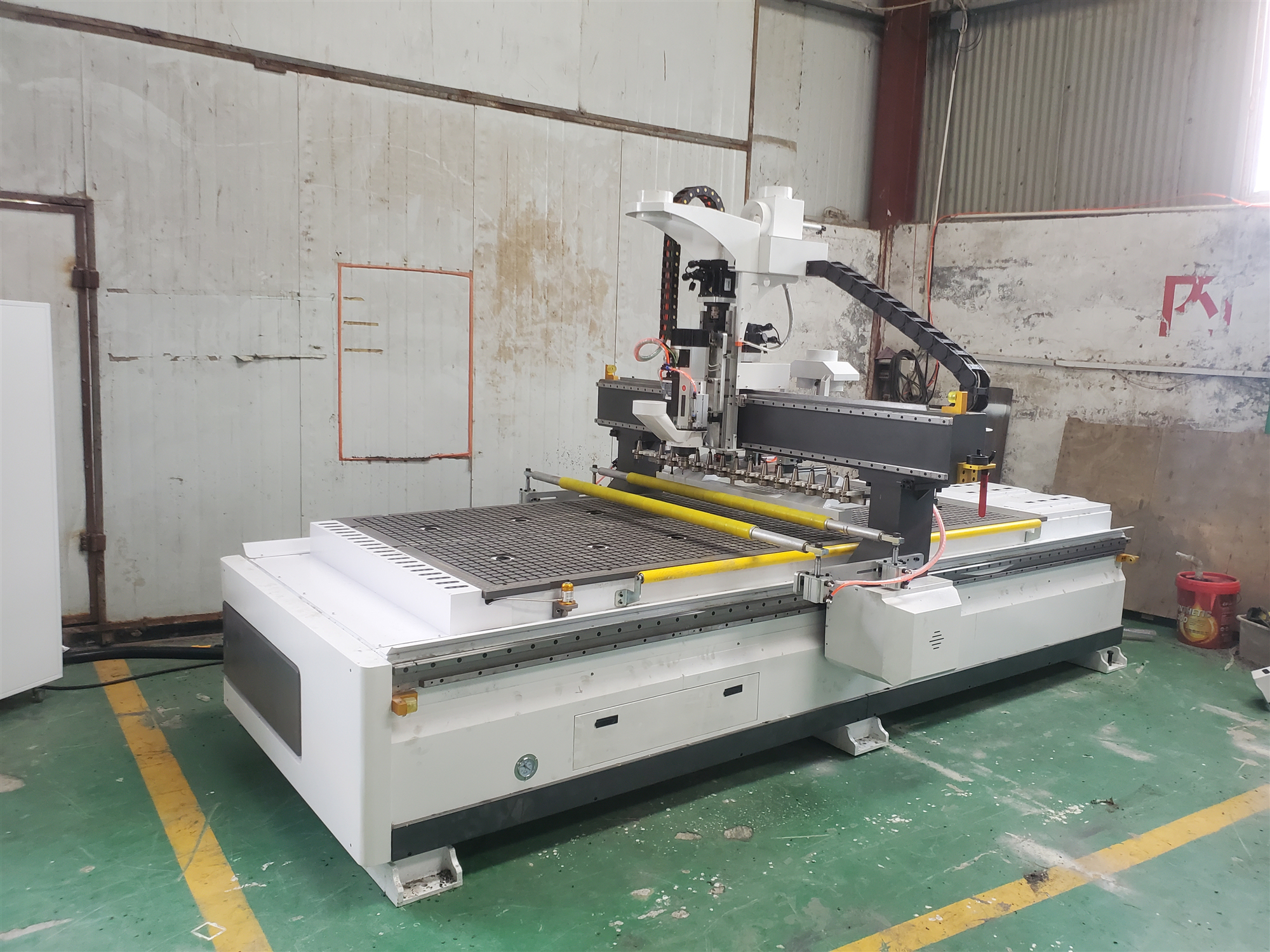

China CNC milling machine woodworking 1325 atc CNC milling machine

PRODUCT DETAIL
Voltage:AC 380V/50HZSpindle speed range (rpm):1 - 24000 rpm
Travel (Y-axis) (mm):2500 mmMachine Color:customizable
operating system:Taiwan LNC control systemName:China CNC milling machine woodworking 1325 atc CNC milling machine
Repeatability (X/Y/Z) (mm):0.01mmSpindle motor power (kW):9 kW
command language:G codeApplicable industries:household, advertising agency, furniture
Travel (X-axis) (mm):1300 mmDimensions (L*W*H):3200*2200*1750mm
Number of axes:3Spindle power:9kw automatic tool change spindle
Number of spindles:singlePositioning accuracy (mm):0.01mm
application:wood acrylic pvc engraving and cuttingWarranty:3 years
Packaging Details:Wooden box for China CNC milling machine woodworking 1325 CNC milling machineKey words:CNC milling machine
Drive System:Leisai 1.5kw servo motorOrigin:Shandong Province, China
Supply capacity:100 sets of Chinese CNC milling machine Woodworking 1325 CNC milling machine per quarterWeight (kg):1200
Main selling points:easy to operateTable size (mm):1300×2500
guide:Taiwan silver square guide railWhether CNC:CNC system
port:QingdaoHealth status:new
Control system brand:NC Studio, Siemens, New Generation, Mach3, DSP, Reiz Autopayment terms:L/C, Western Union, D/P, D/A, T/T, MoneyGram
Power (kW):10Type of machine:CNC milling machine
brand:doseSpeed ​​of work:50000m/min



3 Year Warranty! China CNC Milling Machine Woodworking 1325 CNC Milling Machine

Product Description





Product advantages

introduce

This machine is mainly used in the furniture industry, such as wooden doors, kitchen cabinets, etc. It can also be equipped with a loading and unloading system to improve work efficiency.

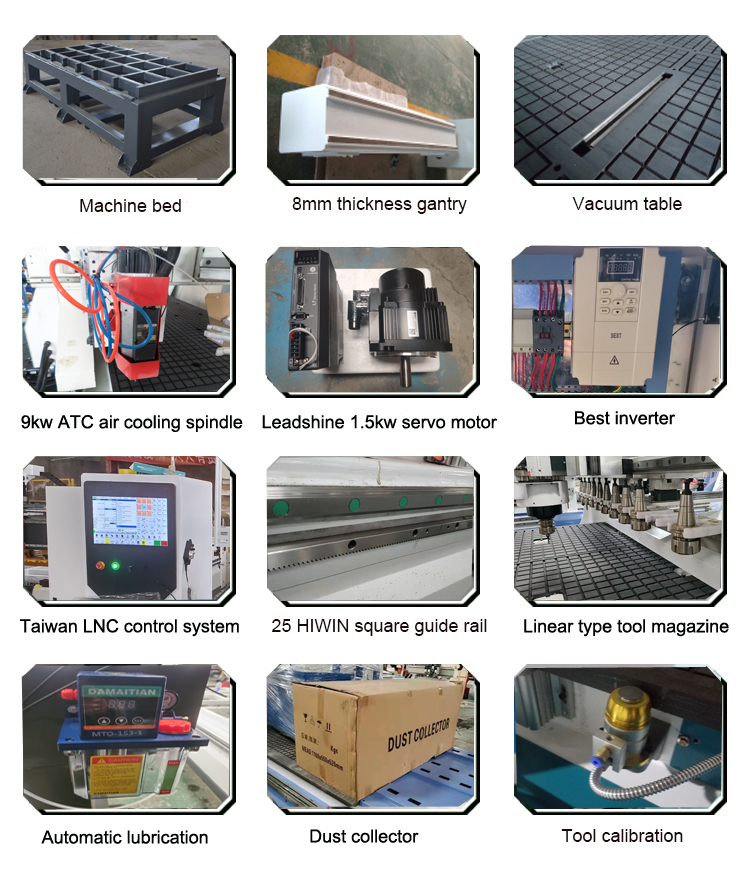

machine advantage

1. The bed is welded by 6-10mm steel pipe, processed by lathe and end face machining to ensure the stability of processing.

2. The machine is well-made, using high-precision guide rails, ball screws, and Japanese Shimpoo reducer transmission.

3. Equipped with drill bit and alphacam software, complete all production steps at one time.

4. Using Leisai 1.5kw servo motor, the working speed is higher.



No. Function   scope
1 boring head   options
2 Work area   1300*2500*200mm
3 spread   XY rack and pinion, Z ball screw
4 structure Table Structure Movable gantry, suction cup
5 Spindle Spindle power China JST 9kw ATC air cooled spindle
6 engine   Leisai 1.5kw servo motor
7 Operating Voltage   AC 380V/50Hz
8 Control System   Taiwan LNC system











scope of application

1. Furniture: wooden doors, cabinets, panels, office and wooden furniture, tables and chairs, doors and windows.

2. Wooden products: speakers, game cabinets, computer desks, sewing machine desks, instruments and meters.
3. Decoration industry: engraving and milling of acrylic, PVC, MDF, artificial stone, plexiglass, plastic, copper, aluminum and other soft metals.

dosage and other



Production Process
