China Export 0.8mm 1.0mm 1.2mm Mig Welding Wire 5kg 15kg AWS ER70S-6 CO2 Welding Wire

PRODUCT DETAIL
Types of:AWS ER70s-6weight:5kg; 15kg; 20kg; 250kg, 5kg, 15kg, 20kg, 150kg, 250kg, 300kg
Certificate:ISO9001:2015model:AWS ER70S-6
Supply capacity:200 tons per daycolor:copper plating
Origin:ChinaPackage preview:
pack:trayFlux content:0.03%
application:Cars, Bridges, Containers, VehiclesMelting point:2700
product name:CO2 welding wireplace of origin; place of origin:Shandong China
Processing:acceptdiameter:0.8mm, 0.9mm, 1.0mm, 1.2mm, 1.6mm, 2.0mm, 0.8mm, 0.9mm, 1.0mm, 1.2mm, 1.6mm, 2.0mm
Packaging Details:The packaging of the welding wire will be wound on a strong spool, and then a label indicating the size and weight will be pasted on the spool, then wrapped with moisture-proof paper and then sealed with plastic, then a carton, and finally a standard pallet. A 5kg spool as a carton, 200 cartons as a pallet; a 15kg spool as a carton, 72 cartons as a pallet.port:Qingdao, Xingang, Shanghai, Ningbo
sample:availablepayment terms:L/C, Western Union, T/T
Material:welding rodbrand:Jinertai
Product Description



A5.18-AWS ER70S-6 CO2 welding wire



(1) All welding wires are precision layers.

(2) Diameter: 0.8mm; 0.9mm; 1.0mm; 1.2mm; 1.6mm; 2.0mm

(3) Net weight: 5kg; 15kg; 20kg for a roll; 250kg and 300kg for a drum/drum

(4) Excellent mechanical properties:

The deposition speed is fast, the deposition efficiency is high, the arc is stable, the spatter is small, and the weld seam is good. This series of welding wire is suitable for welding structures of low-carbon steel and low-alloy steel in shipbuilding, light vehicles, bridges, containers, construction machinery, boilers, buildings, etc.





Model: AWS A 5.18(ER70S-6) TY-506 GB T8110(ER50-6) EN440(G3SI1)



Mechanical properties of deposited metal

C

silicon

manganese

P

small

chromium

≤0.10

0.80~1.15

1.40~1.85

≤0.02

≤0.02

≤0.10

you

copper

Al

limited company

titanium

V

≤0.10

≤0.30

≤0.01

≤0.01

≤0.01

≤0.02



Mechanical properties of deposited metal

Yield strength (Mpa)

Tensile strength (Mpa)

Elongation(%)

Impact value (J)

≥400

≥480

≥22

≥27







Packaging and Shipping

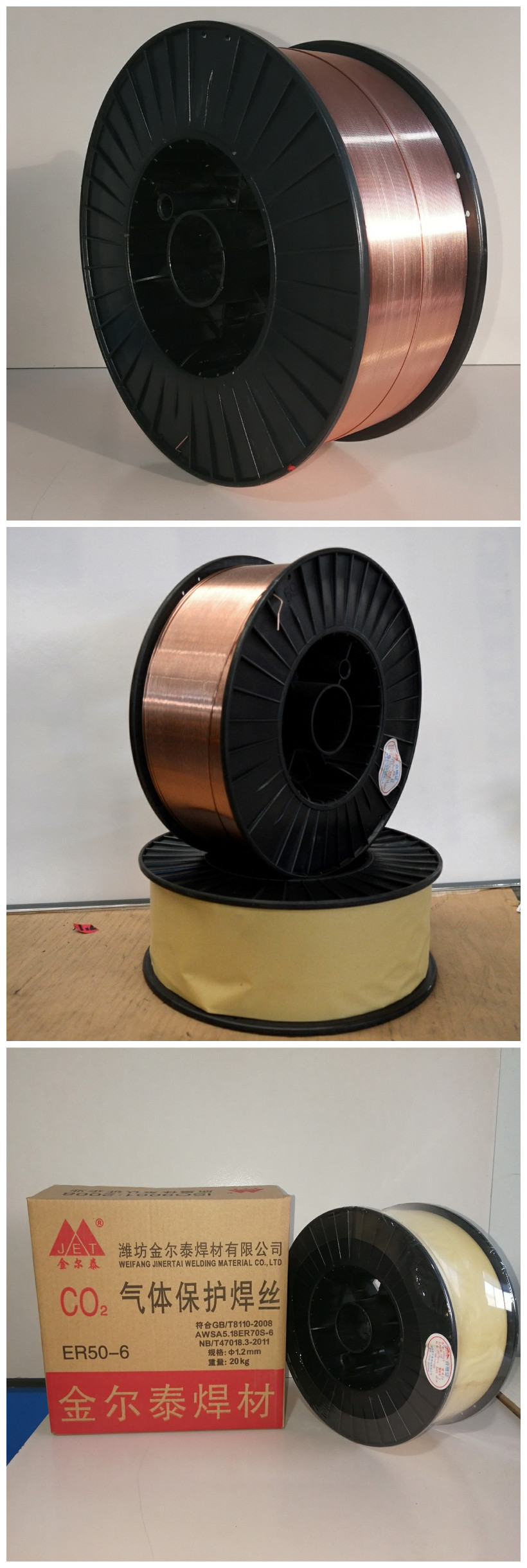

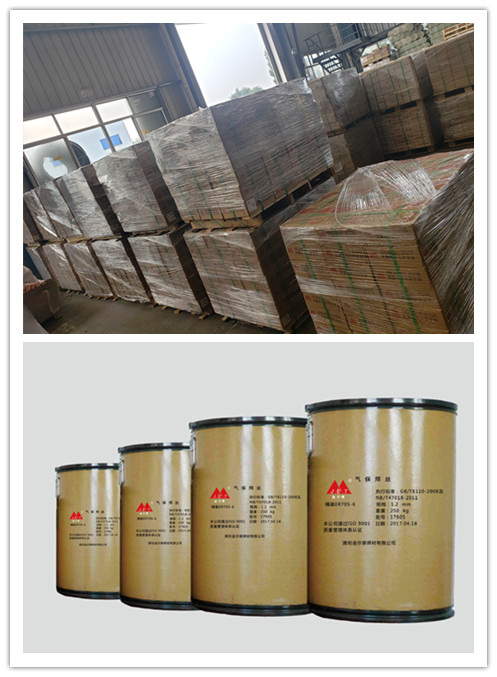

Package:The welding wire will be wound on a strong spool, and then a label indicating the size and weight will be pasted on the spool, then wrapped with moisture-proof paper and then sealed with plastic, then a carton, and finally a standard pallet.



Shipping:We can deliver your order within 20 days after prepayment. The sturdy pallet will protect your order for a long time at sea.
