China Factory Price Smart Mini Vacuum Freeze Dryer

PRODUCT DETAIL
Power (V/Hz):110V~220V/50Hz, 60Hzport:Qingdao, Shanghai, Ningbo, Tianjin, Guangzhou, Shenzhen
Packaging Details:wooden box/cartonbrand:innovation
Classification:Laboratory refrigeration equipmentCertification:CE, ISO
Custom Support:OEM, ODMSupply capacity:100 sets per month
Accessories:Accessories for different chambers and manifolds are optionalpayment terms:letter of credit, wire transfer
Condenser volume:6.5LVacuum pump:Vacuum pump for evacuation is independent and packaged separately
product name:Desktop Freeze DryerMaterial loading capacity:300ml
Freeze-dried area (㎡):0.12/0.09/0.12/0.09USB interface:Yes
Warranty:1 yearplace of origin; place of origin:China
model:INOFD-10S/10T/10P/10PT
Product Description
Freeze Dryer

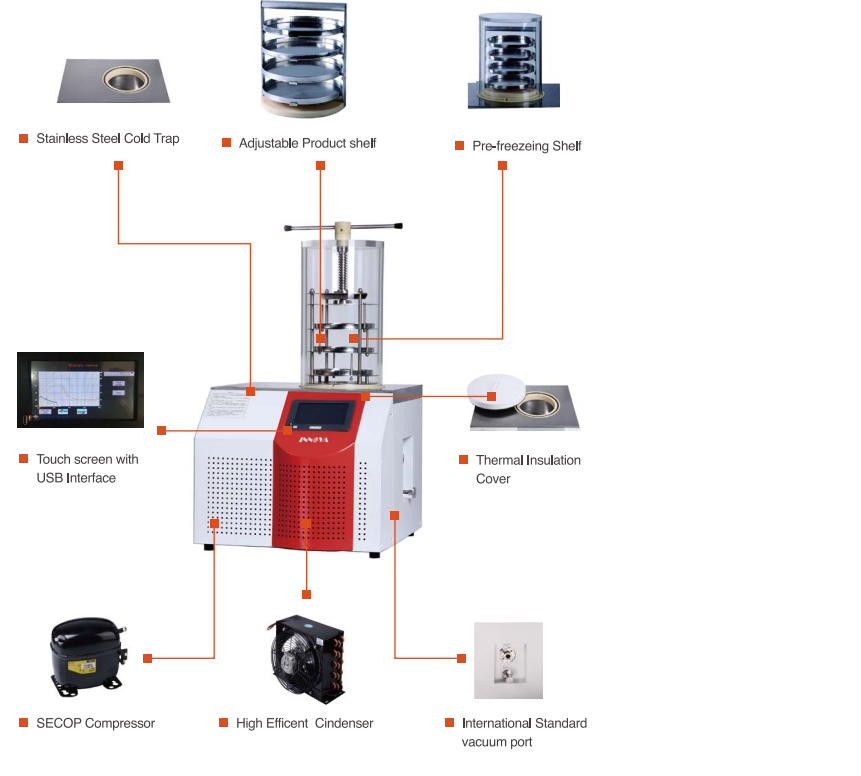

The Innova INOFD freeze dryer is designed for laboratory testing of small batches. Benchtop and console freeze dryers are advanced in design with a small footprint.
Humanized design

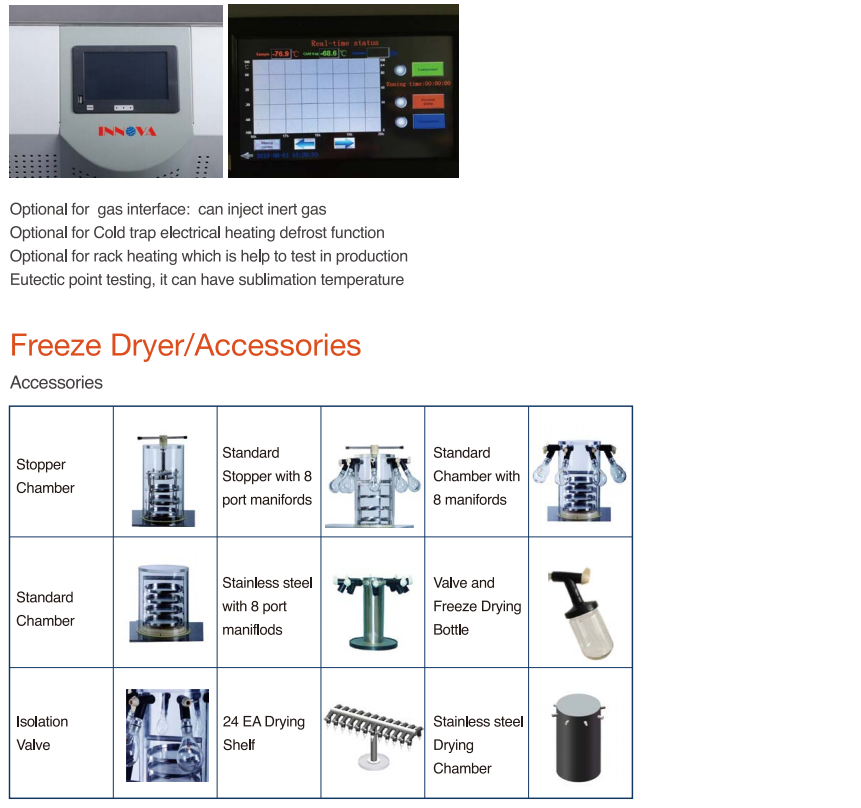

7-inch color touch panel, digital and curve display product sample temperature, cold trap temperature, vacuum degree, etc.
The inclined design of the touch panel is ergonomic and more comfortable to operate.
Specification
Model
INOFD-10S
INOFD-10T
INOFD-10P
INOFD-10PT

type

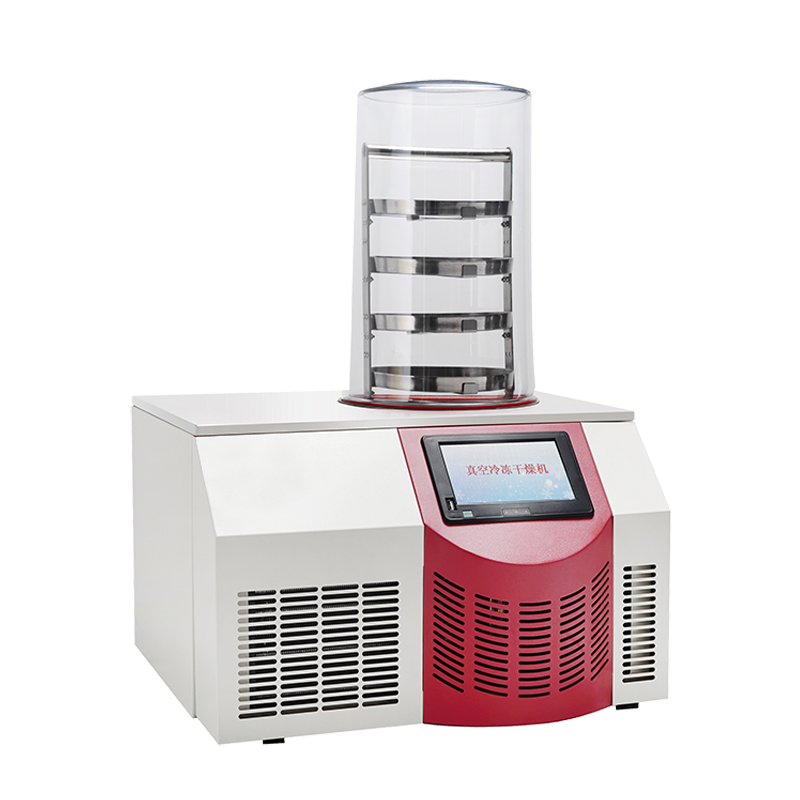

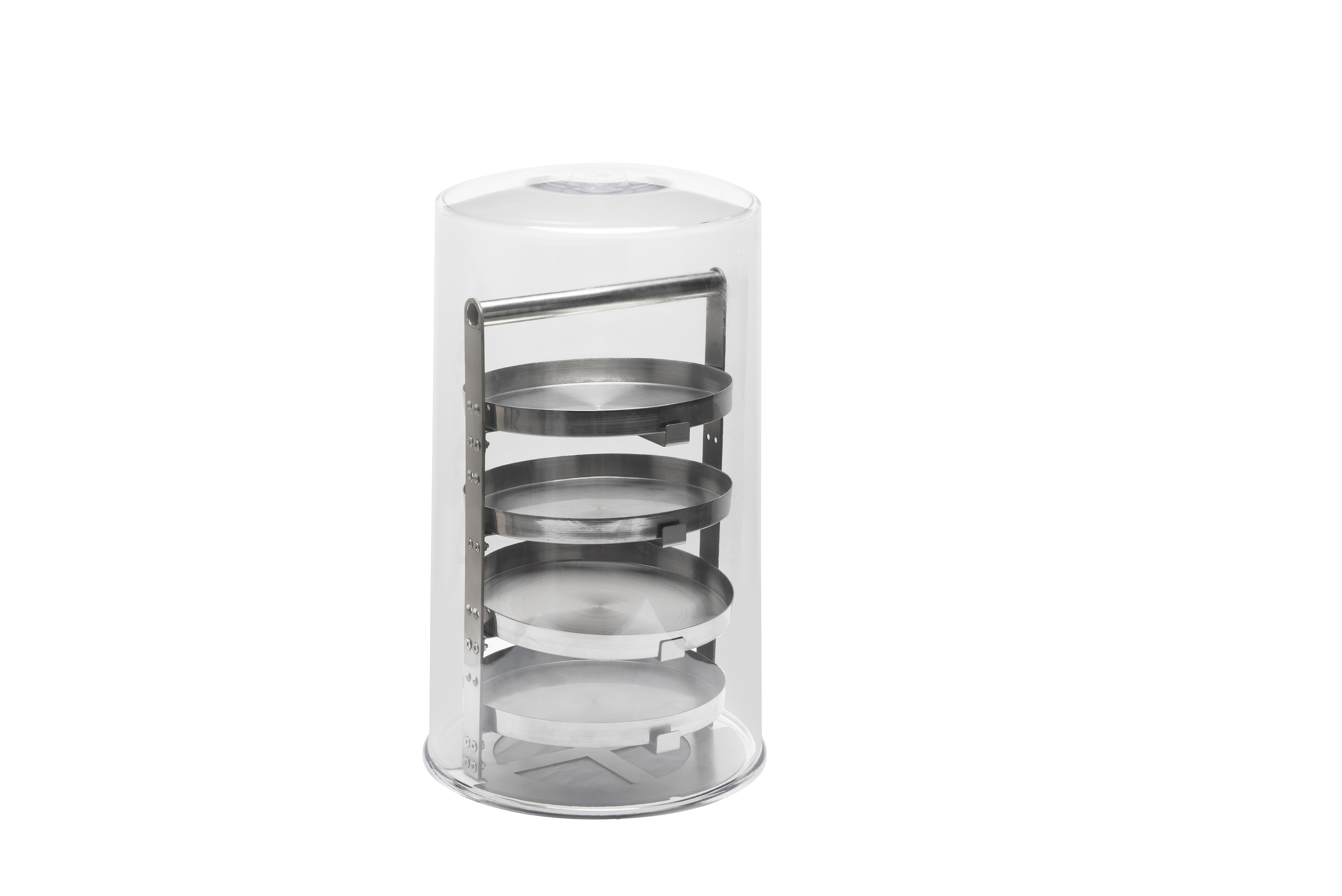

standard room

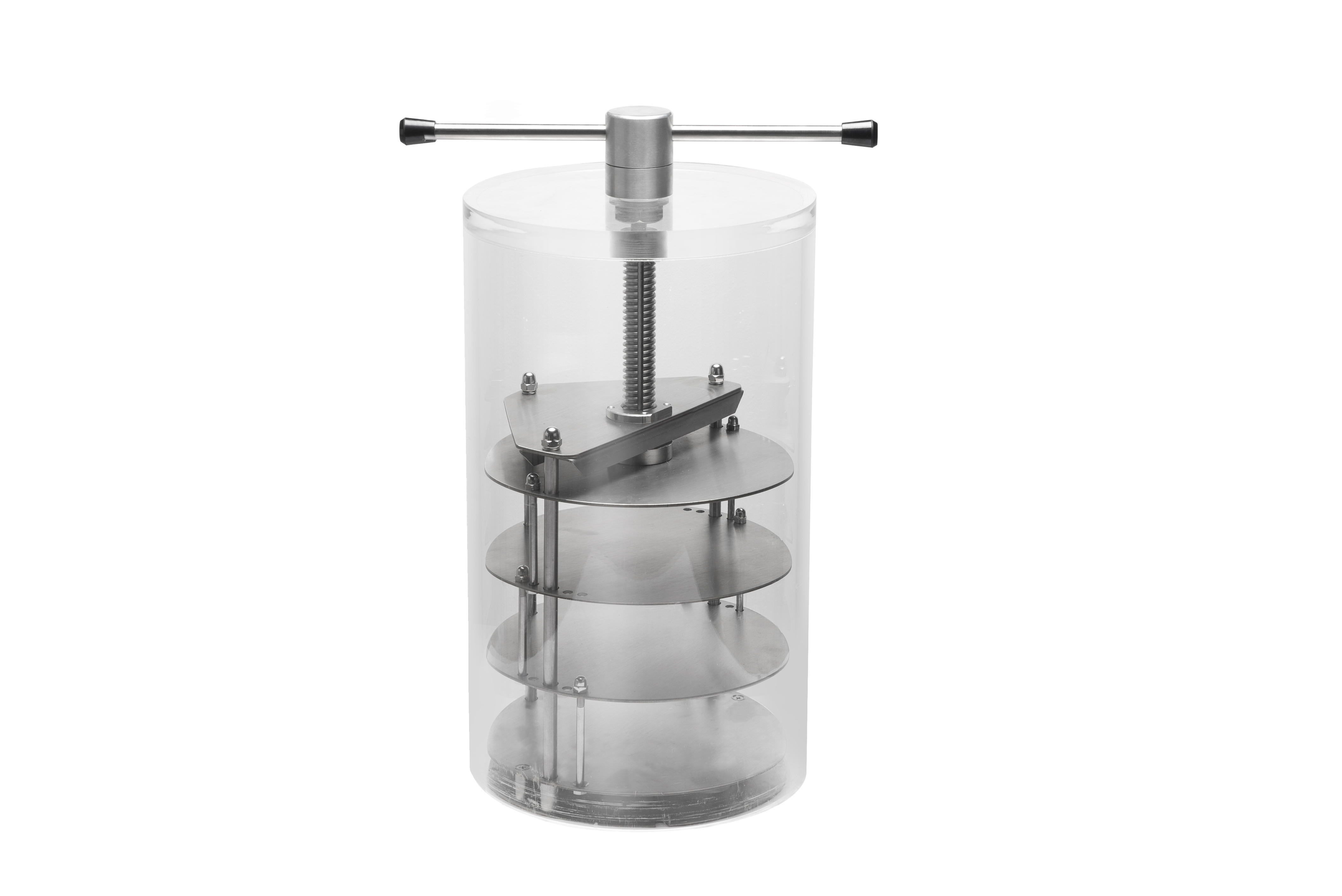

plug room

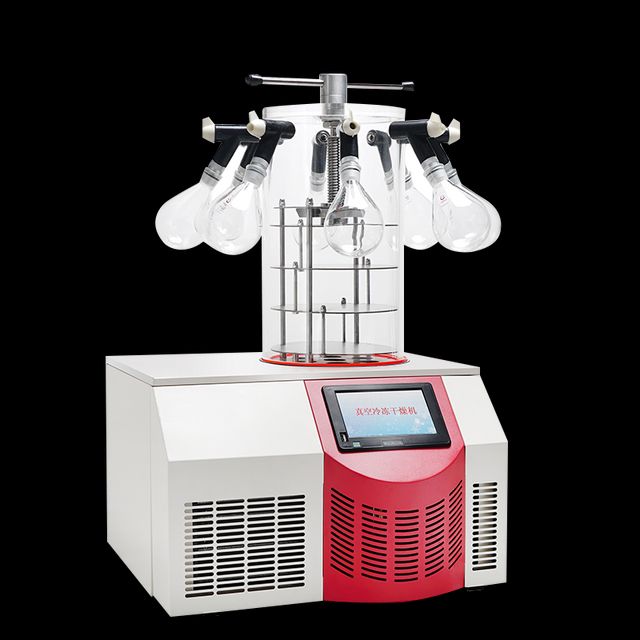

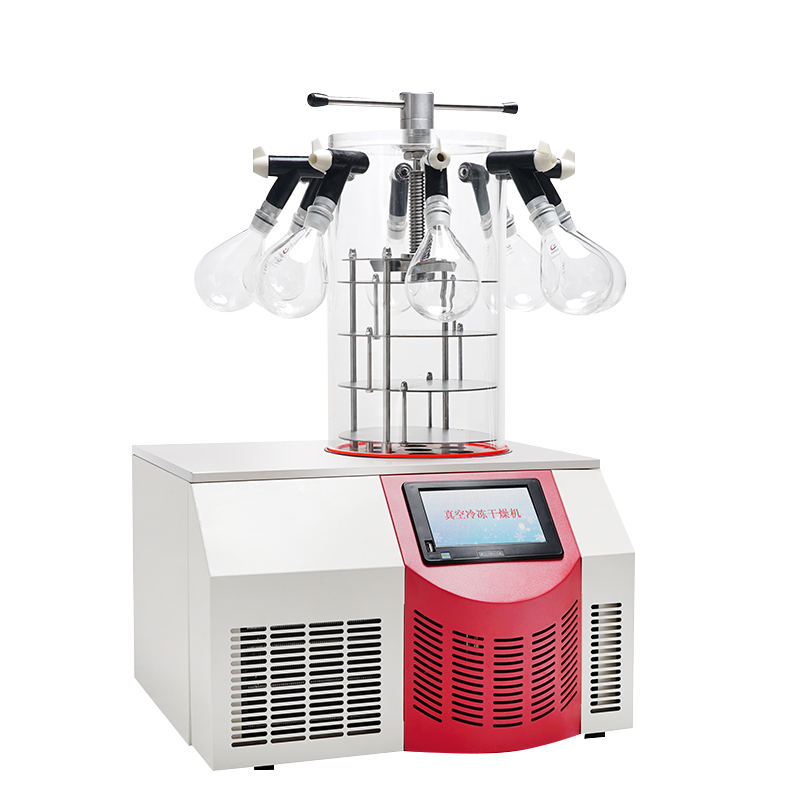

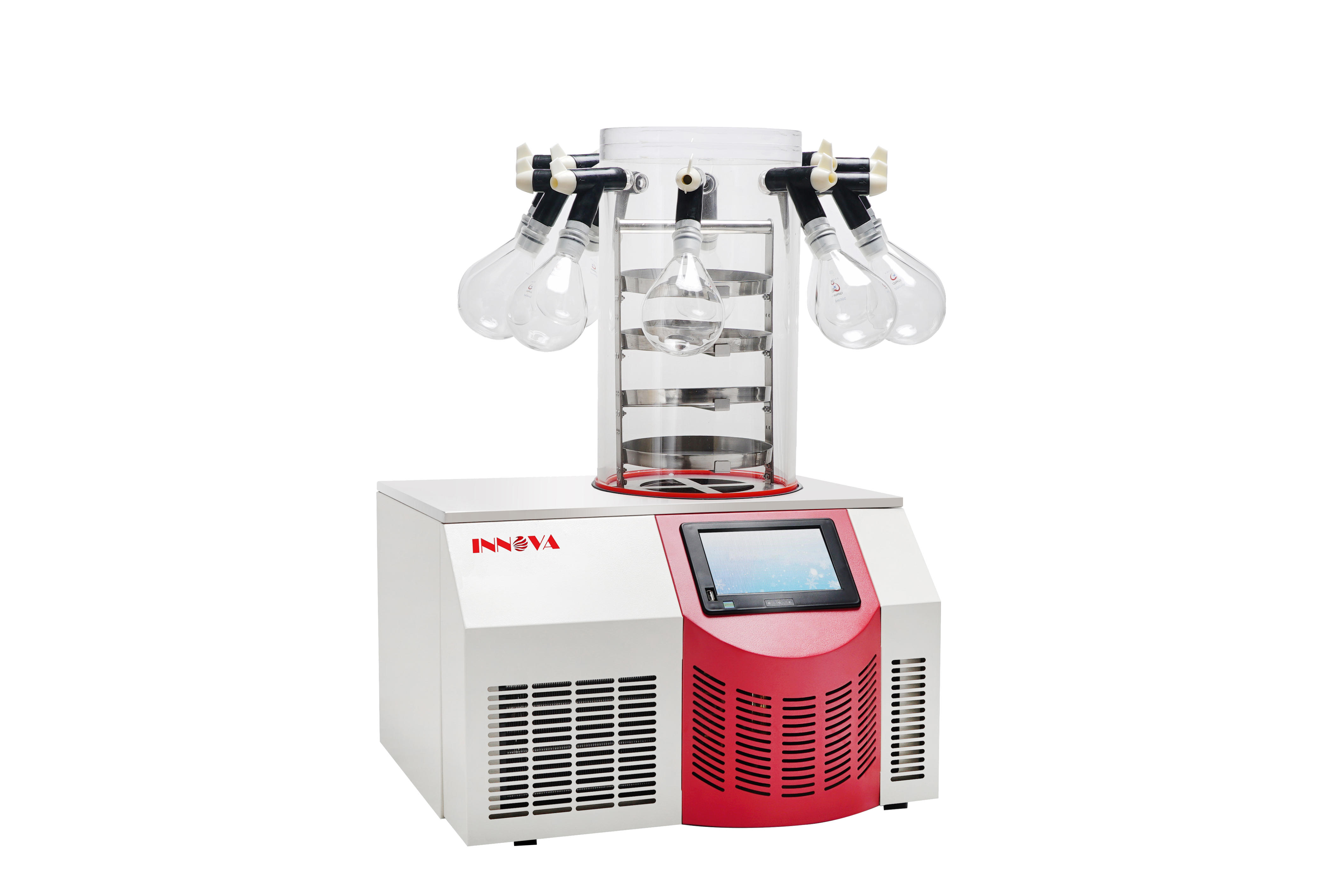

Standard Chamber with 8 Port Manifold
standard

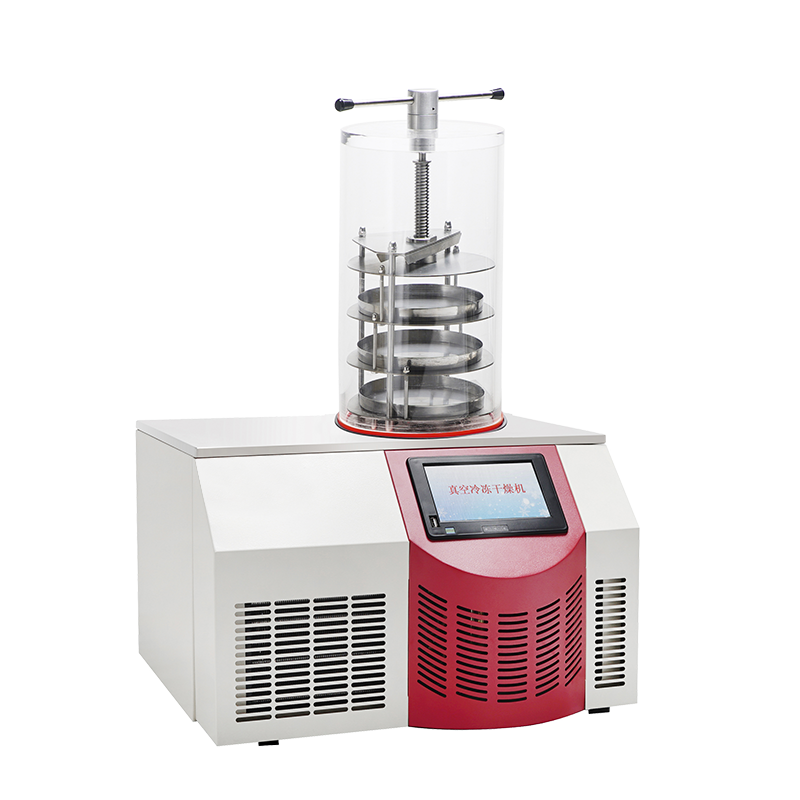

plugged
Chamber with 8 Port Manifold
Final condenser temperature (℃)
-55
-55
-55
-55
Vacuum (Pa)
<10
<10
<10
<10
Condenser volume (L)
6.5
6.5
6.5
6.5
Freeze-dried area (m2)
0.12
0.09
0.12
0.09
Condenser capacity (Kg/24h)
3
3
3
3
Number of shelves
4
3
4
3
Material loading/rack (ml)
300
300
300
300
Loading volume (ml)
1200
900
1200
900
Freeze drying time (h)
twenty four
twenty four
twenty four
twenty four

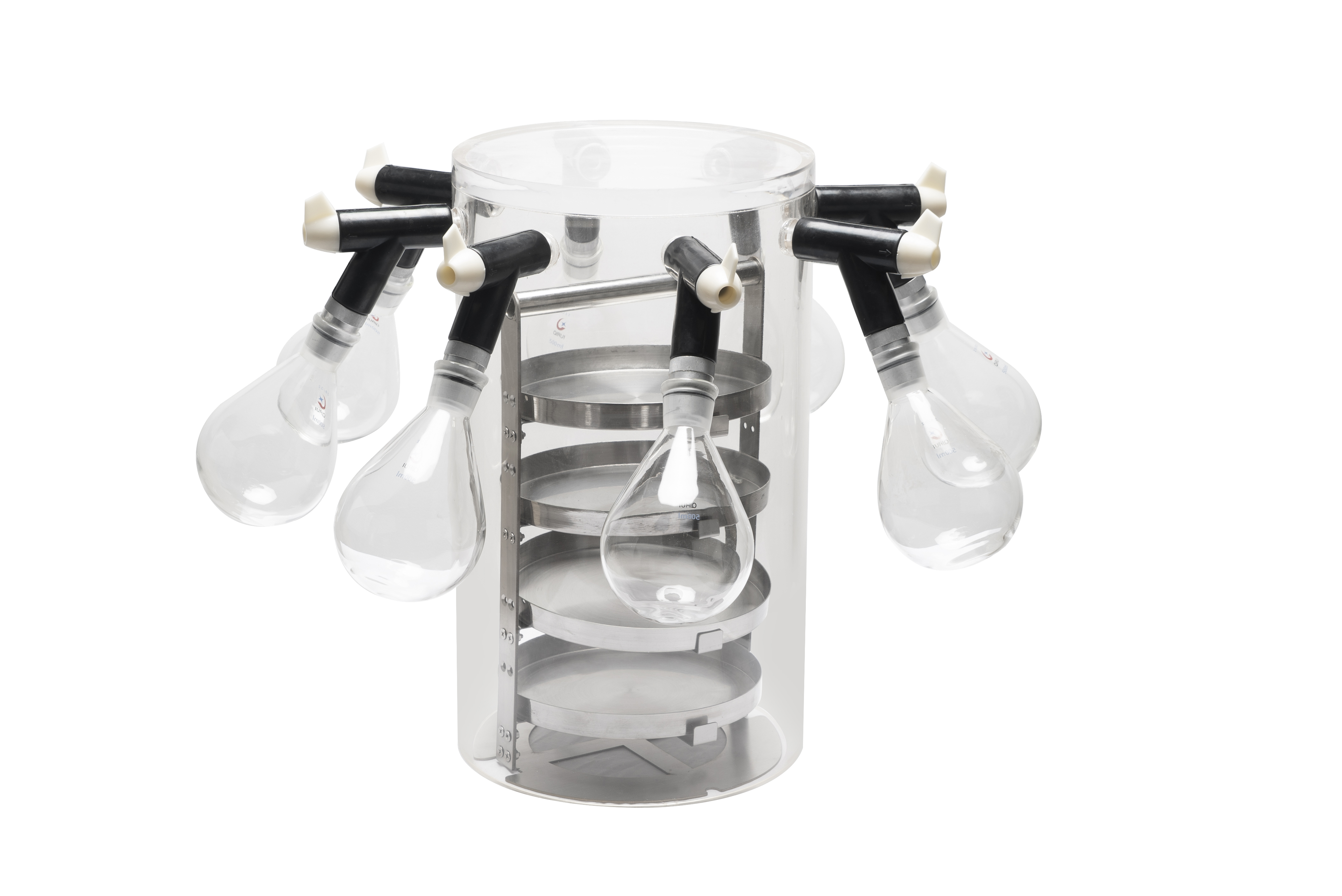

Manifold
/
/
8 pieces
8 pieces
USB interface
Yes
Yes
Yes
Yes
Drying Room (Standard)
transparent acrylic
vacuum pump
Speed: 2L/S
Control System
Microprocessor, touch screen
Power (V/Hz)
220V/50Hz, 60Hz
Dimensions (WxDxH mm)
582*541*374/684
Penicillin bottle Φ22
260
195
Penicillin bottle Φ16
480
360
Penicillin bottle Φ12
920
690
