China Low Price U Type FRP Composite Fiberglass Reinforced Plastic Vinyl Sheet Pile Manufacturer
- $18.00 / >=500 meters
- 500 meters
- Shenzhen Hongfu Tongxin Technology Co., Ltd.
- Guangdong, China
- Ms Michelle Qin
| Advantages: | 50+ year design life, Cost,Efficiency, Consistent Appearance; | Standard: | ASTM,GB; |
| Model Number: | Sheet Pile; | Packaging Detail: | 1. Plywood pallet 2. Plywood case 3. Load into container directly; |
| Payment Terms: | L/C,Western Union,D/P,D/A,T/T,MoneyGram; | Port: | SHEN ZHEN; |
| Processing: | Pultrusion; | Place of Origin: | Guangdong China; |
| Brand Name: | FORE; | Shape: | U / W / L or customized; |
| Product Name: | FRP Composite Fiberglass Reinforced Platsic Vinyl Sheet Pile; | Mold: | Existing mold or Customized mold; |
| Processing Service: | Cutting; | Material: | Fiberglass Reinforced Polyester; |
| Main Market: | Southeast Asia, North America, South America, Australia; | Supply Ability: | 500000 Meter/Meters per Month FRP Composite Fiberglass Reinforced Platsic Vinyl Sheet Pile; |
| Application Fields: | Marine Structures, Water Control Solutions, Flood Protection; | Grade: | Fiberglass, FRP; |
| Color: | Light Grey, Black or any customized; | Tolerance: | Length ±5mm, width ±0.1mm,±2%; |

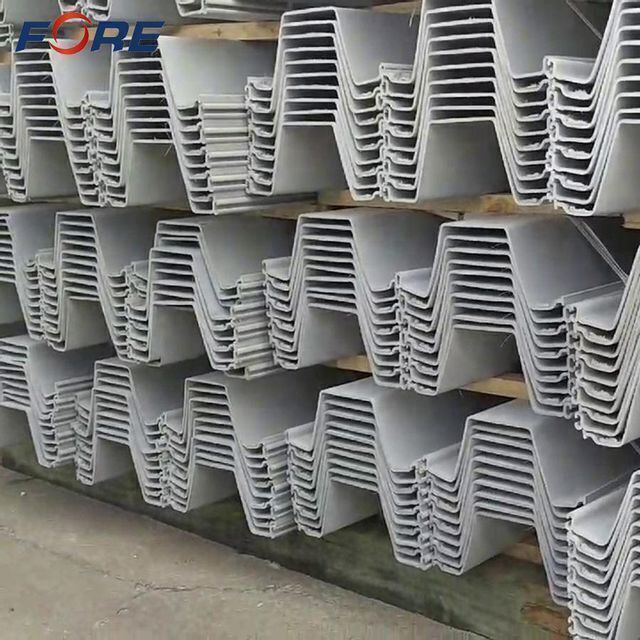

China Low Price U Type FRP Composite Fiberglass Reinforced Plastic Vinyl Sheet Pile Manufacturer
FRP Sheet Piling also known as Synthetic Sheet Piling, Plastic Sheet Piles, PVC Sheet Piles, are ,made from fiberglass reinforced polyester (If use Vinyl polyester, we also called it Vinyl sheet pile).
They are an effective alternative to steel sheet piling for bulkheads, seawalls and cutoff walls.
They are also superior to alternative materials like concrete and wood.
The main advantage of FRP sheet piles is the superior corrosion resistance when exposed to seawater, where no oxidation occurs.
FRP sheet piles are also highly resistant to marine borers which make it superior to wooden solutions.
Cost Efficiency
The real measure of this is not just the comparison of costs for the initial installation; you also need to figure in the costs over the long term. Since FRP sheet piling lasts much longer than more traditional materials, the cost of repairs and replacement is delayed.
Consistent Appearance
It is well known that wood fades over time. Paint may cover that up, but the paint color will fade as well. There is really not a lot you can do about that except continue to paint in order to keep it looking nice.
FRP sheet pile, on the other hand, holds the same beautiful appearance for a very long time.
UV Resistance
Most materials react negatively to the harmful ultraviolet rays of the sun, and it doesn't take very long for that to start happening. When the time period is stretched out over years, the sun can do some real damage.
FRP sheet piling is designed to be resistant to this, so the effects of the sun are not as serious or as quick.
Unaffected by Marine Borers
Marine borers are small mollusks or crustaceans that live in the ocean, and their primary source of sustenance is wood. If you use wood for your seawall construction, you will almost immediately have marine borers latching on and drilling into it.
This degrades the integrity and stability of the seawall over time, which defeats the whole purpose of the structure. You want your seawall to be strong enough to withstand very harsh conditions. If a marine borer comes across a seawall constructed with FRP, it just keeps moving. FRP provides no attraction at all for marine borers.
Easy Installation
FRP sheet piling provides for an easy installation, particularly compared to wood. Wood is subject to imperfections, warping, and various deformities. This can sometimes cause problems or delays at the time of the installation. Unlike wood, FRP sheet pile does not grow in nature; the components of a vinyl seawall are manufactured to some very strict and precise standards. There is virtually no room for error, so you are able to have a consistent product each time. This means an easy installation.
50 Years Warranty
Due to its superior corrosion resistance, FRP Sheet Piles can be installed with the confidence of performance even after 50 years

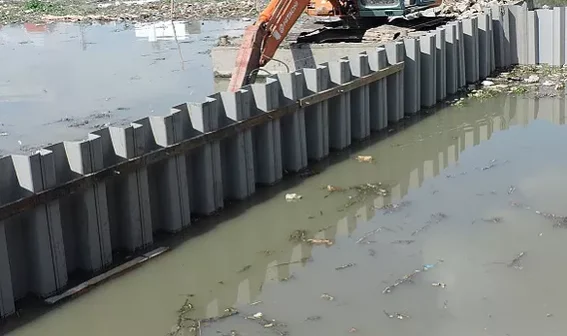

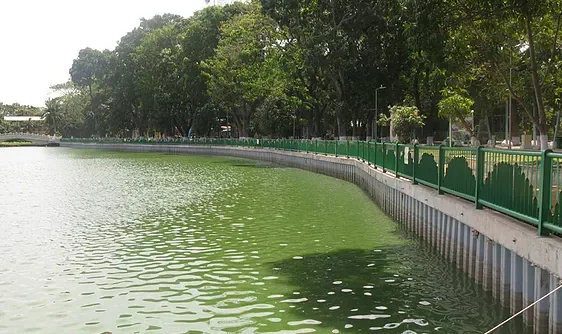

Marine Structures
FRP Sheet Piles provide an excellent option for a long lasting structural solution due to their superior corrosion resistance, aesthetic finish and lightweight profile for easy handling and installation. The marine applications include:
• Marine Bulkheads & Seawalls
• Tide Walls
• Breakwaters
• Jetty Structures
• Scour Protection and Erosion Control
• Retaining Walls
Cut-Off & Containment Systems
FRP is a inert material that can exhibit superior chemical resistance, water corrosion resistance. The interlocks of the sheet pile can be coextruded with a sealing membrane that further improves cutoff performance. Applications include but are not limited to:
• Groundwater cut-off
• Chemical containment
• Fluid Seepage Barriers
• Protection of Foundation Structures
Flood Protection
FRP Sheet Piles can be utilized for flood protection structures as an:
• Flood Walls / Flood Levee
• Stabilization of Dams
• Protection of Piping
FRP Sheet Piles are frequently utilized to replace old corroded sheet pile structures as a superior alternative with corrosion resistance that is environmentally friendly.

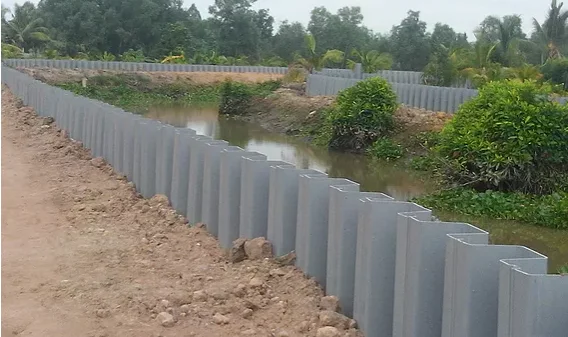

Water Control Solutions
FRP Sheet Piles can be utilized for water control structures that function by altering the flow of water in a pond, drainage channel or stream. Examples of utilizing vinyl sheet piles relevant to water control systems include:
• Baffle Walls for water or waste water flow control
• River Weirs
• Pond Linings
• Channel Linings for agricultural applications
• River Diversion
• Mining drainage systems

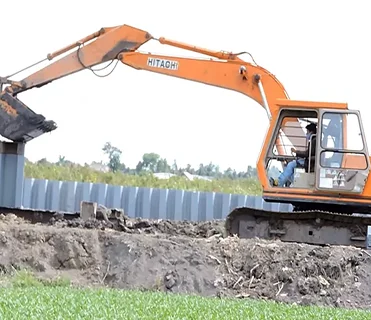

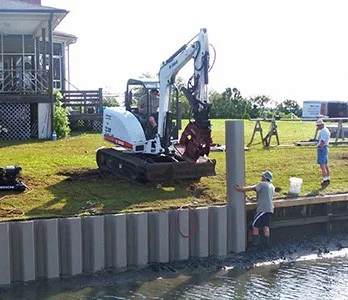

FRP Sheet Piles can either be driven, jetted in or dug and then installed. Driving is the most frequent method for installation of vinyl sheet piles. Frequently a protective steel cap or mandrel is utilised to protect the pile head and ensure more even distribution on the end of the sheet pile of the driving load. Under some conditions an excavator can be used to provide the necesssary download force to press the sheet piles in. A steel mandrel with the same profile as the sheet pile can also be utilised to prepare the soil for the proceeding pile while the current pile is being driven in. High pressure air or water jetting can be used to augment the driving by creating a pressure under the sheet pile foot to loosen and remove the soil directly under it. Digging is the last resort if the soil conditions are rocky and driving or jetting is not feasible.
Facotry Price
We have been in FRP Products industry for more than 15 year
Quality Assurance
Advanced production equipment guarantees product quality
Quick Delivery
We have 7 pultrusion production line and production capacity 100000M
