China Supplier 32CrMo12 1.7361 EN40B 722M24 Rolled Engineering Steel Plate
- $2.70 / 1000 - 4999 kilograms
$2.40 / 5000 - 9999 kilograms
$1.80 / >=10000 kilograms - 1000 kilograms
- Hunan Qilu Metal Co., Ltd.
- Hunan, China
- Ms Memory Eva
port: | Shanghai | application: | Wear-resistant steel |
place of origin; place of origin: | Shandong China | standard: | Aisi |
Spot goods: | Yes | Technical test: | UT test, bend test |
payment terms: | L/C,Western Union,D/P,T/T | delivery conditions: | Forging/Hot Rolling/Cold Drawing |
Grain size: | ASTM E112 | Non-metallic inclusions: | ASTM E45 |
Certificate: | ISO9001,ABS,BV,CCS,Dnv,Lr,Gl,Mill certificate | Alloy or not: | is an alloy |
brand: | Qilu | Supply capacity: | 500,000 metric tons/year |
standard: | September 1921-84 | Packaging Details: | Airworthiness bag |
width: | 1200-1500mm | bill: | By theoretical weight |
tolerant: | ±1% | thickness: | 5-6mm or as your request |
experience: | 15 years | grade: | DIN 1.7361 |
delivery time: | 22-30 days | Delivery dates: | 30 days |
expiration of pay: | 30% Tt deposit, balance and copy of bill of lading | length: | 3-5.8m, or as required |
Packaging Preview: | Quality inspection: | Ut, chemical composition, physical properties | |
Processing service: | Bending, welding, cutting, punching | Heat treatment: | Annealed/Normalized/Q+T |
China Supplier 32CrMo12 1.7361 EN40B 722M24 Rolled Engineering Steel Plate
1:32CrMo12Introduction of steel
32CrMo12 steel is a kind of nitrided steel, according to EN10250 standard, contains at least 2.8Cr%, 0.3%Mo as strengthening elements. Similar to 30CrMo12, 31CrMo12, it has a high tensile strength of 880-1230 MPa after QT. 32CrMo12 has high surface hardness and wear resistance after nitriding, but this material is difficult to weld, so it should not be used in welded structures.
2:32CrMo12steel equivalent
nation | Germany | U.K. |
standard | EN10250 | BS970 |
grade | 32CrMo12/1.7361 | EN40B/722M24 |
3:32CrMo12steel chemical composition
grade | C | silicon | manganese | phosphorus | small | chromium | you | Mo |
32CrMo12/1.7361 | 0.28-0.35 | ≤0.40 | 0.40-0.70 | ≤0.035 | ≤0.035 | 2.80-3.30 | ≤0.60 | 0.30-0.50 |
EN40B/722M24 | 0.20-0.30 | 0.10-0.35 | 0.40-0.65 | ≤0.05 | ≤0.05 | 2.90-3.50 | ≤0.40 | 0.40-0.70 |
4:32CrMo12Mechanical properties of steel
Mechanical properties mainly include tensile strength, yield strength, elongation, section or reduction, hardness, impact value, non-metallic inclusions, etc. Different heat treatment methods have different mechanical properties, such as normalizing, tempering, and QT. If you want to know about the property, please contact the salesperson.
5:32CrMo12Steel overview
size | round | Diameter 6-1000mm |
Plate/Flat/Block | thickness 6mm-500mm |
|
width 20mm-1000mm |
||
heat treatment | normalization; annealing; quenching; tempering | |
surface condition | black; peeled; polished; machined; ground; turned; milled | |
delivery conditions | forged; hot rolled; cold drawn | |
test | Tensile strength, yield strength, elongation, reduced area, impact value,hardness, grain size, ultrasonic testing, American testing, magnetic particle testing, etc. | |
payment terms | T/T;L/C;/Money gram/Paypal | |
trade terms | FOB; CIF; C&F; ETC.. | |
delivery time | 30-45 days | |
application | 32CrMo12 is used for automotive and general mechanical engineering components that require high hardness and wear resistance, and is also suitable for gears, cylinders, drills, connecting rods, shafts, extruders, guide rails, thread gauges with larger cross-sections, pins, Spindle and bolts.. |
6: Delivery Conditions
For hot forged rolled bars, the usual delivery condition is hot forged or hot rolled, annealed/QT, rough turned/blackened.
For hot forged or hot rolled bars, the usual delivery condition is hot rolled, annealed/QT, blackened surface.
For hot forged plates, the usual delivery conditions are hot forged, annealed/QT, milled finish/black finish
For hot rolled sheet, the usual delivery condition is hot rolled, annealed/QT, black finish.

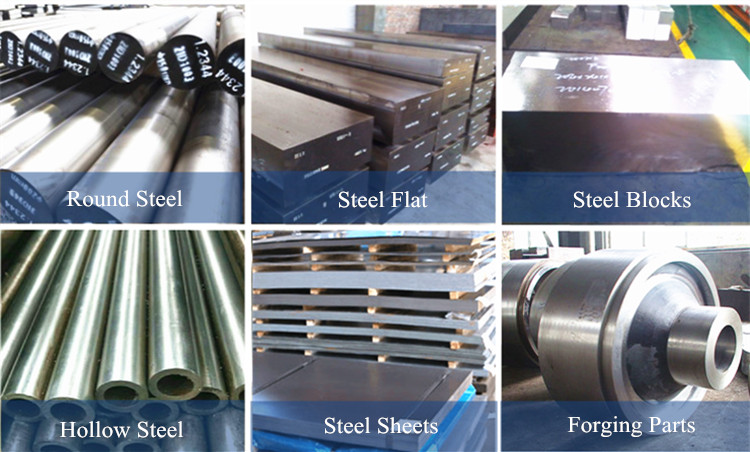

Hunan Qilu Metal Co., Ltd. has the ability to forge round steel, flat steel, square steel, modules, shafts, rolls, etc. The main specifications of the products are Φ80-1000mm forging material and 80-1200mm billet, of which the largest single piece weight can reach 50T.
The company's main products: (If you don't find what you need, please contact us)
cold work tool steel |
DIN 1.2080, DIN 1.2379, DIN 1.2436, DIN 1.2210, JIS SKS3, AISI O2 |
hot work tool steel |
H13,DIN 1.2714,DIN 1.2767,DIN 1.2344(H13),DIN 1.2713 |
Engineering steel |
AISI 1020, AISI 1045, AISI1050, AISI 5140, AISI 4130, AISI 4140(40CrMo4), AISI 4340, DIN 1.5919, AISI 8620, S235JR, S355JR |
Plastic mold steel |
P20,P20+S,P20+Ni,DIN 1.2083,DIN 1.2316,DIN 1.2085 |
spring steel |
AISI 9260, AISI 5160, AISI 6150, 65MN, 55CrMnA |
Stainless steel |
316L, 201, 301, 304, 316, 410, 420, 430, 431, 440C, SUS630 (DIN1.4542) |
high speed steel |
DIN 1.3343(M2),DIN 1.3243(M35),DIN 1.3247,DIN 1.3265 |
