China factory 6 axles 80 tons stock gooseneck low top low loader low bed truck trailer
- $16600.00 /unit
- 1 unit
- Qingdao East China CIMC Special Vehicle Co., Ltd.
- Shandong, China
- Mr Edison guo
Axle number: | 6 | place of origin; place of origin: | Shandong China |
use: | truck trailer | port: | Tianjin Port, Qingdao Port, Shanghai Port |
brand: | East China CIMC | fetal: | 1100R20 radial tires, 12 |
Traction pin: | 2" (50mm) or 3.5" (90mm) draw pins | size: | 13000x3000x1650mm |
payment terms: | letter of credit, wire transfer | product name: | Detachable gooseneck trailer |
Maximum payload: | 45 - 80 tons | type: | semi-trailer |
Supply capacity: | 1000 units per month | Original serial number: | 8082 |
Packaging Details: | Bare, bulk or ro-ro. |
Product Description:
a) Hydraulic lift gooseneck low bed trailers are usually used to carry heavier large equipment such as excavators, transformers, special vehicles as well as railway vehicles, mining machinery, forestry machinery, agricultural machinery (forklifts, loaders, pavers, cranes Wait).
b) A strong technical R&D team enables our products to meet the complex needs of our customers and be recognized at home and abroad. The low-bed trailers we developed include: heavy-duty trailers, heavy-duty semi-trailers, heavy-duty low-bed trailers, 100-ton low-bed trailers, and multi-axle low-bed trailers.
c) We can provide customers with customized products, such as multi-axis low-load-bearing platforms, to ensure that various equipment and machinery can achieve the dual purpose of safe and legal transportation.
d) In order to cope with complex road conditions, we have adopted reinforced gooseneck double main beams to provide safety guarantee for road transportation.
e) Detachable gooseneck low profile truck trailer capacities ranging from 30 tons to 120 tons with 3 to 8 axles.

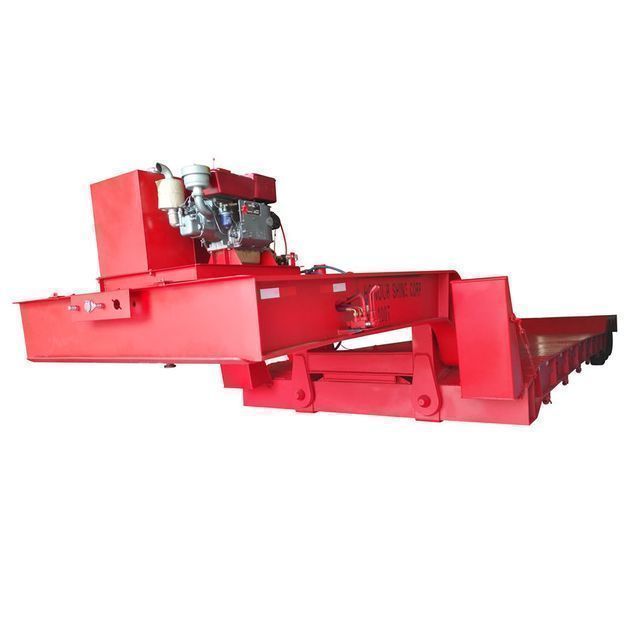

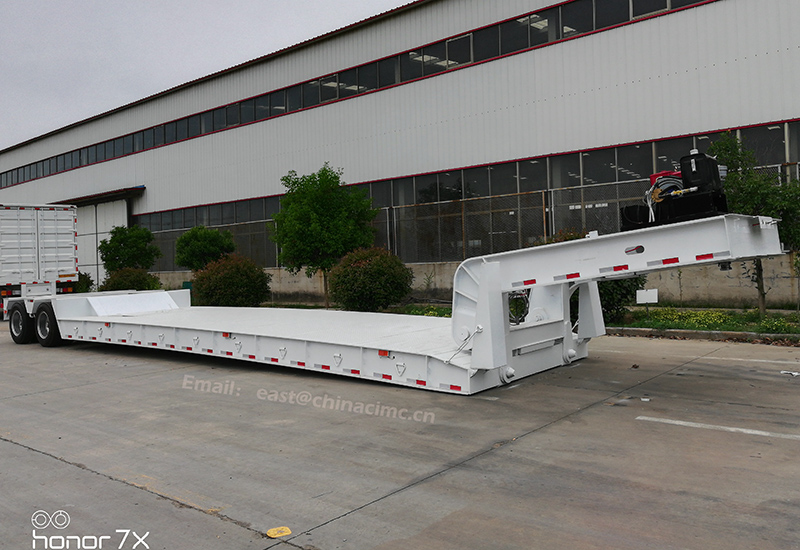

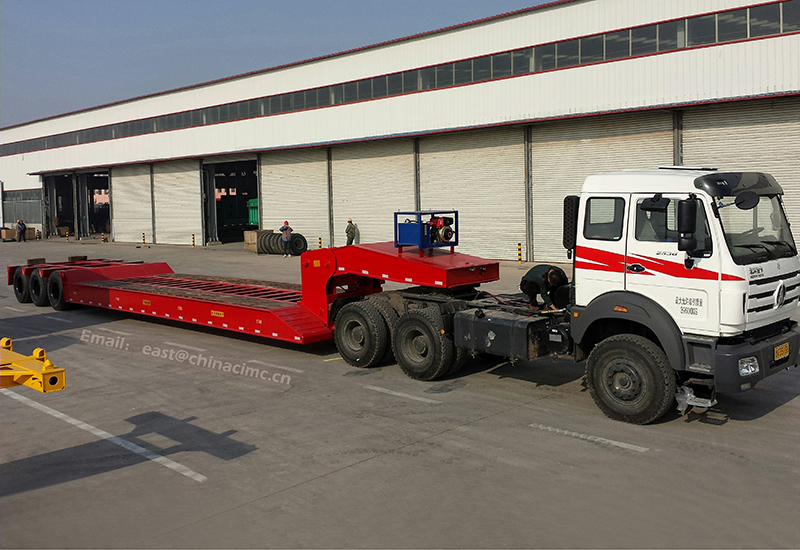

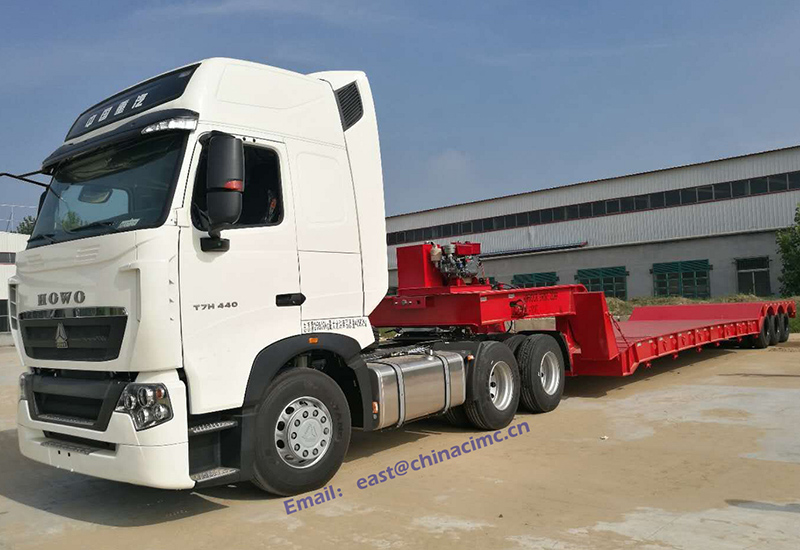

Front Loading Detachable Hydraulic Gooseneck Low Bed Trailer
Product parameters:
product name | Heavy duty gooseneck trailer |
Dimensions (LxWxH) | 13000x3000x1650mm (can be customized) |
Payload | 80 tons |
axis | 6*13 tons of Fuwa brand |
pause | Mechanical suspension belt 10/10/10 |
Main beam | Height: 500mm, upper plate 18mm, lower plate 18mm, middle plate 10mm. |
Through beam and side beam | 10# channel steel, 14U steel or channel steel |
Platform thickness | 4.0mm thick lattice plate with support groove |
fetal | Triangle, 12R22.5 (12) |
tow pin | 2” (50mm) or 3.5” (90mm) draw pins |
landing leg | 28T load landing legs |
Brake system | Dual-line braking system / optional ABS |
brake chamber | six double rooms |
electronic system | 24v, 7-pin socket, LED light (for all markets) |
painting | Sandblasted anti-rust chassis surface available with 1 anti-corrosion primer and 2 top coats |
Remarks: We can customize all products for you, if you have any questions about our products, please contact us, we will give you the most reasonable price, the most perfect service, the fastest delivery time and the best products ! |
Our advantage
A. The professional design team provides customized customization according to the needs of customers. and manufactured according to your requirements.
B. Advanced production equipment, strict quality control, fast delivery, the most reasonable price.
C. 24-hour service provides professional quick response.
D. Overseas engineers are always ready to respond to unexpected needs.
E. Visit customers regularly to help us understand the condition of the vehicle. The company can provide reasonable technical solutions. The timely supply of spare parts guarantees the continuous operation of the vehicle.
We dare to face challenges and do things others dare not try, and we look forward to providing you with the best products and the most comprehensive product designs.
