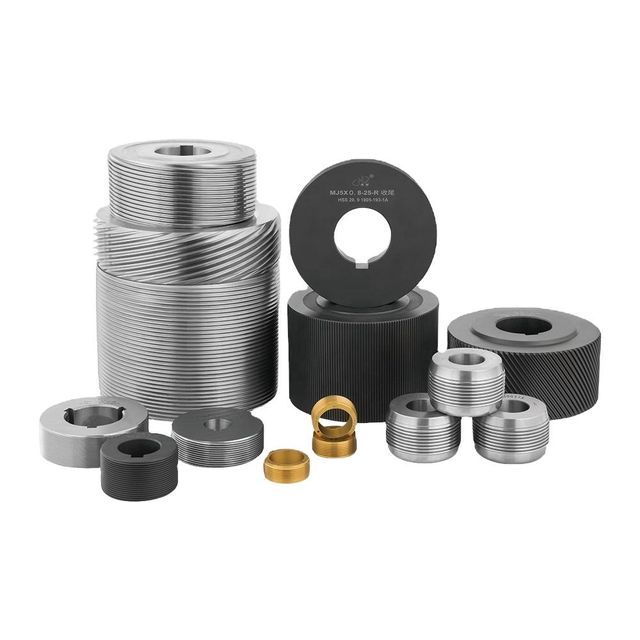

China factory direct selling high quality round thread rolling dies
- $60.00 /set
- 1 set
- Zhejiang WANYING Henghui thread Technology Co., Ltd
- Zhejiang, China
- Mr Tony Wang
PRODUCT DETAIL
| usage: | External thread forming | port: | Ningbo Port |
| Advantage: | Abrasion resistance | pack: | wooden box |
| Custom Support: | OEM, ODM, OBM | product name: | Thread rolling die |
| Mold Type: | Thread rolling die | Minimum order quantity: | 1 set |
| Supply capacity: | Thread rolling die factory 10,000 sets per month | hardness: | HRC60-67 |
| Finish: | Bright (uncoated) | Packaging Details: | wooden box |
| Warranty: | 1 | Material: | Cr12MoV/SKH9/M2 |
| payment terms: | L/C,Western Union,D/P,D/A,T/T,MoneyGram | standard: | International Organization for Standardization |
| Certificate: | ISO9001:2008 | place of origin; place of origin: | China |
| Certification: | International Organization for Standardization |
Product Description

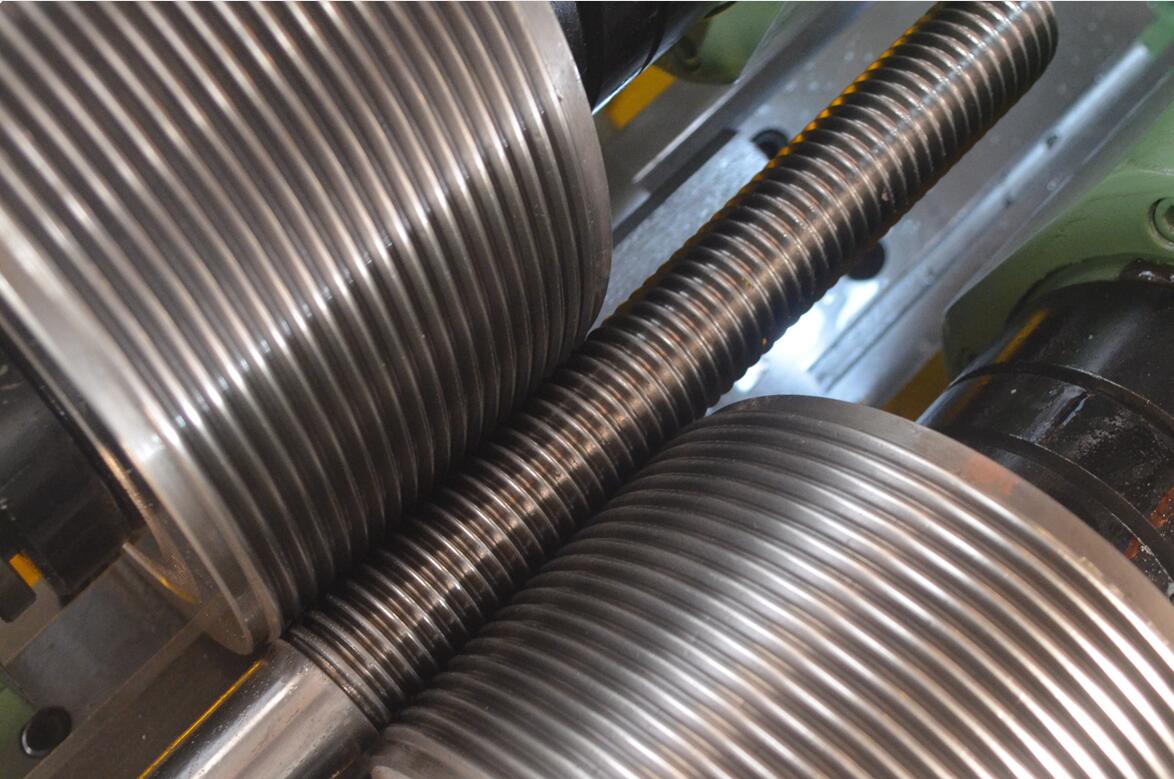

Cylindrical thread rolling dieUsing a process with two or three rolling dies, the workpiece is usually placed on a support blade. At least one (1) rolling block has a feed motion to perform the forming process. At the same time, the mold and the workpiece are rotated synchronously in contact, and the contour will be formed.

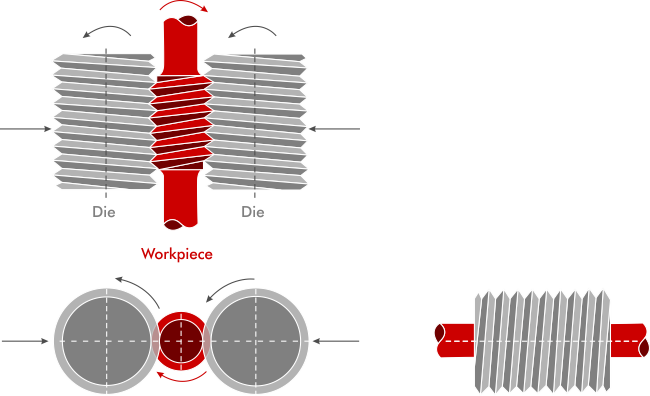

Feed rolling
Feed thread rolling is based on one parameter: workpiece lead = die lead. This results in a synchronized rotational movement
part and death. No axial movement occurs. The necessary rolling force is defined by the thread diameter and length.
part and death. No axial movement occurs. The necessary rolling force is defined by the thread diameter and length.

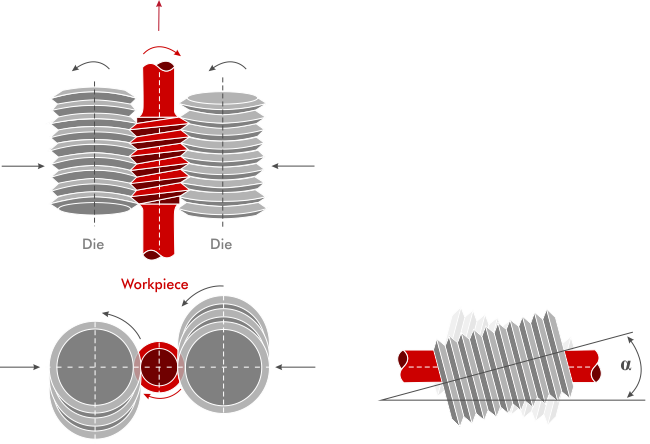

- Through rolling:
Always use thread rolling through feed when the workpiece contour is longer than the maximum length. Roll width.
There are 4 different types of through dies:
1.Ring Die: A grooved die without any lead. The lead angle is created by the rotation of the mold.
2.Speed up tooling: increase productivity.
3.Spiral slow feed die: reduce power requirements,
4.Continuous Rolling: Suitable for automatic feeding machines.
There are 4 different types of through dies:
1.Ring Die: A grooved die without any lead. The lead angle is created by the rotation of the mold.
2.Speed up tooling: increase productivity.
3.Spiral slow feed die: reduce power requirements,
4.Continuous Rolling: Suitable for automatic feeding machines.

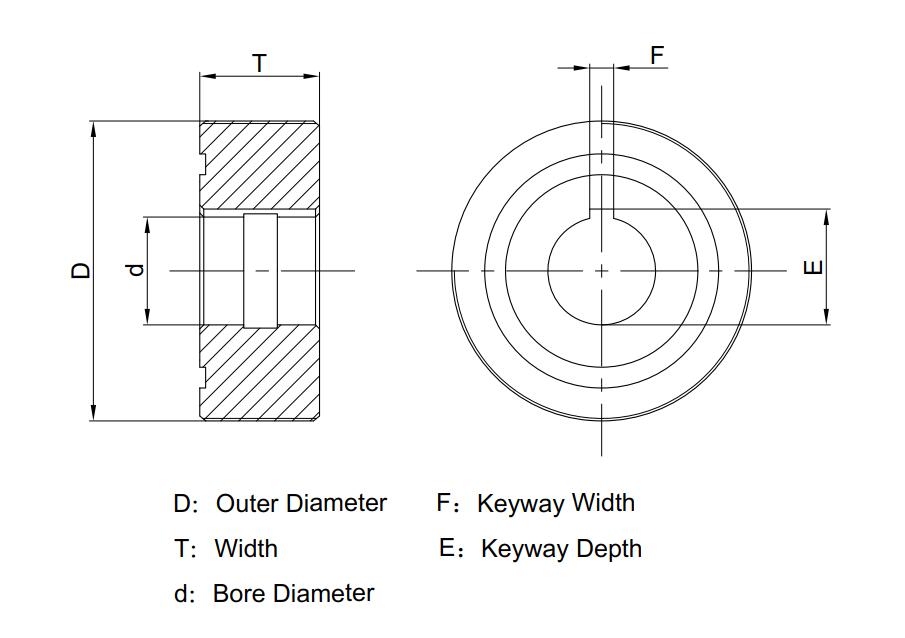

How to Order Cylindrical Thread Rolling Dies
Feed straight
Aperture (d):
Outer Diameter (D):
Thickness (T):
Keyway Depth (E):
Keyway Width (F):
Thread type: (such as M8*1.25,1''-8UNC...)
Full Thread Head Bolts
Full Thread Headless Bolts
Partially threaded bolts
Please specify if it is used for B7 material or wind power with special design.
Outer Diameter (D):
Thickness (T):
Keyway Depth (E):
Keyway Width (F):
Thread type: (such as M8*1.25,1''-8UNC...)
Full Thread Head Bolts
Full Thread Headless Bolts
Partially threaded bolts
Please specify if it is used for B7 material or wind power with special design.
