China is the best! BU-1400/1600/1700E Warm film laminator 1.6m laminator1.7m laminator1.4m laminator
- $250.00 /set
- 1 set
- Nanjing Mingda Electronic Technology Co., Ltd.
- Jiangsu, China
- Ms Teresa Zhu
PRODUCT DETAIL
| Paper size: | A3,A4,A5,A6 | Gross weight per piece: | 220.000 kg |
| Mailing method: | Sea/Air/Truck | HS code: | 8443322101 |
| brand: | color center | feature: | 100% original |
| place of origin; place of origin: | Jiangsu, China | Single package size: | 1850X630X710cm |
| Production capacity: | 1000 sets/month | port: | China Shanghai |
| Packaging Details: | Wooden case, fumigation-free wooden packaging | Packaging Preview: | |
| model: | CC-1400/1600/1700E | type: | Hot and cold laminating machine |
| minute. Order: | 1 set | Sales unit: | single product |
| Variable working speed: | 0-6m/min |
Product Description

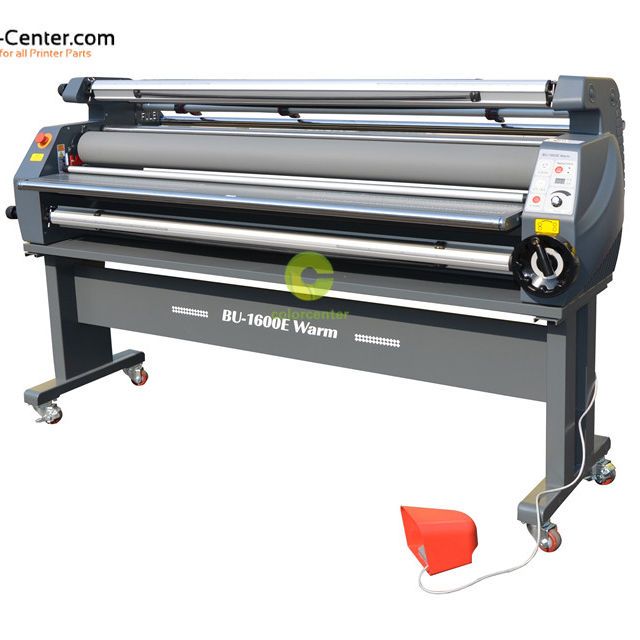

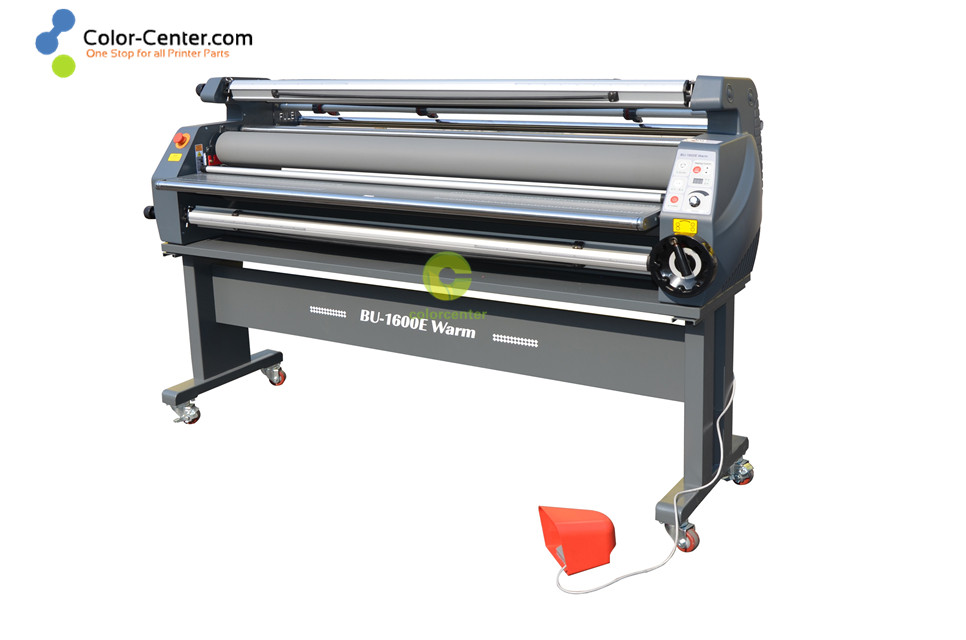

product name:BU-1400/1600/1700E Warm Laminating Machine
Flatbed Laminating Machine/Liquid Laminating Machine/Heat Transfer Machine Available!
High quality guaranteed!
Professional supplier!
The E Warm series are entry-level fully automatic roll-to-roll warm-assist models
ABS tooling side cover construction; precise CNC metal
Cutting procedure for safe alignment of lamination and quality finishing; ideal
Wide format lamination or installation application use.
ABS tooling side cover construction; precise CNC metal
Cutting procedure for safe alignment of lamination and quality finishing; ideal
Wide format lamination or installation application use.
feature:
One. One side hand crank lifting system
b. Plug-In Interchangeable 3" Aluminum Shaft
C. Membrane Control Panel
d. variable speed control
e. Forward and reverse control
F. Emergency stop and photocell installed for safety
G. Auto and Footswitch Modes
H. Detachable pressure plate
A generation. Brackets assembled at the customer's site
j. CE certification
One. One side hand crank lifting system
b. Plug-In Interchangeable 3" Aluminum Shaft
C. Membrane Control Panel
d. variable speed control
e. Forward and reverse control
F. Emergency stop and photocell installed for safety
G. Auto and Footswitch Modes
H. Detachable pressure plate
A generation. Brackets assembled at the customer's site
j. CE certification
Technical Specifications
machine type | BU-1400E keep warm | BU-1600E keep warm | BU-1700E keep warm | ||
maximum. working width | 1400mm(55") | 1600mm(63") | 1700 mm (67 inches) | ||
Variable working speed | 0-6m/min | 0-6m/min | 0-6m/min | ||
maximum. nip opening | 35mm | 35mm | 35mm | ||
maximum. heat assist temperature | 60℃ | 60℃ | 60℃ | ||
Drum diameter | 120mm | 120mm | 120mm | ||
Upper roll material | Silicone Rubber | Silicone Rubber | Silicone Rubber | ||
Bottom Roll Material | natural rubber | natural rubber | natural rubber | ||
motor | AC110V 230V/90W | AC110V 230V/90W | AC110V 230V/90W | ||
energy consumption | 1300W | 1300W | 1300W | ||
electricity demand | AC110V/50-60Hz AC230V/50-60Hz | AC110V/50-60Hz AC230V/50-60Hz | AC110V/50-60Hz AC230V/50-60Hz | ||
Machine size | 1800*600*1300mm | 2000*600*1300mm | 2100*600*1300mm | ||
Shipping size | 1850*630*710mm | 2150*710*750mm | 2450*710*750mm | ||
Weight (Net/GW) | 220kg | 270kg | 280kg | ||
