China road sweeper cleaning truck, vacuum street sweeper

PRODUCT DETAIL
Key words:concrete sweeperName:High pressure cleaning vehicle
Origin:Hubei, Chinaweight:7100
payment terms:L/C, D/A, D/P, T/T, Western Union, MoneyGramCertification:ISO9001
Truck Brand:Dongfeng, Howo, Foton, JAC, FAW, Jianglingengine:180 hp, 190 hp, 220 hp, 371 hp, 120 hp
Warranty:1 year, 1 yearFunction:sweeper, wash
port:any port in chinaCertificate:3C, BV, ISO9001
Van:3-5cbm high pressure cleaning truckSupply capacity:800 pieces per month
Dimensions (L*W*H):7500x2300x2500Health status:new
color:white, blue, red, yellow, blackbrand:Dongfeng
Wheelbase:4500mm, 4700mmDrive System:left hand drive, right hand drive
After-sales service provided:Provide overseas third-party supportPackaging Details:Naked, waxed. Bulk and roll-on transport of high-pressure cleaning vehicles
Product Description


China road sweeper cleaning truck, vacuum street sweeper
Multifunctional dust removal and sweeping vehicle

Dongfeng Tianjin 4*2 high pressure cleaning truck/high pressure cleaning truck

The only multi-functional dust removal vehicle certified by the Ministry of Railways in China

Automobile manufacturer, is the fixed-point production of multi-functional dust removal vehicles

Manufacturer, obtained a number of national patents, the car is widely used in dust removal

Pollution control of major railway lines, with a market coverage of over 95%;

Independent research and development of multi-functional fire rescue vehicles,

High power, high degree of automation, widely used in

Highways and airports, and exported to Africa, Central Asia, Mongolia and other countries,

The market potential is huge.



High pressure cleaning car specifications:

main specifications
product nameCLW high pressure cleaning sewage truck
Gross weight (Kg)8495drive type4X2, left-hand drive, right-hand drive
curb weight(Kg)4200Dimensions (mm)6900X2200X2450
approach/leave
Angle (°)
24/12cab seat3
Axis number2Front and rear suspension(mm)1210/1890
Axle load (Kg)3390/5105Wheelbase (mm)3800
Maximum speed(Km/h)99
Chassis Specifications
Chassis modelEQ1070TJ9AD3manufacturerDongfeng Motor Corporation Ltd
brandDongfengDimensions (mm)6815×2080×2440
Tire specifications7.50-16tire number6+1 (one spare tire)
Number of steel springs8/10+7,11/9+7Front gauge(mm)17,701,831
gasoline typediesel engineRear crawler base (mm)15,861,640
Emission Standardseuro 3spread6 forward gear
taxiOne row, 3 people with power steering, choose fixed air conditioner
engine modelengine manufacturerDisplacement (ml)Power (Kw)
CY4102-33Dongfeng Chaoyang
engine co., ltd.
3856120(88HP)
tank
Tank capacity(m³)sewage tanker 3cbm,
Clean Tanker 3.5cbm
Tank materialQB235 carbon steel
Equipped with Italian high-pressure water pump, working pressure: 16Mpa, flow rate: 125L/min, with 60m winding roller
main features
1. The truck is a very versatile truck that combines
High pressure cleaning trucks and sewage suction trucks.
First of all, the sewage tanker can handle sewage,
Then the cleaning tanker can clean the pipes.
2. Sprinklers such as water cannons, front, rear, and side sprinklers can be installed according to customer requirements for green watering, atomized spraying, dust suppression, and high-pressure road washing. Can be used for emergency fire fighting.

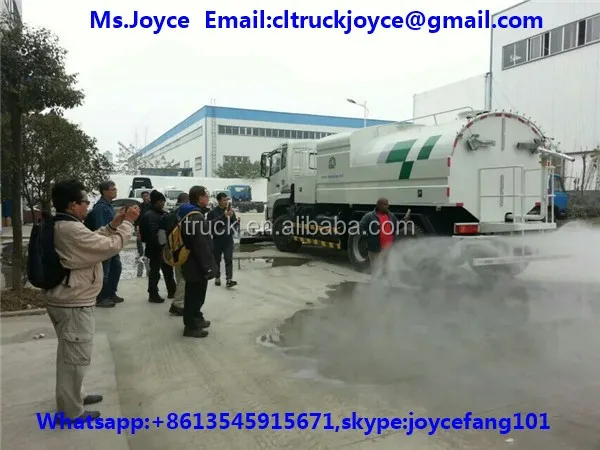

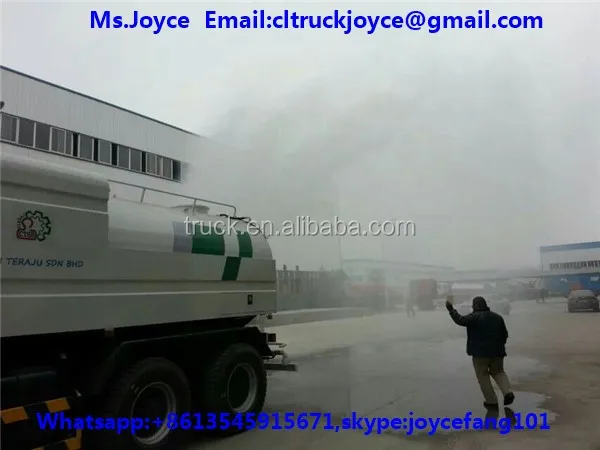

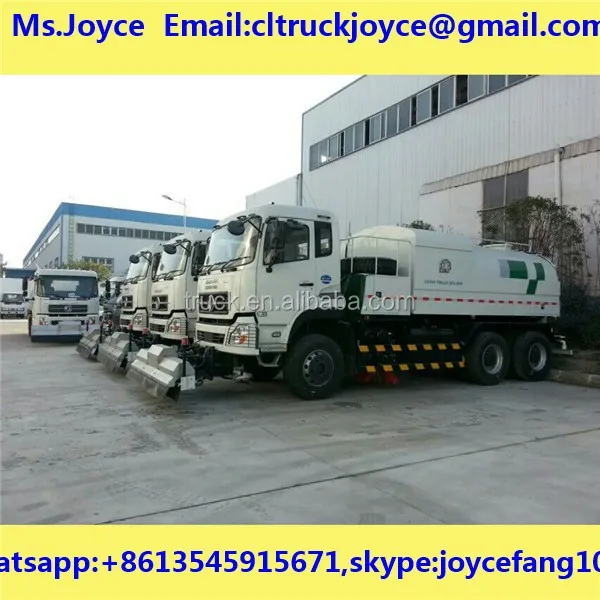

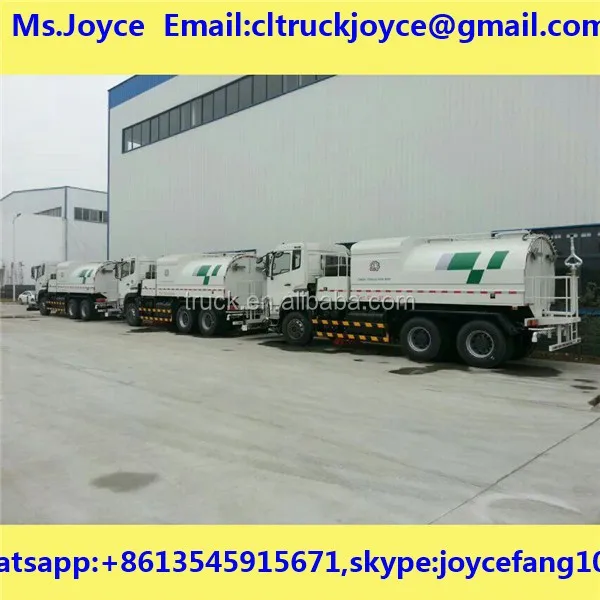

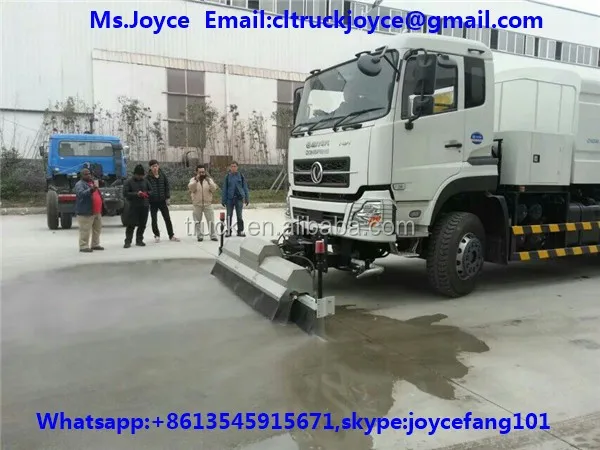

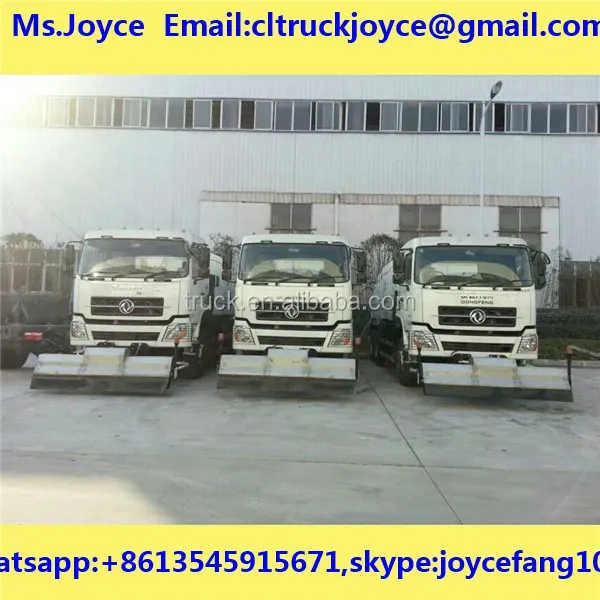

Dongfeng 6000l-8000l high pressure cleaning truck picture :

Payment terms and delivery

Delivery date: 20-25 working days

Payment terms: 30% of the contract value is paid as an advance payment after signing the contract

And pay the balance after the goods are finished

Packaging: Naked, wrapped in wax, small size fits into 20'GP or 40'GP,

big type can be shipped by bulk carrier or ro-ro ship or as your request

Choose our advantage

1. We have strong technology, impeccable testing, advanced equipment and reliable quality

and flexible operating modes.

2. We passed the fullISO9001-2008, 3C, BV and SGS.

3. Guaranteed high quality and competitive price.

4. One year warranty and lifetime maintenance.

5. We always maintain high efficiency, and the products are according to your requirements.

6. After-sales service can be processed within 48 hours.

7. Won the title of "China's Top 500 Manufacturing Enterprises"

industry"May 27, 2014

We can ensure the quality and production cycle of our vehicles.

Packaging and Shipping

Pressure washers/sweepers are shipped in bulk, roll-on-roll or in containers.
