Chinese 4 Post Hydraulic Lift For Car Wheel Alignment
- $2000.00 /piece
- 1 piece
- Jinan AOS International Co., Ltd.
- Shandong, China
- Mr Gavin Sheng
PRODUCT DETAIL
| Supply Ability: | 1000 Sets per Month; | Type: | Four Cylinder Hydraulic Lift; |
| Lifting Height(mm): | 1730mm; | Place of Origin: | Shandong, China; |
| Gross Weight: | 1050kg; | Certification: | ce; |
| Shipment: | 9pieces / 20' container; | Overall Width(mm): | 3250mm; |
| Brand Name: | AOS; | Power Supply: | 2.2kw,220V/380V ,1ph/3ph; |
| Payment Terms: | L/C,T/T,Western Union; | Minimum height: | 160mm; |
| Post height: | 2000mm; | Total length: | 5550mm; |
| Warranty: | 12 Months; | Model Number: | AOS3500; |
| Lifting Capacity: | 3500kg; | Packaging Detail: | Carton, Frame or wooden case; |
| Lowering Time: | 30s; | Net Weight: | 880kg; |
| 2nd Lifting Height: | 350mm; | Lifting Time: | 50s; |
| Port: | Qingdao , Tianjin, Dalian, Shanghai, etc.; | Design: | Four Post; |

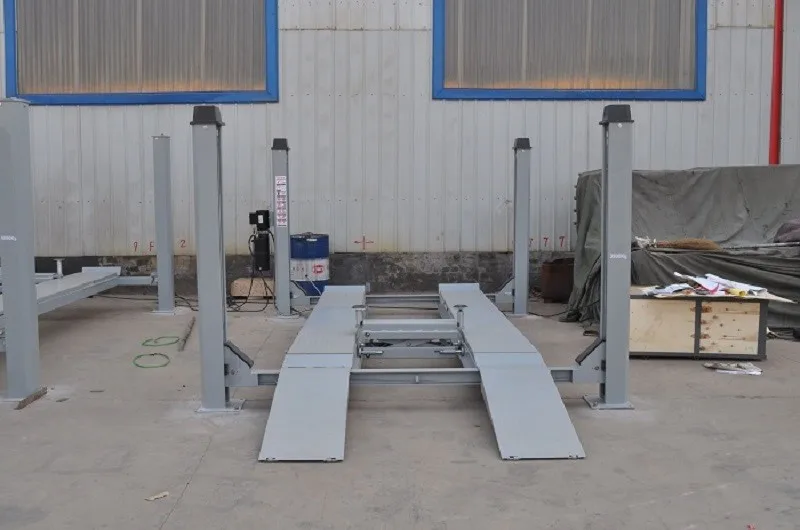

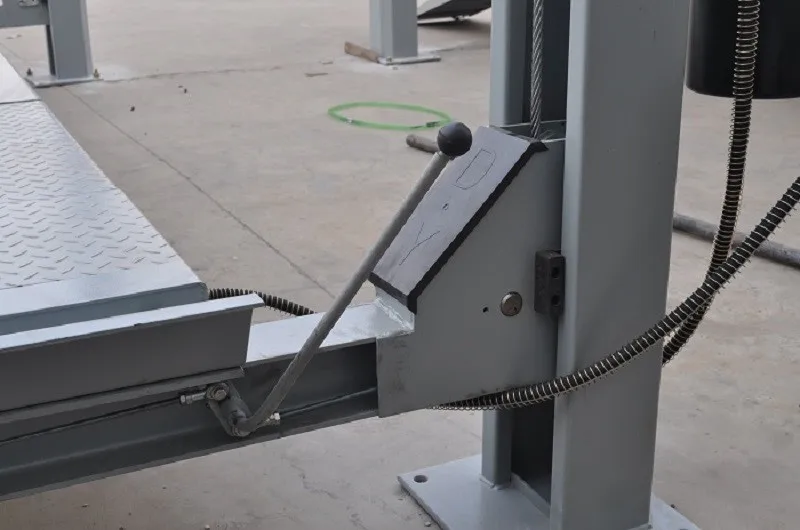

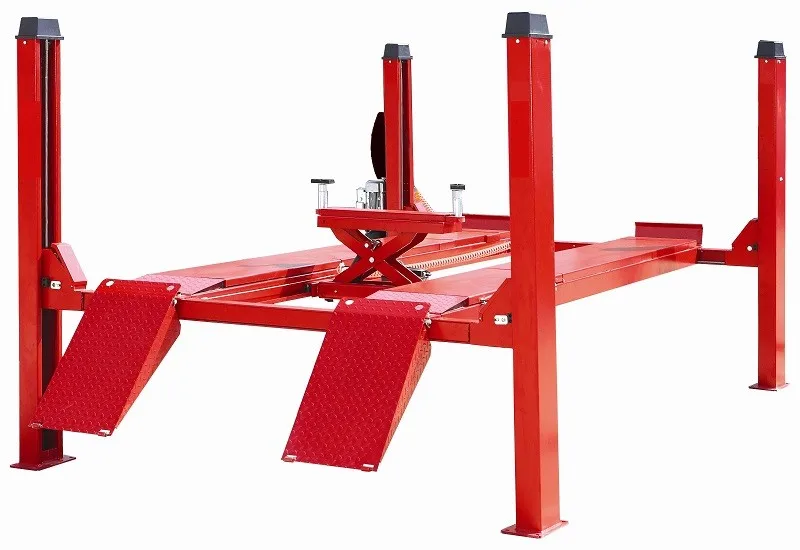

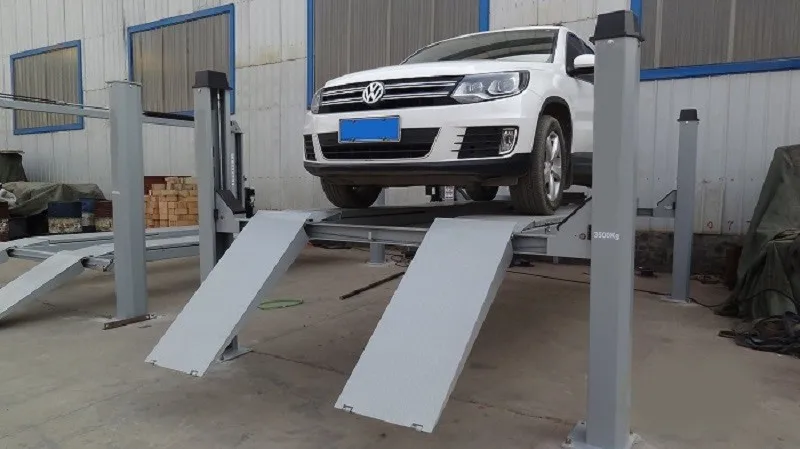

Four Post Alignment Lift with manual release 3.5tons

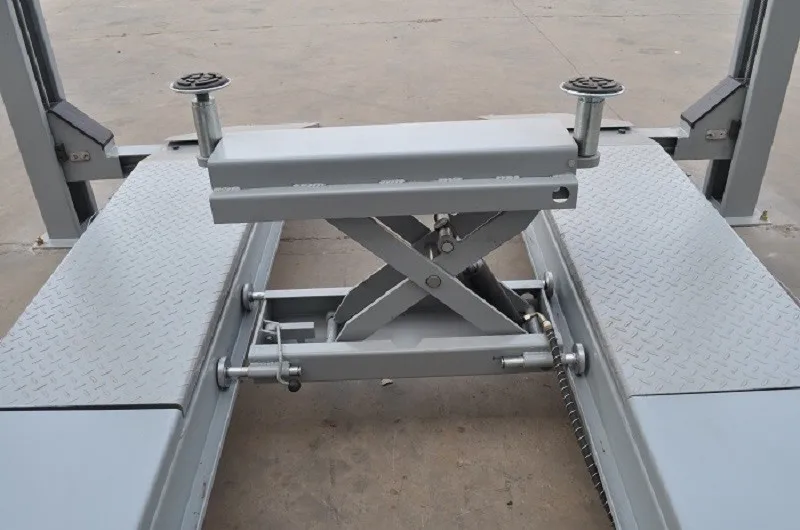

Come with Rolling jacks and Side Slipping plate.
.............
Specifications:
| Lifting Capacity: | 3500Kg (8000lbs) |
| Sec. Lifting Capacity: | 2000Kg |
| Lifting Height: | 1730mm |
| Sec. Lifting Height: | 350mm |
| Lifting Time (Loaded): | 50s |
| Lowering Time (Loaded): | 30s |
| Power Supply Voltage: | 220V,1ph or 380V, 3ph |
| Motor Power: | 2.2Kw |
| Overall Width: | 3097mm |
| Distance Between Post: | 2537mm |
| Width Between Platforms: | 900mm |
| Width of Each Platforms: | 508mm |
| Length of Platform: | 4300mm |
| Overall Length: | 5415mm |
| Overall Height: | 2020mm |

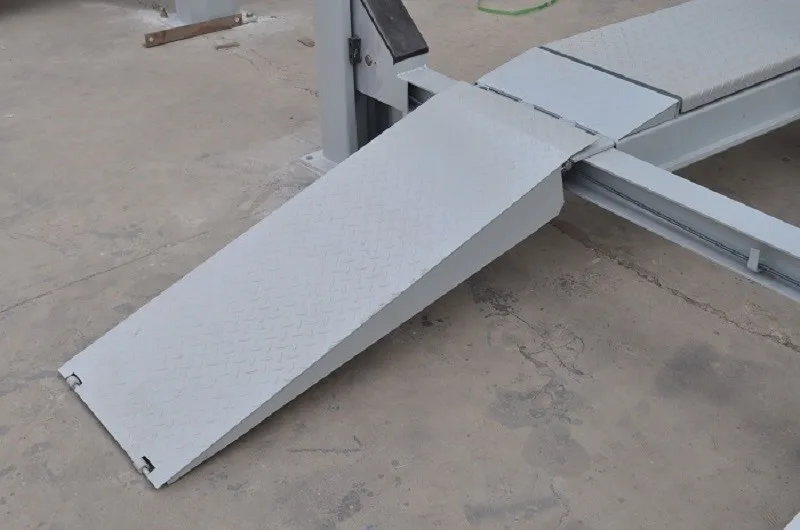

| Ramp width: | 490mm |
| Ramp length: | 880mm |
| Net Weight: | 1050Kg |
| Gross Weight: | 1100Kg |
| Cubic Meter: | 3.00cbm |
| Shipping: | 9 pieces / 20’ container 18 pieces / 40’ container |
........................
