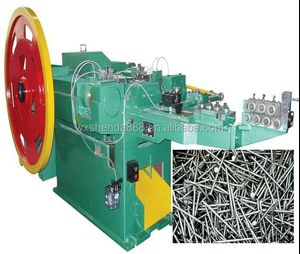

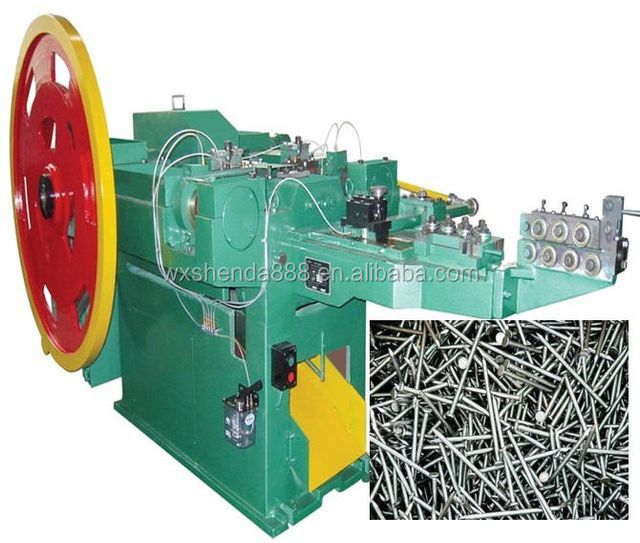

Chinese Z94-4C High Speed Wire Nail Making Machine
- $6000.00 /set
- 1 set
- Wuxi Shenda Nail Machinery Factory
- Jiangsu, China
- Ms ECHO SHI
PRODUCT DETAIL
| Weight (kg): | 2100 kg | port: | Shanghai |
| brand: | Shen Yida | Showroom location: | not any |

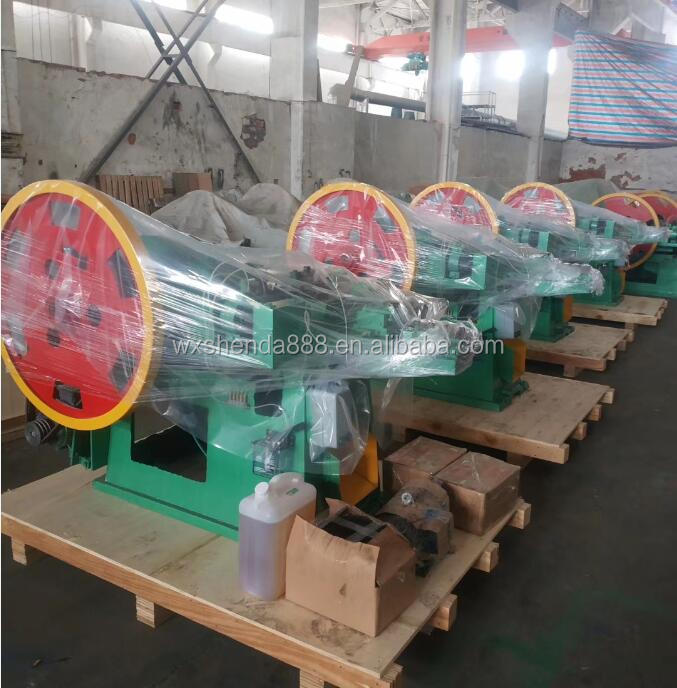

| Packaging Details: | Plywood case or customized | payment terms: | L/C, Western Union, T/T, MoneyGram |
| Mechanical test report: | if | Production capacity: | 800 pieces/year |
| After-sales service provided: | Engineers available to repair machinery overseas | Power (kW): | 4 |
| Core components: | engine | Video outbound inspection: | if |
| Core component warranty: | 1 year | Origin: | Jiangsu, China |
| Main selling points: | automatic | Warranty: | 1 year |
| Applicable industries: | Building material stores, manufacturing plants, construction projects | Supply capacity: | 90 sets per month |
| Marketing Type: | 2020 New Products | Health status: | new |
product description

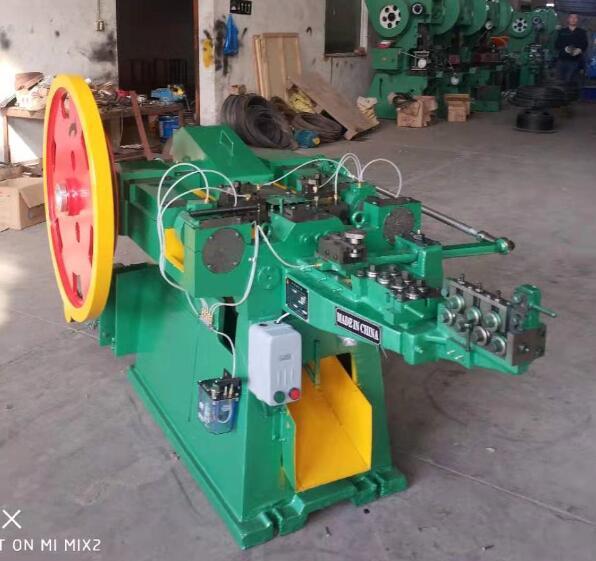

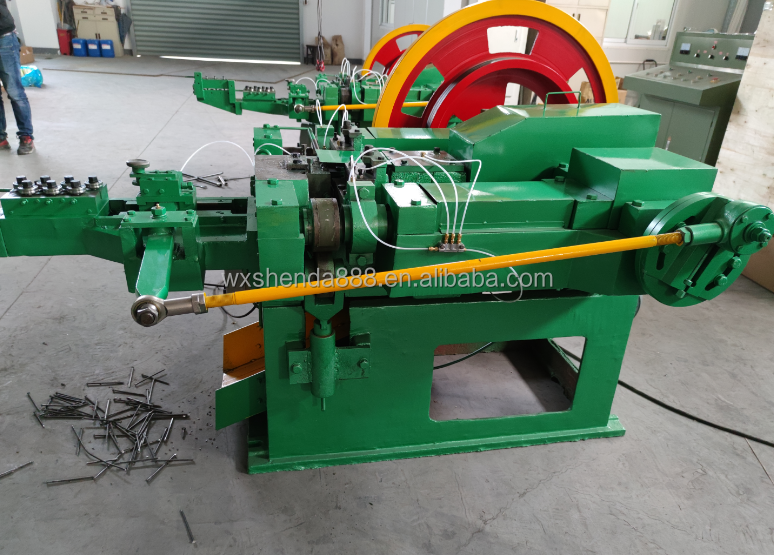

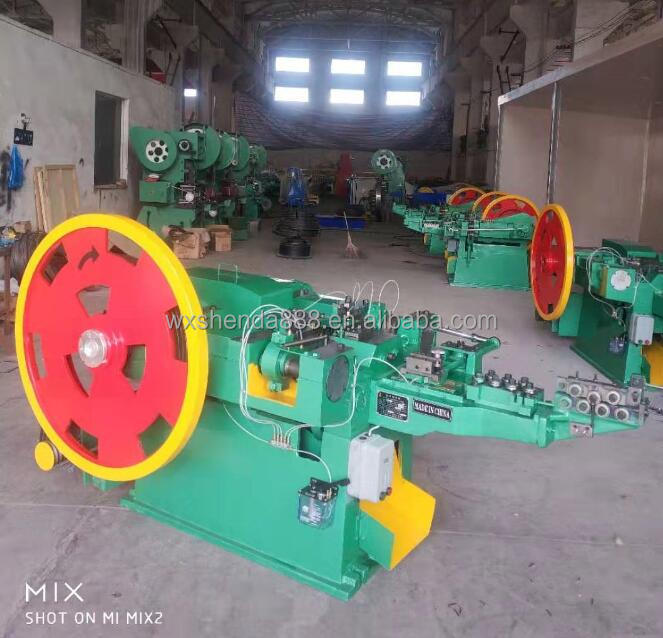

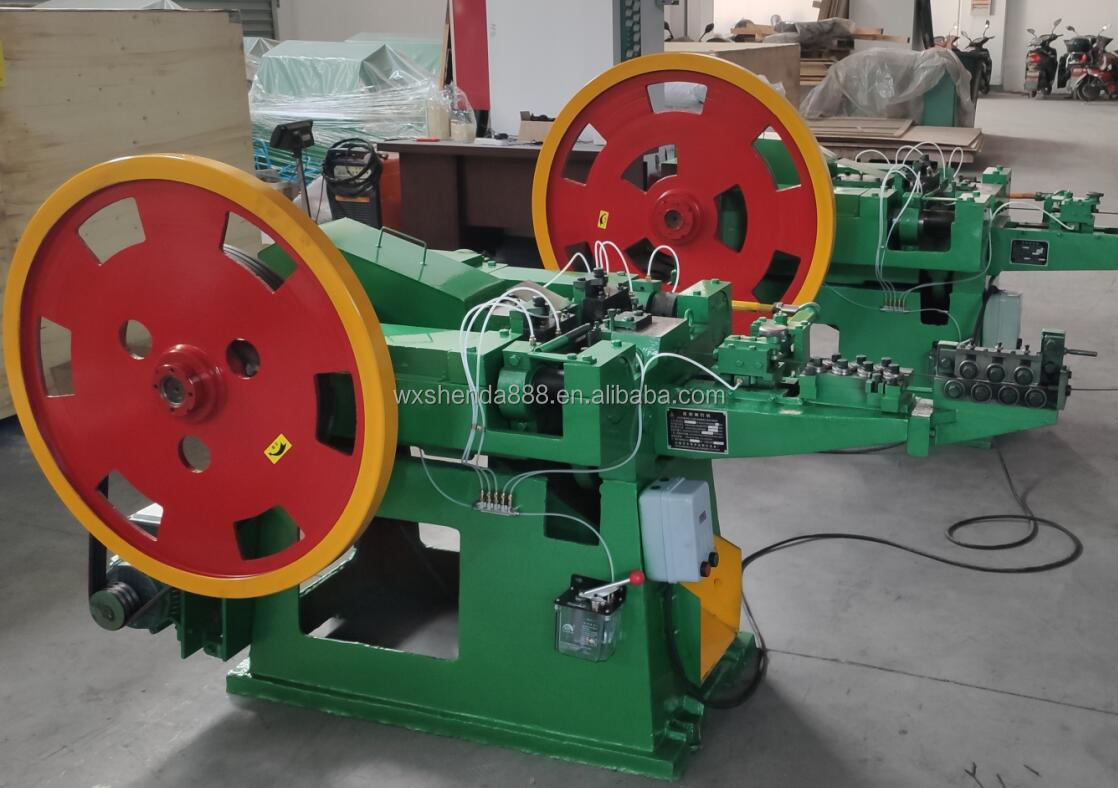

Automatic wire nail making machine Z94-4C
Wuxi Shenda Nail Making Machinery Factory is an experienced factory specializing in exporting various machines and equipmentsince 1995. It has won a high reputation for quality and service.
Our main products include:
1. Nail making machine production line,
2. Wire drawing machine production line,
3. High-speed screw thread rolling machine,
4. High-speed nail rolling machine.
1. Nail making machine production line,
2. Wire drawing machine production line,
3. High-speed screw thread rolling machine,
4. High-speed nail rolling machine.
List of functions
Main nail making process
1. Produce nails with a nail making machine
2. Polish your nails with a nail polisher
3. Pack nails
3. Pack nails
Machine use:
It can make the following nails:
It can make the following nails:
1. Wire nails,
2. Cloud nails,
3. U nails,
4. Double-headed nails,
5. Roof nails,
6. Concrete Nails,
7. Rivets
2. Cloud nails,
3. U nails,
4. Double-headed nails,
5. Roof nails,
6. Concrete Nails,
7. Rivets
right elevation
left elevation

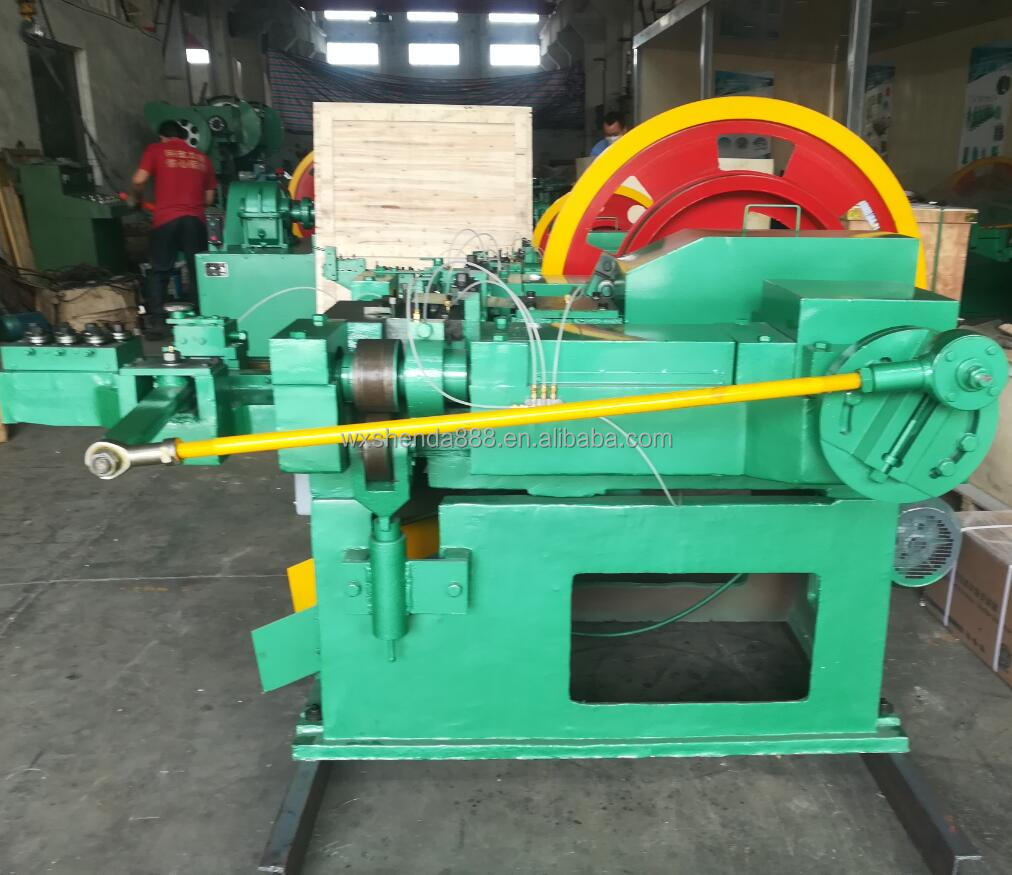

Front view
product specification
Model | Z94-2C | Z94-3C | Z94-4C | Z94-5.5C |
1. Nail diameter | 1.2-2.5 mm | 1.8-3.4mm | 2.8-4.5 mm | 3.7-5.5 mm |
2. Nail length | 16-50mm | 30-75mm | 50-100mm | 80-150mm |
3. Motor power | 2.2 kW | 2.2 kW | 4 kW | 5.5 kW |
4. Nail speed | 350 pieces/min | 320 pieces/min | 280 pieces/minute | 200pcs/min |
5. Measure dimensions | 1.6*1.1*1.3m | 1.8*1.26*1.46m | 2.2*1.54*1.59m | 2.4*1.6*1.6m |
6. Weight | 1200 kg | 1400 kg | 2000 kg | 2500 kg |

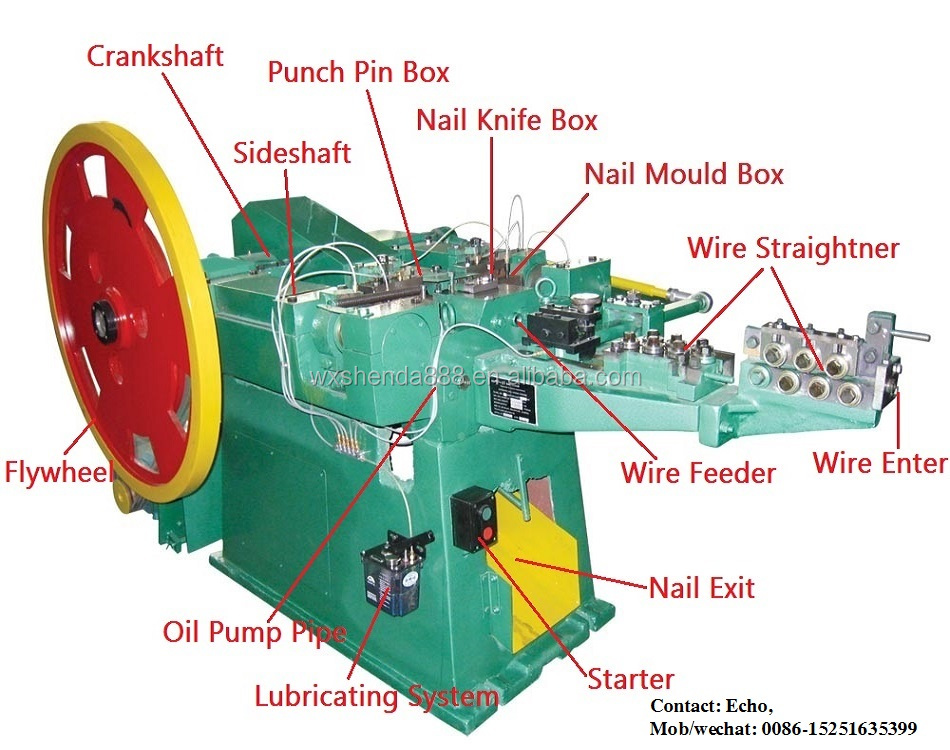

product configuration

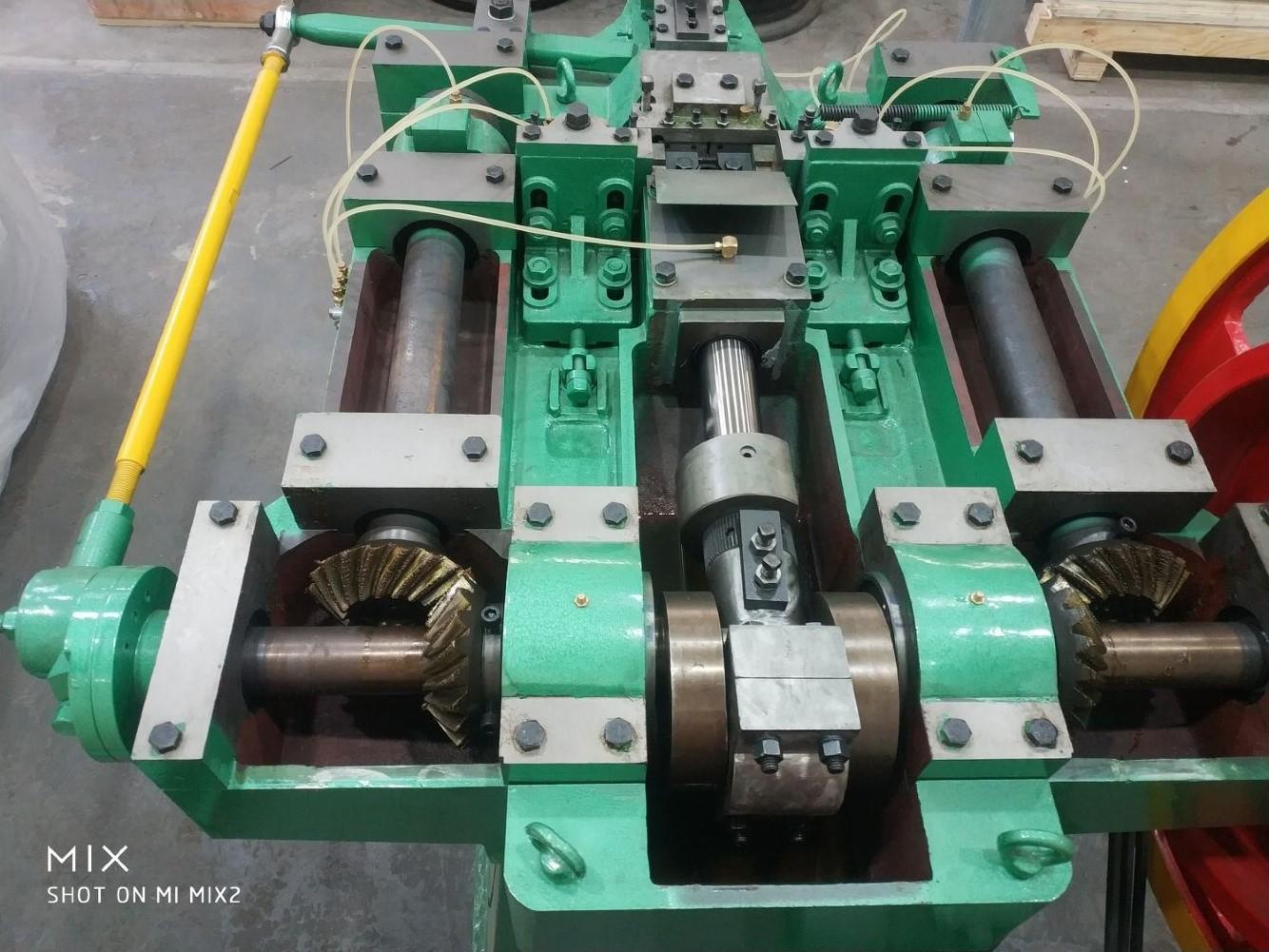

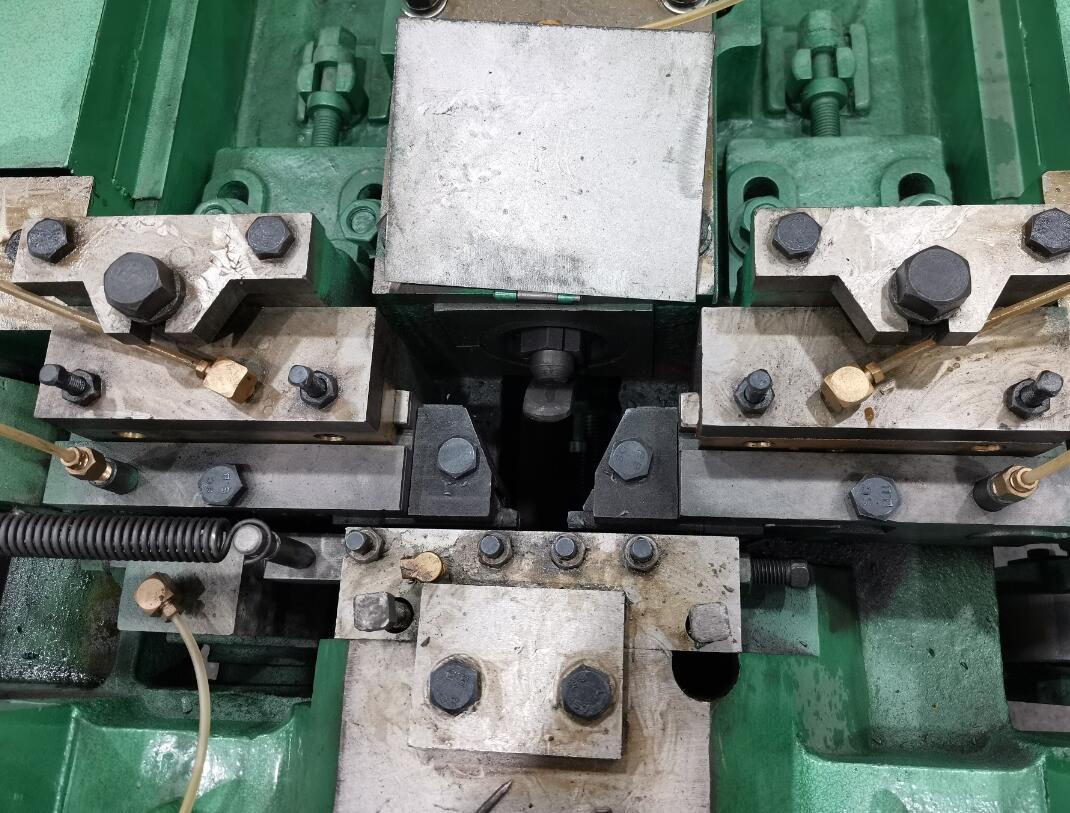

nailing system

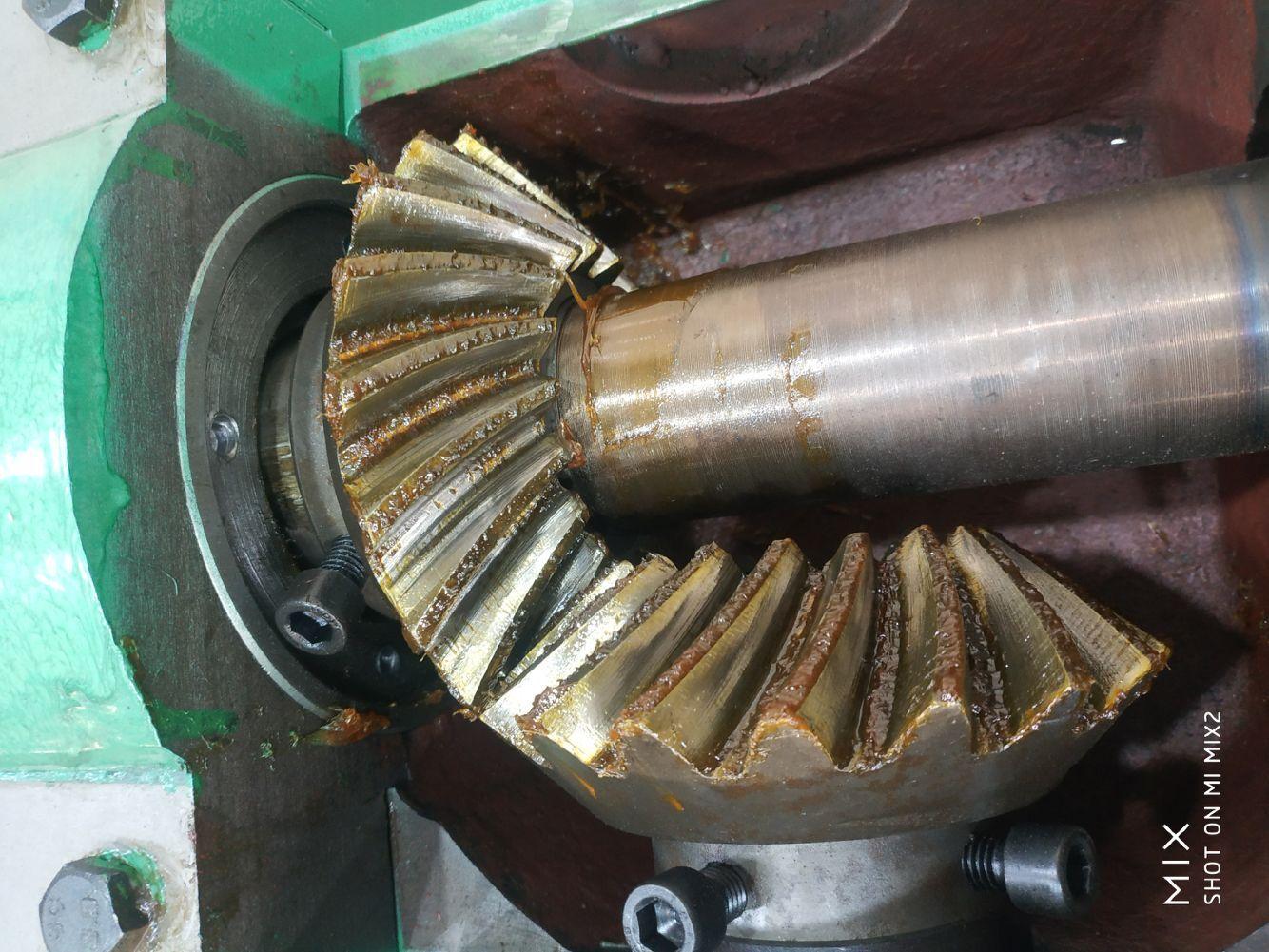

The machine is compact
high quality equipment

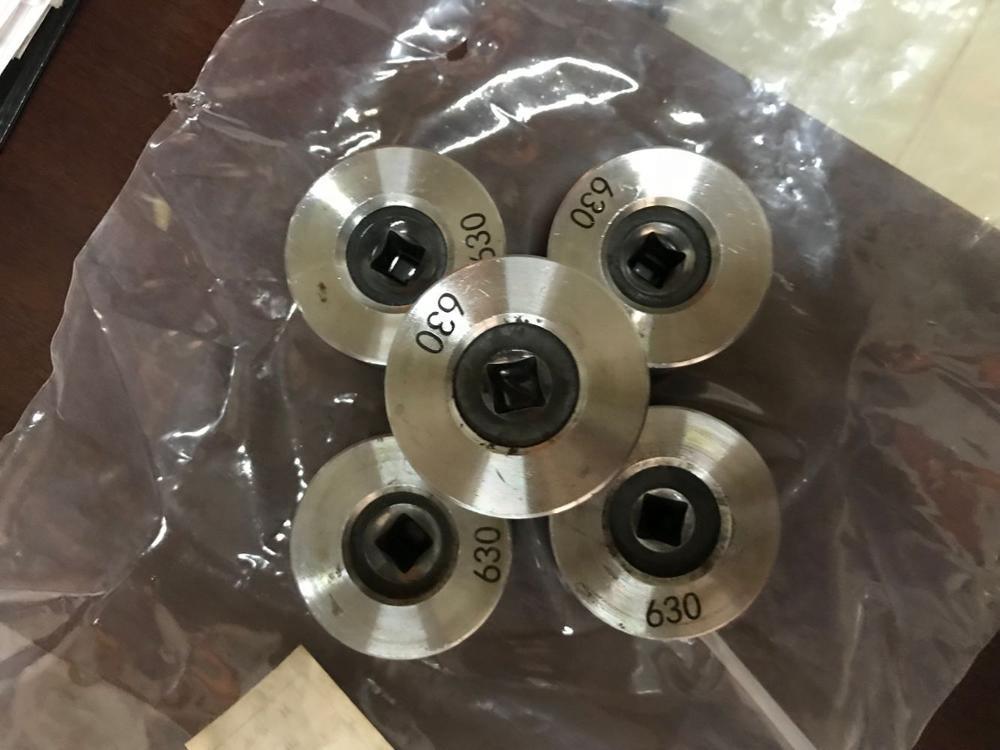

Drawing die
Wire drawing die: used in the wire drawing production line to change the diameter of the wire.
Wire drawing die: used in the wire drawing production line to change the diameter of the wire.

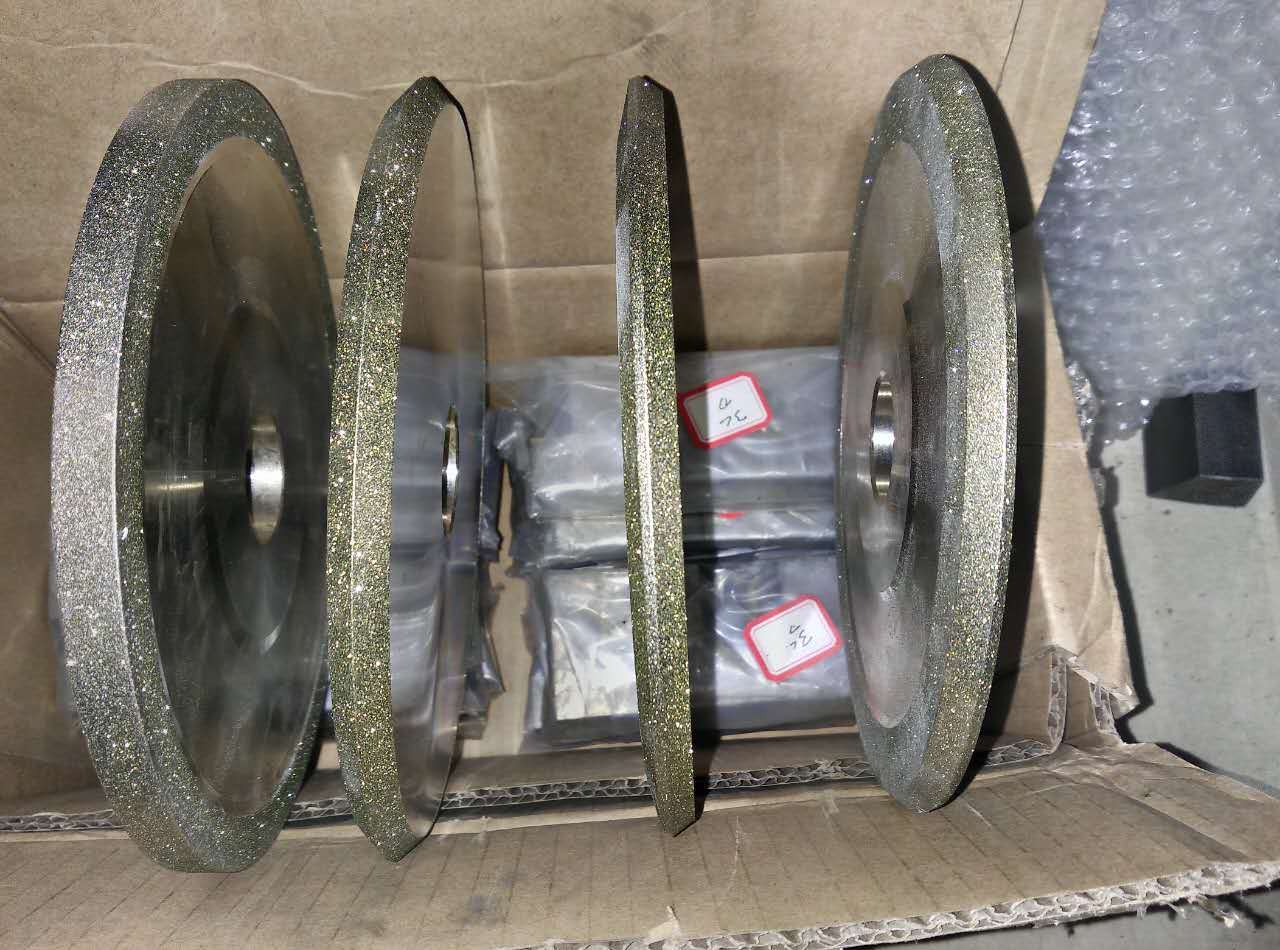

Grinding wheel
Mounted on a sharpener for sharpening nail clippers
Mounted on a sharpener for sharpening nail clippers

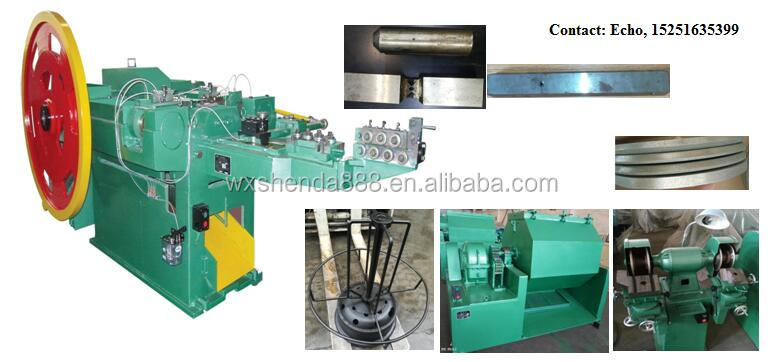

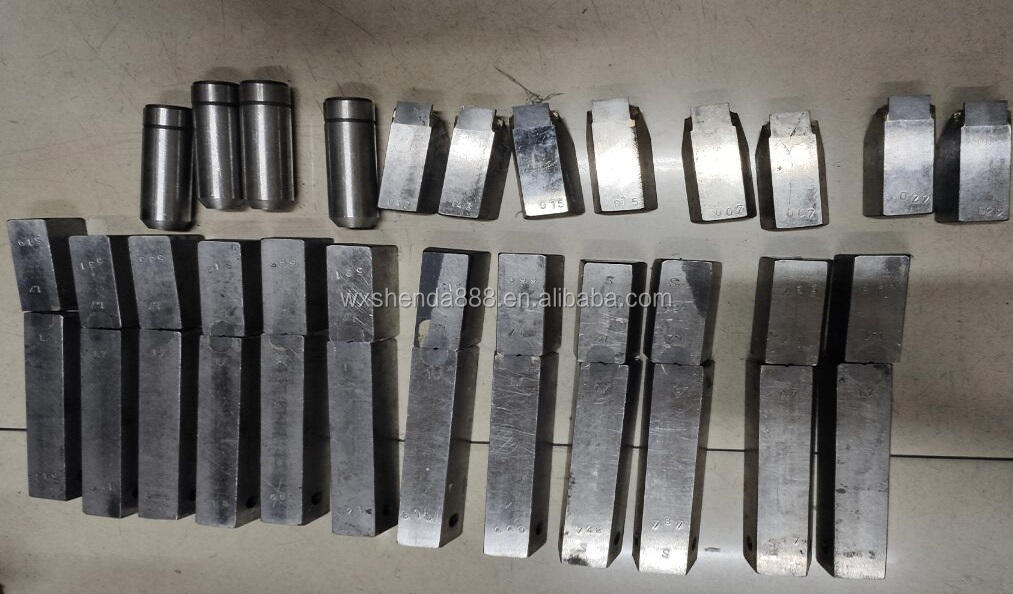

Nail spare parts
Nail mold: to clamp the wire,
Nail mold: to clamp the wire,
Nail clippers: cut the wire to make nail tops,
Punching pins: making nail heads

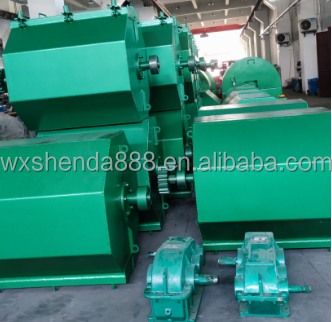

nail polisher
Used in nail making machines to polish nails after making nails
it makes nails clean and bright
it makes nails clean and bright

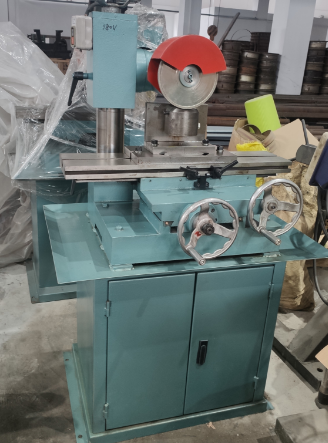

nail clipper grinder
There is no point in resharpening nail clippers afterward.
It is a new type of nail grinder, which is automatic and easy to operate.

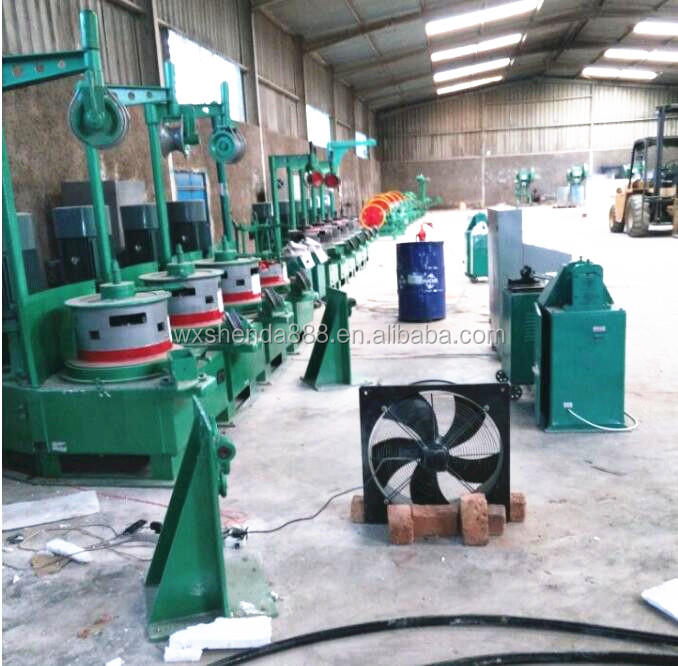

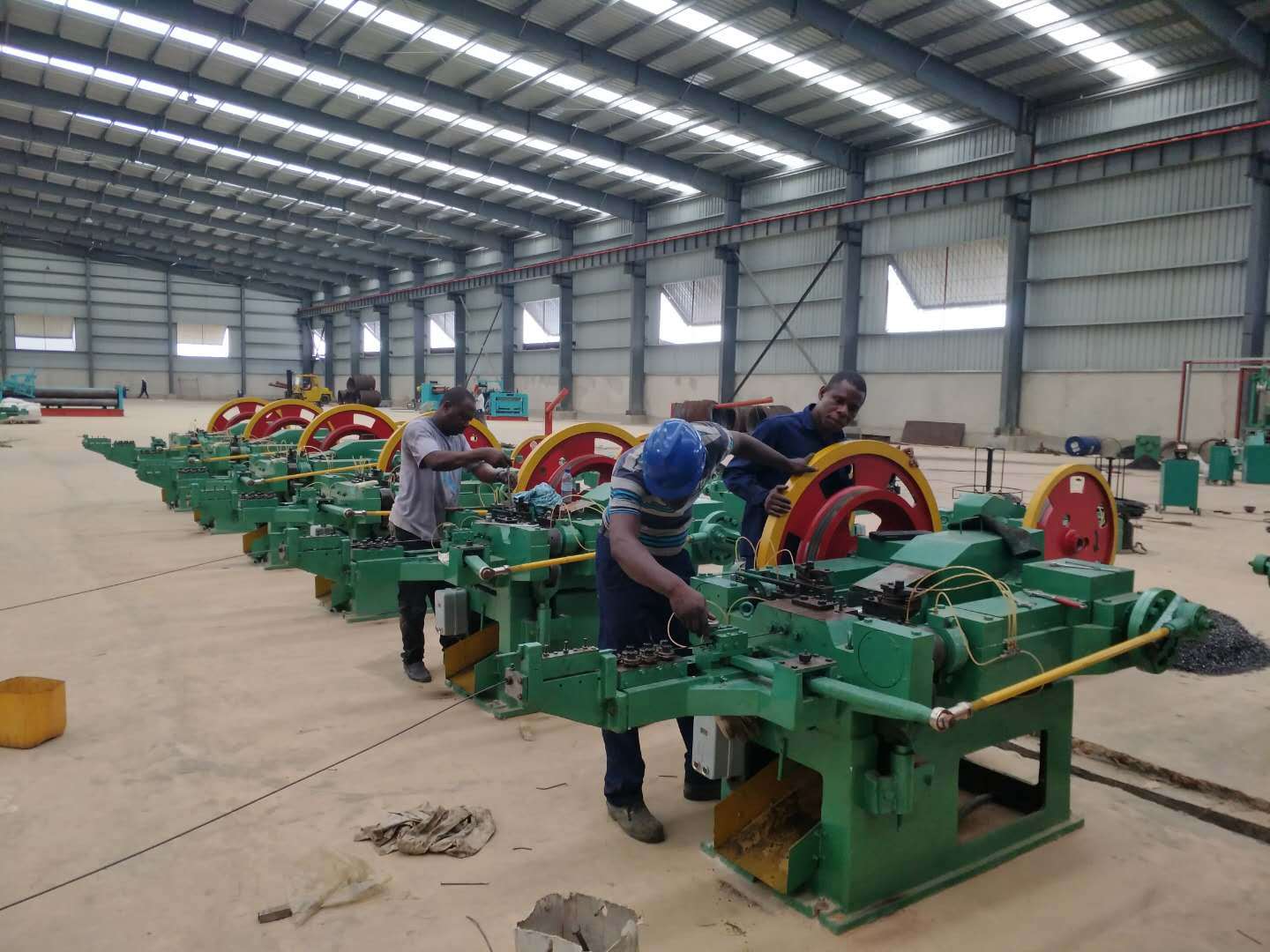

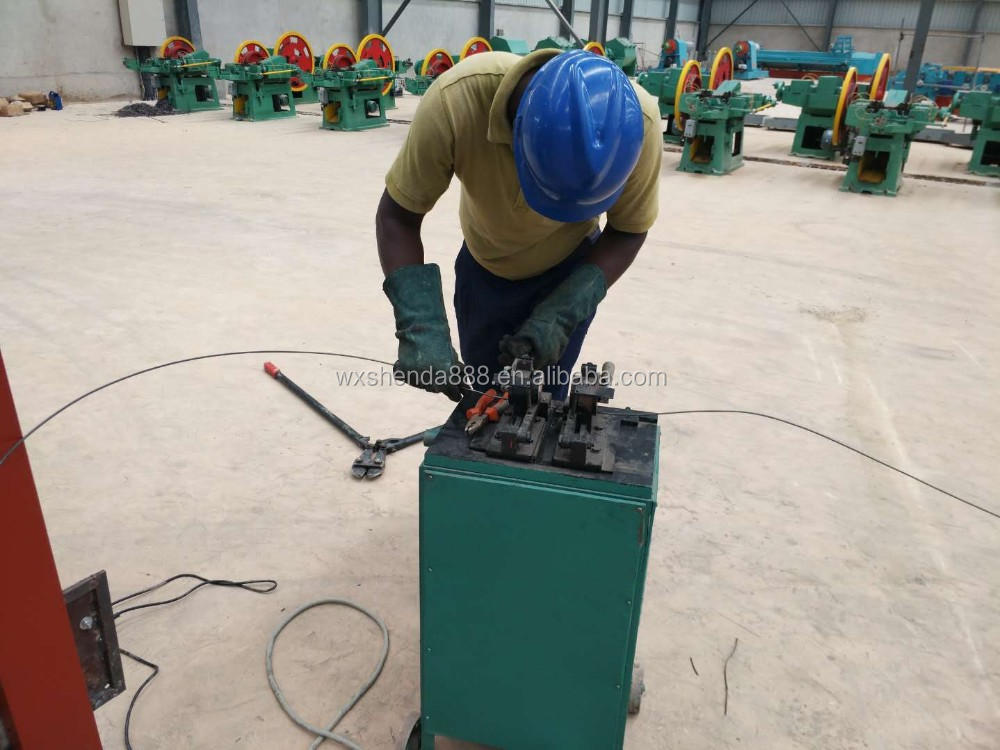

successful project
guinea project
Kenya project
Indonesian project
