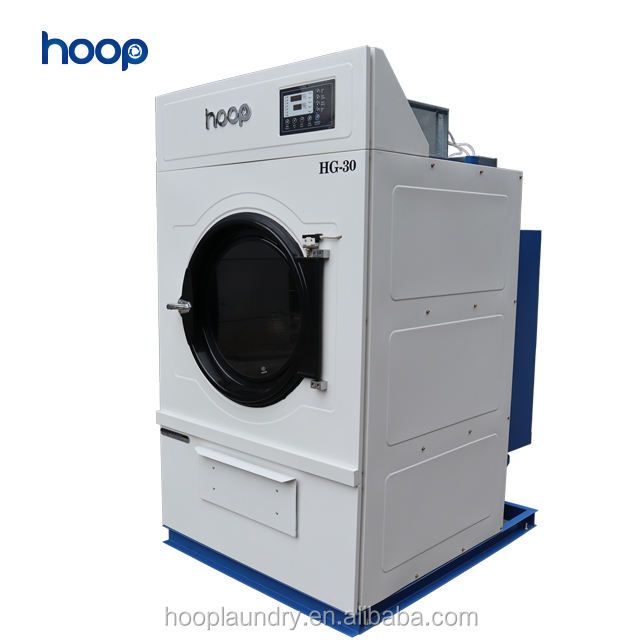

Commercial Washing Machine Washer Dryer Ironing Machine Hotel 30kg Dryer Steam Gas
- $2900.00 / 1 - 4 sets
$2700.00 / >=5 sets - 1 set
- Jiangsu Hoop Washing Machinery Manufacturing Co., Ltd.
- Shanghai, China
- Ms Doreen Qian
PRODUCT DETAIL
| Marketing Type: | normal product | Video external inspection: | if |
| capacity: | 30kg | Packaging Preview: | |
| Motor Power: | 1.1kw | Fan power: | 0.75kw |
| steam pressure: | 0.4-0.6Mpa | Production capacity: | 30kg |
| application: | Dry clothes, sheets, towels, etc. | Voltage: | 220v/380v/400v |
| Gas consumption: | 3 cubic meters/hour | Drying time: | 40-60 minutes |
| Steam consumption: | 60-70kg/hour | heating power: | 24kW |
| Packaging Details: | Plastic packing or wooden box packing | Core components: | PLC, engine, bearing, motor |
| Health status: | new | Mechanical test report: | if |
| strength: | 1.1kw | Weight (kg): | 350 |
| place of origin; place of origin: | Jiangsu, China | Supply capacity: | 500 boxes per month |
| Dimensions (L*W*H): | 125*160*200cm | port: | Shanghai Port |
| Showroom location: | Turkey, Vietnam, Peru, India, Thailand, Kenya, South Korea | payment terms: | L/C,D/A,T/T |
| Warranty: | 1 year | aspect: | 106*125*187cm |
| brand: | hoop | Core Components Warranty: | 1 year |
| feature: | quick dry | Applicable industries: | Hotels, clothing stores, building materials stores, machinery repair shops, farms, restaurants, retail, advertising agencies |
| Roller size: | 980*840mm |

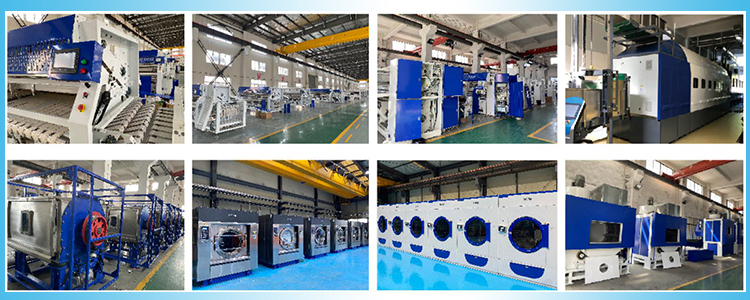

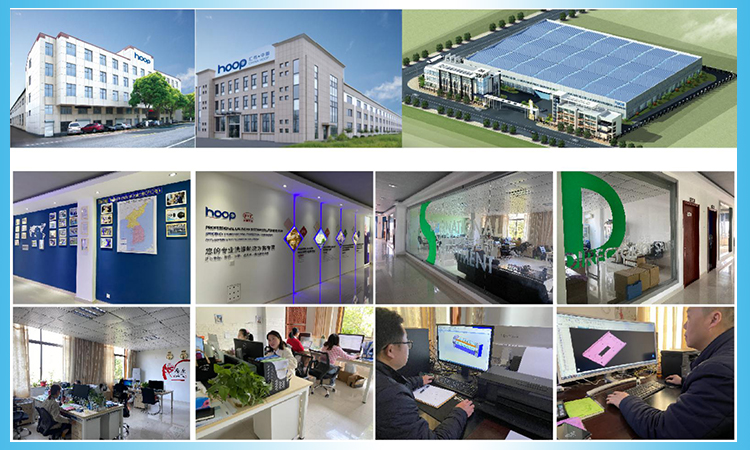

Manufacturer of washing machines and integrated systems
Hoop China, until now, we have always adhered to the original tradition of entrepreneurship, leading the development
A business with consistent values and principles. 27 years of development embody responsibility, dedication and
Hoop's passion and will continue to be embedded in Hoop's future growth and innovation.
A business with consistent values and principles. 27 years of development embody responsibility, dedication and
Hoop's passion and will continue to be embedded in Hoop's future growth and innovation.

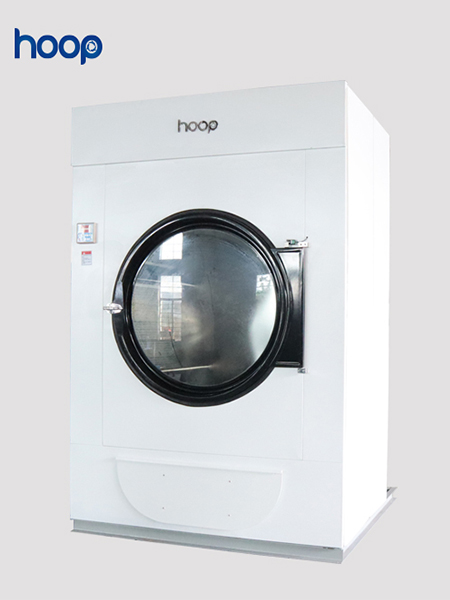

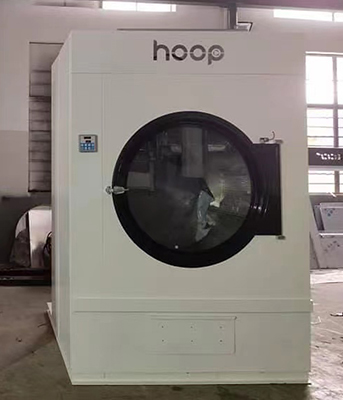

paint tumble dryer
Capacity: 20kg; 30kg; 50kg; 100kg; 120kg; 150kg.

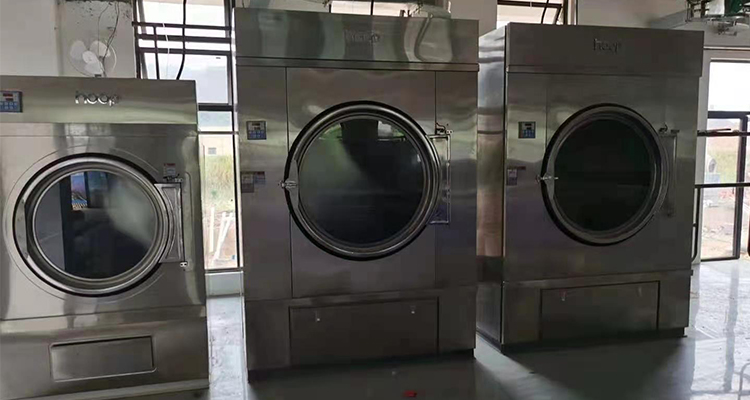

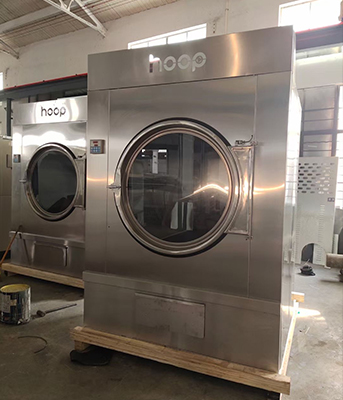

Stainless Steel 304 Tumble Dryer
Capacity: 20kg; 30kg; 50kg; 100kg; 120kg; 150kg.

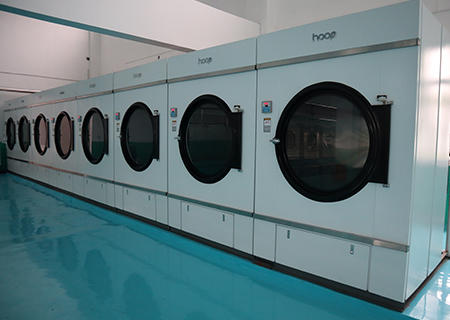

HG series industrial dryer

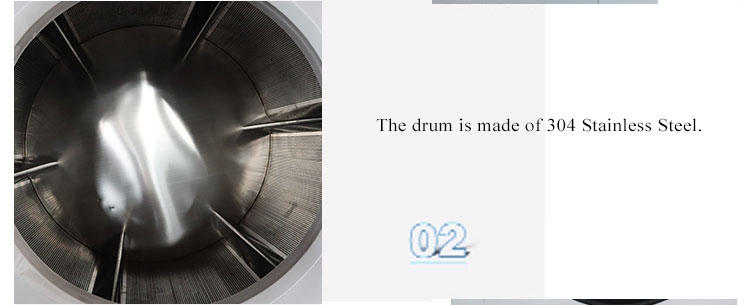

*HG series computer-controlled dryers automatically set temperature and running time. Fast and efficient drying, stainless steel inner cylinder, reliable and durable;

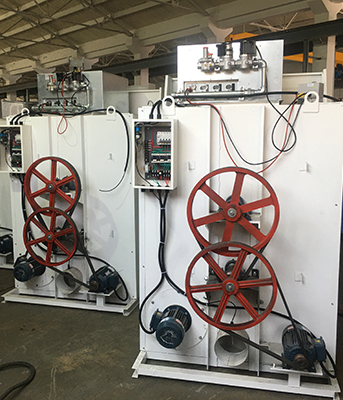

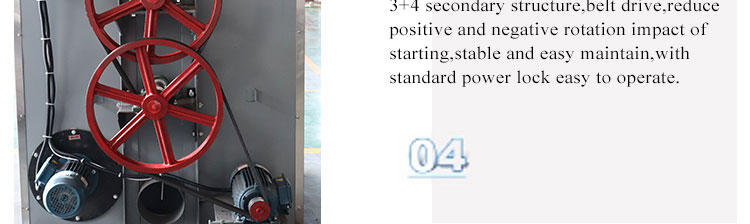

* Adopt secondary V-belt deceleration drive, low noise, small vibration, long service life and easy maintenance;

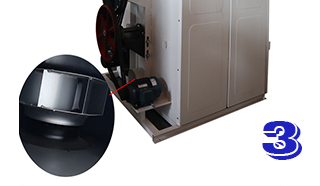

* The fan adopts large-spaced impeller blades, and the plush is not easy to block.
*HG series computer-controlled dryers automatically set temperature and running time. Fast and efficient drying, stainless steel inner cylinder, reliable and durable;
* Adopt secondary V-belt deceleration drive, low noise, small vibration, long service life and easy maintenance;
* The fan adopts large-spaced impeller blades, and the plush is not easy to block.
Model | HG-20/20D | HG-30/30D | HG-50/50D | HG-70/70D | HG-100/100D | |
capacity | Kilogram | 20 | 30 | 50 | 70 | 100 |
Roller size | mm | Ø890X700 | Ø980X840 | Ø1070X1000 | Ø1200X1000 | Ø1500X1100 |
drying time | minute | 40-60 | 40-60 | 40-60 | 40-60 | 40-60 |
Motor Power | kilowatt | 0.75 | 1.1 | 1.1 | 1.5 | 2.2 |
fan power | kilowatt | 0.55 | 0.75 | 1.1 | 1.5 | 1.5X2 |
heating power | kilowatt | 18 | twenty four | 40 | 58 | 70 |
steam pressure | MPa | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 |
steam consumption | kg/hour | 40-45 | 60-70 | 90-100 | 130-140 | 180-200 |
gas consumption | m3/hour | 2.5 | 3 | 5 | 7 | 10 |
aspect | Meter | 1*1.2*1.8 | 1.1*1.25*1.87 | 1.25*1.6*2 | 1.38*1.7*2.2 | 1.65*2*2.43 |
machine weight | Kilogram | 340 | 385 | 550 | 596 | 1000 |

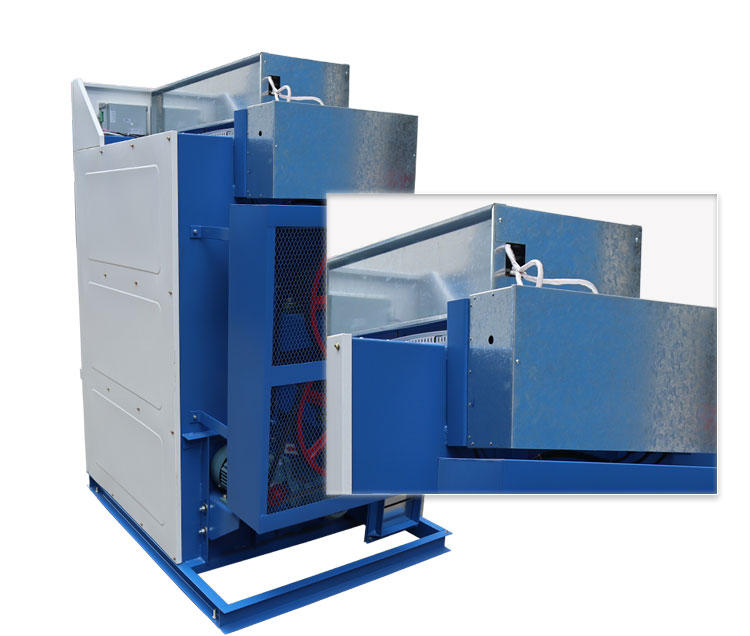

electro-thermal:
There is an electric heater on the top of the dryer.

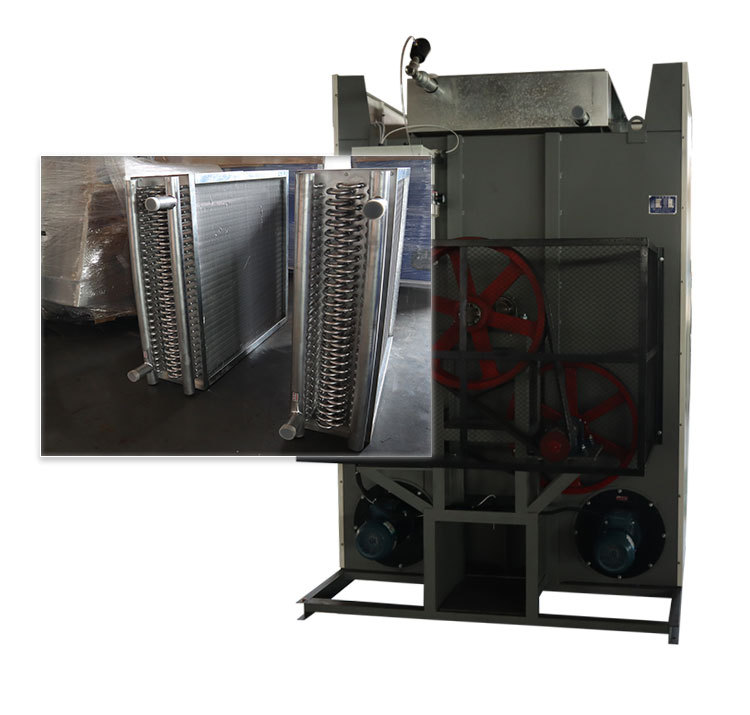

Steam heating:
There is a radiator on top of the dryer.

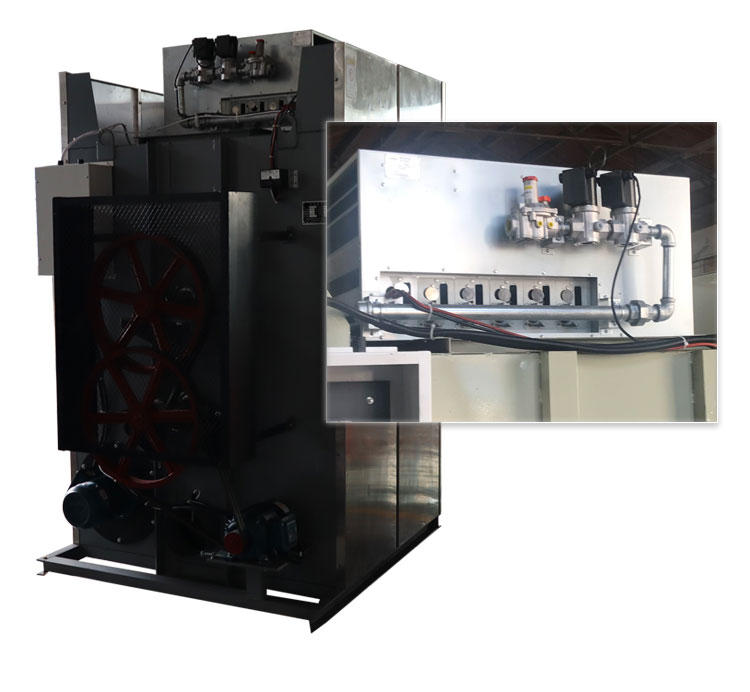

Gas heating:
There is a gas heater on top of the dryer.
The dryer adopts electric heating design, which can be heated by steam or gas;
If you want to know the difference between them, please contact sales and they will teach you how to choose;
The heat exchanger used has high power and stainless steel structure, which ensures good anti-corrosion performance and mechanical strength.

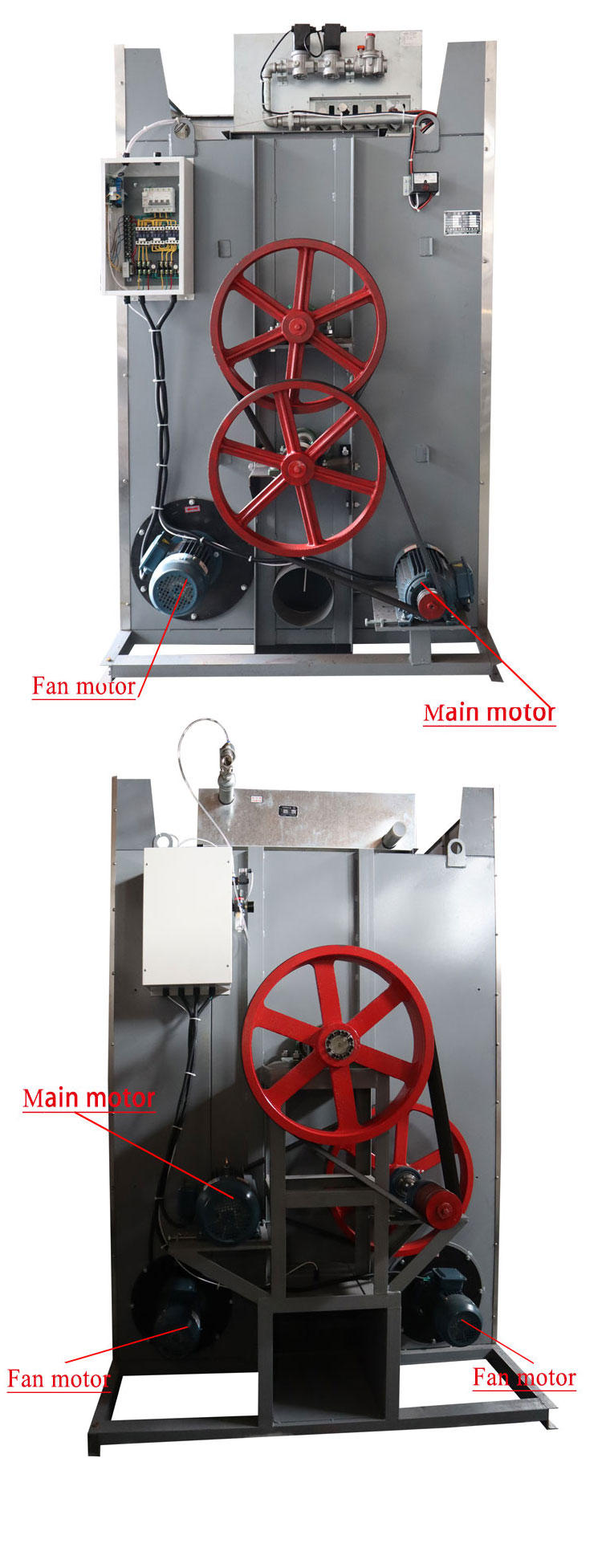

20kg; 30kg; 50kg; 70kg tumble dryer
Capacity from 10kg to 70kg has a main motor and a fan motor.
Capacity from 10kg to 70kg has a main motor and a fan motor.
100kg; 120kg; 150kg tumble dryer
Capacity from 100kg to 150kg has one main motor and two fan motors.
Capacity from 100kg to 150kg has one main motor and two fan motors.
Insulation
Each metal part of the dryer has been acidified and phosphated to ensure the sealing of the surface paint, which not only ensures the beautiful appearance of the dryer, but also prolongs the service life of the dryer; the jacket of the dryer is fully Insulation, maximum heat retention, and low noise.
The tumbler turns clockwise and counterclockwise during the drying cycle, which facilitates rapid heat exchange and avoids tangles, thereby improving drying results.
The tumbler turns clockwise and counterclockwise during the drying cycle, which facilitates rapid heat exchange and avoids tangles, thereby improving drying results.

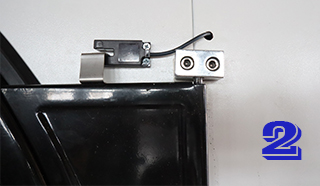

1. Door interlocking system
When the door is opened during work, the machine will automatically stop. And with emergency stop button, with door interlock system, when the machine is still working to open the door, the machine will automatically stop;
When the door is opened during work, the machine will automatically stop. And with emergency stop button, with door interlock system, when the machine is still working to open the door, the machine will automatically stop;

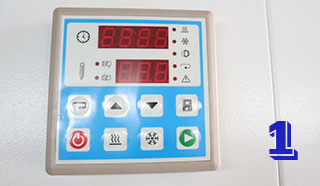

2. Computer control, easy to operate
Advanced computer-controlled LCD screen, 5-segment programmable, according to different linen requirements, running under different temperature, time and rotation direction, with good performance.
*It can be operated manually when drying, and the operation is simple;
*After drying, the cooling system ensures better drying effect through pressure time and temperature;
Advanced computer-controlled LCD screen, 5-segment programmable, according to different linen requirements, running under different temperature, time and rotation direction, with good performance.
*It can be operated manually when drying, and the operation is simple;
*After drying, the cooling system ensures better drying effect through pressure time and temperature;
3. Cooling system
After the drying is completed, the cooling system turns to cold air, and the cold air enters the drum to cool the linen in a short time. Prevent temperature channeling;
The air outlet is arc-shaped to prevent backflow of exhaust air and facilitate the diffusion of hot air.
After the drying is completed, the cooling system turns to cold air, and the cold air enters the drum to cool the linen in a short time. Prevent temperature channeling;
The air outlet is arc-shaped to prevent backflow of exhaust air and facilitate the diffusion of hot air.

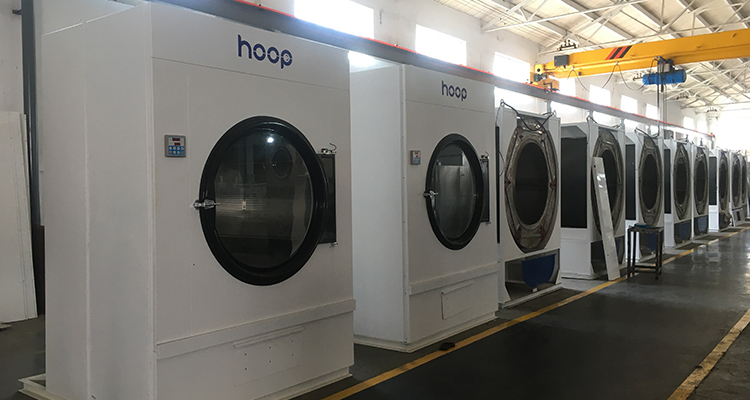

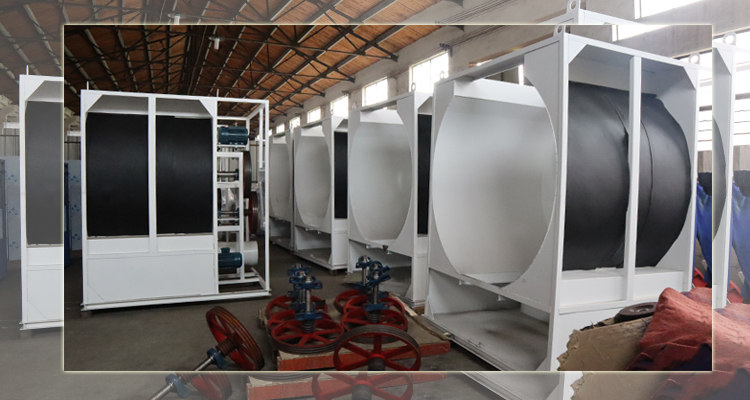

Regarding lead time after ordering, we mass-produce machines to ensure quality and increase production more efficiently.
If we have the machine in stock, it only takes 2-3 days for testing, and then will arrange delivery to customer;
If there is no machine in stock, 10-12 days will be done.
If we have the machine in stock, it only takes 2-3 days for testing, and then will arrange delivery to customer;
If there is no machine in stock, 10-12 days will be done.
