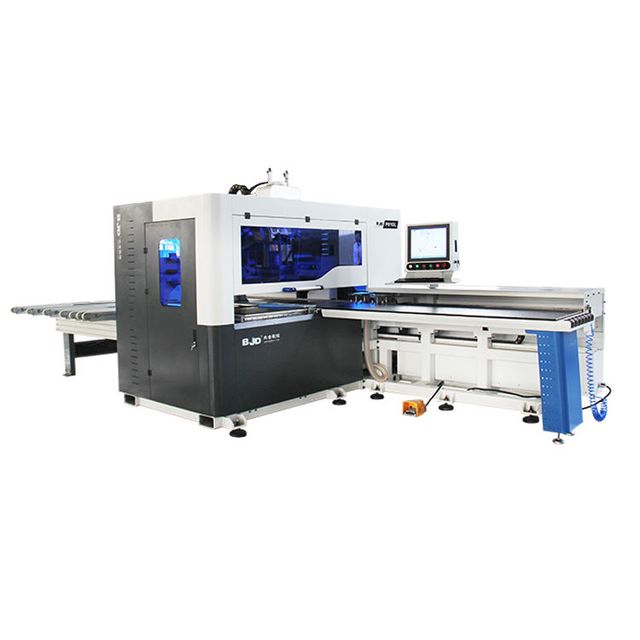

Computer Intelligent CNC Woodworking Horizontal Vertical Drilling and Boring Machine
- $30203.00 /set
- 1 set
- Jiangsu Kangxun Cnc Equipment Technology Co., Ltd.
- Jiangsu, China
- Mr chris zhang
place of origin; place of origin: | Jiangsu, China | weight: | By product |
Maximum working width (mm): | 1220 | Voltage: | 380V 50Hz |
Health status: | new | payment terms: | letter of credit, wire transfer |
Supply capacity: | 300 sets/month high precision boring machine | Type of machine: | 6 surfaces |
Applicable industries: | Hotels, Advertising Agencies, Carpentry | Dimensions (L*W*H): | 4300*2380*2000mm |
After Warranty Service: | Video technical support, online support, spare parts | CNC drill configuration: | 9V |
Video external inspection: | if | brand: | JD.com |
Warranty: | 1 year | Material thickness: | 50mm |
Showroom location: | Vietnam, Russia | Core components: | Bearings, gearboxes, motors |
Mechanical test report: | if | Weight (kg): | 4600kg |
Local service location: | Vietnam, Russia | After-sales service provided: | Online support |
Motor Type: | servo motor | Power (kW): | 28 |
Board width: | 50-1200mm | Power (W): | 28KW |
Control System: | German system | CNC or not: | CNC |
Drilling speed: | 4500 rpm | port: | Shanghai Port |
Upper CNC drill configuration: | 12V8H | Certification: | Chief Executive |
Marketing Type: | Hot Products of 2019 | Packaging Details: | Plastic film and plywood enclosure or packaging according to your requirements. |
Core Components Warranty: | 1 year | Spindle power: | 3.5KW*2 |
Main selling point: | automatic |

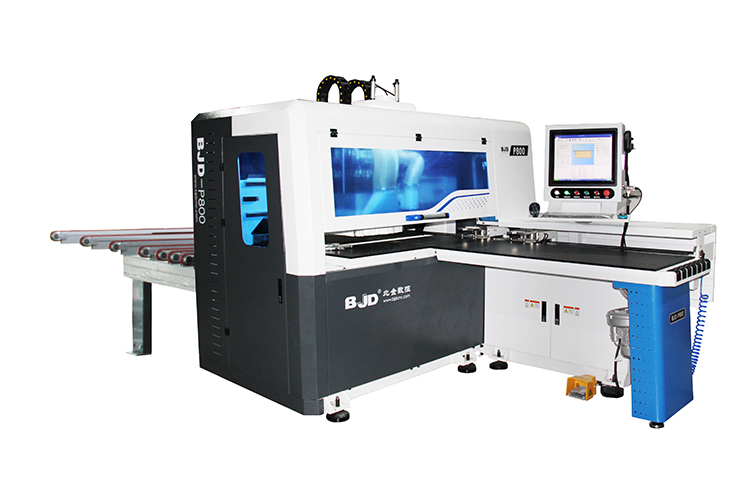

Woodworking CNC wood drill high precision boring machine
High-precision boring machine
application:
Suitable for panel furniture, cabinet doors, office furniture, custom furniture, door industry and other industries.
Material:
Multilayer board, particle board, ecological board, density board, wave board, etc.

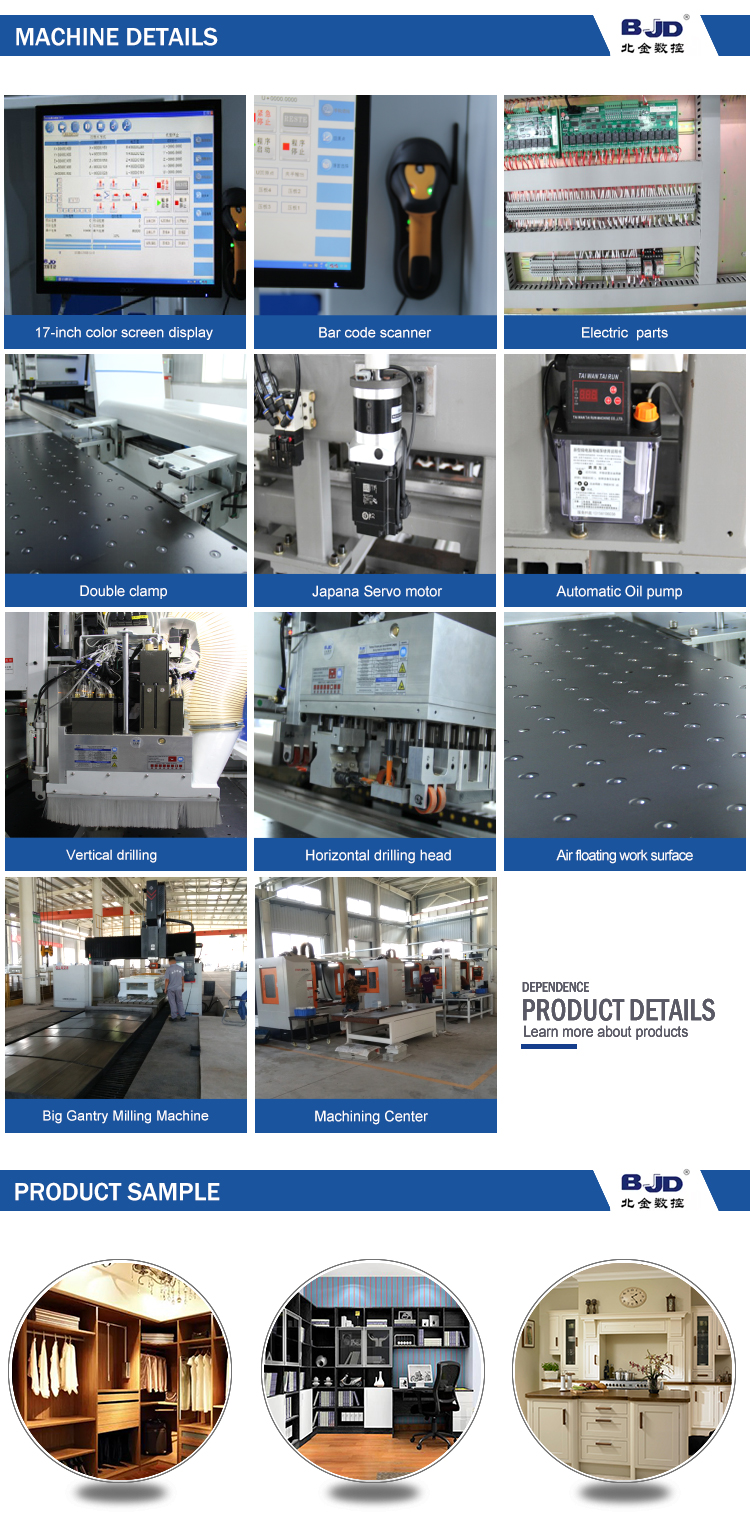

Machine Features:
1. A high-speed, continuous processing CNC drilling equipment, which can be connected to the software, the largest workpiece is 2400*1200mm, - a worker can process more than 1150 workpieces per day;
The feeding table is an air-floating table, which can effectively protect the workpiece from being scratched during the sliding process;
2. Double clamps, automatically adjust the position of the splint according to the length of the plate, and can easily process small or large plates without additional adjustment;
3. The worker only needs to scan the barcode, and the machine can automatically complete the whole process of drilling the six sides of the workpiece and the upper and lower grooves of the workpiece, without manual technical intervention, to achieve zero-error processing;
4. According to the different production needs of users, choose different discharge methods (forward before, forward and backward), or choose automatic conveying rollers or side unloading, which is convenient for connection or side unloading for multi-machine production. side.
technical parameter
Model |
BJD-P810DL |
Machine size |
5210*2700*2220mm |
board length |
no limit |
board width |
35-1220mm |
Material thickness |
60mm |
Maximum feed height. |
60mm |
maximum operating speed |
X: 150m/min Y: 150m/min Z: 50m/min u: 50m/min |
Control System |
German system |
Spindle power |
3.5KW*2 |
Spindle speed |
0-18000r/min |
Other power (excluding spindle) |
6KW (without dust collector and vacuum pump) |
Operating Voltage |
380V 50Hz |
CNC drill configuration. |
12V8H |
CNC drill configuration |
9V |
Drilling speed |
4500 rpm |
Drilling power |
2.2KW |
