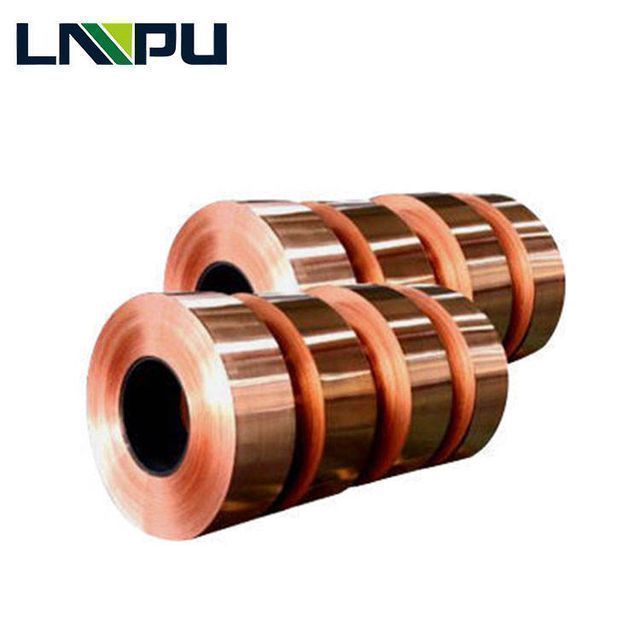

Copper strip 99.9% Pure copper strip C11000 Copper strip
- $3500.00 / 2 - 9 pieces
$2000.00 / >=10 pieces - 2 pieces
- Zhengzhou LP Industry Co., Ltd.
- Henan, China
- Mr Mark Zhang
PRODUCT DETAIL
| MOQ: | 1000 kg | Alloy number: | C1100, C1011, C1020, C1201, C1220, C11000 |

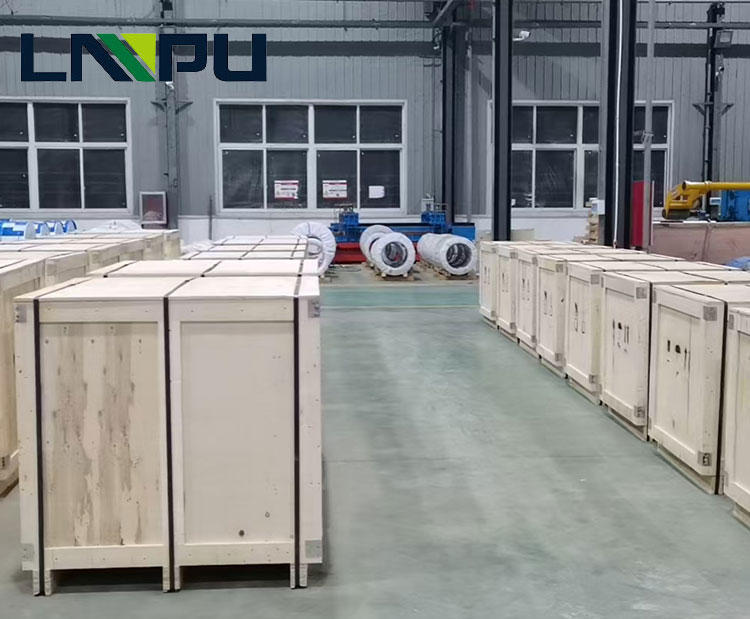

| Width (mm): | 20 mm to 1000 mm | Packaging Details: | Copper foil packaging details: (1) Standard seaworthy export packaging, wooden pallet with plastic protection for coils and plates (2) Packaging can be eye-to-sky or eye-to-wall according to customer requirements |
| application: | Transformers, Transformers, Heaters/Construction/Aerospace | port: | Qingdao, Shanghai, Tianjin port |
| brand: | LP industry | product name: | Copper foil strip for transformer |
| payment terms: | L/C, Western Union, T/T | Processing services: | Bending, cutting, punching |
| grade: | 1000 series | Origin: | Henan, China |
| model: | 1200 mm x 600 thickness 0.6 and 0.8 | Supply capacity: | 12000 tons per month |
| Thickness (mm): | 0.1 mm to 3 mm | standard: | ISO9001,ISO14001 |
| feather: | Stable, Consistent, High Quality | width: | 20mm - 1000mm |
| Copper (minimum): | 99.99%, 99.99% | Alloy or not: | Unalloyed |
| Material: | Copper |
Product Description

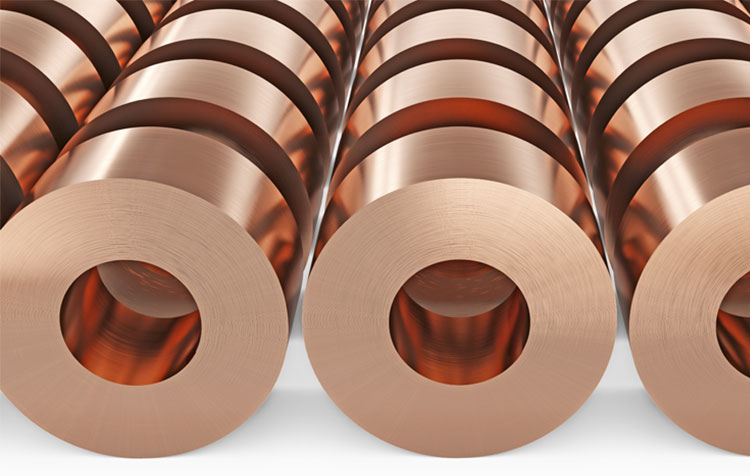

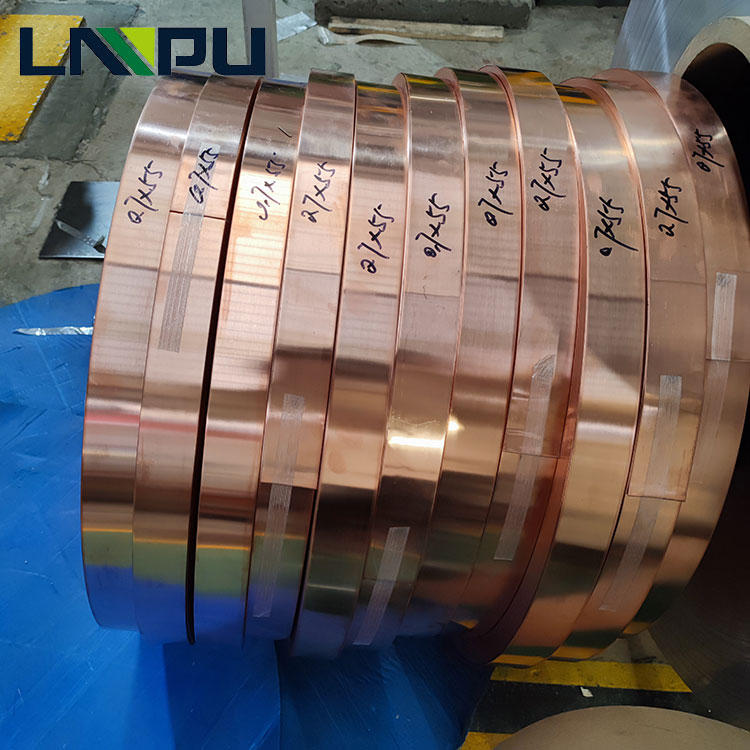

copper foil
Power line copper foil, or copper foil. The surface is clean, free of oil stains, the edges are deburred, the conductivity is high, and the paper is interlaced. It is mainly used to manufacture the shielding layer of power cables, which plays the role of shielding signals and interfering with electromagnetic waves. Copper strip is a metal element with a thickness from 0.1mm to 3mm and a width from 50mm to 250mm. Copper strip products in various states are mainly used in the production of electrical components, lamp holders, battery caps, buttons, seals and plug-ins, mainly for electrical, thermal and corrosion-resistant equipment.
characteristic | unit | value | |
thickness | mm | 0.05-2.0 | |
width | mm | 10-600 | |
copper purity | % | ≥99.9 | |
tensile strength | Newton/square millimeter | ≥195 | |
20°C Resistivity (Conductivity) | Ω·mm2/m (%IACS) | ≤0.017241 (≥100%) | |
standard | GB/T11091, JIS H3100, ASTMB152 | GB/T11091, JIS H3100, ASTMB152 | |
Copper Tape Grade: | T1, T2, T3, C1100, TU1, TU2, TP1, TP2, TAg0.08, TAg0.1, C1100, C1011, C1020, C1201, C1220, C11000, etc. | ||

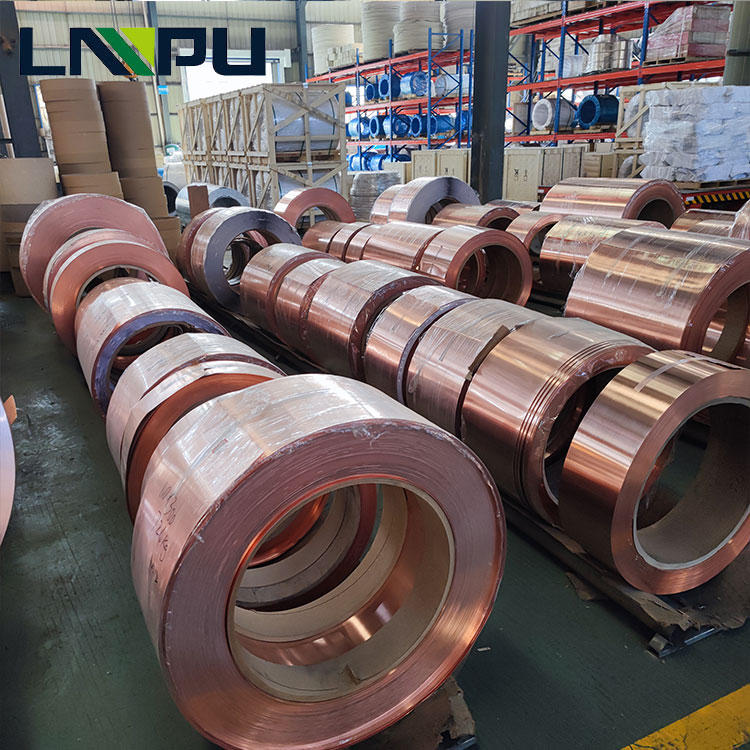

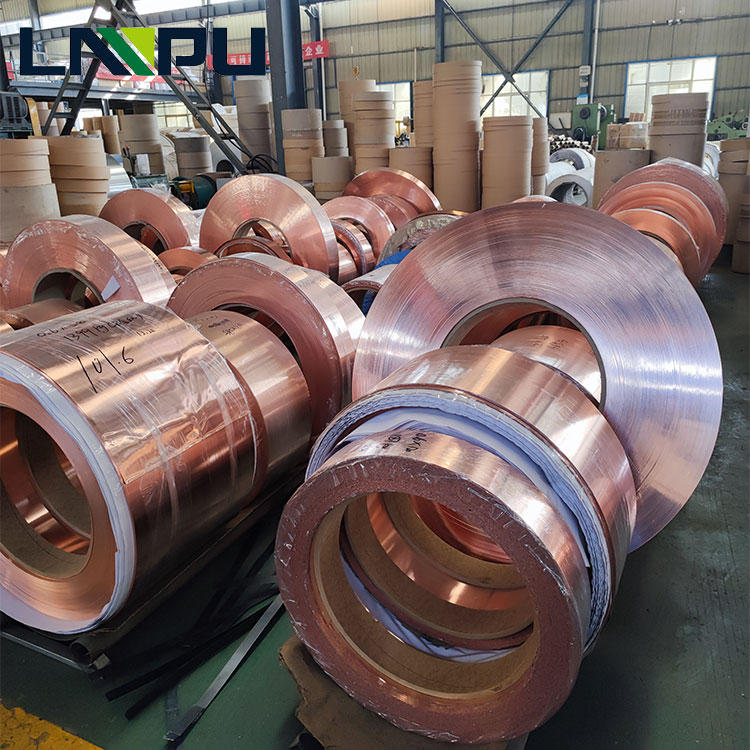

factory
excellent choiceGood cold plasticity, good machinability, easy fiber welding and weldingSeiko productionGood mechanical properties, good thermoplasticityhigher purityHigh purity, fine structure, low oxygen content
