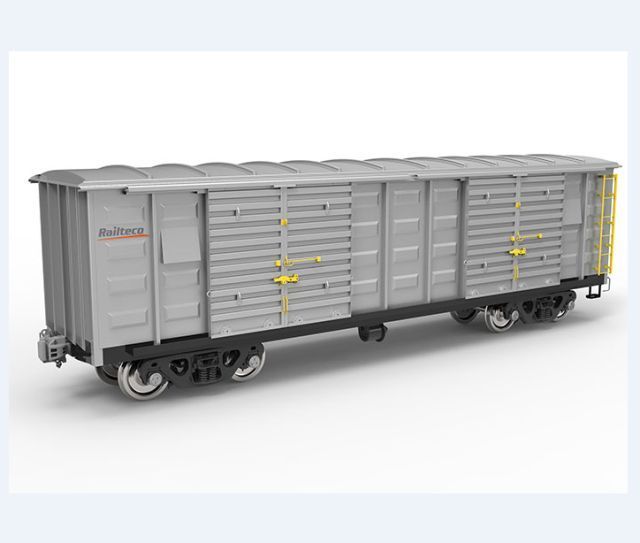

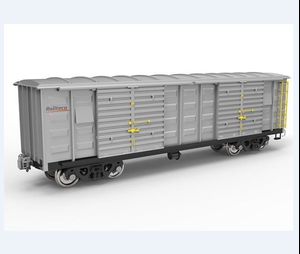

Covered Wagon
- $52000.00 / >=10 sets
- 10 sets
- Jiangsu Railteco Equipment Co., Ltd.
- Jiangsu, China
- Ms Joyce Jiang
PRODUCT DETAIL
| Load capacity: | 33t; | Max. operating speed: | 80km/h; |
| Material: | Carbon steel; | Dimensions (L x W x H) (mm): | 12323*3327*3327; |
| Port: | Shanghai, China; | Packaging Detail: | Railteco standard packing; |
| Preload: | 31 - 50t; | Place of Origin: | China; |
| Minimum curve radius: | 60m; | Supply Ability: | 30 Sets per Month; |
| Tare weight: | 15t; | Payment Terms: | L/C,T/T; |
| Brand Name: | Railteco; | Type: | Covered wagon; |
| Volume: | 64CBM; | Axle load: | 12t; |
| Track gauge: | 1000mm; |
Product Description
Covered Wagon
Application：
The wagon can be used for shipments of goods that are subject to sun exposure, rain, and snow, as well as boxed and bagged goods.
Main Characteristics：
- The wagon has the characteristics of light weight, heavy load, long service life;
- The main material of the wagon is weather resisting steel, and the body has strong corrosion resistance;
- The side door can be rearranged according to customers' usage habits；
- Thermal insulation liners can be added according to customer requirements.
Parameters:
Tare weight | 15t |
Gauge | 1000mm |
Load capacity | 33t |
Axle load | 12t |
Volume capacity | 64m³ |
Min. Curve radius | 60m |
Maximum Operating speed | 80km/h |
Length | 12323mm |
Center distance of core plate | 7772mm |
Max. width | 2600mm |
Max. Height (unloaded) | 3330mm |
Height from track surface to coupler center line (unloaded) | 584mm |
