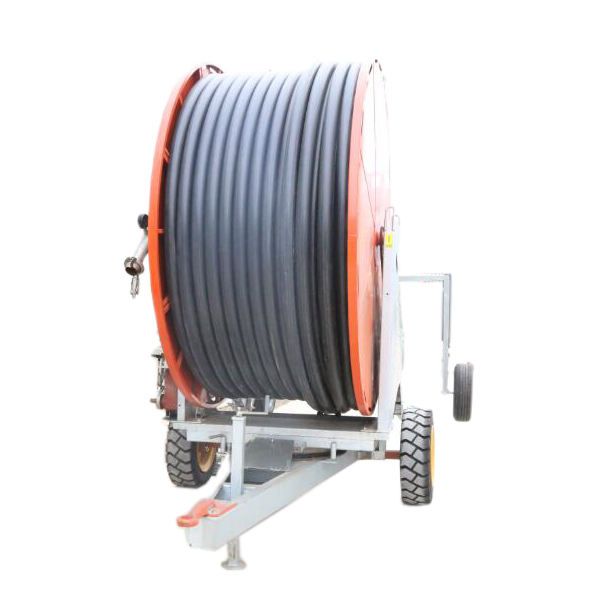

Crops and Field Irrigation Agriculture and Agricultural Irrigation
- $2300.00 /set
- 1 set
- Luohe Orange Mechanical Equipment Co., Ltd.
- Henan, China
- Ms Jasmine Yuan
PRODUCT DETAIL
| Advantage: | low energy consumption; | Warranty: | 1 year; |
| Material: | Metal; | Nozzle working pressure: | 0.35-0.45Mpa; |
| Packaging Details: | Standard export wooden box packaging; | payment terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram,Wechat; |
| diameter: | 75 cm; | benefit: | Great for irregularities; |
| type: | Irrigation system; | port: | any port in China; |
| use: | sprinkle water; | application: | Moderate land irrigation systems; |
| feature: | Water saving and energy saving; | feature: | Simpler operation; |
| Spray uniformity: | ≥85%; | Applicable industries: | Farm, crop and field irrigation; |
| Supply capacity: | 80 sets per month; | Packaging Preview: | ; |
| usage: | agriculture; | Origin: | Henan, China; |
| After-sales service provided: | online support; | Spray length: | ≥320m; |
| State of health: | new; | Applicable slope: | >25%; |
| brand: | orange machine; | Drive Mode: | Turbine drive; |
product description
product description
application
football field
riding arena
paddock
synthetic turf
driving range garden
Corn and Cash Crop Slurry Waste
Wastewater treatment
polo field
Benefits of water reels: Ideal for irregularly shaped fields Portability allows you to cost-effectively irrigate multiple locations Flexibility to apply water at different depths based on individual crop needs Provides coverage for prolonged dry weather Increases row crops, vegetables and Yield of produce Water on demand is ideal for areas where hubs are not feasible
Application effect: Since the roll sprinkler has been put into use, it has played an important role in the agricultural harvest in dry years, and has achieved remarkable economic benefits: 1. Water saving benefits.Compared with channel irrigation, it saves 47% of water, and compared with tube irrigation, it saves 9% of water.2. Improve production efficiency.Compared with channel irrigation, the yield is increased by 25%, and compared with tube irrigation, the yield is increased by 6%.3. Energy-saving benefits: It can save more than 70% energy than traditional irrigation methods.4. Time-saving and labor-saving: easy to operate, each person can operate 6 machines at the same time, and each machine can irrigate 200-300 acres in one cycle.
Model | OR75-300 | OR75/400 |
PE pipe diameter/length | 75mm×300mm Material 0 | 75mmX400m |
spray length | ≥320m | ≥420m |
Nozzle flow | 28.7—32.6m3/h | 28.7—32.6m3/h |
inlet pressure | 4.0～10.0bar | 4.0～10.0bar |
Nozzle diameter | 18mm, 20mm, 22mm | 18mm, 20mm, 22mm |
Nozzle working pressure | 0.35—0.45Mpa | 0.35—0.45Mpa |
Nozzle range | ≥(30m) Control irrigation belt width 60m | ≥(30m) Control irrigation belt width 60m |
Spray Intensity (Precipitation) | 15-50mm/h | 15-50mm/h |
proper slope | >25% | >25% |
recovery speed | 0-115m/h | 0-115m/h |
Spray uniformity | ≥85% | ≥85% |
tire pressure | 3.5bpa ±0.5 | 3.5bpa ±0.5 |
Nozzle tire pressure | 1.2bpa±0.2 | 1.2bpa±0.2 |
ground distance | ≥300mm | ≥300mm |
Nozzle wheel base | 1000-1800mm | 1000-1800mm |
Product display
Packaging and Delivery
Package:Ordinary packaging is wooden.If exported to European countries, the wooden box will be fumigated.
FOB
ocean freight
air transport
about us
Company Profile
Luohe Orange Machinery Equipment Co., Ltd. (Orange) is a professional machinery equipment manufacturer located in Henan Province, China.The company specializes in the production, processing and sales of food machinery, agricultural machinery and other machinery.The main production scopes are: snack food processing machines, candy processing machines, fruit and vegetable processing machines, packaging machines, water drilling machines, and various peeling machines.
The company covers an area of 35,000 square meters and has fixed assets of 10 million yuan.There are more than 100 employees, more than 30 technicians, and more than 100 sets of various production equipment.The equipment includes: large forced presses, digital display lathes, digital display wire cutting equipment, various processing machinery and equipment, etc.The company has national patents and proprietary technology, and has independent...
